Rear view cameras have become an essential component for enhancing vehicle safety and convenience. With a wide range of options available, from backup cameras to integrated rear view mirror monitors, understanding how to install these devices can be incredibly beneficial. In this guide, we'll explore the installation process for different types of rear view cameras, helping you make informed decisions to improve your driving experience.
Understanding Rear View Camera Types
Before diving into the installation, it's important to understand the types of rear view cameras available. Each type serves a specific purpose and has unique installation requirements.
- License Plate Cameras: These are easy to install as they mount directly to the top bolts of your license plate. Options like the Heise TE-BPC Above License Plate Camera offer a 170-degree viewing angle and selectable parking assist lines.
- Tailgate Handle Cameras: Ideal for trucks, these cameras replace or integrate into the tailgate handle, providing a factory-installed look. Products like the Heise TE-DGH Ram Factory Replacement Tailgate Handle Camera offer a wide field of view and night vision capabilities.
- Universal Cameras: These cameras, such as the Heise TE-CCM1 Universal Commercial Camera, can be mounted in various locations and often include additional features like built-in microphones.
- Mirror Monitors: Products like the Heise TE-RM7 Mirror/Monitor combine a rear view mirror with a built-in monitor, perfect for vehicles without a display screen.
Preparing for Installation
Proper preparation is key to a successful installation. Begin by gathering the necessary tools and materials, which may include screwdrivers, a drill, electrical tape, and a wiring harness. It's also important to review the installation instructions provided with your specific camera model.
Step-by-Step Installation Process
1. Mounting the Camera
Depending on the type of camera, the mounting process will vary:
- License Plate Cameras: Remove the license plate and attach the camera using the existing bolt holes. Ensure the camera is centered and secure.
- Tailgate Handle Cameras: Remove the existing tailgate handle, install the camera, and reattach the handle. Make sure the camera is aligned properly for optimal visibility.
- Universal Cameras: Choose a location that provides a clear view behind the vehicle and securely attach the camera using the provided mounts.
2. Wiring the Camera
Connect the camera's power and video cables to your vehicle's electrical system. This typically involves connecting the power wire to the reverse light circuit, allowing the camera to activate when the vehicle is in reverse. Route the video cable to the monitor or display unit, ensuring all wires are hidden and secure.
3. Connecting to a Display
If using a mirror monitor or dash-mounted screen, connect the video output from the camera to the appropriate input on the display. Products like the Heise TE-7VS Dash Mount Monitor provide multiple inputs for easy integration.
Testing and Final Adjustments

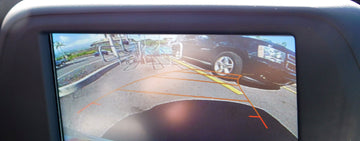

Once installation is complete, test the camera system to ensure it functions properly. Check the viewing angle and adjust the camera if necessary. Verify that the display shows a clear image and that any parking assist features are working as intended.
Installing a rear view camera can greatly enhance your vehicle's safety and convenience. For more options and to find the right camera system for your needs, explore the wide selection of rear view cameras available at Horizon Gear Co.
