Specifications

Fuel Pump Type: Electric external

Flow Rate: 216 gph/817 lph

Fuel Pressure (psi): 70 psi

Fuel Pump Voltage: 12 V

Fuel Pressure Regulator Included: No

Sending Unit Included: No

Fuel Pump Inlet Size: -12 AN

Inlet Quantity: 1

Inlet Attachment: Female straight cut O-ring

Fuel Pump Outlet Size: -10 AN

Outlet Quantity: 1

Outlet Attachment: Female straight cut O-ring

Gasket Included: No

Wiring Harness Included: No

Mounting Bracket Included: No

Mounting Hardware Included: No

Pulley Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: Pump is rated at 1,300 lbs./hr. at 8 psi and 1,000 lbs./hr. at 45 psi with 13.5 volts. Fully submersible for custom, in-tank placement. Maximum continuous operating pressure should not exceed 70 psi.

Overview

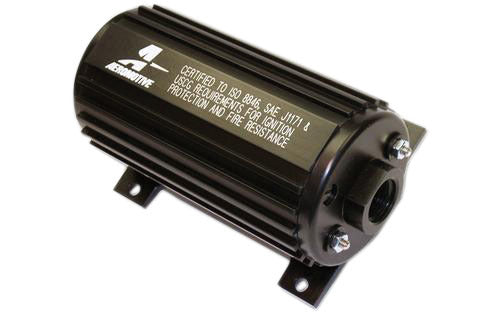

With 25 percent more flow than the A1000 model, Aeromotive Eliminator marine fuel pumps help eliminate poor performance by feeding your engine with enough fuel to maintain strong output.

Eliminators are certified to ISO 8846, SAE J1171, and United States Coast Guard requirements for ignition protection and fire resistance.

These marine pumps are built to survive over 2,000 hours of continuous run time. Battle the waters successfully with Aeromotive Eliminator marine fuel pumps on board.

Features

• Compatible with all pump and racing gasoline
• Up to 2300 hp, carbureted engine naturally aspirated
• Up to 1700 hp, carbureted engine forced air induction
• Up to 1900 hp, fuel injected engine naturally aspirated
• Up to 1400 hp, fuel injected engine forced air induction
