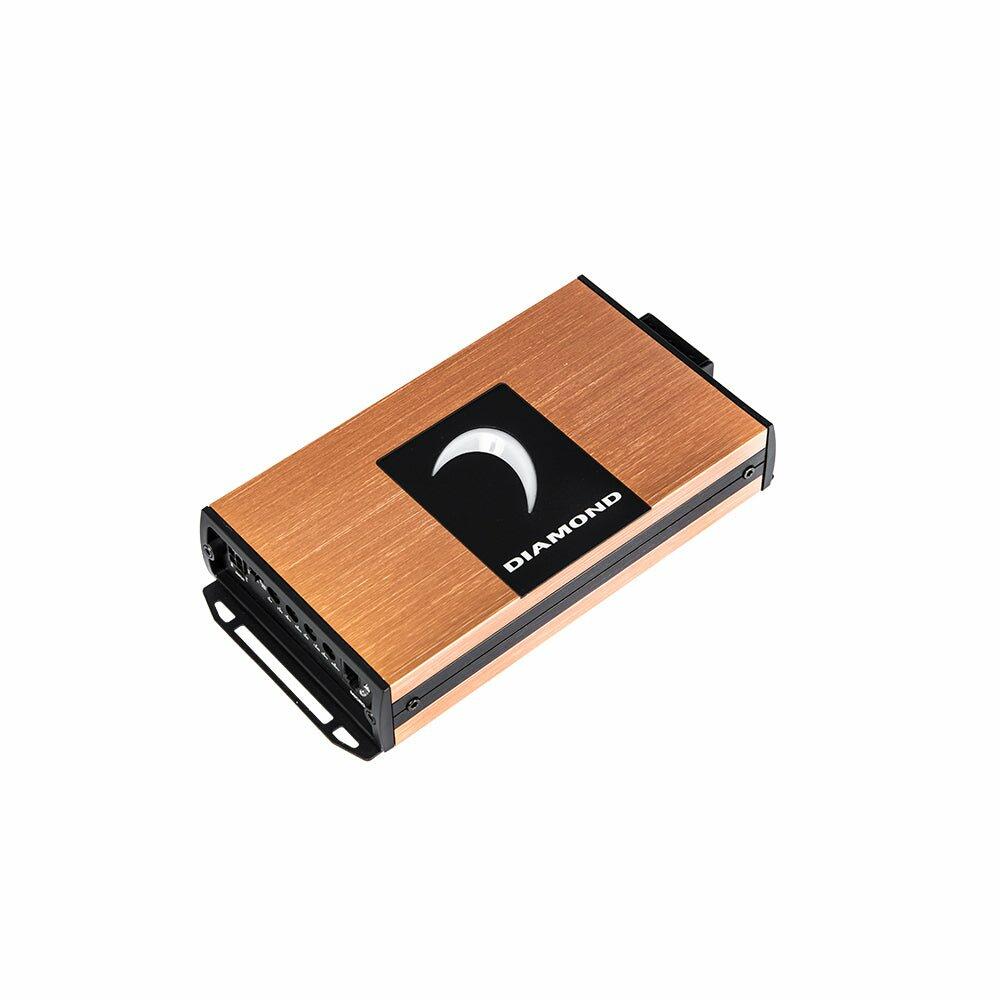

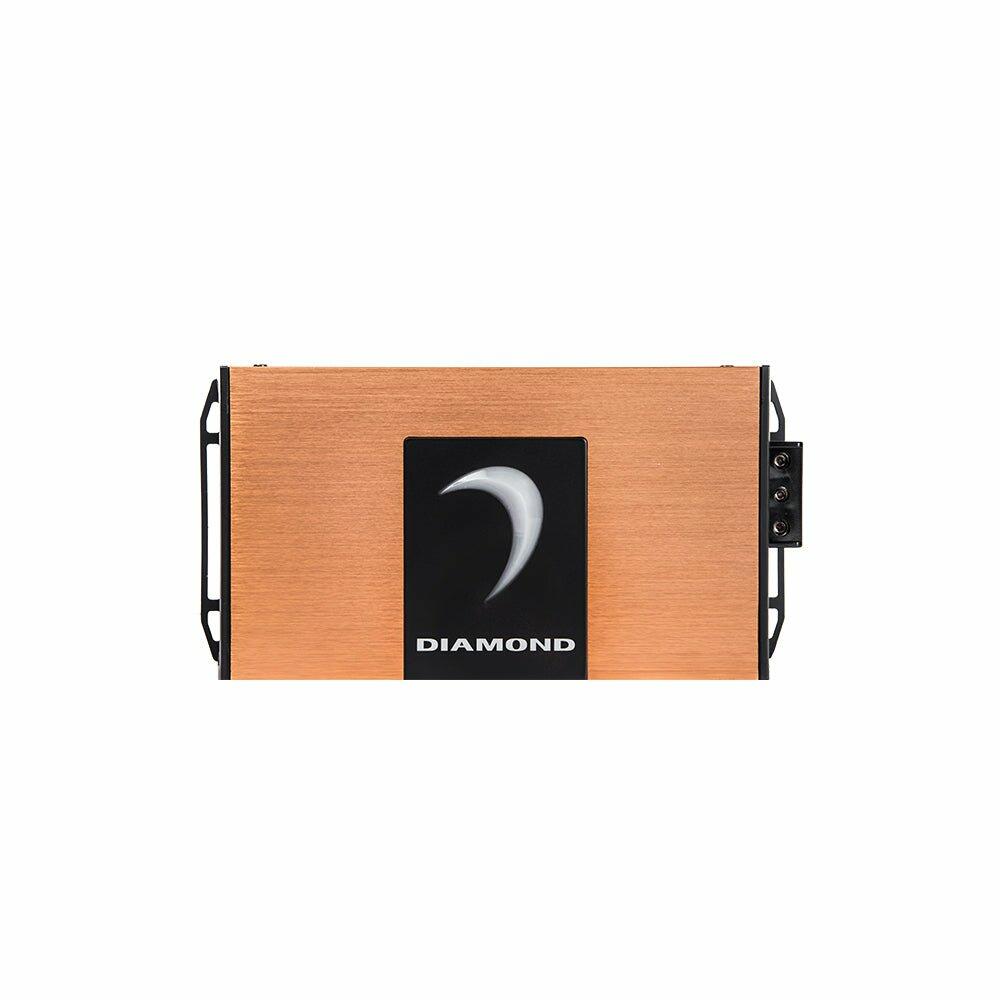

Diamond Audio MICRO1V2 1-Channel MICROV2 Series Monoblock Class D Amplifier - MICRO1V2
1-Channel Monoblock Class D Amplifier
Deliver powerful, controlled bass in a compact footprint with the Diamond Audio MICROV2 1-Channel Monoblock Class D Amplifier. Engineered for efficiency and performance, this monoblock car audio amplifier is designed to drive subwoofers with precision, making it ideal for car audio, marine, motorcycle, and powersports systems where space and reliability matter.
Built using ultra-efficient full-range Class D topology, the Diamond Audio MICROV2 monoblock amplifier produces impressive power in a small chassis, delivering 500W x 1 at 1 ohm, 300W x 1 at 2 ohms, and 175W x 1 at 4 ohms RMS. This makes it the perfect subwoofer amplifier for tight, impactful bass and consistent performance across a wide range of audio setups.
The MICROV2 Class D amplifier features an advanced Direct FET power MOSFET output stage, ensuring clean, efficient power delivery with minimal distortion. Combined with balanced differential inputs, this high-performance amplifier provides noise-free signal transmission, even in complex installations.
Designed for durability, the Diamond Audio MICROV2 amplifier includes advanced Rollback and Thermal Protection, preventing overheating and ensuring uninterrupted playback. Its high-density aluminum alloy chassis improves heat dissipation while maintaining an ultra-compact design for flexible installation in tight spaces.

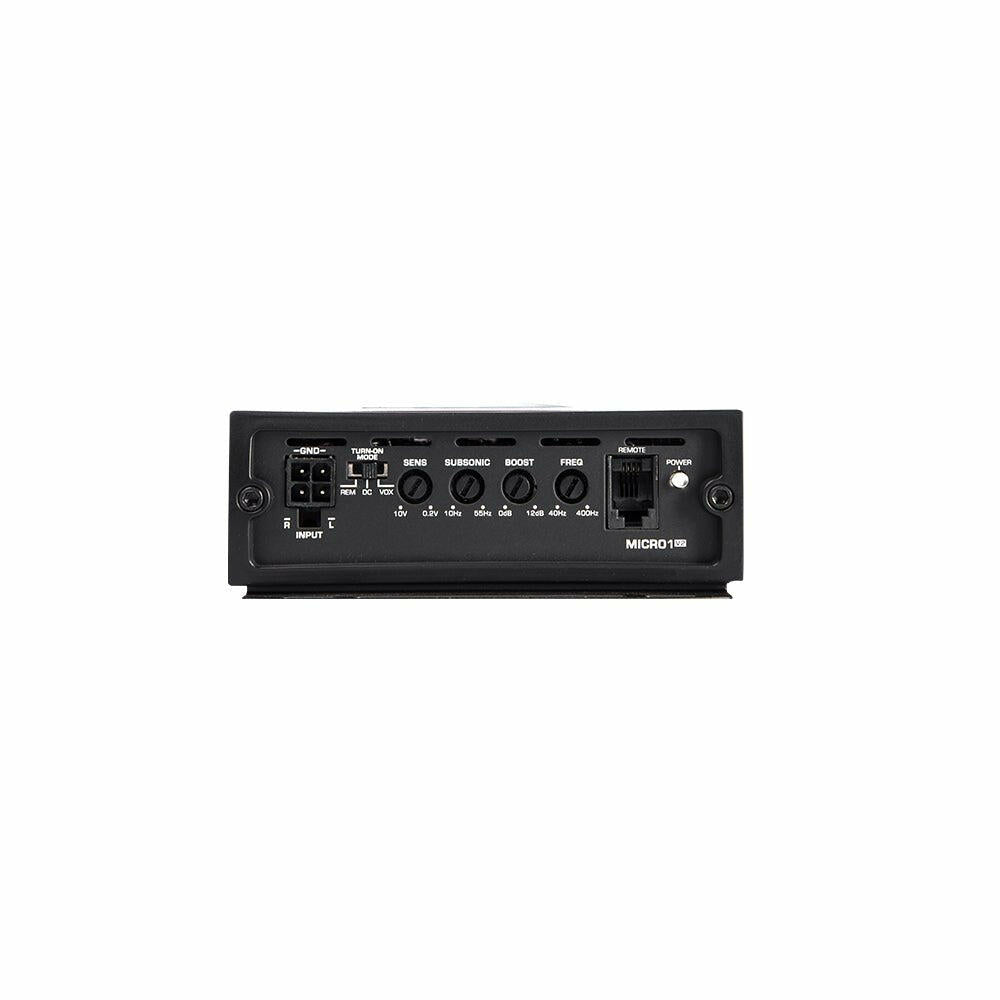

For precise tuning, the MICROV2 monoblock amplifier includes a 40400Hz low-pass crossover (24dB slope), Diamond bass boost EQ (12dB @ 45Hz), and adjustable input sensitivity (0.210V). The included remote bass knob allows real-time control of subwoofer output, giving you full command of your bass performance.

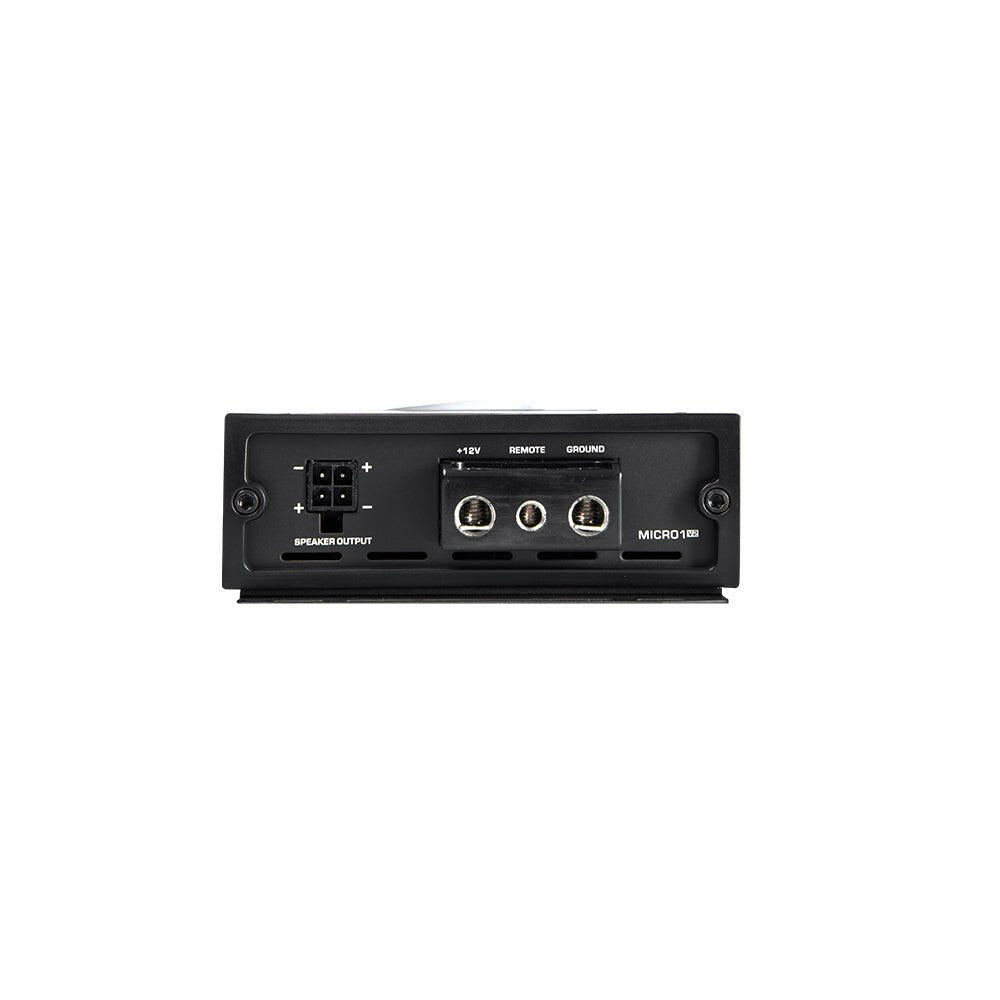

Installation is seamless with selectable REM, VOX, and DC turn-on modes, ensuring compatibility with factory and aftermarket head units.
Key Features
1-channel monoblock Class D amplifier
500W x 1 @ 1 / 300W x 1 @ 2 / 175W x 1 @ 4 RMS
Ultra-compact aluminum chassis design
Advanced Rollback & Thermal Protection
Balanced differential inputs for clean signal
24dB low-pass crossover and bass boost EQ
Selectable REM / VOX / DC turn-on modes
Includes remote bass knob and wiring harness kits
The Diamond Audio MICROV2 Monoblock Amplifier delivers deep, powerful bass with exceptional efficiency, making it the perfect solution for high-performance subwoofer systems in any environment.
FEATURES
-
- Ultra-compact, high density aluminum alloy chassis provides superior thermal stability | Four layer, glass epoxy circuit board for enhanced performance and reliability | Full Range Class D amplifier technology | Balanced differential inputs for superior noise rejection | Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input
- Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC) | Fully variable, 12dB per octave, electronic crossover | Variable 18dB per octave sub-sonic filter | Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included | Illuminated logo
- Specifications: RMS Power Rating | RMS Power (2Ω): 300W | RMS Power (4Ω): 175W | Bridged (mono 1Ω): 500W | Bridged (mono 2Ω): 300W | Bridged (mono 4Ω): 175W | Topology: Full Range Class D | Power Supply - Power Supply: Full PWM | Power Supply Threshold: 10.0VDC - 17.0VDC | Idle Current: (0.7A)
- Distortion - THD 4 (1KHx @ 4Ω): 0.5% | S/N Ratio (A weighted @1W): -85dBA | S/N Ratio (A weighted @FP): -101.1dBA | Input Sensitivity - Low Input Level: 200mV - 10.0V | High Input Level: N/A | Input Impedance - Low Input Level: 20KΩ | High Input Level: 20KΩ
- Output Stage - Output Impedance: 0.011Ω | Damping Factor (50Hz@4Ω): >250 | Bandwidth (-3dB): 10Hz - 350Hz | Crossover (-12dB/Oct) - Variable High-Pass: N/A | Variable Low-Pass: 40Hz - 400Hz | Variable Sun-Sonic: 10Hz - 55Hz | Fuse Ratings: ATC: 25A | Dimensions: 7.89” L x 4.0” W x 1.46” H
