Diamond Audio MICRO2V2 2-Channel MICROV2 Series Full Range Class D Amplifier - MICRO2V2
2-Channel Full Range Class D Amplifier
Experience powerful performance in a compact footprint with the Diamond Audio MICROV2 2-Channel Full Range Class D Amplifier. Engineered for efficiency and versatility, this compact car audio amplifier delivers impressive output while maintaining exceptional sound clarity. Perfect for car audio, motorcycle, marine, and powersports systems, the MICROV2 amplifier is built for enthusiasts who demand high performance without sacrificing space.
Utilizing ultra-efficient full-range Class D topology, the Diamond Audio MICROV2 2-channel amplifier produces 150W x 2 at 4 ohms, 250W x 2 at 2 ohms, and 500W bridged at 4 ohms, making it ideal for powering speakers or subwoofers in a wide range of applications. The advanced Direct FET power MOSFET output stage ensures clean, dynamic sound with minimal distortion.
Designed with reliability in mind, the MICROV2 Class D amplifier features advanced Rollback and Thermal Protection, allowing continuous play without overheating or shutdown. Its high-density aluminum alloy chassis enhances heat dissipation while maintaining a sleek, ultra-compact design for easy installation in tight spaces.

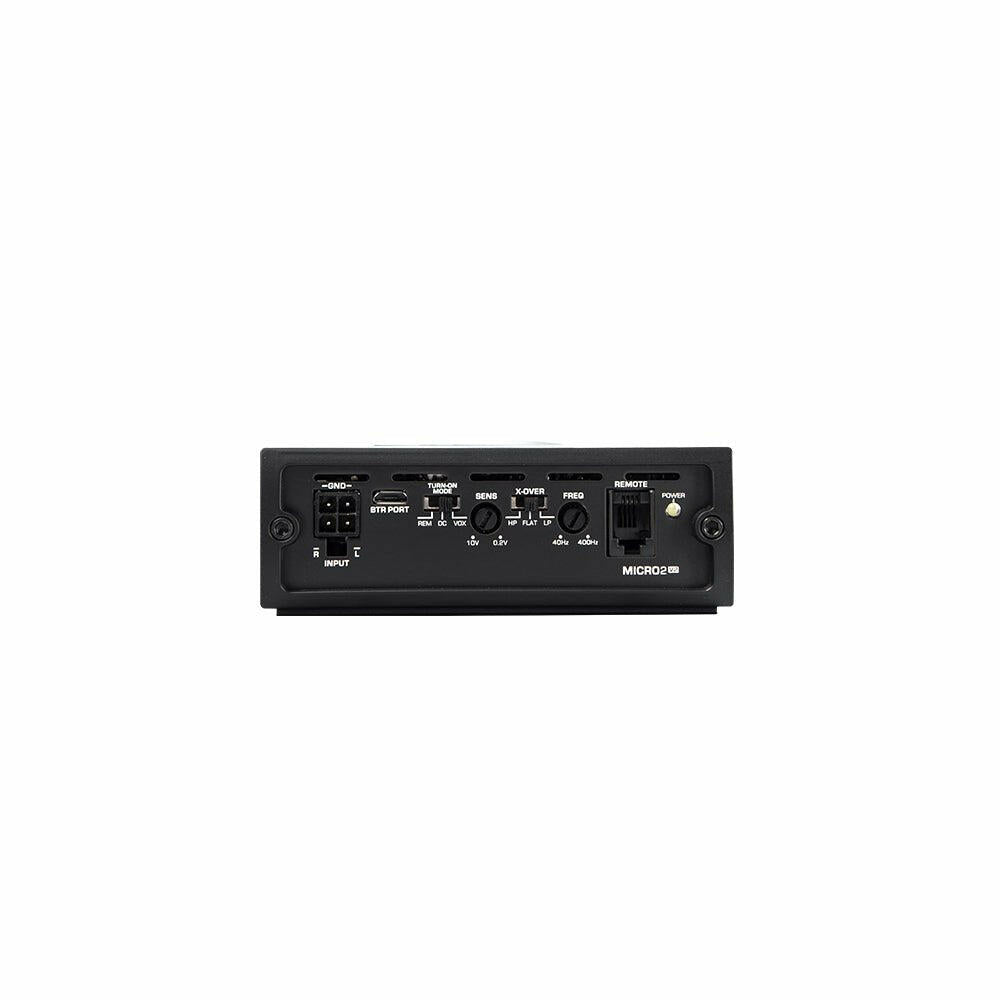

The Diamond Audio MICROV2 amplifier also includes balanced differential inputs, reducing noise and ensuring clean signal transmission even in complex installations. With selectable LPF / FLAT / HPF crossovers, a 40400Hz adjustable crossover filter, and 12dB bass boost at 45Hz, this versatile car audio amplifier provides precise tuning for optimal performance.
Installation is simple with selectable REM, VOX, and DC turn-on modes, making it compatible with factory and aftermarket head units. The included remote bass knob allows on-the-fly control of low-frequency output for a customized listening experience.
Key Features
2-channel full range Class D amplifier
150W x 2 @ 4 / 250W x 2 @ 2 / 500W bridged
Ultra-compact aluminum chassis design
Advanced Rollback & Thermal Protection
Balanced differential inputs for noise-free signal
Adjustable crossover and bass boost control
Selectable REM / VOX / DC turn-on modes
Includes remote bass knob and wiring harness kits
The Diamond Audio MICROV2 2-Channel Amplifier delivers powerful, clean, and efficient performance in a compact design, making it the perfect upgrade for any high-performance audio system.
FEATURES
- Ultra-compact, high density aluminum alloy chassis provides superior thermal stability | Four layer, glass epoxy circuit board for enhanced performance and reliability | Full Range Class D amplifier technology | Balanced differential inputs for superior noise rejection | Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input | Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
- Fully variable, 12dB per octave, electronic crossover | Variable 18dB per octave sub-sonic filter | Adjustable Bass EQ (45Hz: 0dB to +12dB) | Wired Remote Level Control included | Illuminated logo
- RMS Power Rating - RMS Power (2Ω): 250W X 2 | RMS Power (4Ω): 150W X 2 | Bridged (mono 1Ω): N/A | Bridged (mono 2Ω): N/A | Bridged (mono 4Ω): 500W | Topology: Full Range Class D | Power Supply: Full PWM | Power Supply Threshold: 10.0VDC - 17.0VDC | Idle Current: (0.7A)
- Distortion - THD 4 (1KHx @ 4Ω): 0.5% | S/N Ratio (A weighted @1W): -85dBA | S/N Ratio (A weighted @FP): -101.1dBA | Input Sensitivity - Low Input Level: 200mV - 10.0V | High Input Level: up to 10.0V Input Impedance | Low Input Level: 20KΩ | High Input Level: 20KΩ
- Output Stage - Output Impedance: 0.011Ω | Damping Factor (50Hz@4Ω): >250 | Bandwidth (-3dB): 10Hz - 350Hz | Crossover (-12dB/Oct) - Variable High-Pass:40Hz - 400Hz | Variable Low-Pass: 40Hz - 400Hz | Fuse Ratings: ATC: 25A | Dimensions: 7.89” L x 4.0” W x 1.46” H
