Everhardt SNGP4SM 4'ss No Ground Side Body Mt CB Ant (white)

The Everhardt SNGP4SM Four Foot NGP CB Antenna Kit is a "No Ground Plane" complete CB antenna kit. Everhardt antennas have been made in Texas for more than 30 years and have a well-earned reputation for quality, rugged, and super high performance!

Today's vehicles are notorious for being manufactured with less steel and more fiberglass or other non-metallic (non-conducting) materials. A traditional antenna just doesn't work when mounted on these vehicles. Poor performance, extremely high SWR's, and blown final transistors are the most common symptoms of a no ground connection.

"No Ground" is "no problem" with Everhardt's next generation NGP CB Antennas! The exclusive "Super Tuner" matching system of the Everhardt NGP antenna works so effectively that the antenna function properly even when held in your hand! If you're unsure about 's help center has a complete in depth article that explains this important antenna component.

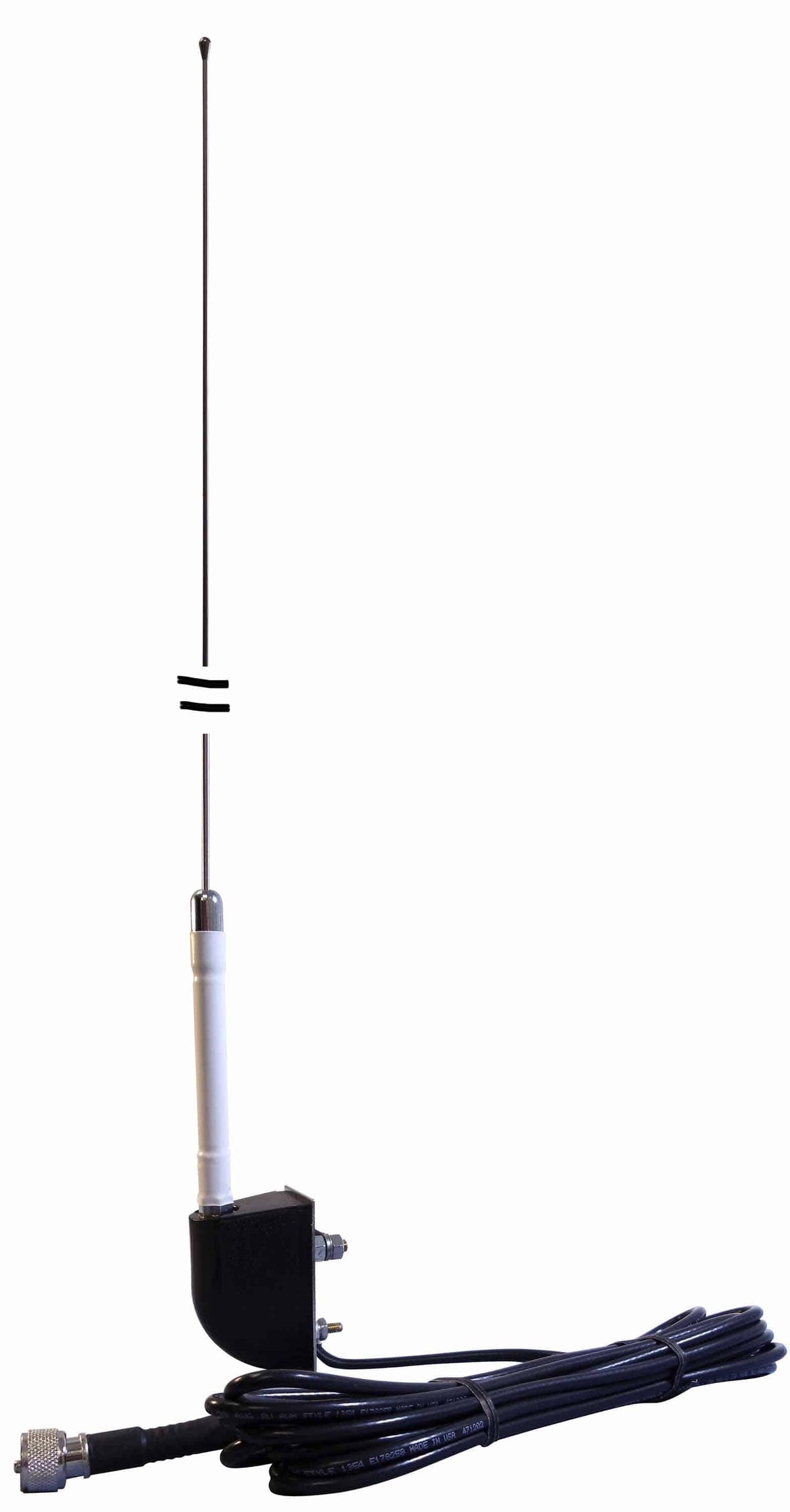

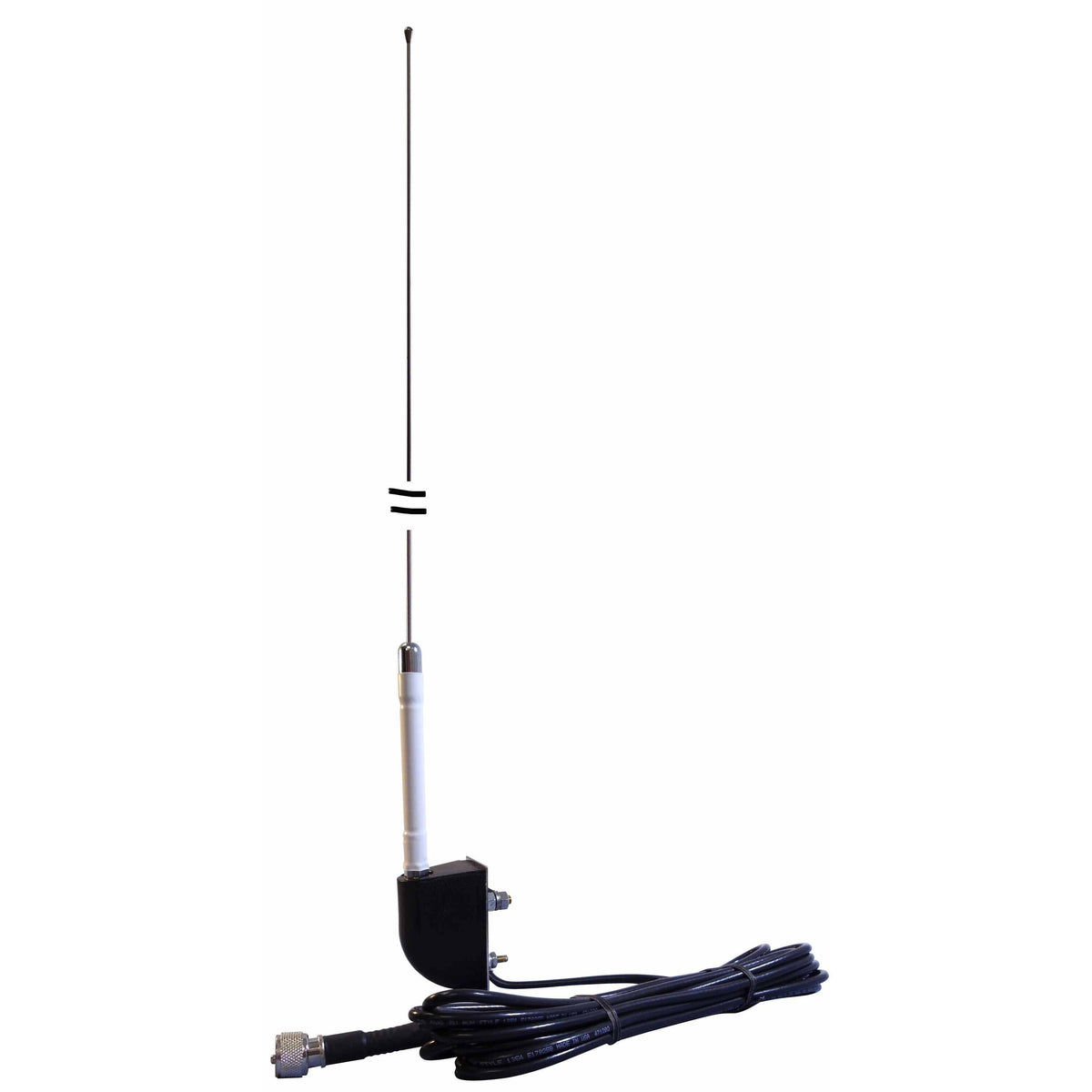

The Everhardt SNGP4SM is a complete ready to install antenna kit that includes a four foot stainless whip base load antenna, 18 feet of tuned coax with PL259 connector and a NGP side mount bracket. Tuning the SNGP4SM for lowest SWR is easy and has put together a that will walk you through this important antenna install step.

If your car, mini-van, motor home, or light to heavy duty truck is constructed from space age materials the Everhardt SNGP4SM CB Antenna Kit is the answer to "No Ground Plane" installations.

Antenna
Everhardt 4 foot base loaded coil Stainless steel whip antenna is strong yet flexible. Excellent for RV installations that have the potential to encounter lower than standard objects. Available in choice of white or black antenna base.

Mounting bracket

Side mount for vertical surfaces hides all coax and hardware out of sight and provides complete weatherproof design to protect CB antenna and vehicle body. Access to interior of vehicle is required to properly install the side mount, this normally requires drilling. 3/8x24 threaded no ground plane mounting bracket is capable of accepting standard accessories such as .

Coax
18 foot tune RG58 Coaxial cable with PL259 connectors with Lug connectors to mount.

Product features

• No Ground Plane CB antenna kit
• 26-30 MHz CB radio frequencies
• Perfect for Fiberglass vehicles
• Flexible Stainless Steel whip with white or black base
• Side Mount
• 2" Ext. Bolts
• Power rating: maximum 25 watts
• Field tunable for best in class performance
• 18 foot tuned RG58 coax cable with PL259 connectors and Lug connectors
• Installation instructions & hardware included
• Made in U.S.A.
