MTX TN800.5 TERMINATOR 800-Watt RMS 5-Channel Class D Amplifier
One Amplifier Does It All
The TERMINATOR 800.5 5-channel amplifier gives you dynamic power and complete adjustability while removing the hassle and cost of using multiple amplifiers needed for a concert level system. The TERMINATOR legacy that stands for quality and reliability is evident in this new model along with features and controls found in much more expensive amplifiers. This one and done solution saves you space, time and money all while delivering a high-performance audio experience in your ride.
Compact Design with Clarity In Mind
The TERMINATOR TN800.5 amplifier is a high-quality 800-watt RMS amplifier that can be installed in almost any vehicle due to its compact chassis size and multi-sectioned mounting bars Thanks to its impressive power capability and wiring versatility, this amplifier is an ideal choice for running multi-channel speaker systems.
Reliable and Efficient Power that Doesnt Disappoint
Designed with efficient, Full-Range Class-D technology, this amp offers the best of both worlds by providing all the features of our 4-channel amp while adding a powerful subwoofer output stage to bring in the bass. You can tailor each of the five channels to your desired preferences without compromising on power or functionality all in a single chassis. Our surface mount technology ensures a compact design that is highly reliable and resistant to vibrations.
Designed to Put You In Control

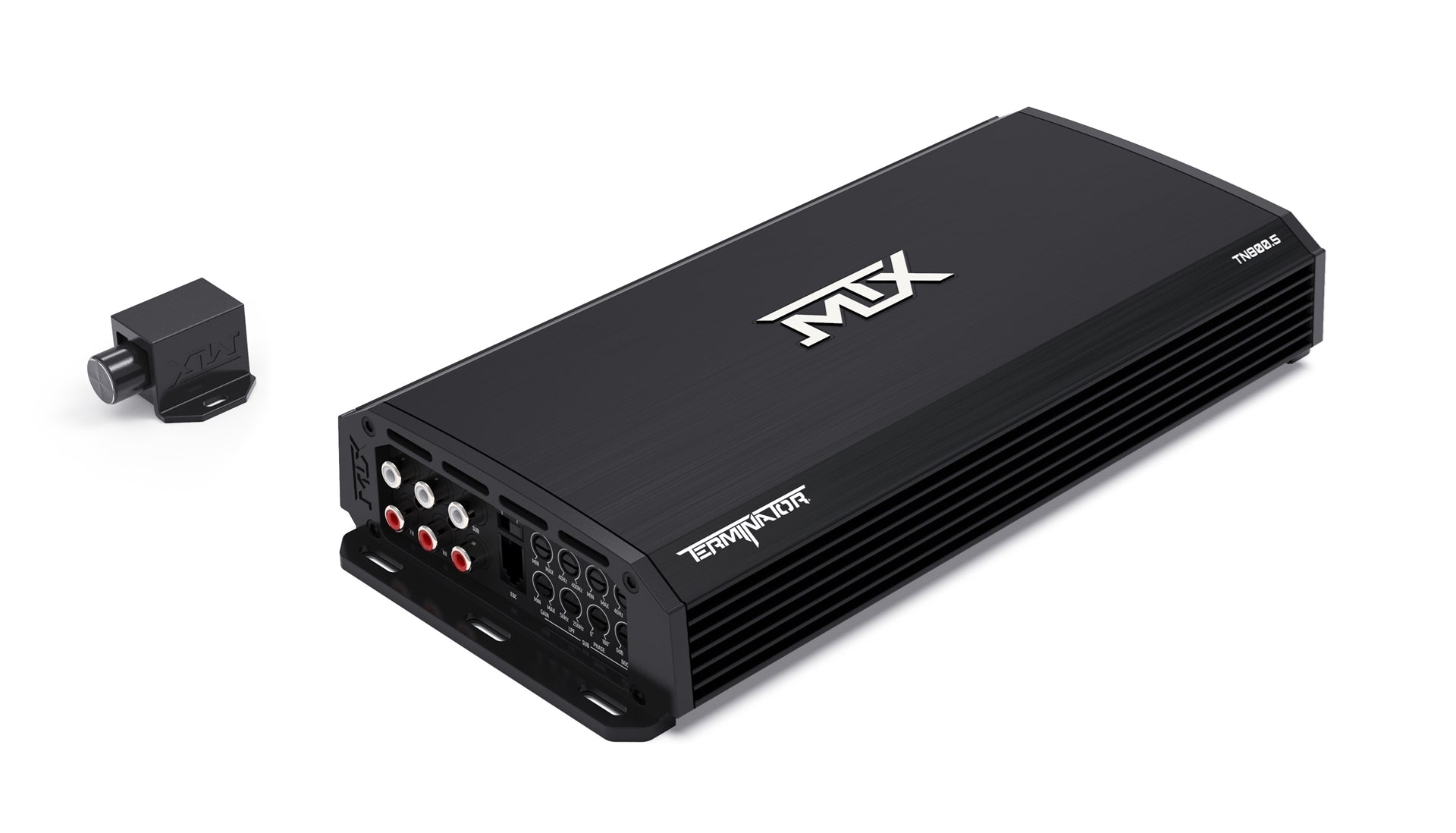

The TN800.5 has integrated, variable gain and crossover controls along with a separate bass boost and subsonic filter to fine-tune your system. With protection against under or over voltage, thermal or shortage, Terminator amplifiers will provide safeguards at a moments notice. The LED status indicator light informs you of anything out of the ordinary. The included Remote Bass Knob puts the power right at your fingertips.
Ratings
- CTA-2006-D Compliant
- Recommended Fuse Rating: 125Amp
75W RMS x 4 @ 2, 1kHz + 500W RMS x 1@ 2, 50Hz, 1% THD+N
75W RMS x 4 @ 2, 1kHz + 300W RMS x 1@ 4, 50Hz, 1% THD+N
50W RMS x 4 @ 4, 1kHz + 500W RMS x 1 @ 2, 50Hz, 1% THD+N
50W RMS x 4 @ 4, 1kHz + 300W RMS x 1 @ 4, 50Hz, 1% THD+N
150W RMS x 2 Bridged @ 4, 1kHz + 500W RMS x 1@ 2, 50Hz, 1% THD+N
150W RMS x 2 Bridged @ 4, 1kHz + 300W RMS x 1@ 4, 50Hz, 1% THD+N
SPECIFICATIONS
- Description:5-Channel
- Topology:Full Range Class D
- 4 RMS Power Output:50W x 4 Channels + 300W x 1 Channel
- 2 RMS Power Output:75W x 4 Channels + 500W x 1 Channel
- 4 RMS Bridged Power Output :150W x 2 Channels (Ch 1/2/3/4)
- THD:< 0.3%
- Signal to Noise Ratio:> 90dB
- Frequency Response:40Hz - 400Hz (Ch 1-4) 50Hz - 250Hz (Sub)
- Crossover:20Hz - 40kHz (Ch 1-4) 20Hz - 250Hz (Sub)
- Subsonic Filter:10Hz - 55Hz (Sub)
- Bass Boost:0 - 12dB @ 45Hz (Sub)
- Maximum Input Signal:6V
