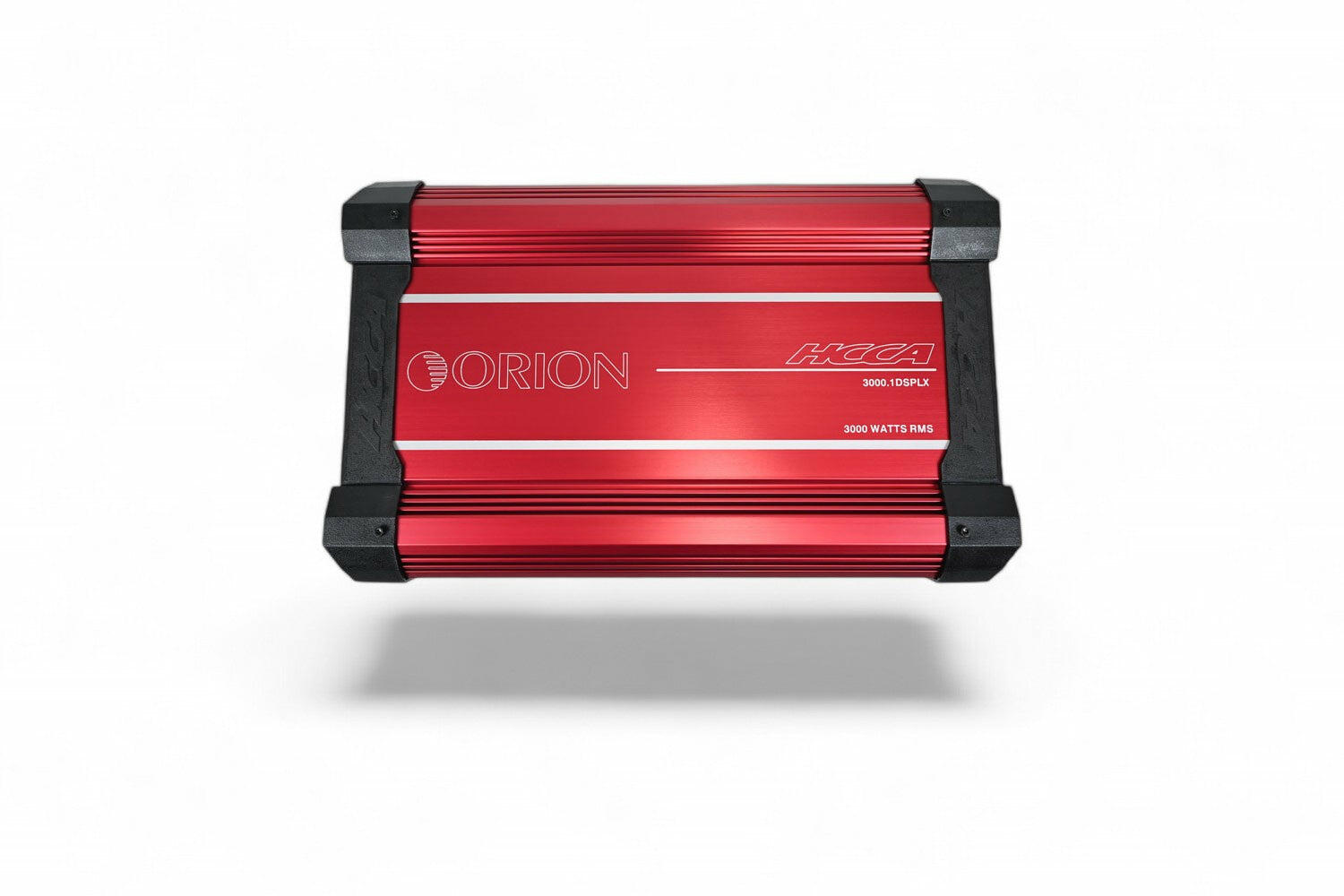

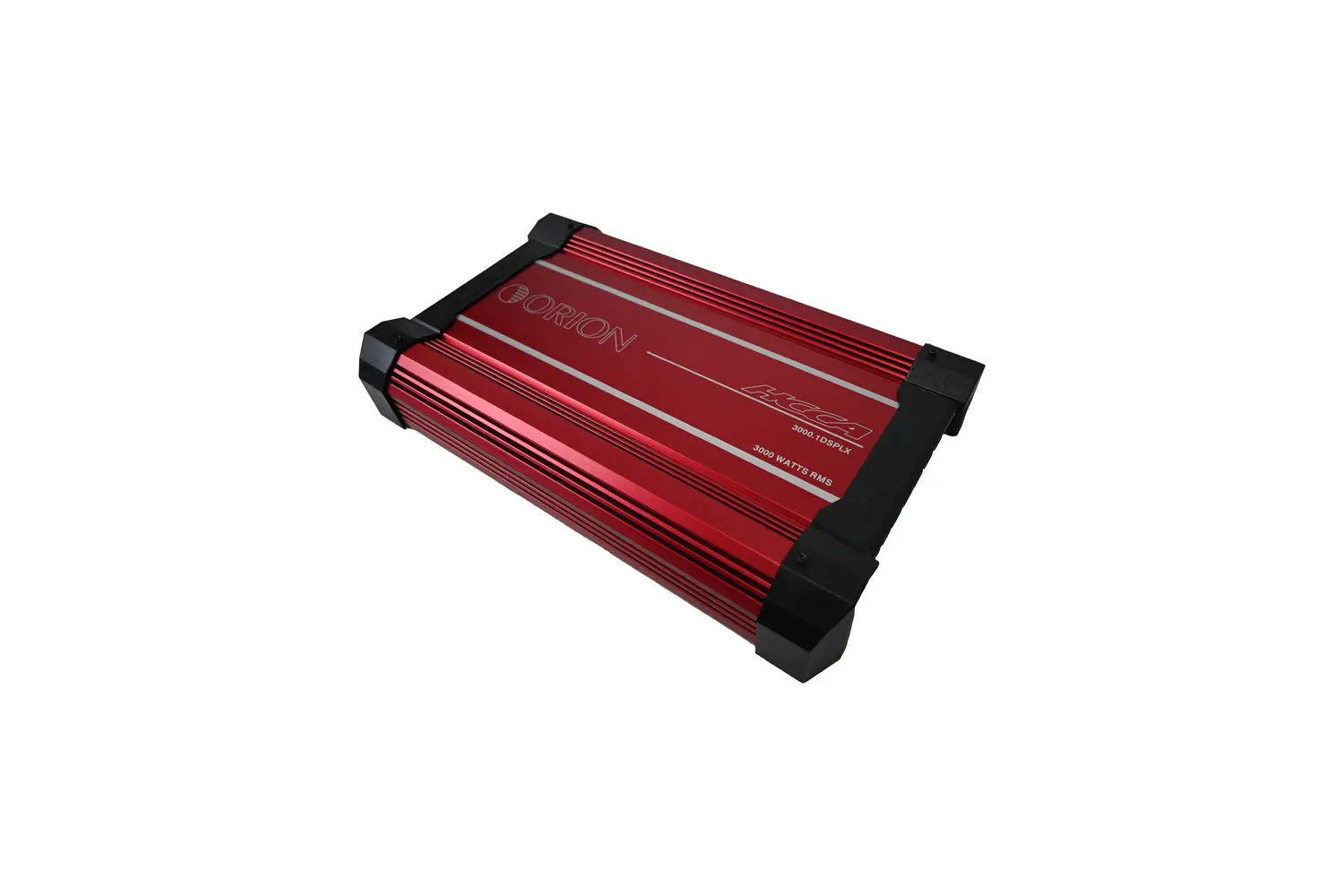

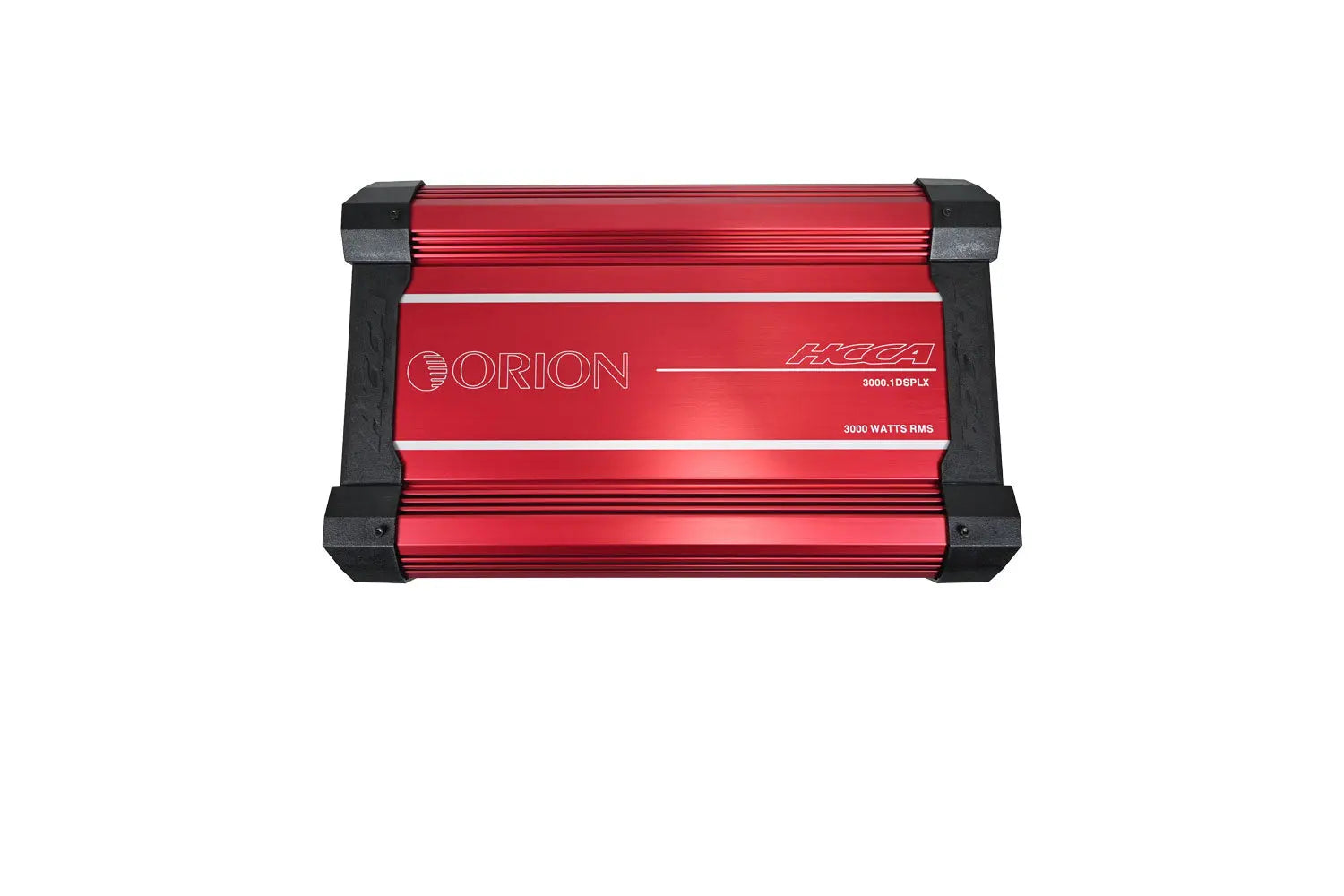

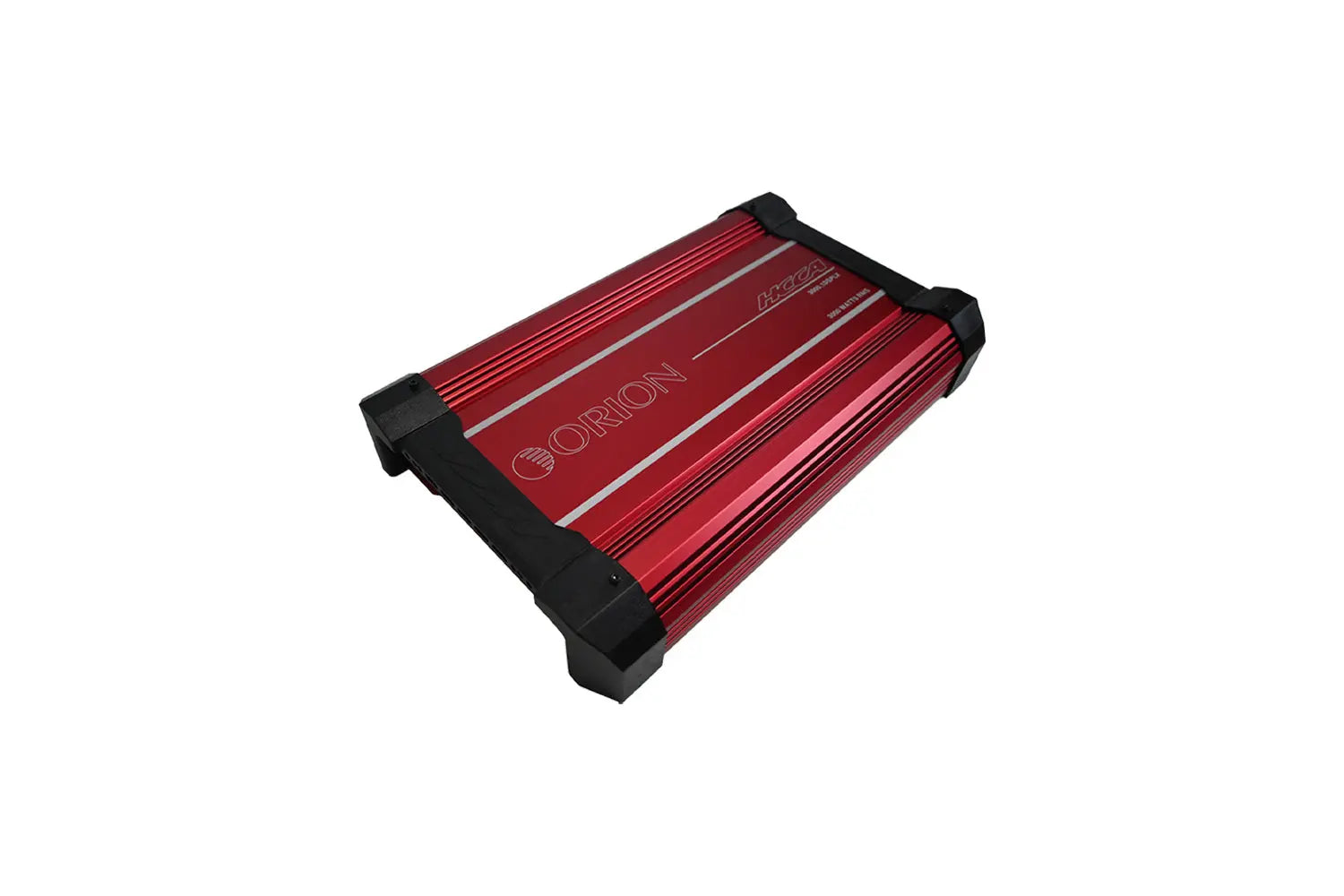

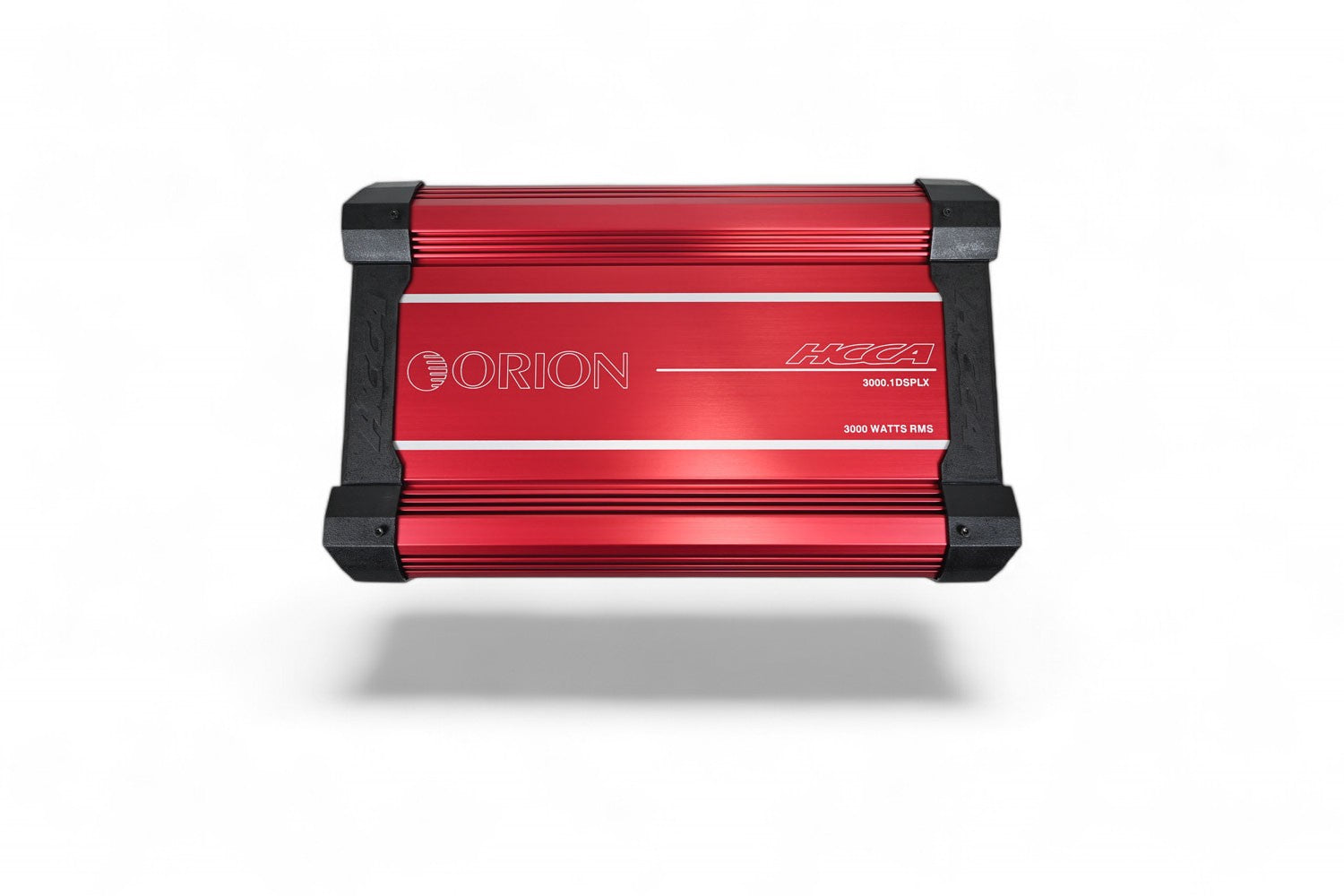

Orion HCCA3000.1DSPLX - 3000W RMS MONOBLOCK CLASS D AMPLIFIER

ORION HCCA3000.1DSPLX HCCA Series 3000W RMS 1-Channel Class D Amplifier

TheHCCA3000.1DSPLX Class DOrion Hcca Amplifieris built for those who demand nothing less than competition-level performance. Delivering an astounding 3,000 watts RMS at 1 ohm, this amplifier is engineered to dominate SPL (Sound Pressure Level) competitions with ground-shaking bass and crisp, clear sound. Featuring the iconic HCCA Red design, it not only performs like a beast but looks the part too, adding a sleek, bold statement to your audio setup.

Powered by advanced Class D technology, theHCCA3000.1DSPLX runs cooler and more efficiently, pushing your subwoofers to their limits without sacrificing performance. Its robust construction and intelligent protection circuits guard against overheating and overload, ensuring long-lasting, reliable power for your most intense sessions.

Perfect for competitive car audio or those who want a show-stopping system, theHCCA3000.1DSPLX combines HCCAs legendary durability with unmatched power. Bring your vehicle to life with SPL-winning bass and superior sound quality, all while rocking the iconic HCCA Red. Upgrade with Orion Hcca Amplifier

• Class D Amplification: Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
• 3000 Watts RMS: Immerse yourself in a realm of unmatchable audio power with 3000 Watts RMS, delivering commanding and precise sound performance.
• Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
• Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
• Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
• Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
• Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

• - RMS Power @ 4 Ohms @ 0.5% THD+N: 1350W
• - RMS Power @ 2 Ohms @ 0.5% THD+N: 2100W
• - RMS Power @ 1 Ohm @ 0.5% THD+N: 3000W
• - Linked with identical Amplifier
• RMS Power @ 2 Ohms @ 0.5% THD+N: 6000W
• POWER TERMINAL MANAGEMENT
• Positive Terminals: 3 x 0 AWG.
• Negative Terminals: 3 x 0 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

• - Frequency Response: 10Hz - 300Hz
• - Low Pass Crossover: 40Hz - 300Hz
• - Supply Voltage: 9 - 16V
• - Amplifier Efficiency: >88%
• - Damping Factor: >200dB
• - Signal to Noise Ratio: >90dB
• - T.H.D. & Noise: 0.5%
• - Input Impedance: 24K Ohms
• - Phase Shift: 0 - 180
• - Bass Boost: 0-18dB Variable
• - Subsonic Filter: 10 - 40Hz
• - Variable Input Level Control: 0.2V - 6.0V
• - Fuses: 350A recommended (not included)
• - Dimensions (L x W x H): 18.89" x 11.89" x 3.15" (480x302x80mm)
