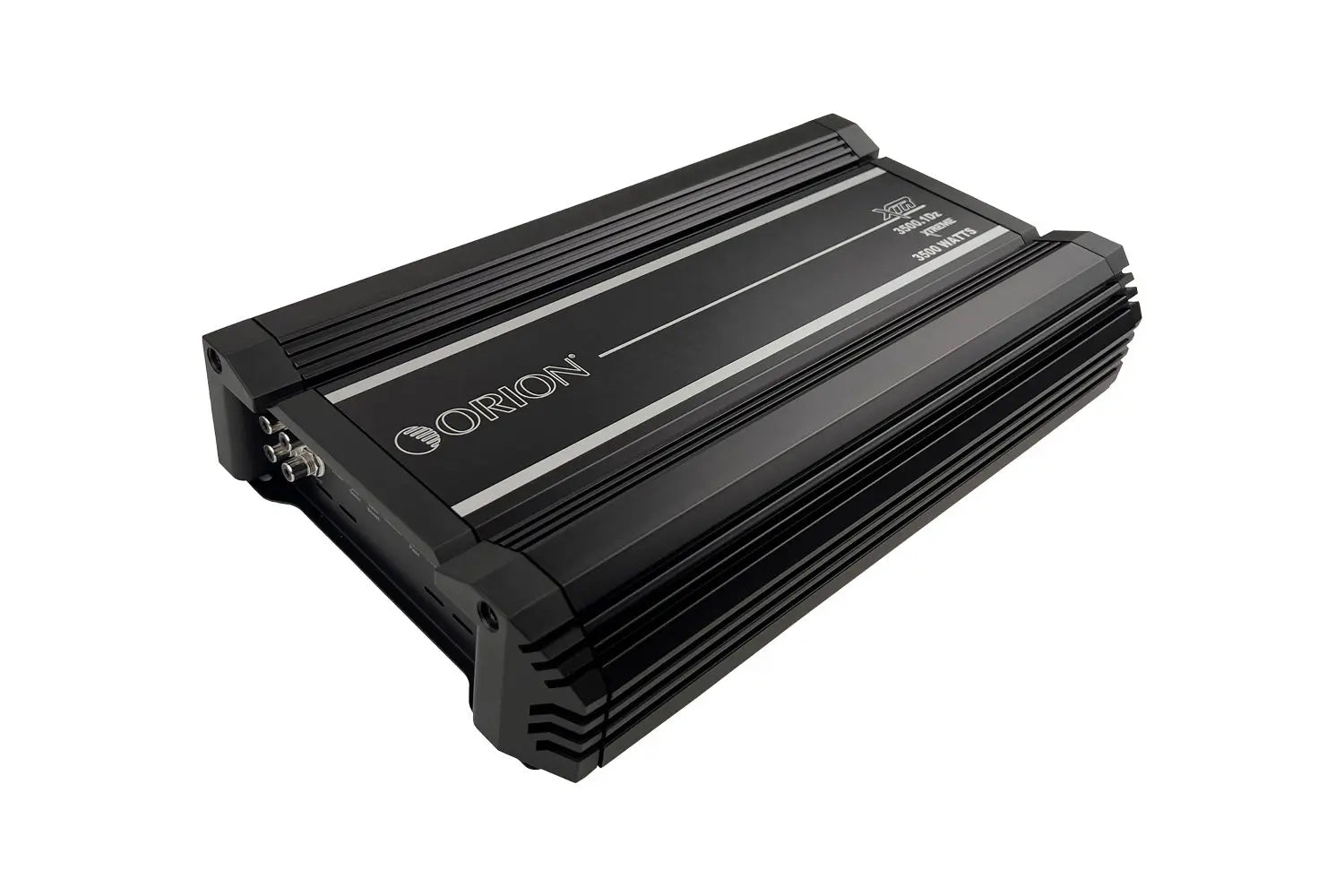

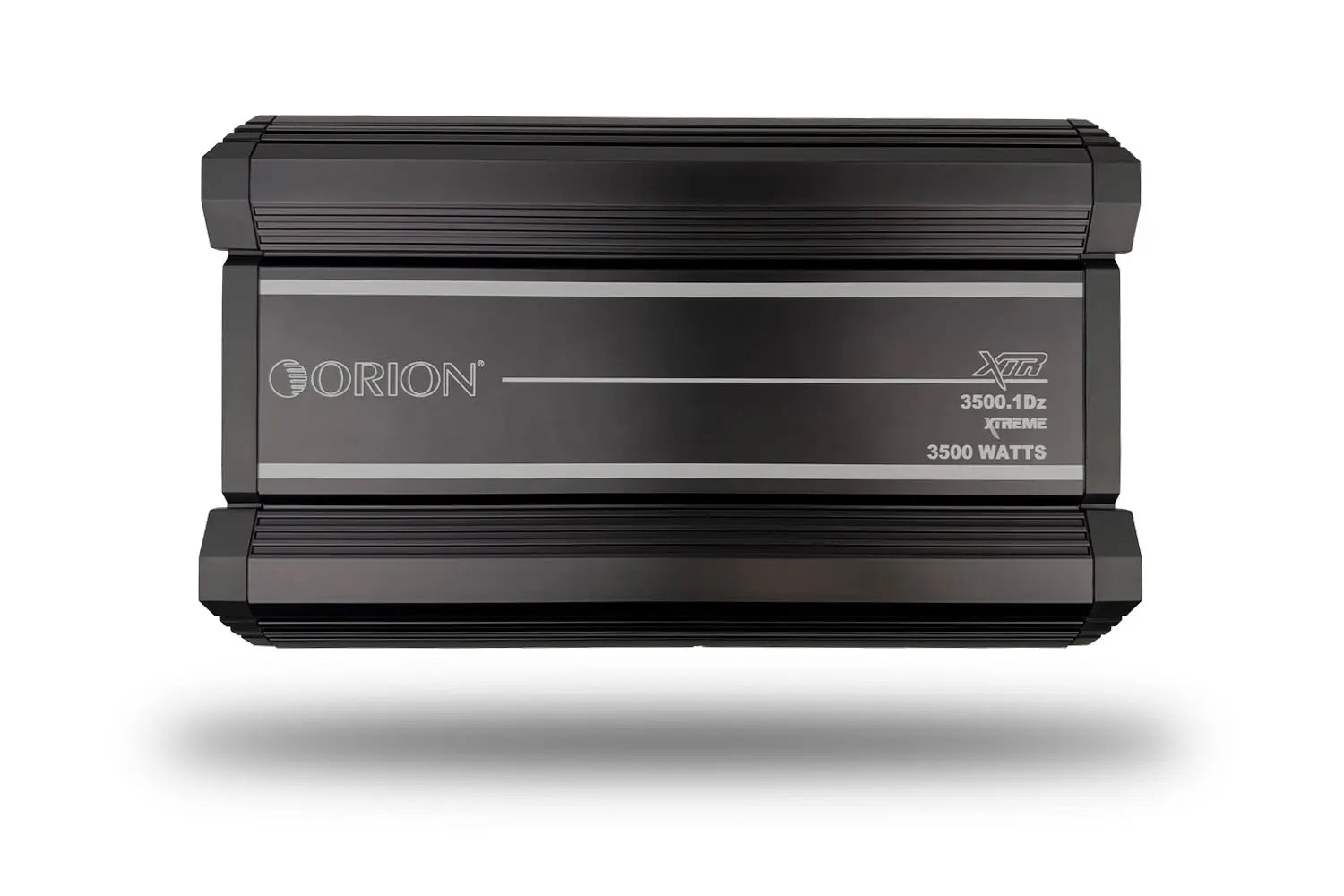

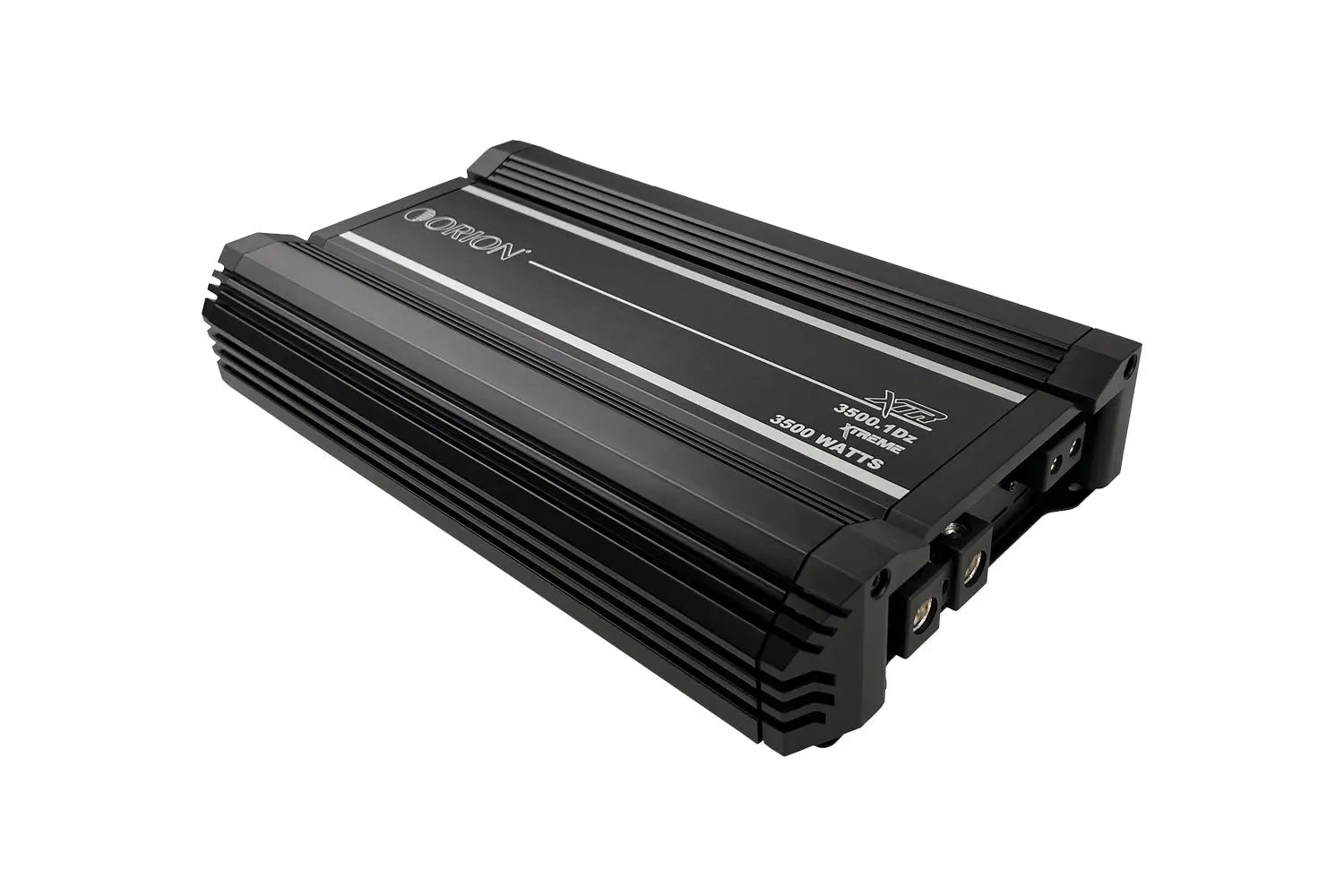

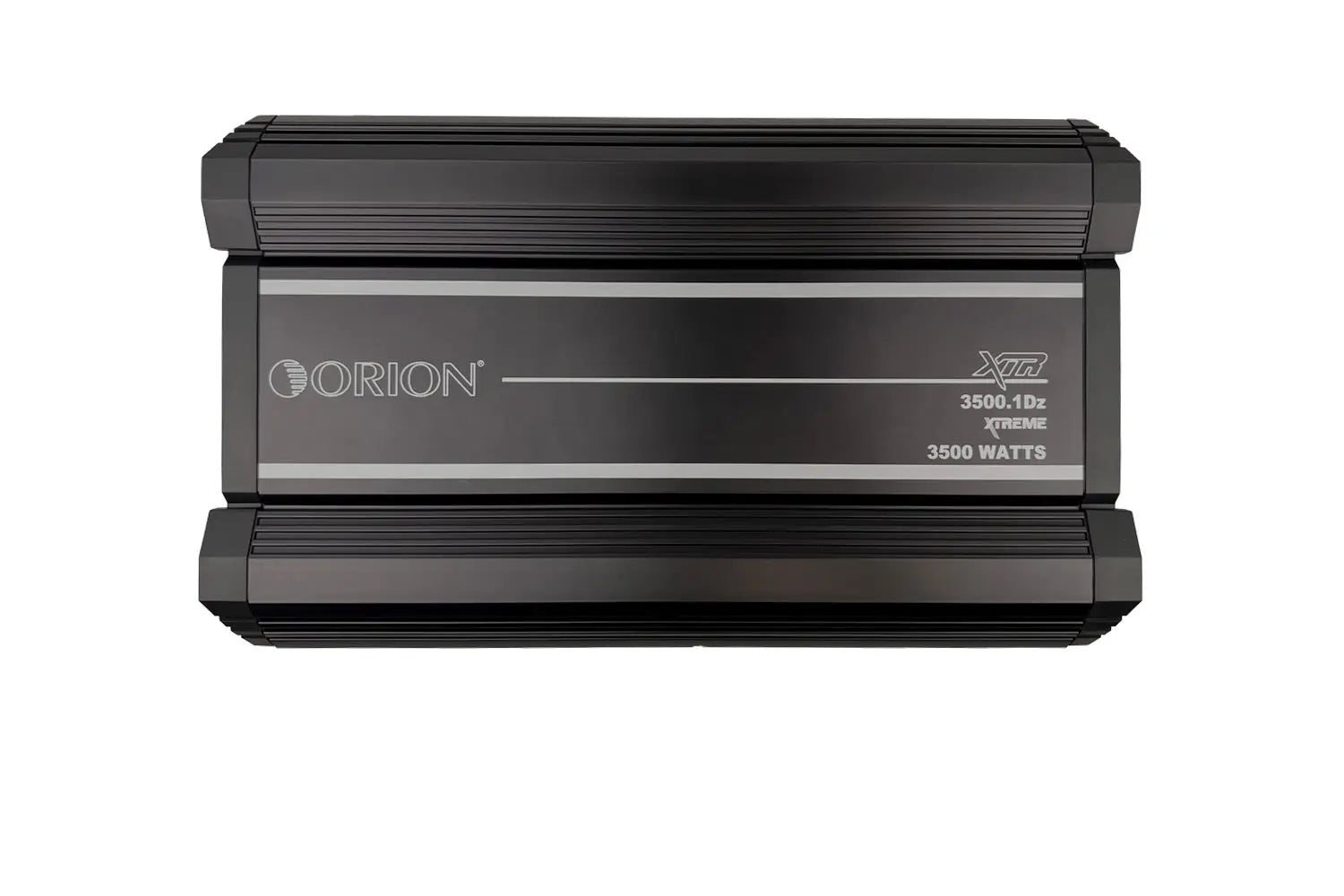

Orion XTR3500.1Dz - 3500 Watt RMS Class D Monoblock Amplifier

ORION XTR Series 3500W RMS 1-Channel Class-D Amplifier

Unleash Auditory Excellence:The ORION XTR3500.1Dz amplifier revolutionizes car audio with its cutting-edge features and precision engineering. Delivering unparalleled power, accuracy, and control, it sets a new standard in audio performance. With its advanced design, every note is reproduced with clarity and depth, creating an immersive sound experience that redefines car audio excellence.

Immersive Sound Reproduction:Experience immersive sound reproduction: Rediscover your music with exquisite detail. From the gentlest melody to the most intense beat, every note is faithfully recreated, offering an authentic and captivating listening journey.

Unprecedented Power and Precision:Feel the power and precision of your music like never before. The ORION XTR3500.1Dz XTR Series Amplifier seamlessly combines commanding power with outstanding audio quality, creating a sonic masterpiece that leaves a profound impact.

Elevate Your Drive:Enter a realm of sonic excellence with the ORION XTR3500.1Dz XTR Series 3500W RMS 1-Channel Class-D Amplifier. Enhance your audio experience, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. Embrace sound in its truest essence.

• Class D Amplification: Experience the pinnacle of efficiency and precision with Class D amplification for commanding and accurate sound reproduction.
• 3500 Watts RMS: Immerse yourself in a world of sonic excellence with 3500 Watts RMS, delivering unprecedented audio performance.
• Precision Audio Control: The adjustable built-in crossover enables precise tuning of audio frequencies, maximizing speaker performance.
• Customized Bass Enhancement: Enhance your lower frequencies using the adjustable bass boost function, delivering impactful and deep bass tones.
• Advanced Protection Measures: With built-in protection circuitry, the amplifier defends against overheating and short circuits, guaranteeing durability.
• Compact and Stylish Design: The amplifier's compact design provides flexible installation possibilities without sacrificing performance or aesthetics.
• Engineered Excellence: Crafted with meticulous attention to detail to ensure optimal audio precision, power efficiency, and reliable operation.
• -All MOSFET Power Supply & Output Stage
• -Heavy Gauge / High Current Custom Power and Speaker Terminals
• -2-Ohm Stable
• -RCA Out Throughput
• -12dB Octave Low-Pass Filter
• -Electronic Crossover Network
• -Bass Boost Circuit
• -Intelligent Power and
• -Protection LED Indicator
• -Soft Turn-on/Turn-off
• -Turn-On Delay
• -Fault and Protection Monitoring
• -4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

• - RMS Power @ 4 Ohms @ 0.5% THD+N: 1450W
• - RMS Power @ 2 Ohms @ 0.5% THD+N: 2500W
• - RMS Power @ 1 Ohm @ 0.5% THD+N: 3500W
• - Linked with identical Amplifier
• RMS Power @ 2 Ohms @ 0.5% THD+N: 7600W
• POWER TERMINAL MANAGEMENT
• Positive Terminals: 1 x 0 AWG.
• Negative Terminals: 1 x 0 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 4 AWG.

• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 300A recommended (not included)
• Dimensions (L x W x H): 15.35" x 9.25" x 2.75" (390x235x70mm)
