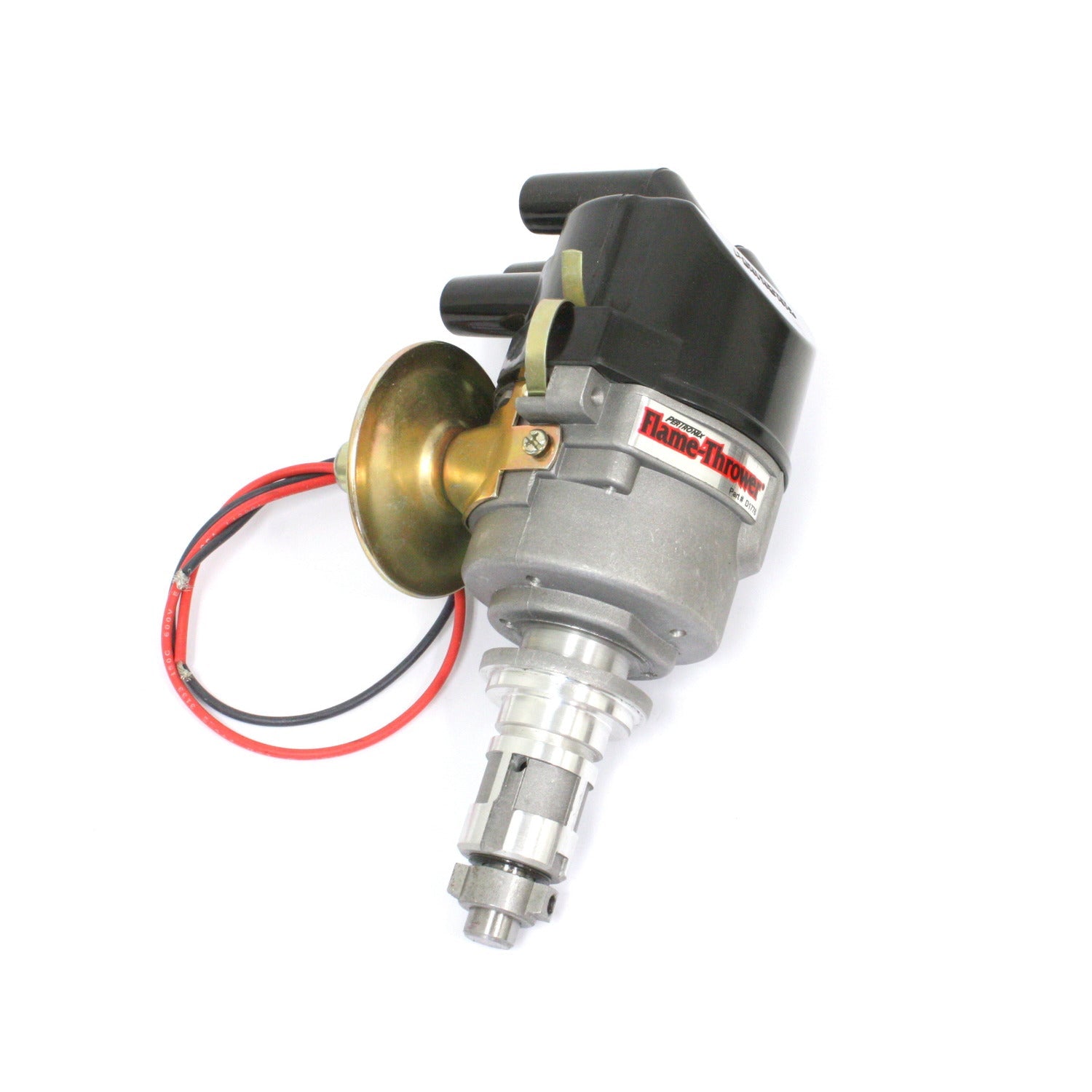

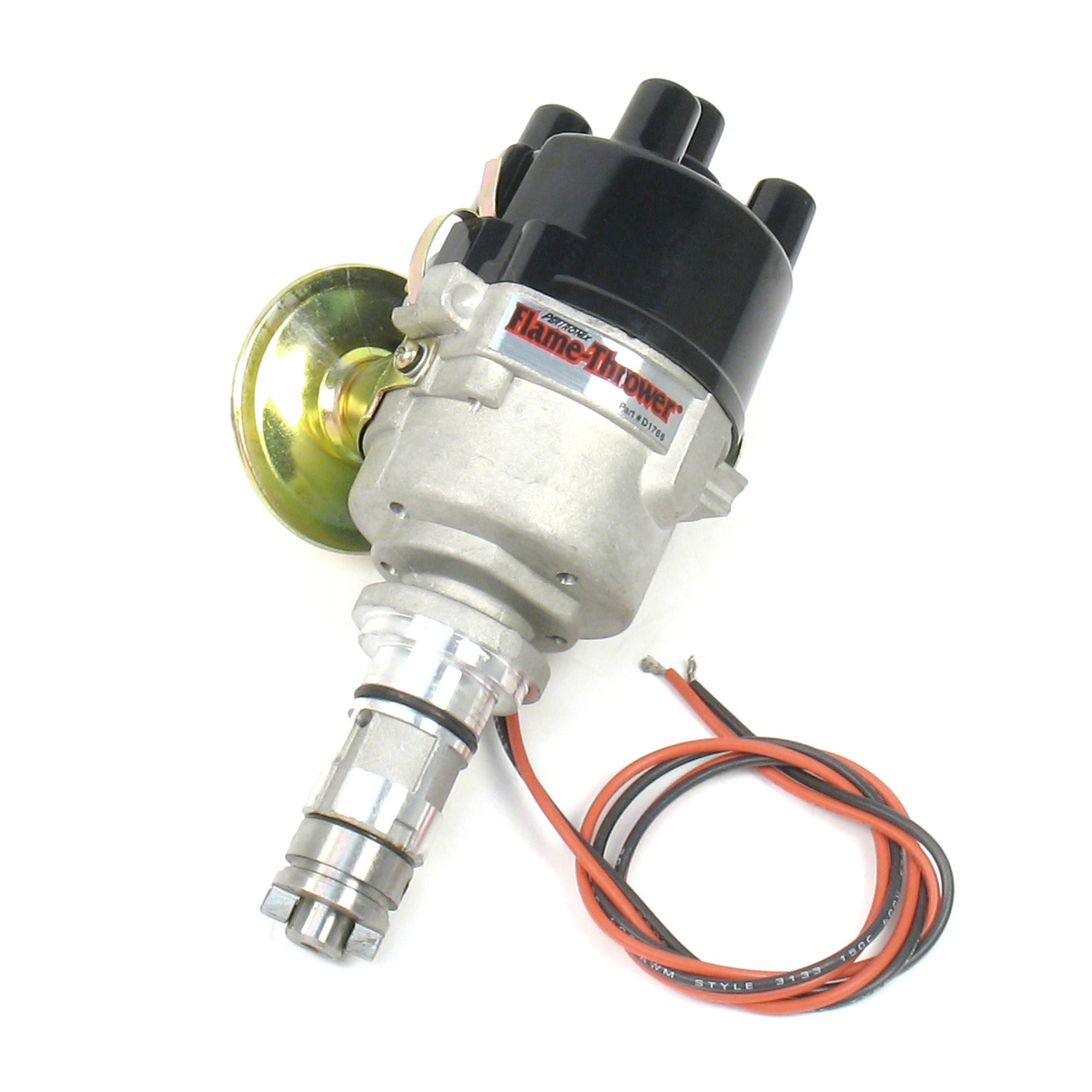

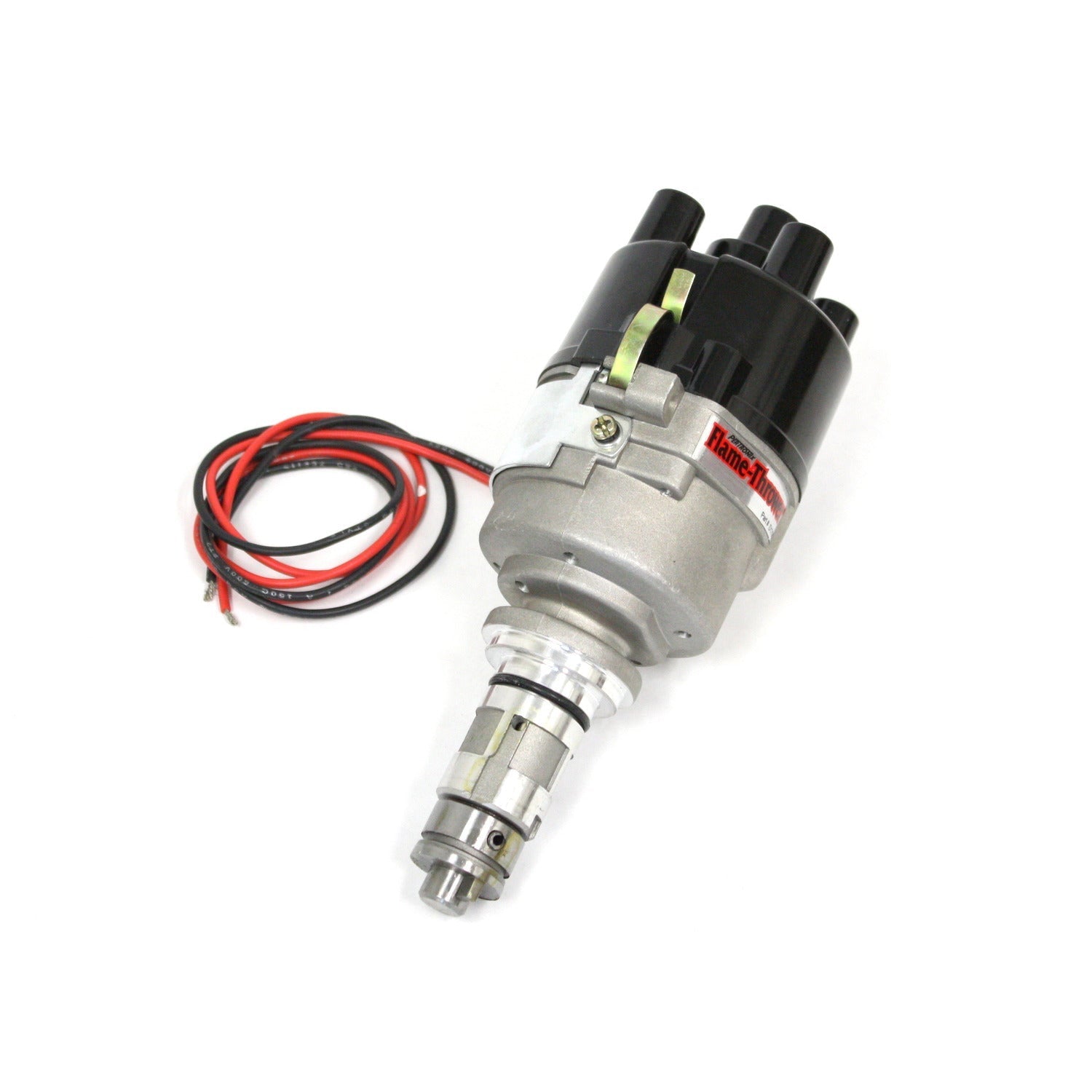

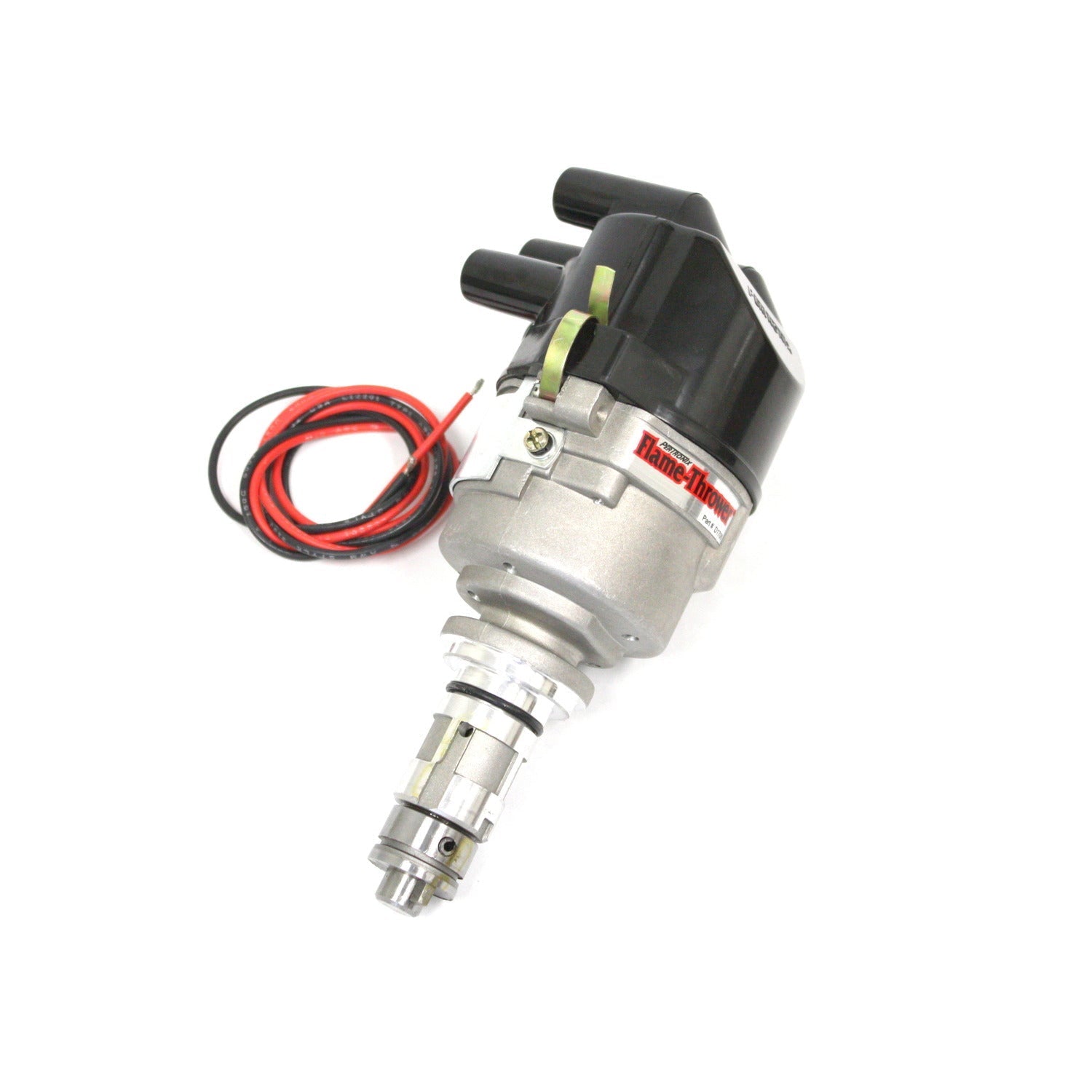

Pertronix Ignition D170600 Stock Look 45D4 Distributor for British 4 Cylinder Engines (Ignitor II)

• All new lightweight cast aluminum housings.


• Tailored advance curve for optimal performance and drivability.


• Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.


• Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.


• Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.

Flame-Thrower HP distributors take the performance line of distributors one step higher. That's right, HP stands for High Performance, and that's what you get with our all new HP distributors.

These distributors feature patented Ignitor II technology and are available with top exit or our new side exit caps. For optimal performance, use our Flame-Thrower II 45,000 volt coils.

FEATURES

• All new lightweight cast aluminum housings.


• Tailored advance curve for optimal performance and drivability.


• Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.


• Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.


• Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.


• Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.


• Senses startup and develops more energy for quicker, easier starting.


• Built in reverse polarity and over current protection shuts down the system, preventing component damage.


• High dielectric strength cap with brass terminals.


• Top or side exit caps available.


• Balanced rotor with overmolded brass contact.


• Not legal for sale or use on pollution controlled motor vehicles.

Advance Type: Vacuum and mechanical
Trigger Type: Hall Effect
Cap Terminal Gender: Female
Cap Color: Black
Adjustable Collar: No
Computer Controlled Compatible: No
Distributor Cap Included: Yes
Ignition Module Included: Yes
Ignition Box Required: No
Ignition Coil Included: No
Ignition Rotor Included: Yes
Clamp Hardware Included: No
Clamp Included: No
Distributor Gear Included: Yes
Gear Material: Steel
Mechanical Tach Drive Provision: No
Coil Wire Included: No
Housing Material: Aluminum
Housing Finish: Natural
Housing Color: Natural
Shaft Material: Steel
Shaft Diameter: .490 Inches
Shaft Color: Natural
Connector Type: Unsealed
Grade Type: Performance
Marine Approved: No

FEATURES

• • All new lightweight cast aluminum housings
  • Tailored advance curve for optimal performance and drivability
  • Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance
  • Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage
  • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.Built in reverse polarity and over current protection shuts down the system, preventing component damage
