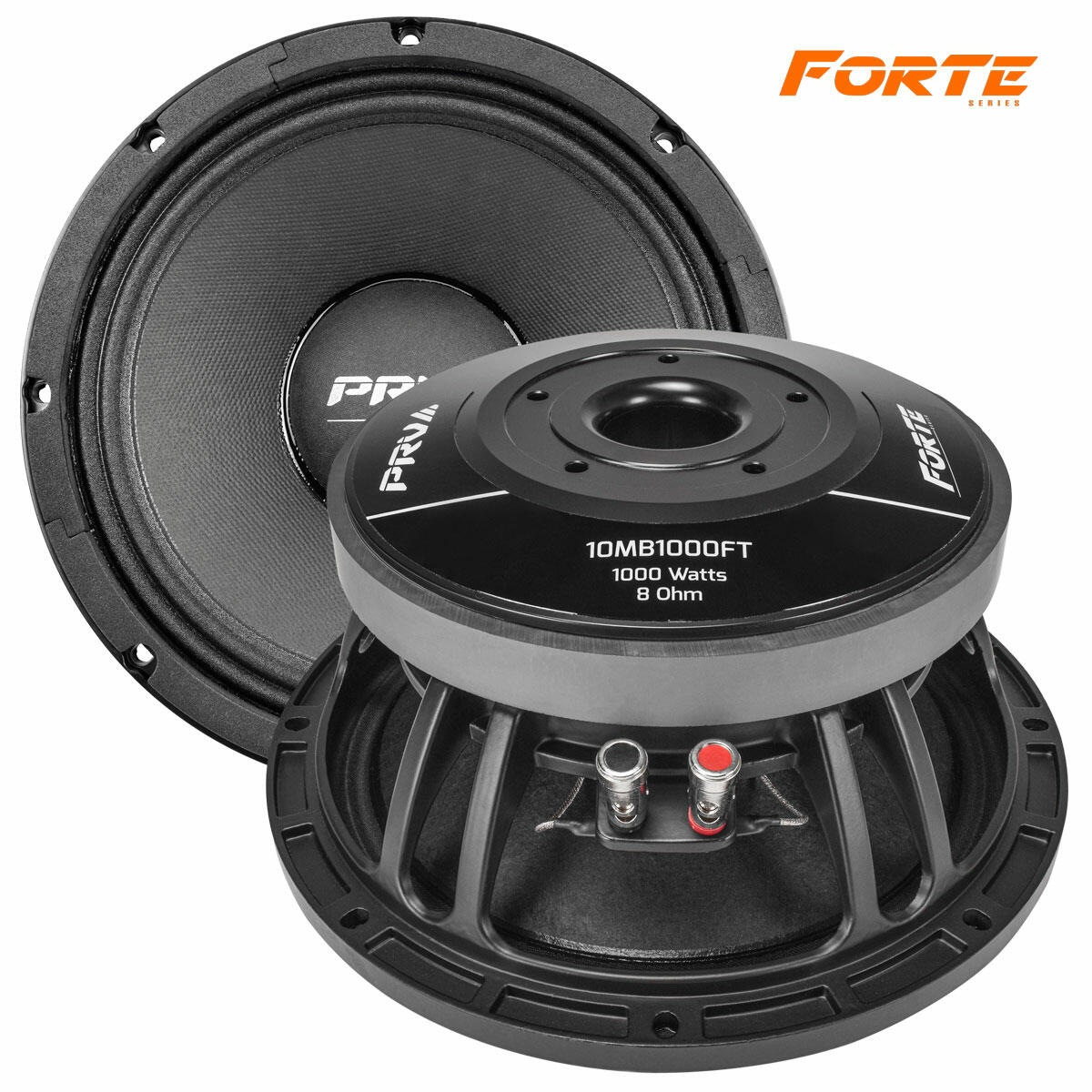

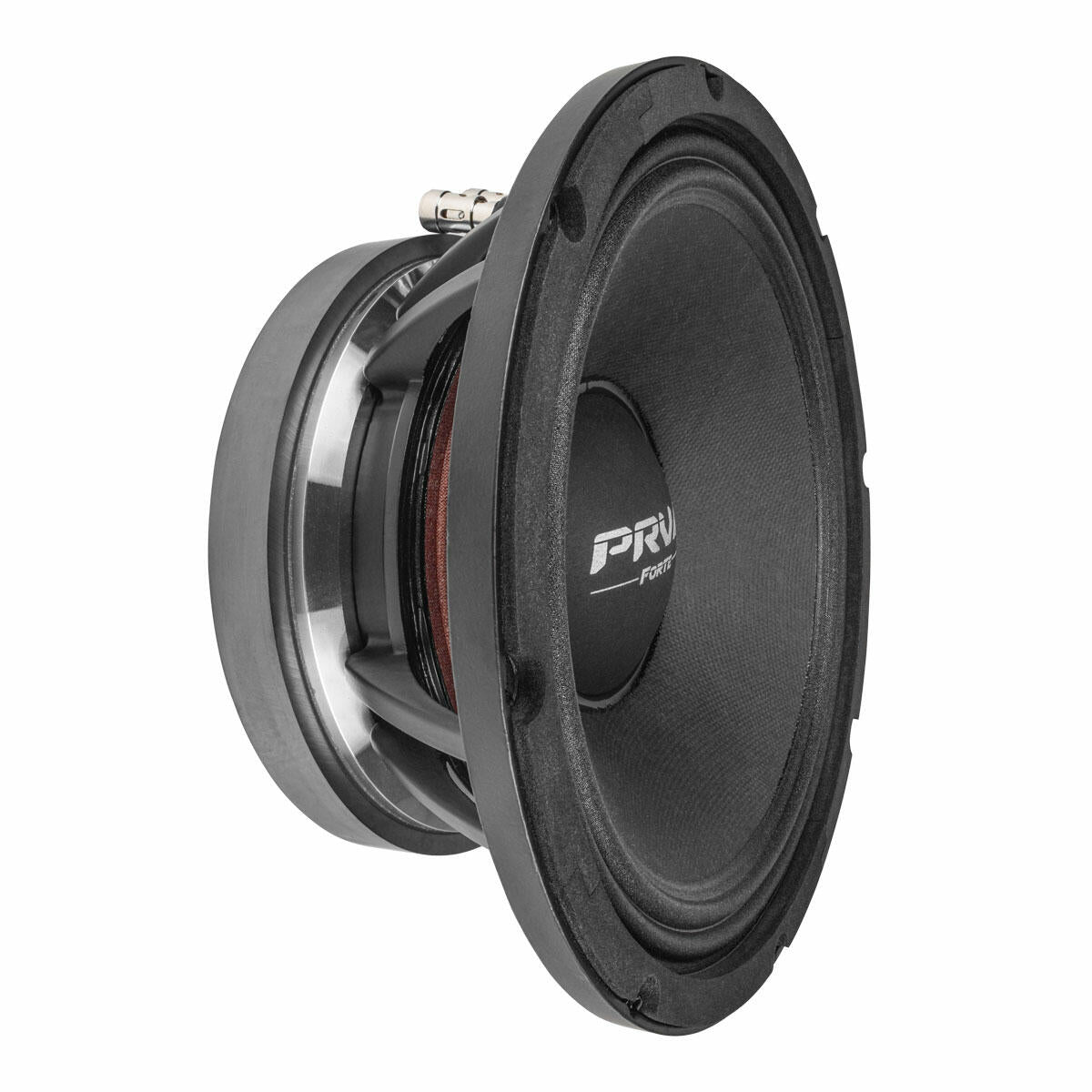

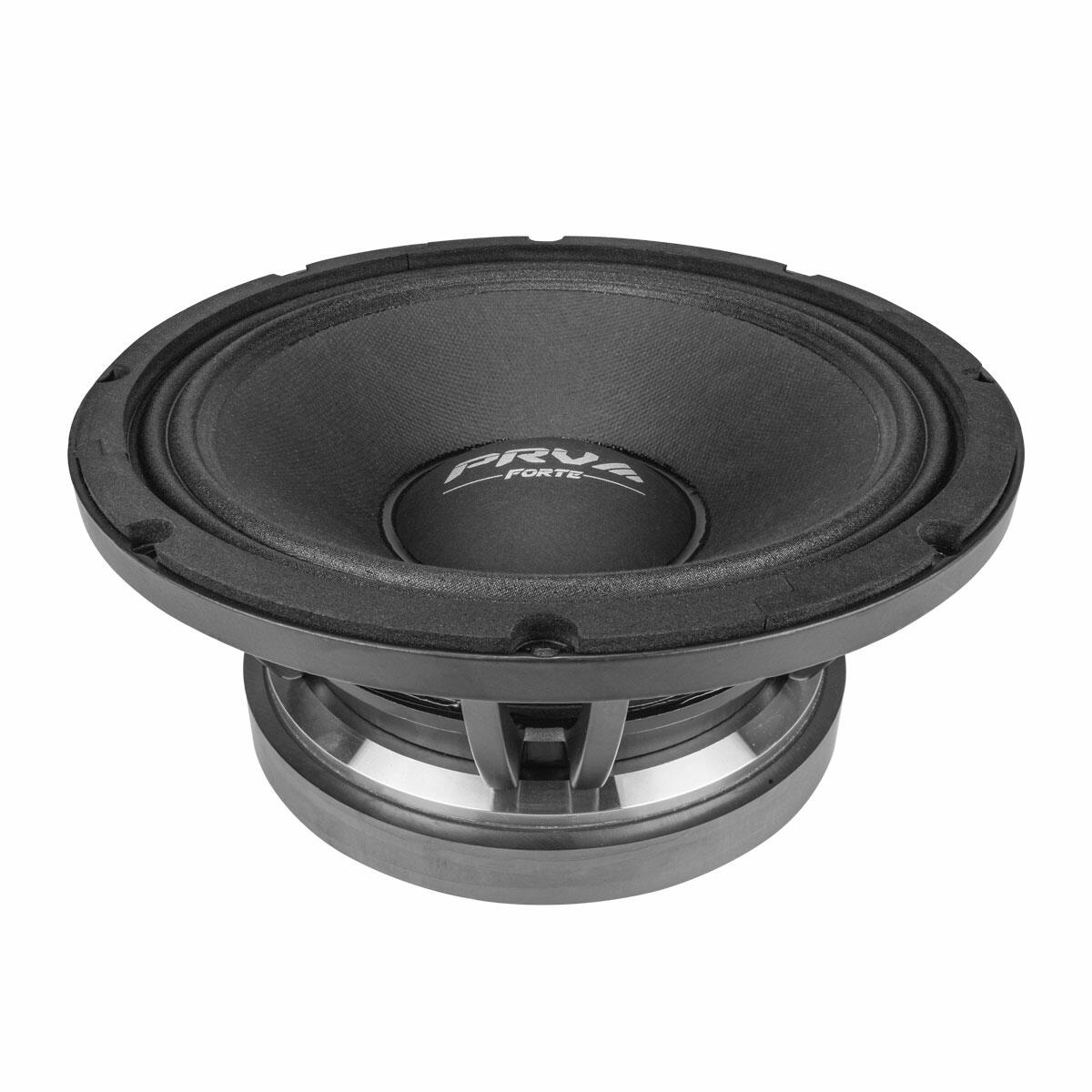

PRV Audio 10MB1000FT 10" MIDBASS LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10 midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response.
Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.
- 3 Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more midbass output
- 1000 watts continuous program power rating makes the high acoustical output
- Built to Perform! It will stand up to considerable use and abuse.
To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The Perfect speaker for TUKUTEO sound.

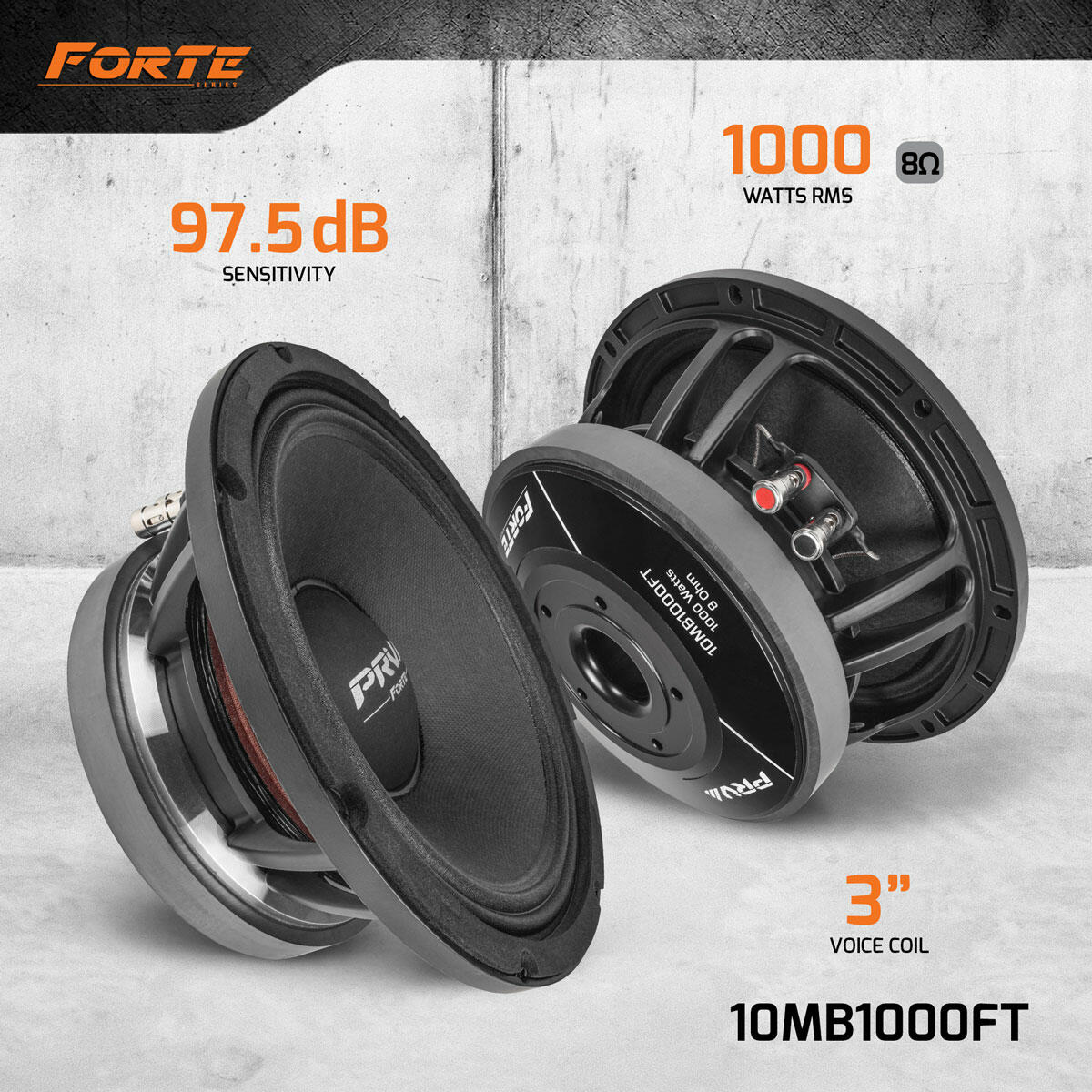

The high sensitivity rating of 97.5 dB 1W/1M which makes it capable of generating a lot of output! This 10 is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.
Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
PRV 10 Midbass Speaker 10MB1000FT 1000 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker
Recommended Amplifier configurations and crossover points:
2 Speakers 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on bridged channel
4 Speakers 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS7000 at 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 1000 Watts RMS musical power ( without clipping )
- 120 Hz at 12 dB per octave filter Crossover / BT12
- 110 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 2,800Hz at 12 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling* | 500 Watts |
| Continuous Program Power (RMS)** | 1000 Watts |
| Max Peak Power*** | 2000 Watts |
| Sensitivity 2.83V at 1m | 97.5 dB |
| Recommended Hi Pass CrossoverFor Full Power Handling | 120 Hz 12db Per Octave Crossover |
| Frequency Response | 75- 7,000 Hz |
| Voice Coil Diameter | 3" (75 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 16.5 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.5 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 32.3 l |
| Excursion (mathematical)*** | Xmax | 5.87 mm |
| Free Air Resonance | Fs | 75.0 Hz |
| Mechanical Factor | Qms | 12.41 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.32 |
| Cone Area | Sd | 380 cm |
| Mechanical Mass | Mms | 28.10 g |
| Bl Factor | Bl | 14.49 Tm |
| Dc Resistance | Re | 5.3 Ohm |
| Inductance | Le | 0.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 23.30 g |
| Mechanical Compliance | Cms | 0.160 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

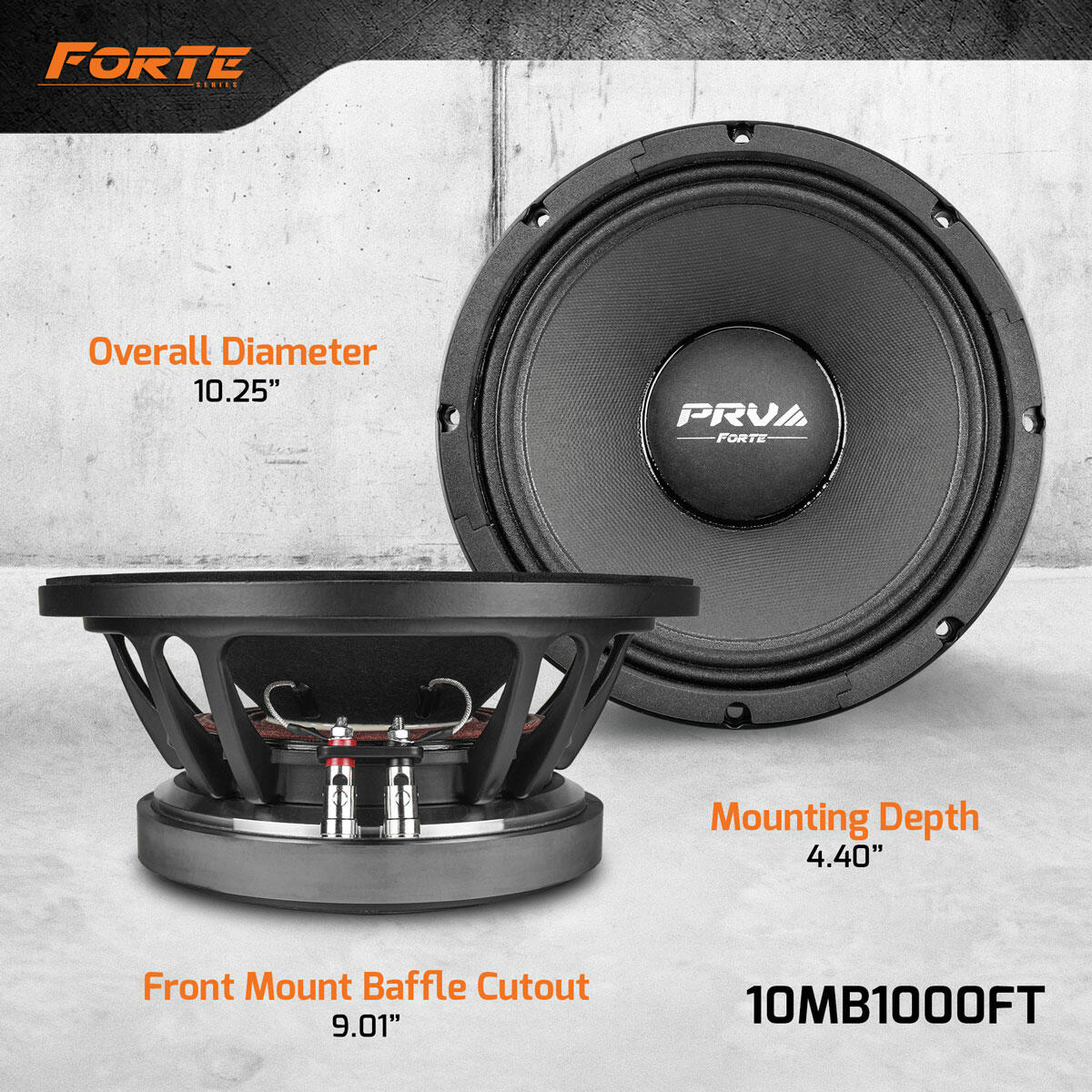

| Overall Diameter | 10.25 (260.5 mm) |
| Front Mount Baffle Cutout | 9.01 (229 mm) |
| Mounting Depth | 4.40 (111.5 mm) |
| Overall Depth | 4.96 (126 mm) |
| Net Weight | 15.0 Lbs (6.8 kg) |
| Shipping Weight | 16.6 Lbs (7.54 kg) |
| Carton Dimensions W x L x H | 11.61x 11.61 x 6.30 (295 x 295 x 160mm) |
