PRV Audio 10MB800FT 10" MIDBASS LOUDSPEAKER
Features
For high output speaker systems, PRV Audios 10MB800FT midbass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on midlow midbass frequencies is the key.
10MB800FT delivers top-notch midbass punch and clean vocal clarity at a high level output with low distortion and extended midbass response.
Optimized for use in compact enclosures, this midbass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.
- 2.5 Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 Ohm
- Ventilated voice coil gap reduces power compression
- High Xmax 10 Loudspeaker for more mid bass output
- 800 watts continuous program power rating makes the high acoustical output
- Excellent performance in 2-way or 3-way systems
To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
The Perfect speaker for TUKUTEO sound.

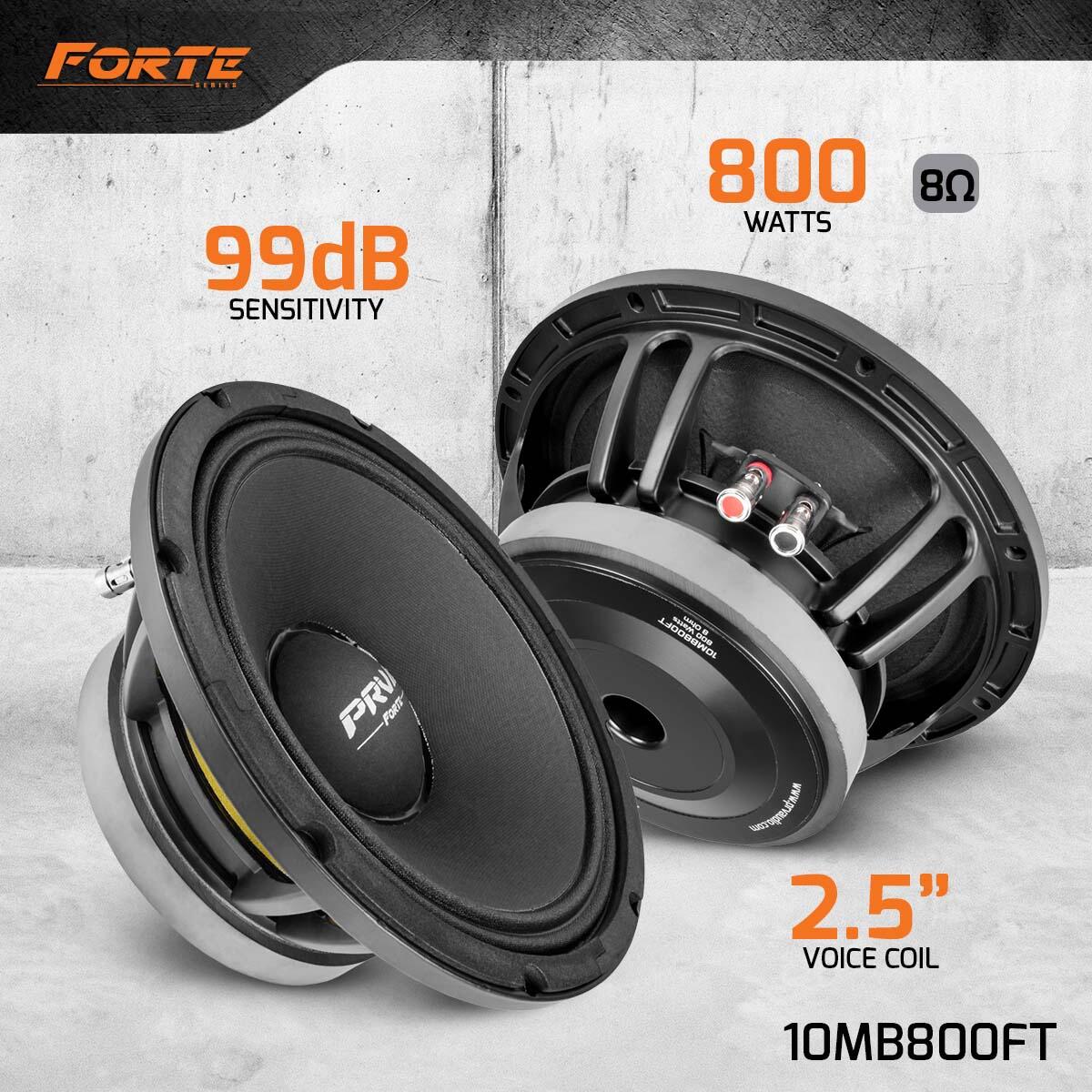

The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10 is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.
The voice coil is wound on a 2.5 glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response.
Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.
Combined with its premium ferrite motor, all these characteristics make this speaker unique and deliver high-performance that achieves exceptional clarity, detail, and dynamics on sound.
Popular custom door panel combination with the 10MB800FT and WG2000Py SLIM Mids & Highs Compression Driver all tuned by Our DSP 2.8X ( digital sound processor ) for the best frequency response, follow settings below:
10MB800FT High Pass Filter HPF 110 Hz BT18 Filter to Low Pass Filter LPF 1800 Hz BT12, following the compression driver from 1000Hz all way to 17,000Hz
Recommended system package 8x 10MB800FT + 4x WG2000Py SLIM
PRV 10 Midbass Speaker 10MB800FT 800 Watts / 8 Ohm High Power PRO Audio Low Frequency Loudspeaker
2 Speakers 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel
4 Speakers 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS7000 at 1 Ohm, 8 speakers in parallel

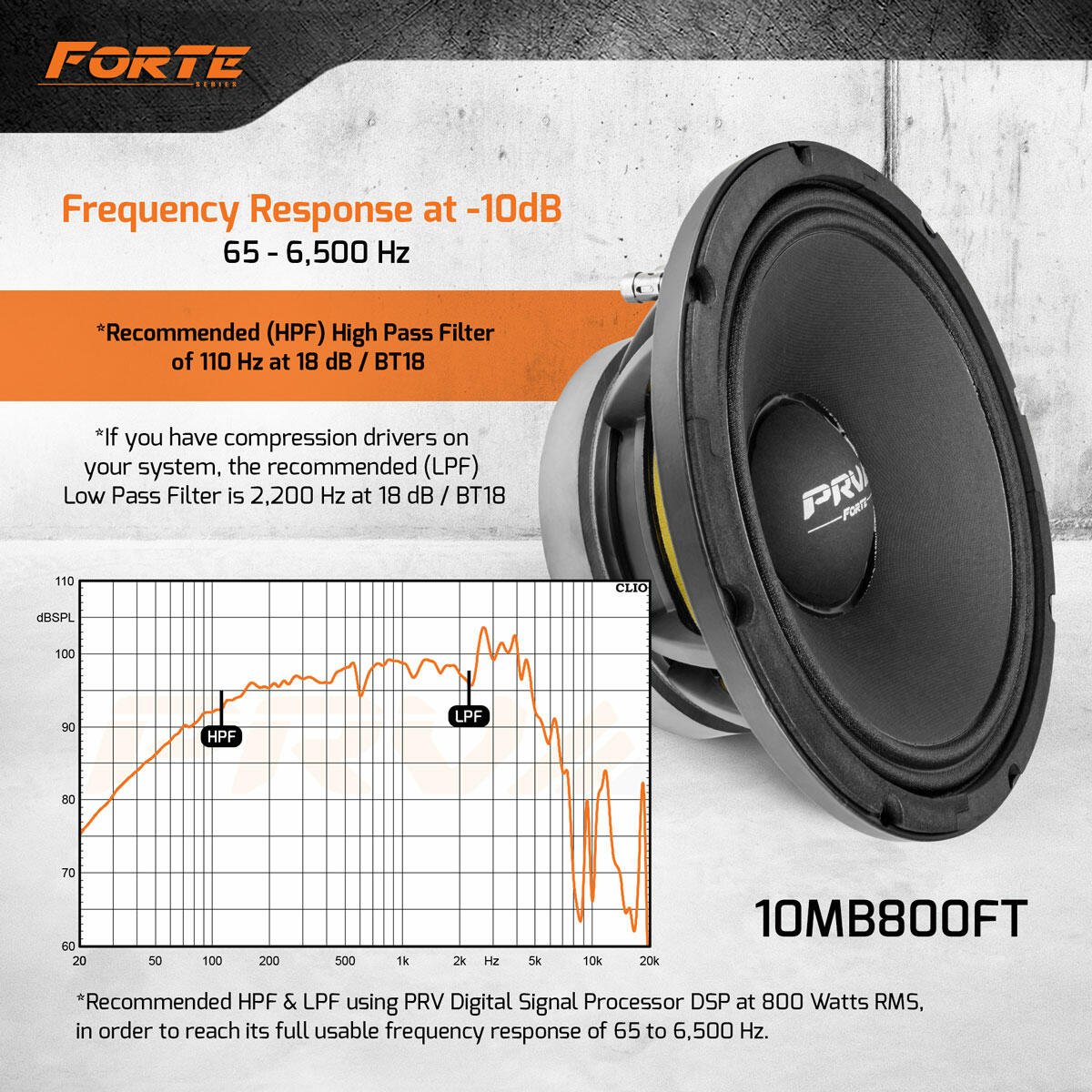

Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )
- 120 Hz at 12 dB per octave filter Crossover / BT12
- 110 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 2,200Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 400 Watts |
| Continuous Program Power (RMS) | 800 Watts |
| Max Peak Power | 1600 Watts |
| Sensitivity 2.83V at 1m | 99 dB |
| Recommended High Pass Filter* *For Full Power Handling | 120 Hz* *12db Per Octave Crossover |
| Frequency Response at -10dB | 65 - 5,300 Hz |
| Voice Coil Diameter | 2.5" (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 36.73 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 64.72 Hz |
| Mechanical Factor | Qms | 15.39 |
| Electrical Factor | Qes | 0.33 |
| Total Factor | Qts | 0.32 |
| Cone Area | Sd | 380 cm |
| Mechanical Mass | Mms | 33.20 g |
| Bl Factor | Bl | 14.39 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 0.40 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 29.01 g |
| Mechanical Compliance | Cms | 0.182 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

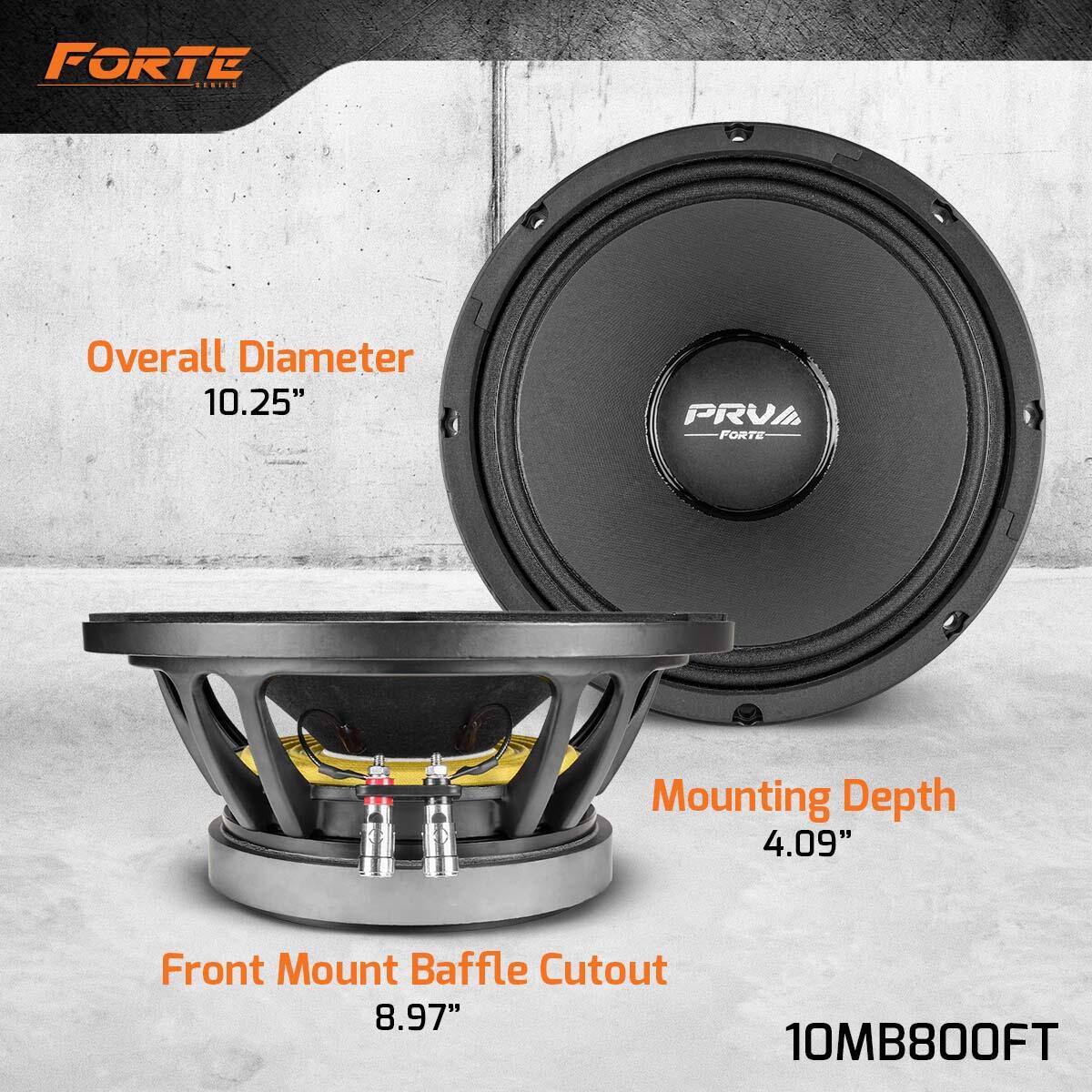

| Overall Diameter | 10.25 (260.5 mm) |
| Front Mount Baffle Cutout | 8.97 (228 mm) |
| Mounting Depth | 4.09 (104 mm) |
| Overall Depth | 4.68 (119 mm) |
| Net Weight | 11.01 Lbs (5.0 kg) |
| Shipping Weight | 11.90 Lbs (5.4 kg) |
| Carton Dimensions W x L x H | 11.50 x 11.50 x 6.50 (292 x 292 x 165 mm) |
