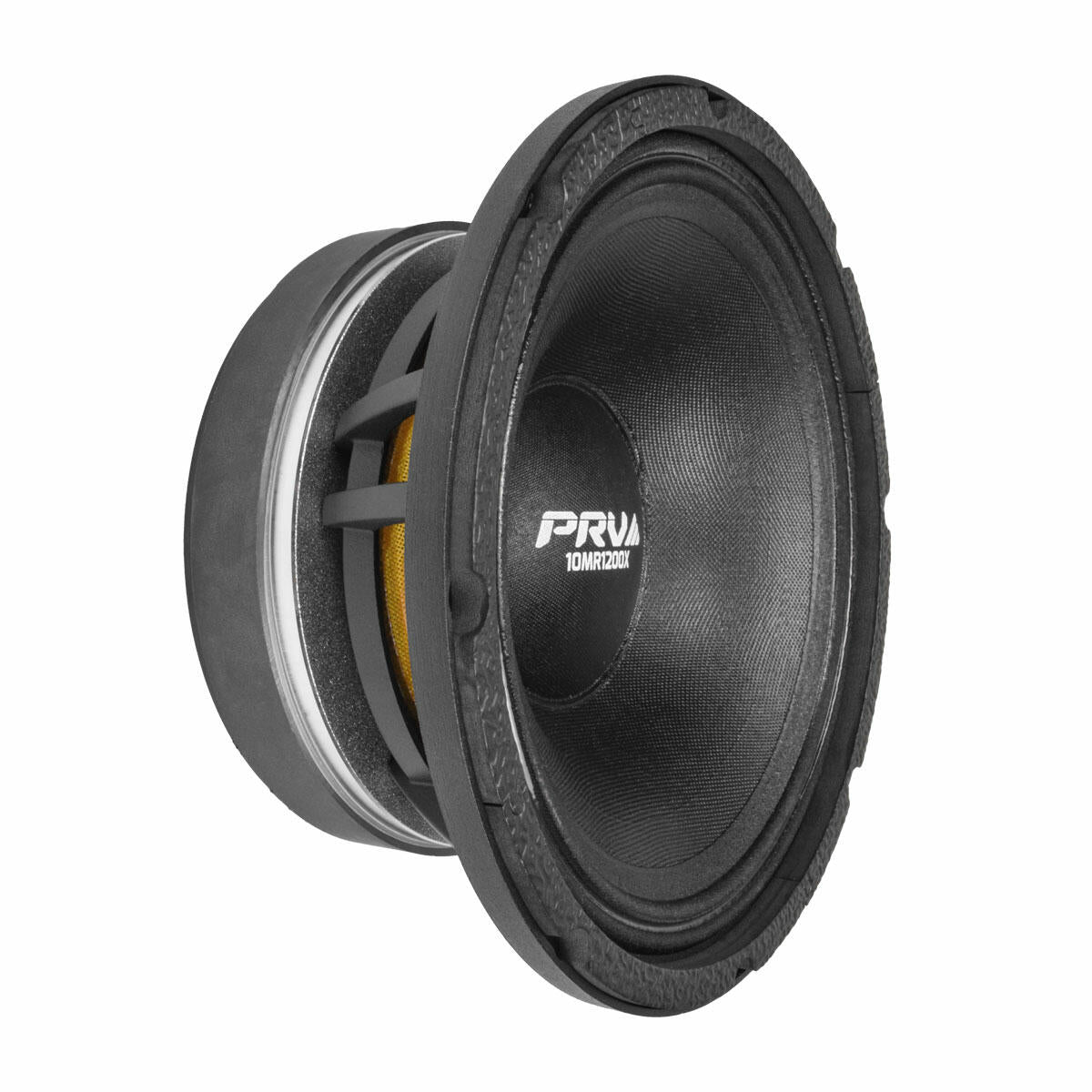

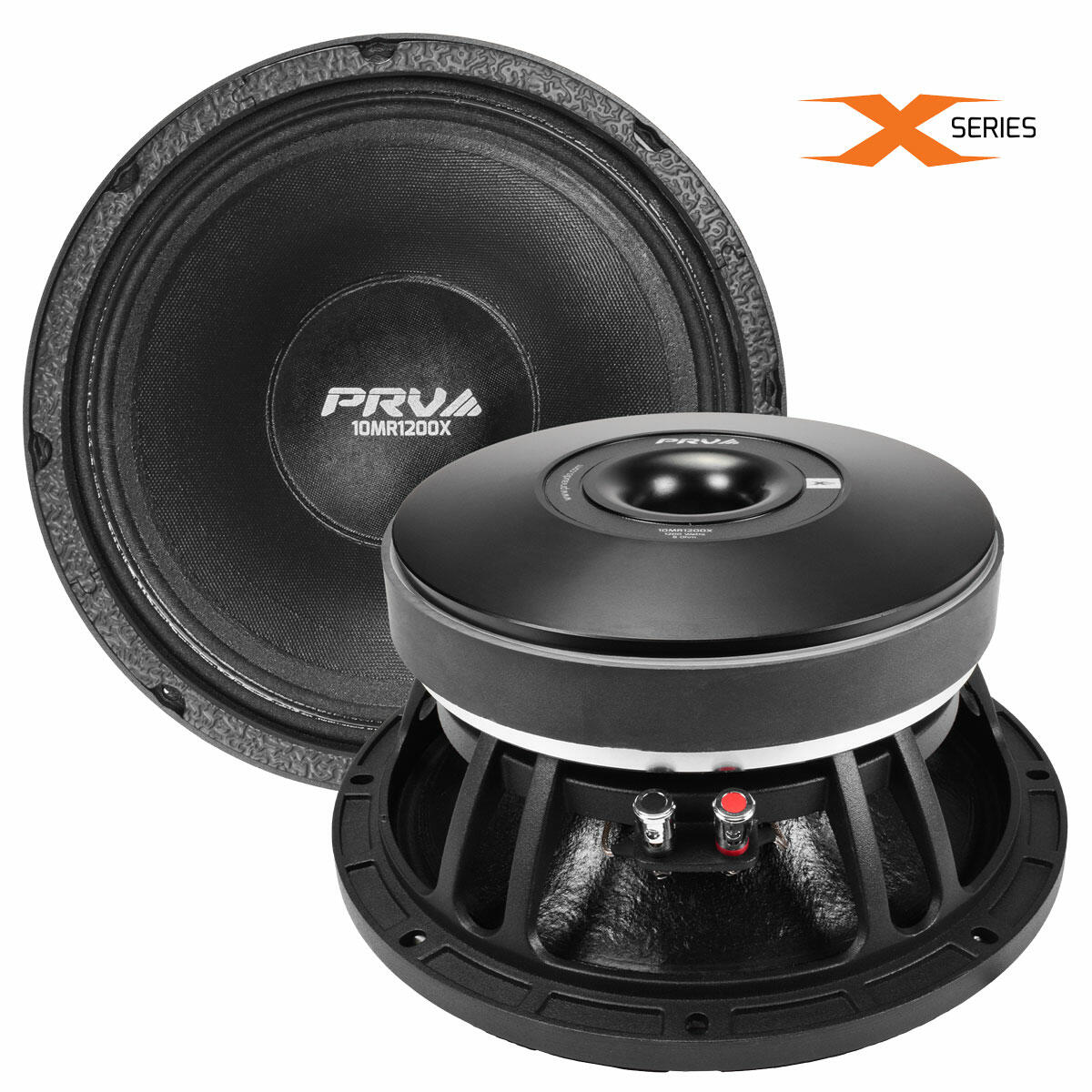

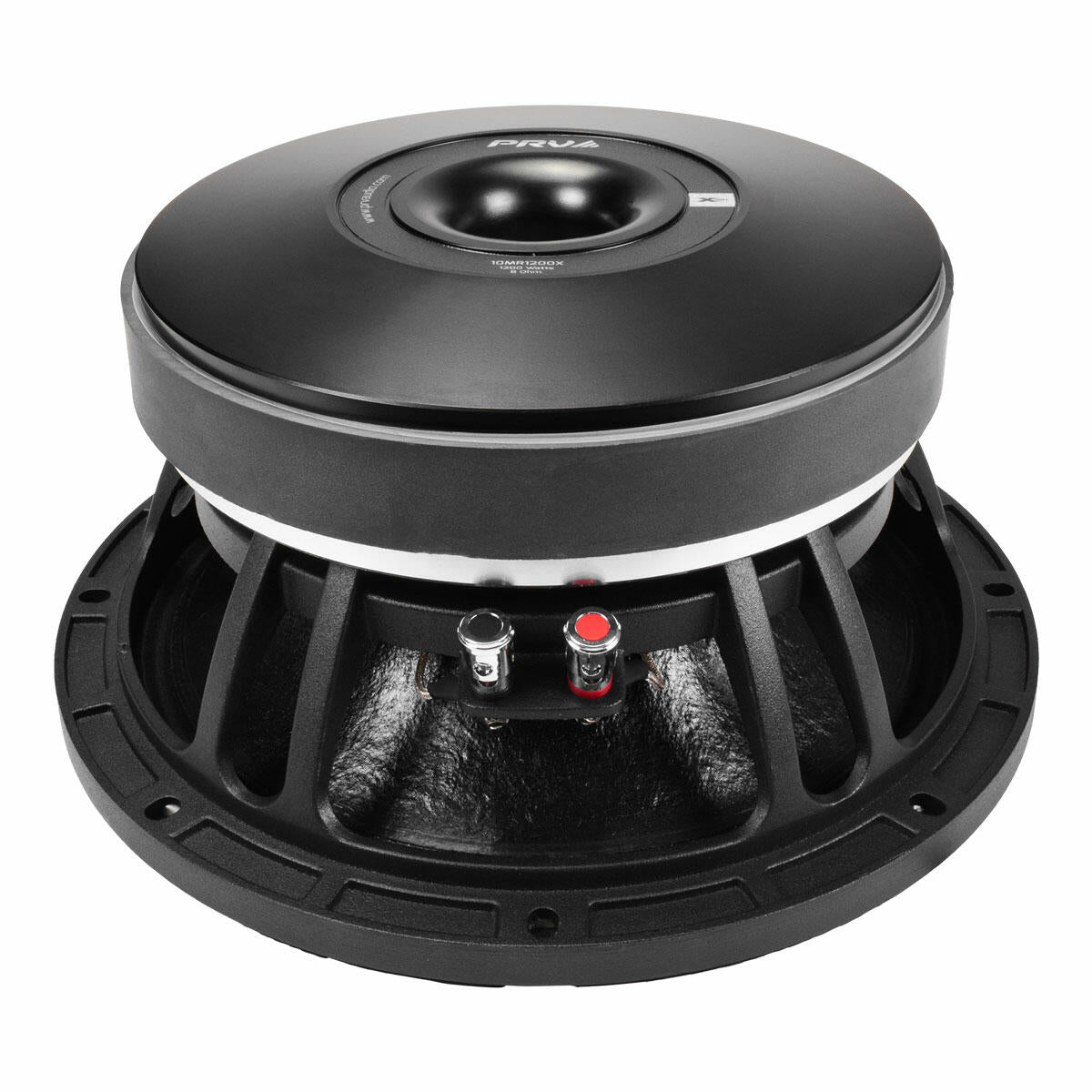

PRV Audio 10MR1200X 10" MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 10MR1200X 10" MIDRANGE LOUDSPEAKER
Features
X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response. Available in 12 12MR1200X

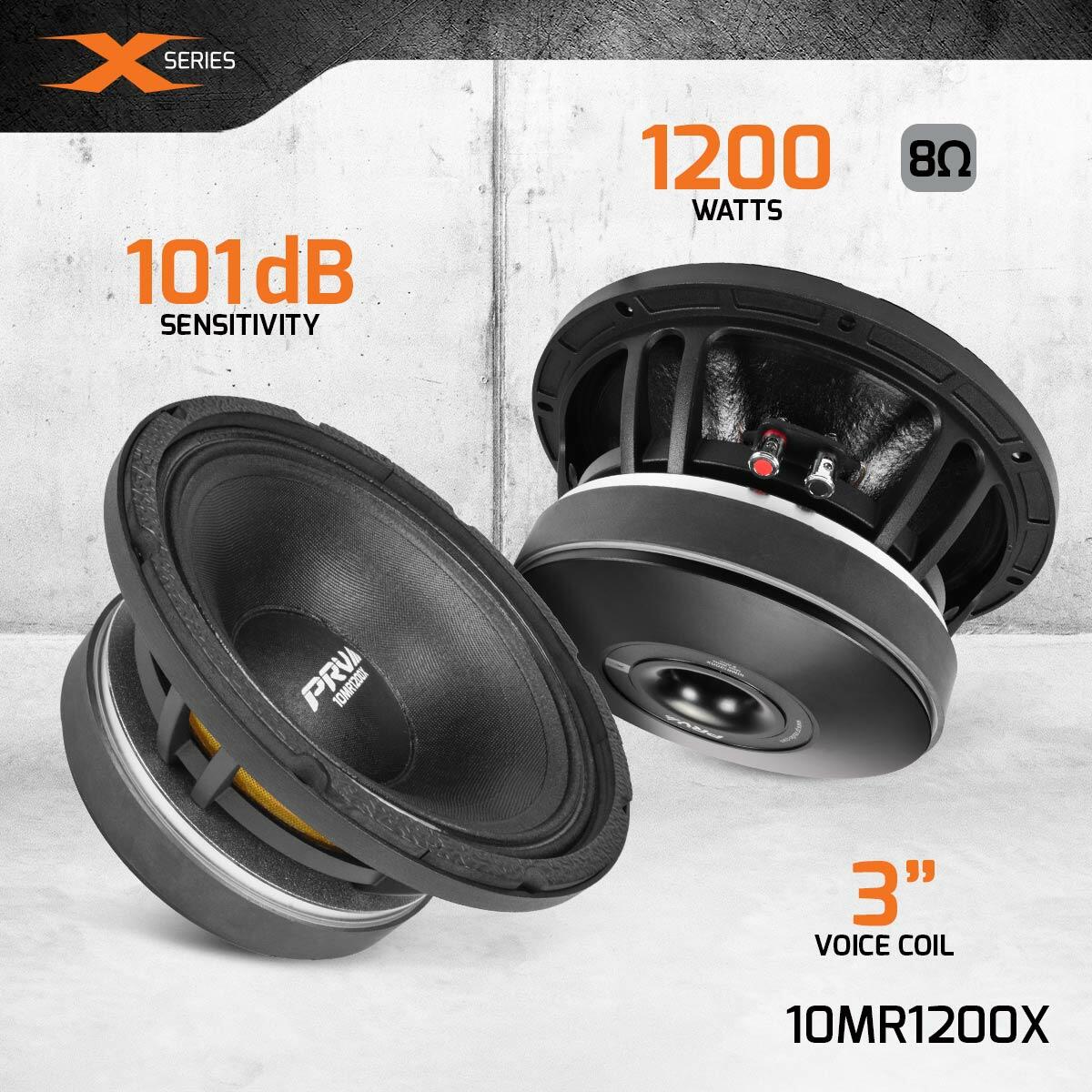

- 1200 Watts RMS continuous program power rating makes high acoustical output
- Ventilated voice coil gap reduces power compression for its 3 Inside/Out voice coil wound on glass fiber former for hi-temp performance, 8 Ohm
- Detailed vocal response and pristine instrument sound reproduction
- Excellent performance in compact enclosures, and custom doors
- 101 dB High efficiency, you do not need a lot of power to achieve extreme SPL levels
Our R&D department pushed the output limits on a midrange speaker, creating unique sound reproduction and with high output levels, making it our top of the line midrange PRO audio speaker.
The light weight cone provides excellent vocal and instrument response, taking performance to the next level with high output levels over +133dB between 260 to 4,200Hz.
Everything about this speaker is designed to achieve consistent high output levels, when driven to its limits.
When pushed to incredible output levels, this mid can produce incredible dynamic tones and a deep vocal response that is unmatched due to its high power handling and 101 dB sensitivity.
Made to be a class leading midrange in the pro audio realm, this midrange loudspeaker is best in its class for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.
PRV 10 Midrange Speaker 10MR1200X 1200 Watts / 8 Ohm High Output 3 Voice Coil PRO Audio Loudspeaker
Recommended Amplifier configurations and crossover points:
4 Speakers 1x QS5000 at 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS9000 at 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 1200 Watts RMS musical power ( without clipping )
- 150 Hz at 12 dB per octave filter Crossover / BT12
- 140 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 4,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 600 Watts |
| Continuous Program Power (RMS)** | 1200 Watts |
| Max Peak Power*** | 2400 Watts |
| Sensitivity 2.83V at 1m | 101 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 150 Hz 12db Per Octave Crossover |
| Frequency Response | 80 - 7,000 Hz |
| Voice Coil Diameter | 3" (75 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Glass fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 21.8 l |
| Excursion (mathematical)*** | Xmax | 2.50 mm |
| Free Air Resonance | Fs | 86.9 Hz |
| Mechanical Factor | Qms | 6.97 |
| Electrical Factor | Qes | 0.30 |
| Total Factor | Qts | 0.29 |
| Cone Area | Sd | 394 cm |
| Mechanical Mass | Mms | 33.30 g |
| Bl Factor | Bl | 17.50 Tm |
| Dc Resistance | Re | 5.1 Ohm |
| Inductance | Le | 0.52 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 28.84 g |
| Mechanical Compliance | Cms | 0.100 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

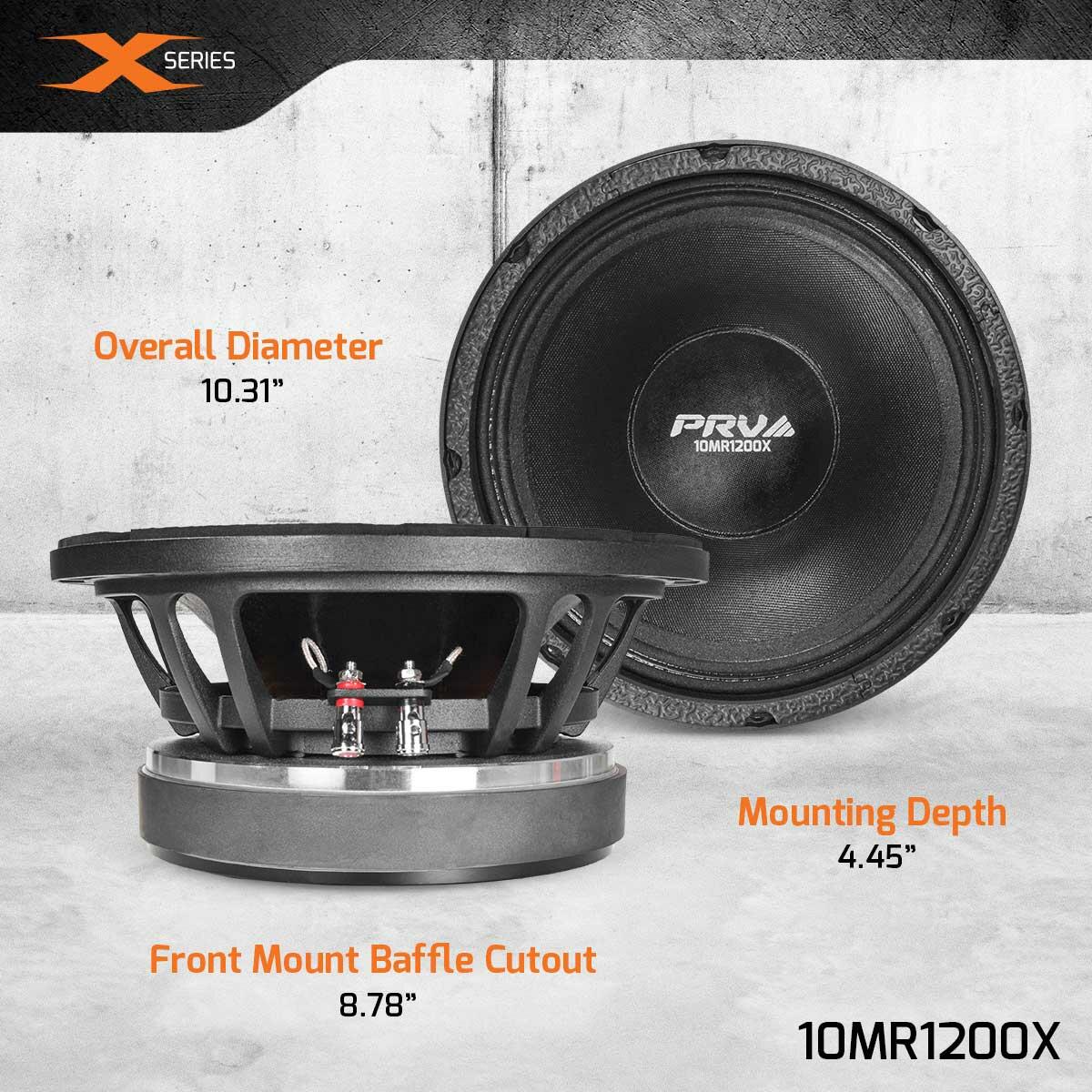

| Overall Diameter | 10.31 (262 mm) |
| Front Mount Baffle Cutout | 8.78 (223 mm) |
| Mounting Depth | 4.45 (113 mm) |
| Overall Depth | 5.04 (128 mm) |
| Net Weight | 19.18 Lbs (8.70 kg) |
| Shipping Weight | 20.17 Lbs (9.15 kg) |
| Carton Dimensions W x L x H | 11.22" x 11.22" x 5.91 (285 x 285 x 150 mm) |
