PRV Audio 10MR650A-NDY 10" SHALLOW MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 10MR650A-NDY 10" SHALLOW MIDRANGE LOUDSPEAKER
Features
The 10MR650A-NDY is a new solution for 10 shallow midrange designed to deliver exceptional performance in an incredibly compact profile. Its small, yet powerful rare-earth neodymium motor ensures it can drive its voice coil with authority, being the most effective in its class in size-to-output ratio.
Meet the new improved version of 10MR650A a phenomenal addition to the ALTO Series loudspeakers.
Theres no doubt that the 10MR650A-NDY will make a mark as one of the best in this series.

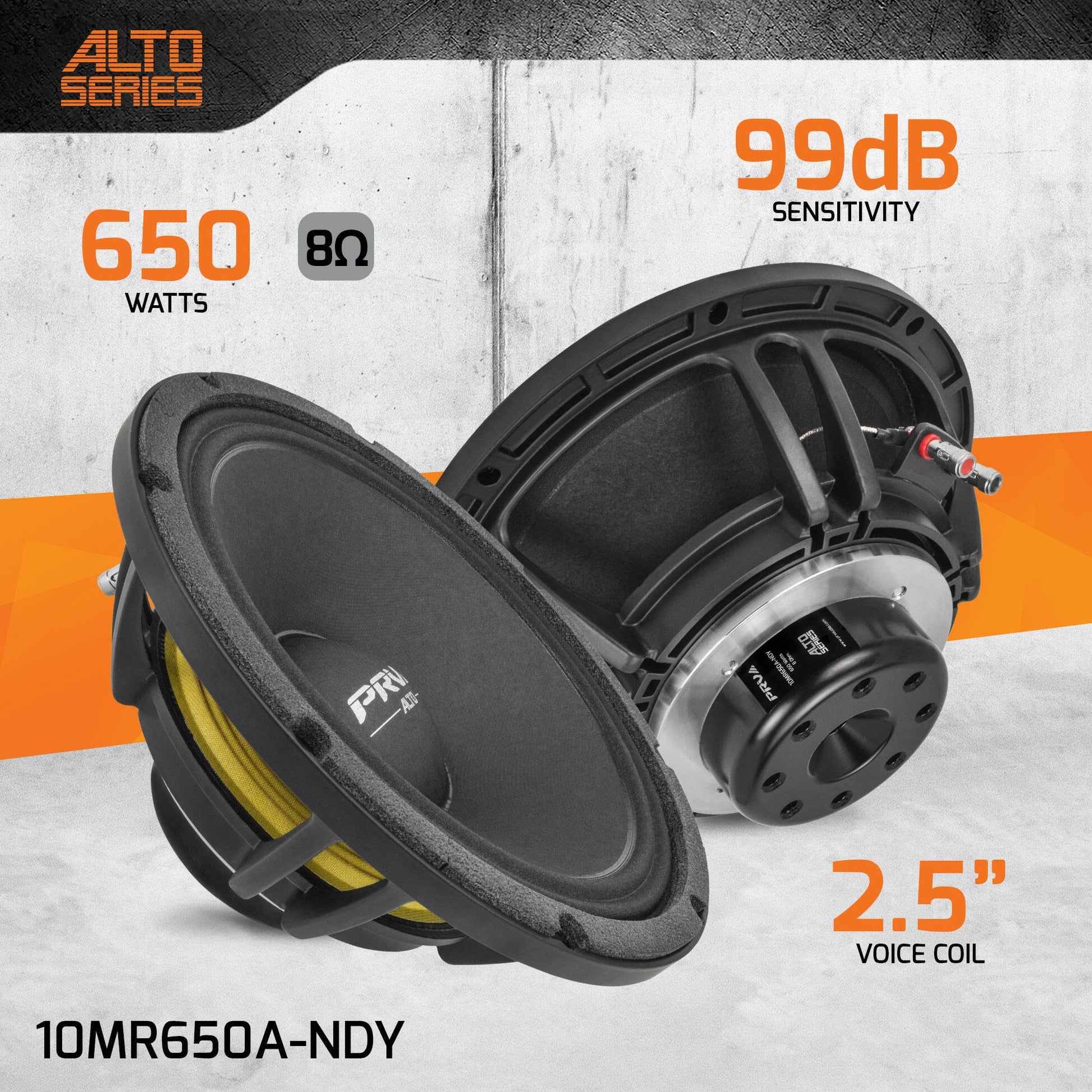

- 650 Watts RMS continuous program power rating makes high acoustical output, with a 99 dB Sensitivity, capable of generating very high output!
- Built for compact applications with only 4 of overall mounting depth without sacrificing quality or performance
- 70 to 6,500 Hz frequency response makes this great midrange with low midbass response
- Vented pole piece and gap dissipate excess heat to minimize power compression
- Covers the majority of the vocal range allow easy system integration with a tweeter
- Premium neodymium motor with slim profile, makes this the BEST Door Speaker, easy-to-fit lightweight 10 for custom doors, having minimum space requirement.
Everything you need in a pro audio loudspeaker for custom door panels, without sacrificing performance we have designed a compact and overall footprint of only 4 of mounting depth or only 2.60 of mounting depth when you measure only its basket since its motor is small and easy to tuck inside of the doors.
This loudspeaker opens up the possibility of having a slim custom door panel with a high performance speaker without having to cut up your whole door away!
It is an easy-to-fit 10 shallow speaker for custom doors and requires minimal space, thanks to its premium neodymium motor with a slim profile.
With a weight of only 5.73 lbs, this lightweight design keeps your custom door light and prevents it from being damaged by a heavy custom door panel.
Supporting the cone is a heavy duty spider M roll treated cloth surround, designed for high excursion applications to handle short bursts of excessive power without damage.
In addition to its large silicone spider system, the silver tinsel lead wire ensures excellent current transfer during large excursions of 0.75 peak-to-peak before damage occurs.
Combined with its premium neodymium motor, all these characteristics make this speaker unique and deliver high-performance with the best high-quality components that achieve exceptional clarity, detail, and dynamics on sound.
PRV 10 Shallow Midrange Speaker 10MR650A-NDY 650 Watts / 8 Ohm Slim Profile Door Speaker / Neodymium High Output Loudspeaker
2 Speakers 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel on the bridged channel
4 Speakers 1x QS3000 at 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS5000 at 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 650 Watts RMS musical power ( without clipping )
- 110 Hz at 12 dB per octave filter Crossover / BT12
- 100 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 2,200Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 325 Watts |
| Continuous Program Power (RMS)** | 650 Watts |
| Max Peak Power*** | 1300 Watts |
| Sensitivity 2.83V at 1m | 99 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 110 Hz 12db Per Octave Crossover |
| Frequency Response | 70 - 6,500 Hz |
| Voice Coil Diameter | 2.5" (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass fiber |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 40.7 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 62.4 Hz |
| Mechanical Factor | Qms | 10.23 |
| Electrical Factor | Qes | 0.40 |
| Total Factor | Qts | 0.38 |
| Cone Area | Sd | 380 cm |
| Mechanical Mass | Mms | 32.24 g |
| Bl Factor | Bl | 12.74 Tm |
| Dc Resistance | Re | 5.1 Ohm |
| Inductance | Le | 0.39 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 28.04 g |
| Mechanical Compliance | Cms | 0.202 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

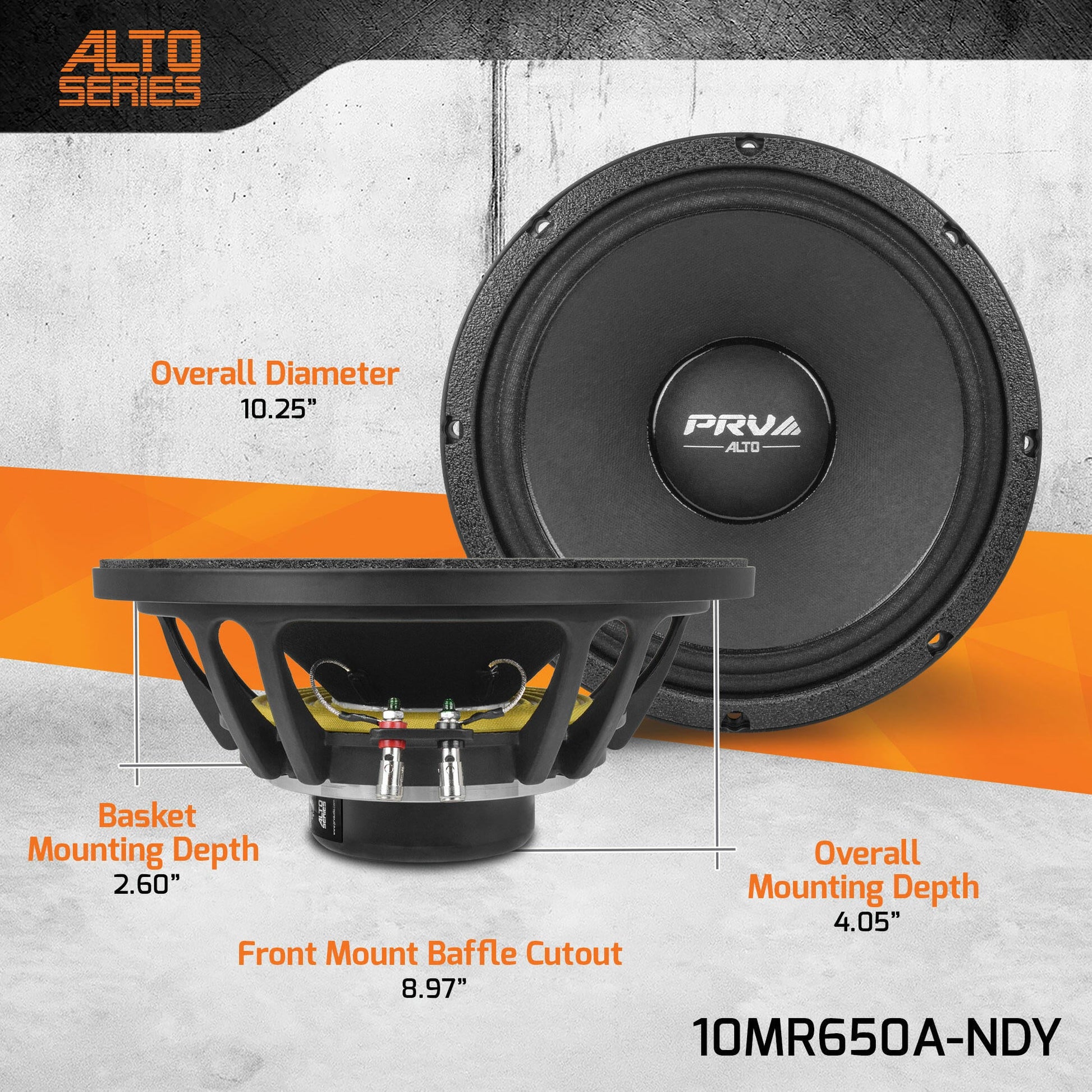

| Overall Diameter | 10.25" (260.5 mm) |
| Front Mount Baffle Cutout | 8.97" (228 mm) |
| Mounting Depth | 4.05" (102.8 mm) |
| Overall Depth | 4.60 (116.8 mm) |
| Net Weight | 5.73 Lbs (2.60 kg) |
| Shipping Weight | 6.83 Lbs (3.10 kg) |
| Carton Dimensions W x L x H | 11.81" x 11.81" x 5.71" (300 x 300 x 145 mm) |
