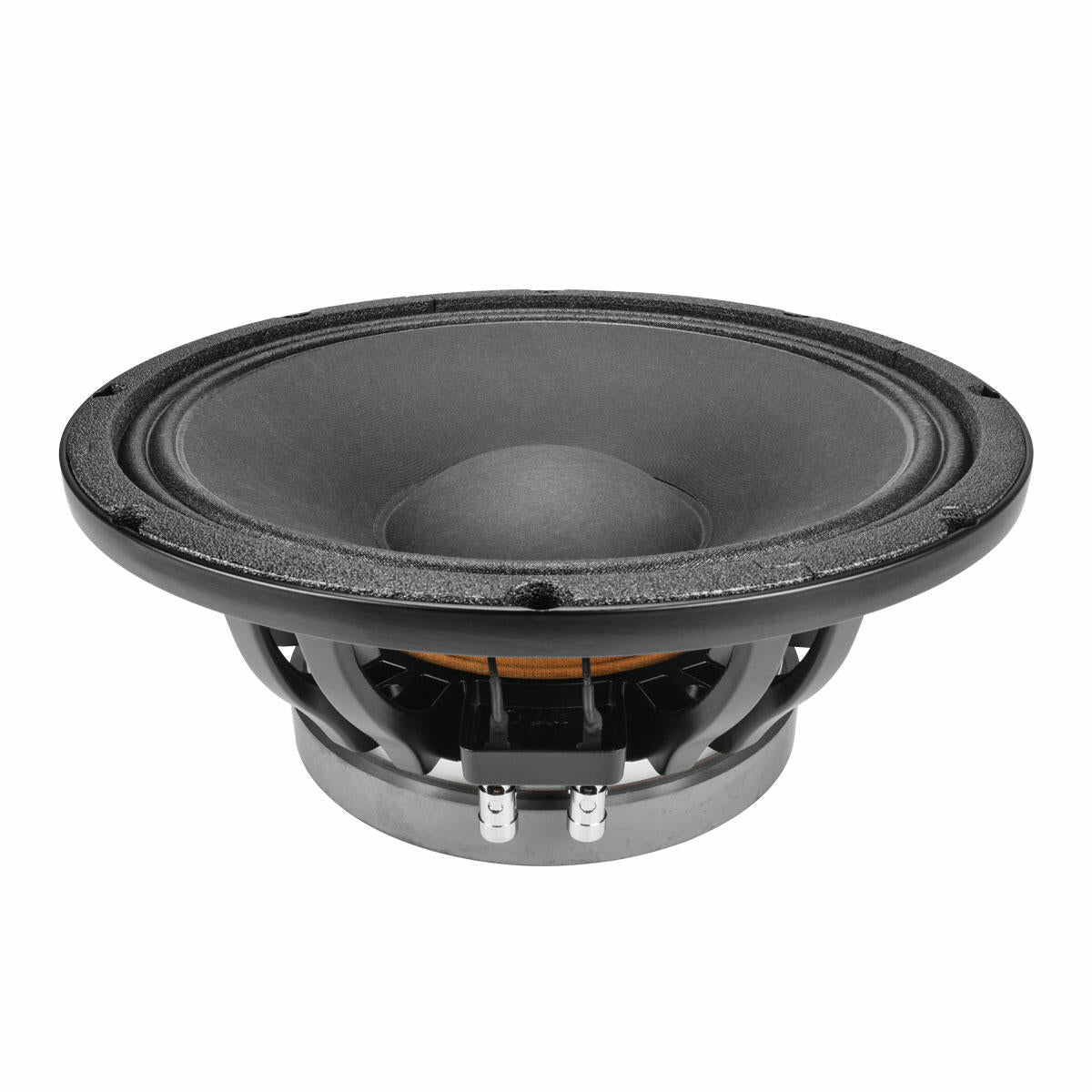

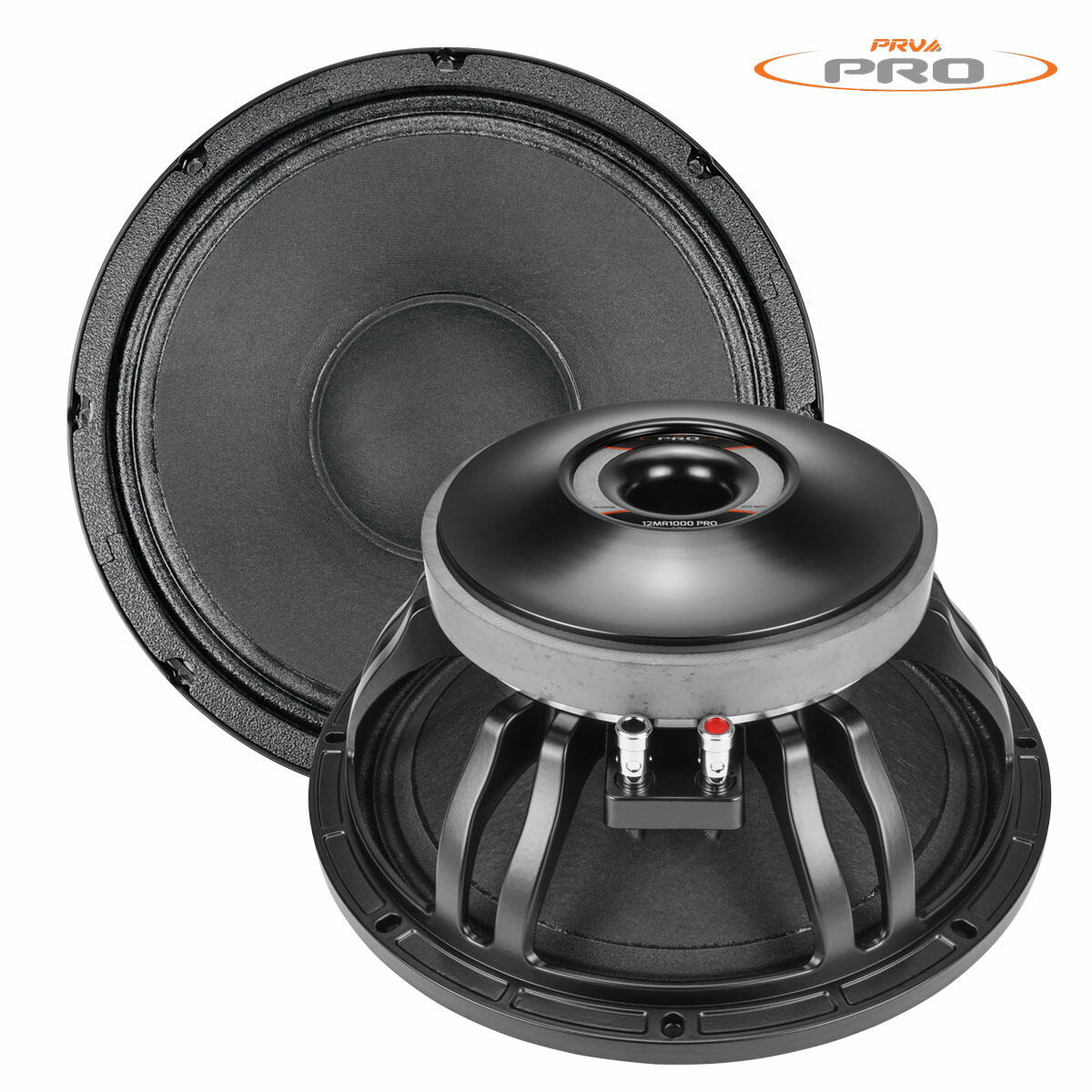

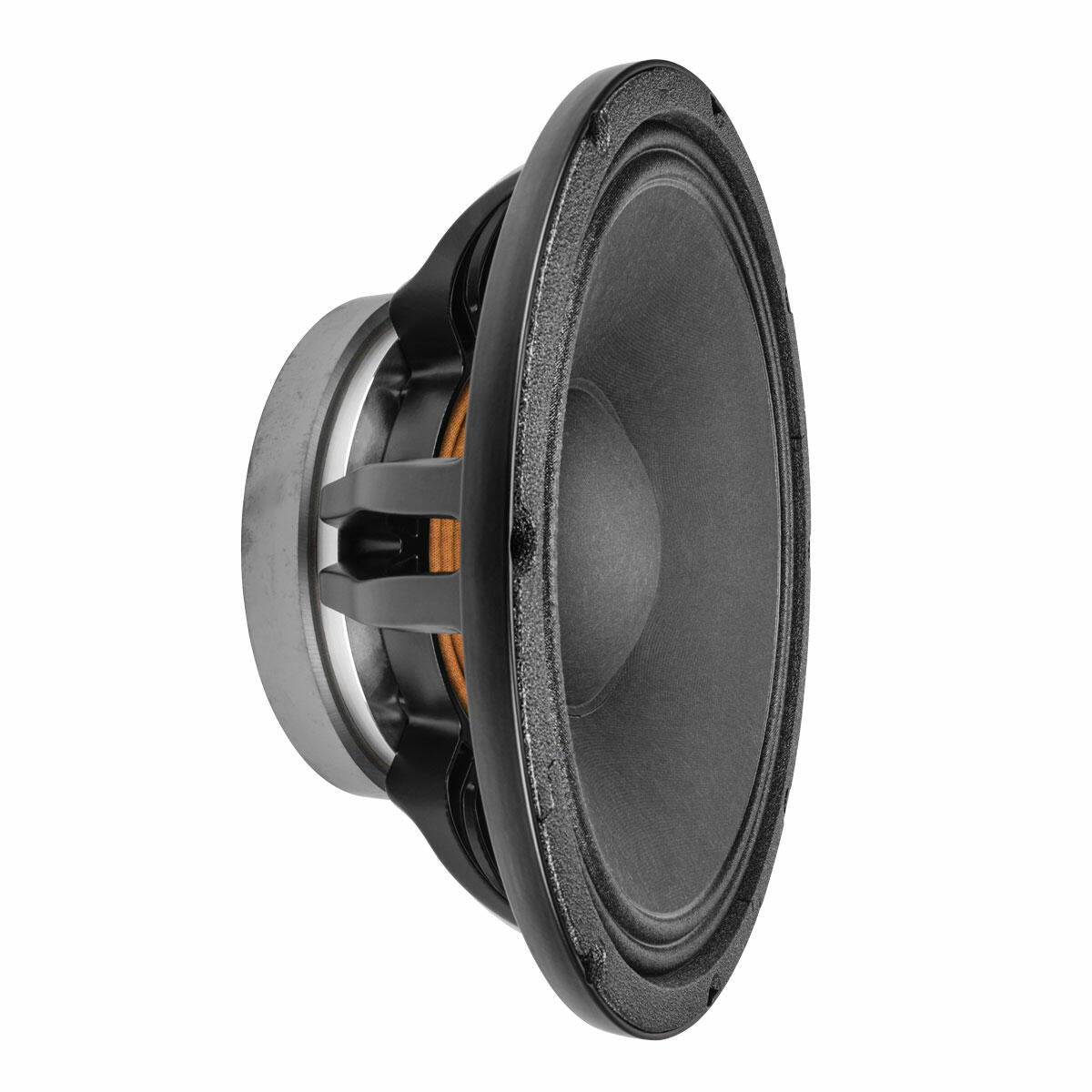

PRV Audio 12MR1000 PRO 12" MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Aug 02 - Aug 06
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 12MR1000 PRO 12" MIDRANGE LOUDSPEAKER

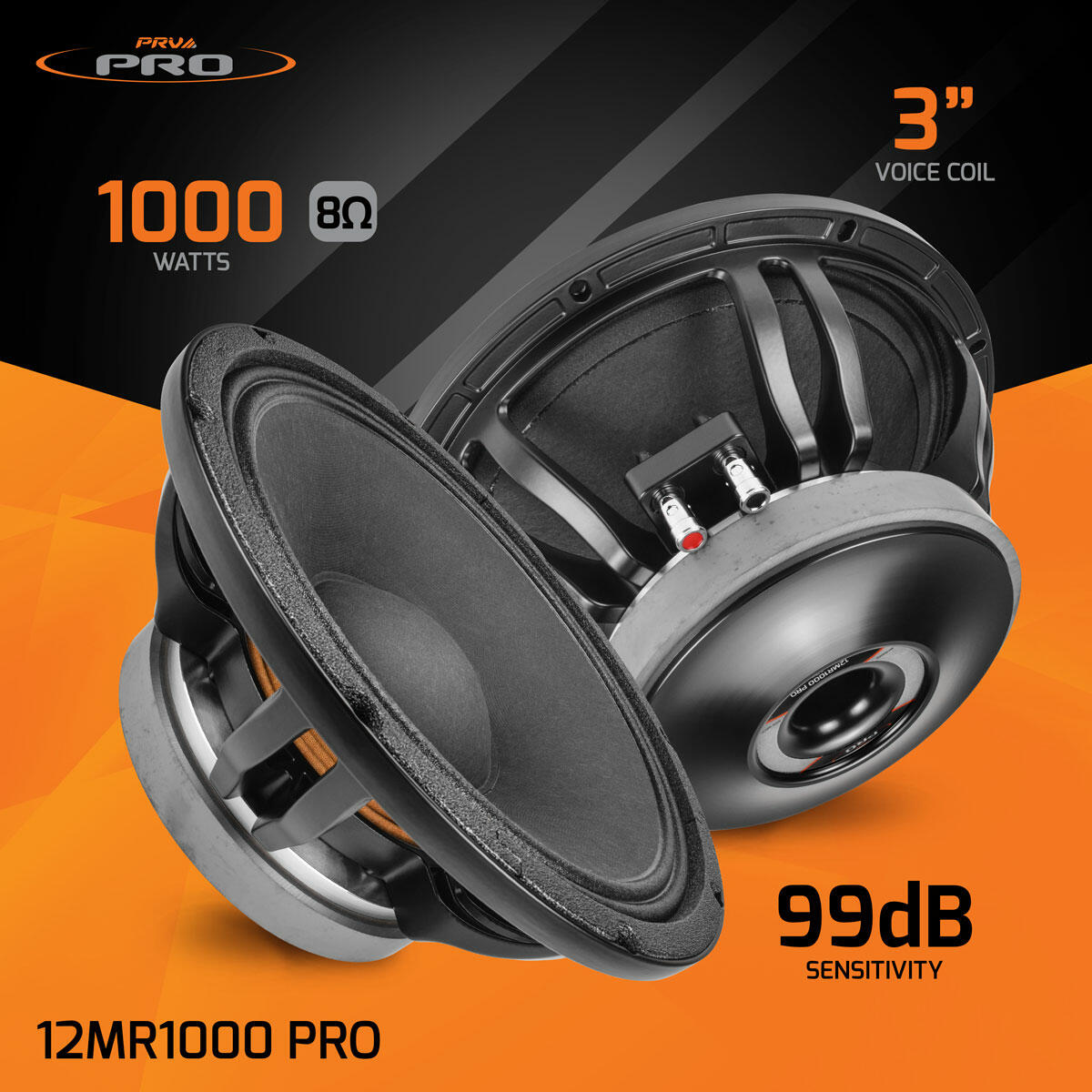

Features
The 12MR1000 PRO is a high power, and high output 12 midrange from our PRO Series primarily designed to perform in small sealed, horn loaded and vented enclosures, making it the perfect choice for a variety of installations, including professional sound reinforcement, live sound, home audio speakers with high outputs, as well as high SPL car audio.
- Excellent performance in 3-way systems, with high detailed percussion instruments tones at a high sensitivity of 99 dB
- Premium paper cone and cloth surround for high clarity, smooth response, and linear excursion at high 1000 Watts RMS program power.
- 3 Inside/outside wound CCAW voice coil leads on fiberglass former lend solid power handling capability
- Under spider and rear periphery venting allows cool running voice coil on long-lasting playing sessions.
- Low Qts means high damping and excellent performance in smaller boxes.
This professional midrange loudspeaker delivers smooth, clear vocals that will impress any listener! Its high efficiency makes it easy to power, all thanks to a specially light weight cone designed to deliver smooth vocals and well define midbass tones.
Cast aluminum frame adds structural integrity, while a paper/glass fiber cone attached to a large 3 voice coil keeps everything under control at high level outputs, making an easy transition to a high frequency driver.
GENERAL SPECIFICATIONS
| Nominal Diameter | 12" (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 500 Watts |
| Continuous Program Power (RMS)** | 1000 Watts |
| Max Peak Power*** | 2000 Watts |
| Sensitivity 2.83V at 1m | 99 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 125 Hz 12db Per Octave Crossover |
| Frequency Response | 70 - 6,500 Hz |
| Voice Coil Diameter | 3" (75 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 10 mm |
| Frame Material | Die cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 92.3 l |
| Excursion (mathematical)*** | Xmax | 3.00 mm |
| Free Air Resonance | Fs | 49.4 Hz |
| Mechanical Factor | Qms | 12.05 |
| Electrical Factor | Qes | 0.40 |
| Total Factor | Qts | 0.39 |
| Cone Area | Sd | 577 cm |
| Mechanical Mass | Mms | 52.31 g |
| Bl Factor | Bl | 15.89 Tm |
| Dc Resistance | Re | 6.2 Ohm |
| Inductance | Le | 0.60 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 44.5 g |
| Mechanical Compliance | Cms | 0.199 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4

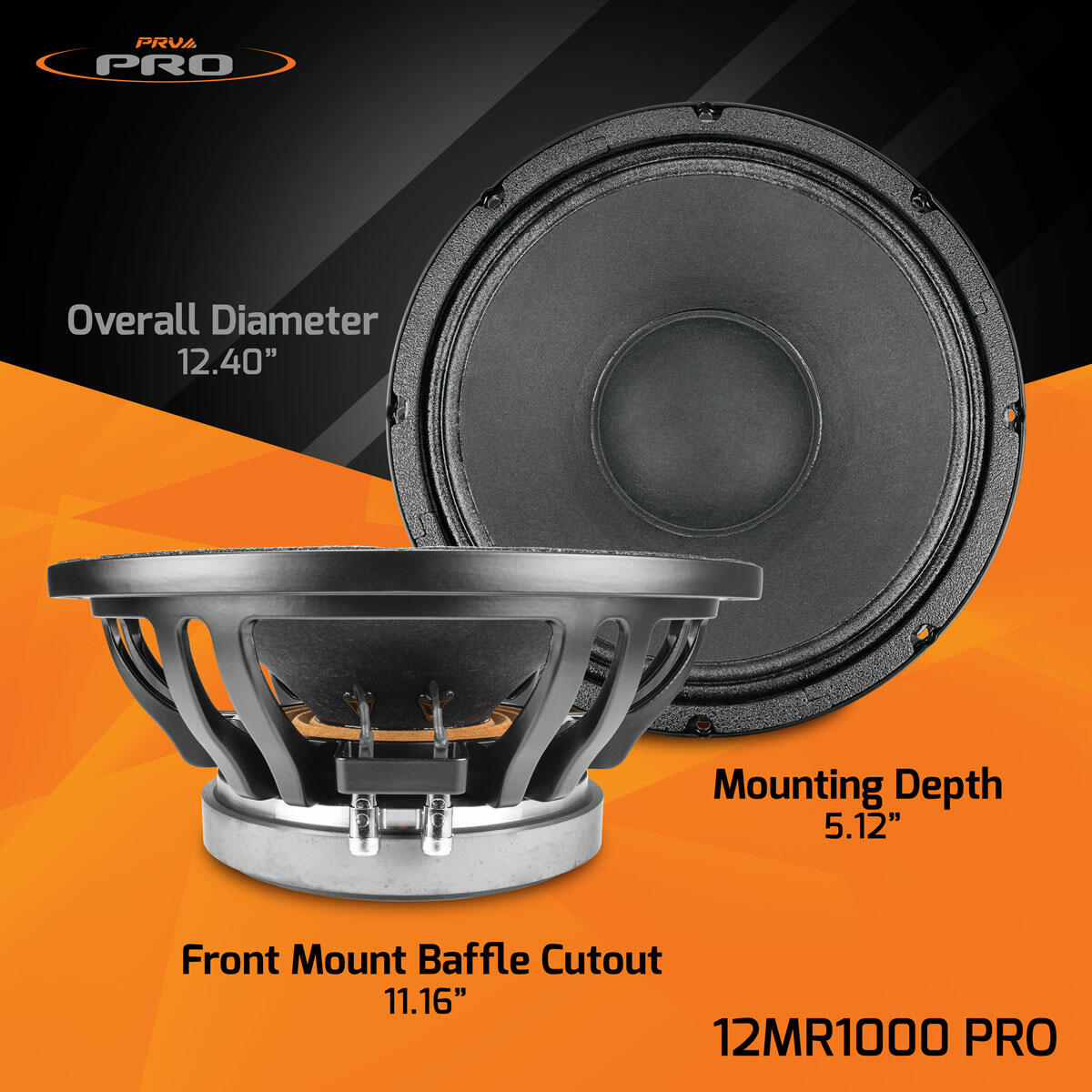

EXTRA INFO
| Overall Diameter | 12.40 (315 mm) |
| Front Mount Baffle Cutout | 11.16 (283.5 mm) |
| Mounting Depth | 5.12 (130 mm) |
| Overall Depth | 5.61 (142.5 mm) |
| Net Weight | 16.30 Lbs (7.40 kg) |
| Shipping Weight | 17.80 Lbs (8.06 kg) |
| Carton Dimensions W x L x H | 13.38x 13.38 x 7.09 (340 x 340 x 180 mm) |
