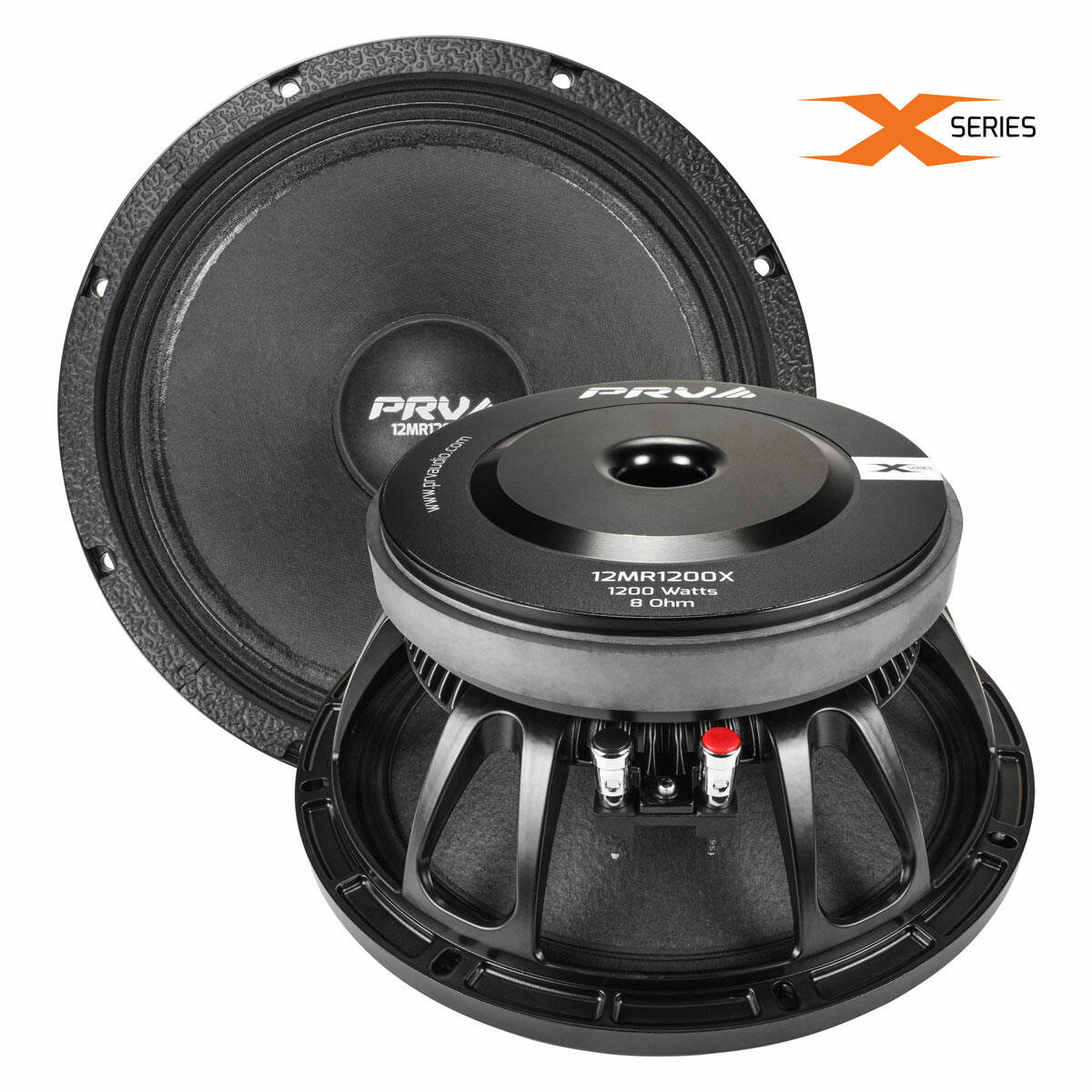

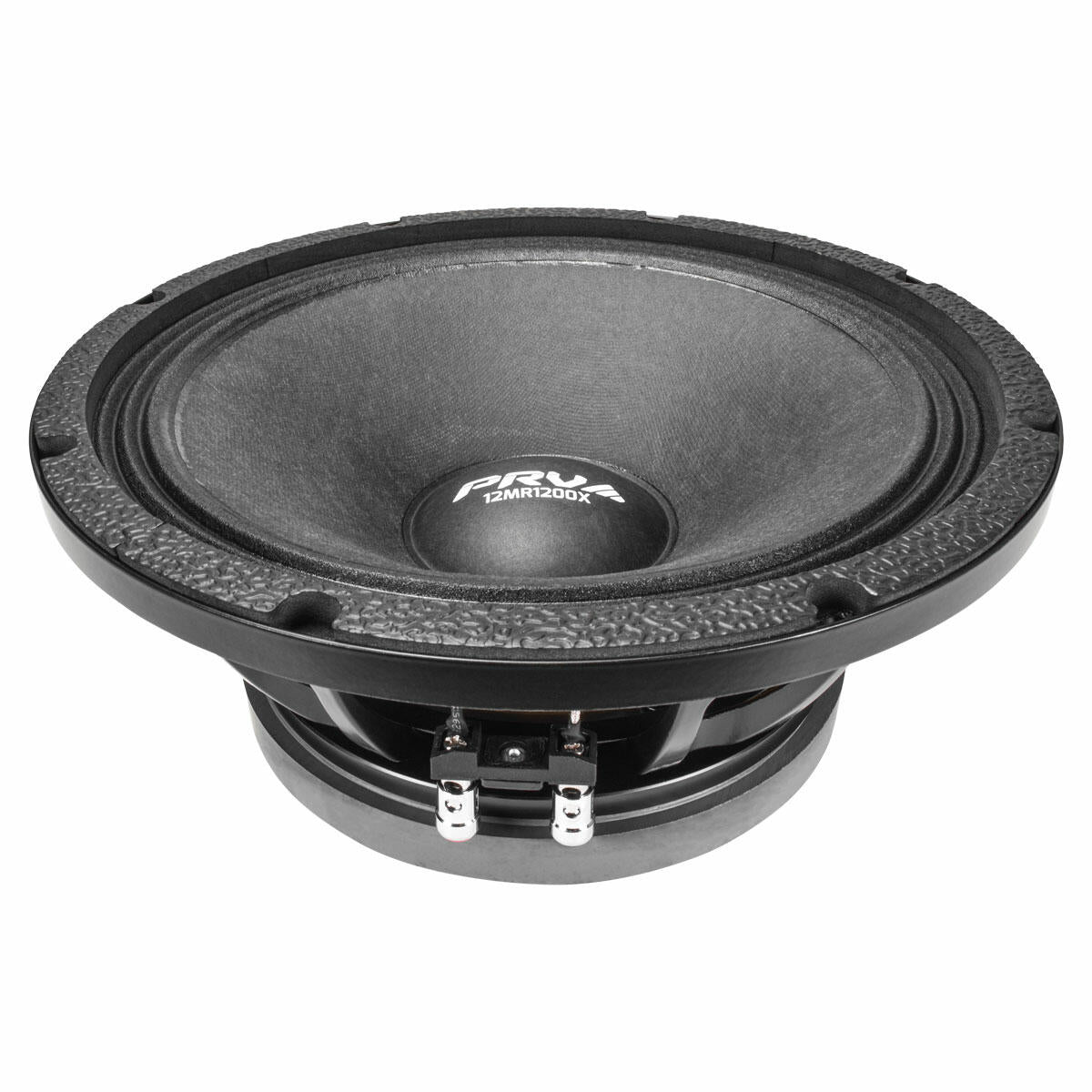

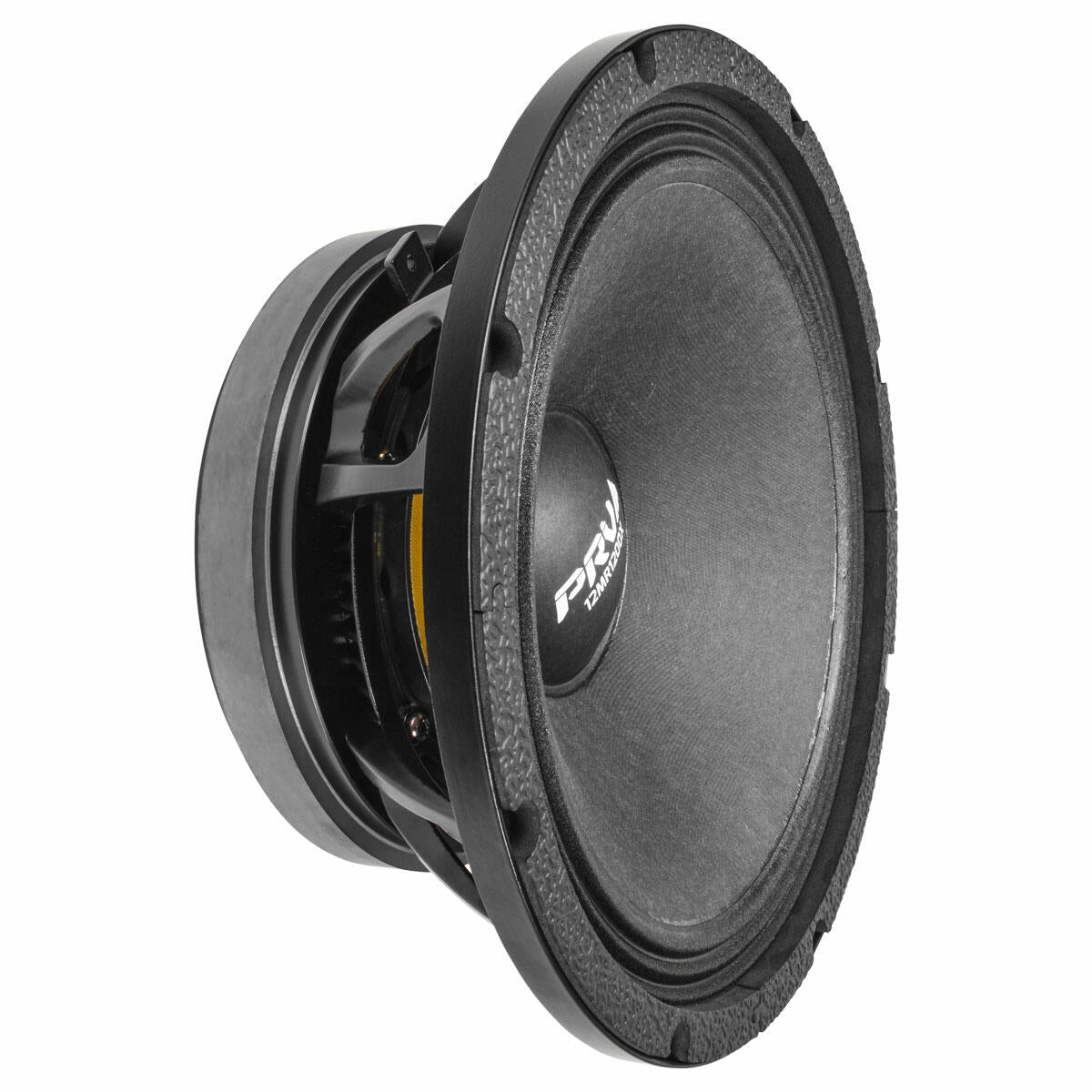

PRV Audio 12MR1200X 12" MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 12MR1200X 12" MIDRANGE LOUDSPEAKER
Features
X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response. Available in 10 10MR1200X
- 1200 Watts RMS continuous program power rating makes high acoustical output
- Ventilated voice coil gap reduces power compression for its 3 copper voice coil wound on glass fiber former for hi-temp performance, 8 Ohm
- Detailed vocal response and pristine instrument sound reproduction
- Excellent performance in compact enclosures, and custom doors
- 101.5 dB High efficiency, you do not need a lot of power to achieve extreme SPL levels
A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent response up to 4 kHz, taking performance to the next level with high output levels over +130dB between 260 to 3,800Hz.
Everything about this speaker has been designed to achieve consistent high output levels, when driven to its limit, allowing you to achieve high output sound at low distortion for the best possible listening experience.
12MR1200X 12 Midrange is built to perform vocals with punchy midbass, a great option for custom Chuchero speaker box and custom door panels, where weight and performance needs to have the perfect balance.
This high output speaker features an extensive basket venting system that ensures optimal cooling for its 3 voice coil with copper wire, to achieve its 1200 Watts of power handling.
The 3 inside/outside copper voice coil is wrapped on a glass fiber former for heat resistance and high efficiency, bringing out fine details in audio and reproducing them accurately at concert-level volume.
This midrange incorporates a high temperature flat copper wire voice coil, and a symmetrical inductance profile. Its 14 mm winding length also ensures high heat dissipation and high sensitivity, even on high power, and with minimum distortion.
PRV 12 Midrange Speaker 12MR1200X 1200 Watts / 8 Ohm High Output 3 Voice Coil PRO Audio Loudspeaker
Recommended Installation Guide:
Recommended boxes for optimal upper midrange output: Chuchero Box
4 Triangle Portedbox size: 0.55 ft3 (approx: 13x13x6 inside dimensions) Wood
Port size: 3 x 3x 4.25 by 4 deep
2 Speakers 1x QS3000 at 2 Ohm, 2 speakers in parallel
4 Speakers 1x QS5000 at 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS9000 at 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 1200 Watts RMS musical power ( without clipping )
- 140 Hz at 12 dB per octave filter Crossover / BT12
- 125 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommended LPF is 3,800 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 12" (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 600 Watts |
| Continuous Program Power (RMS)** | 1200 Watts |
| Max Peak Power*** | 2400 Watts |

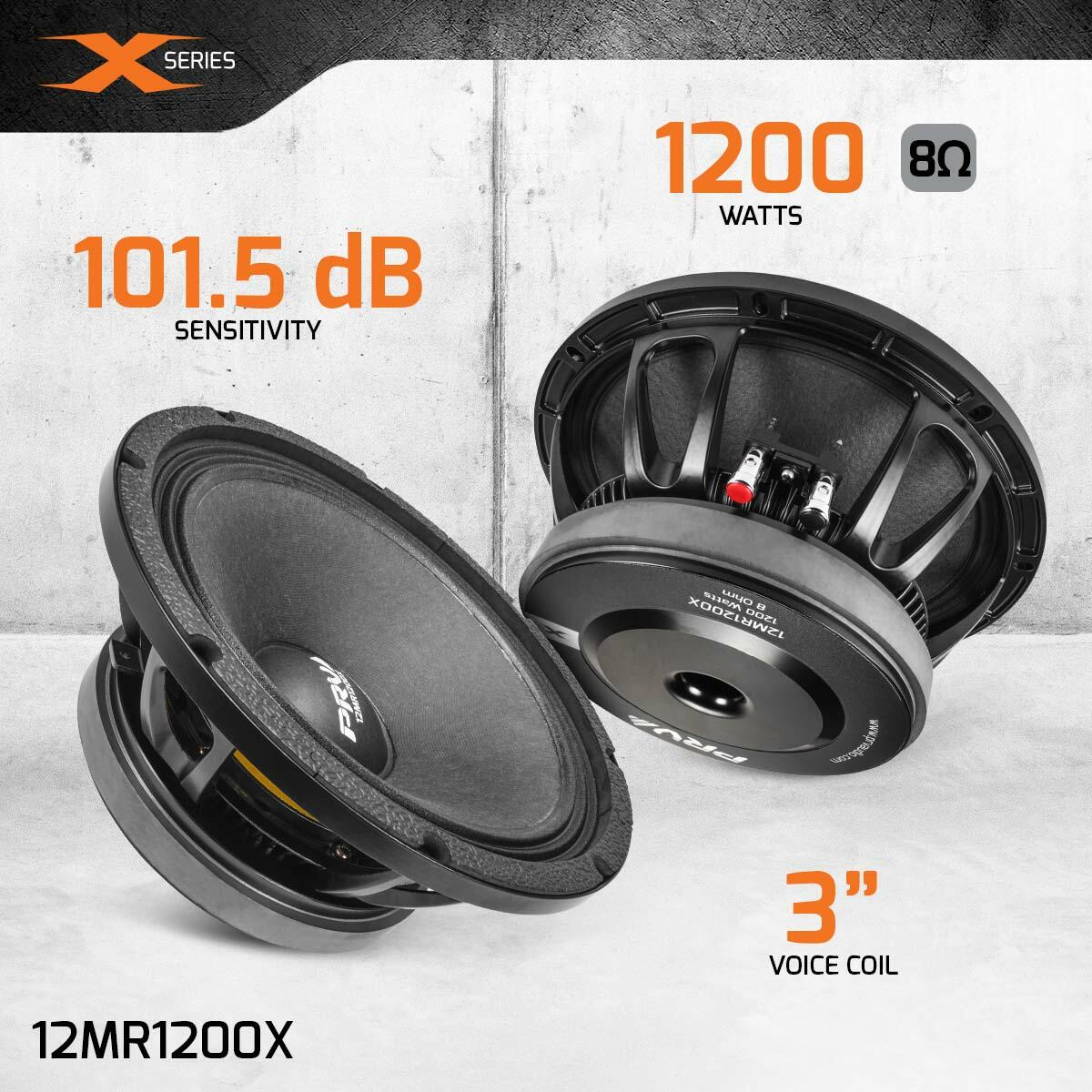

| Sensitivity 2.83V at 1m | 101.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 140 Hz 12db Per Octave Crossover |
| Frequency Response | 70 - 6,500 Hz |
| Voice Coil Diameter | 3" (76 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 14.0 mm |
| Former Material | Glass fiber |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 71.8 l |
| Excursion (mathematical)*** | Xmax | 4.50 mm |
| Free Air Resonance | Fs | 52.5 Hz |
| Mechanical Factor | Qms | 8.56 |
| Electrical Factor | Qes | 0.21 |
| Total Factor | Qts | 0.21 |
| Cone Area | Sd | 552 cm |
| Mechanical Mass | Mms | 54.3 g |
| Bl Factor | Bl | 22.0 Tm |
| Dc Resistance | Re | 5.8 Ohm |
| Inductance | Le | 0.23 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 47.0 g |
| Mechanical Compliance | Cms | 0.169 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

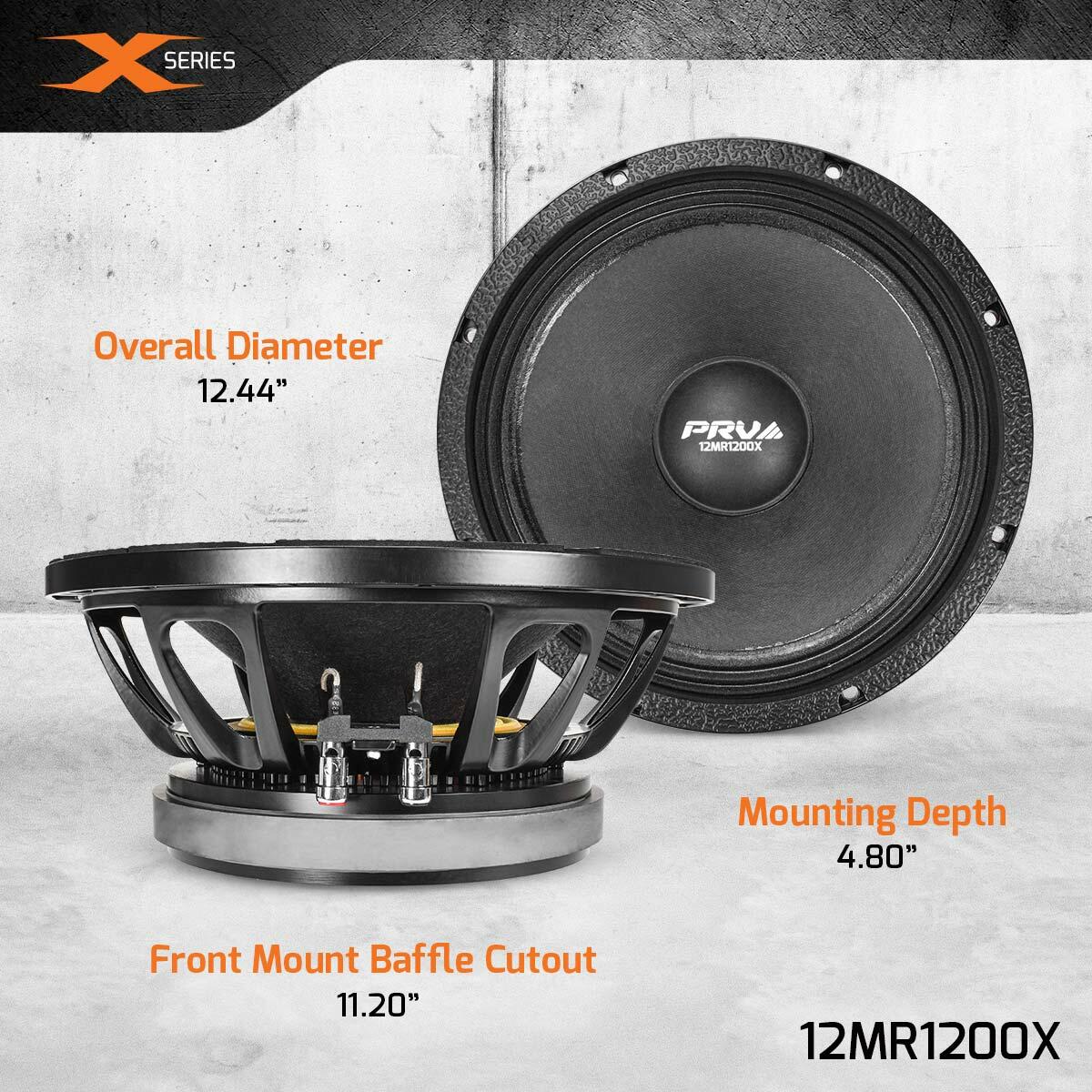

| Overall Diameter | 12.44" (316 mm |
| Front Mount Baffle Cutout | 11.20" (284.5 mm) |
| Mounting Depth | 4.80" (122 mm) |
| Overall Depth | 5.43" (138 mm) |
| Net Weight | 20.65 Lbs (9.36 kg) |
| Shipping Weight | 22.40 Lbs (10.16 kg) |
| Carton Dimensions W x L x H | 13.38" x 13.38" x 6.50" (340 x 340 x 165 mm) |
