PRV Audio 12MR2000-NDY 12" MIDRANGE LOUDSPEAKER (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 12MR2000-NDY 12" MIDRANGE LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The new 12MR2000-NDY will sure change the game on vocal reproduction! Features a large 4 CCAW inside/out voice coil that results in very high efficiency while providing smooth and accurate Midrange response.
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 1000 Watts
- Continuous Program Power (RMS): 2000 Watts
- Sensitivity (1W/1m): 98 dB
- Voice Coil Diameter: 4
GENERAL SPECIFICATIONS
| Nominal Diameter | 12" (305 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling* | 1000 Watts |
| Continuous Program Power (RMS)** | 2000 Watts |
| Max Peak Power*** | 4000 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 68 - 4,800 Hz |
| Voice Coil Diameter | 4" (100 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 16.8 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.0 mm |
| Frame Material | Die Cast Aluminum |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 48.16 l |
| Excursion (mathematical)*** | Xmax | 6.15 mm |
| Free Air Resonance | Fs | 54.48 Hz |
| Mechanical Factor | Qms | 17.61 |
| Electrical Factor | Qes | 0.35 |
| Total Factor | Qts | 0.34 |
| Cone Area | Sd | 573 cm |
| Mechanical Mass | Mms | 81.11 g |
| Bl Factor | Bl | 22.77 Tm |
| Dc Resistance | Re | 6.6 Ohm |
| Inductance | Le | 0.69 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 73.35 g |
| Mechanical Compliance | Cms | 0.105 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

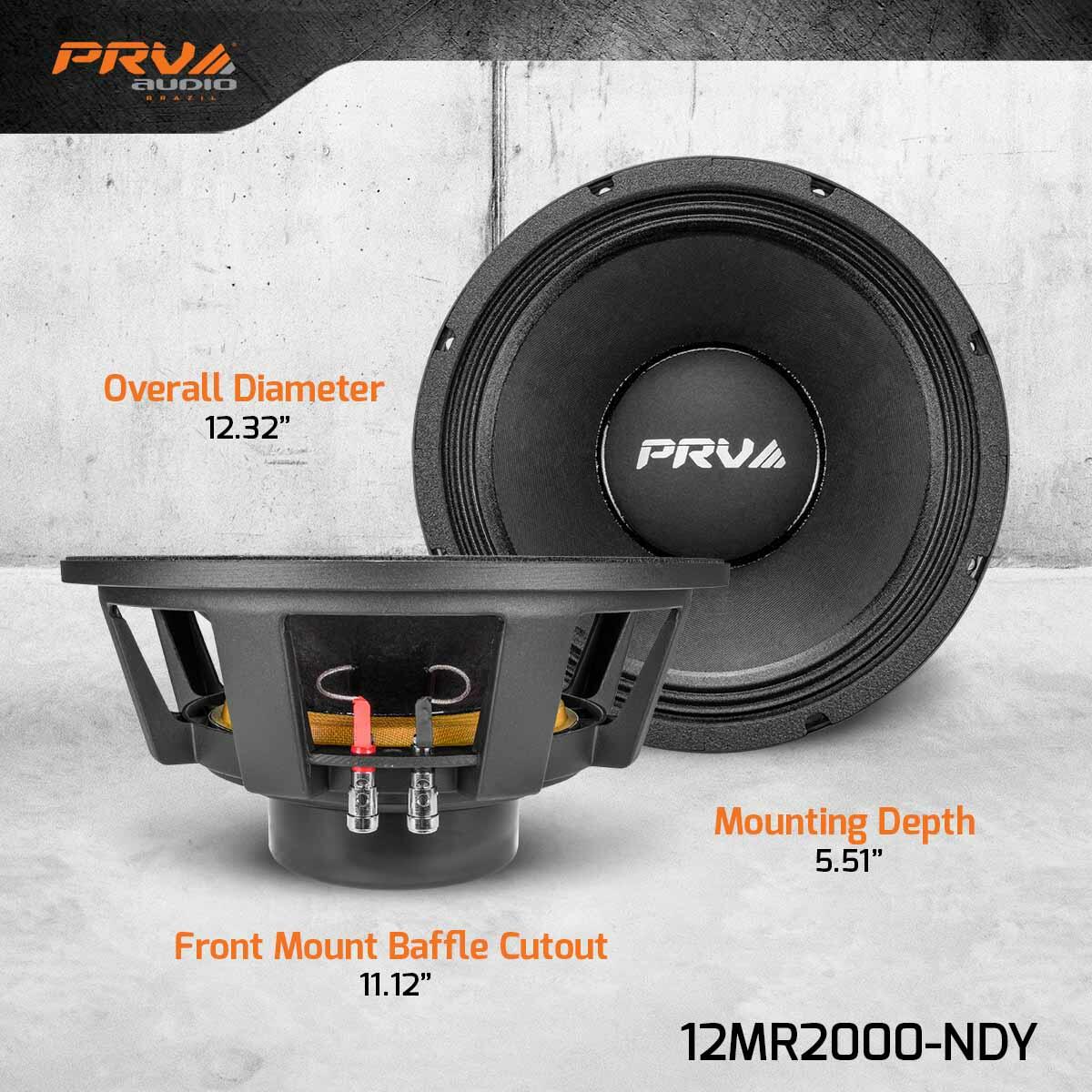

| Overall Diameter | 12.32 (313 mm) |
| Front Mount Baffle Cutout | 11.12 (282.5 mm) |
| Mounting Depth | 5.51 (140 mm) |
| Overall Depth | 5.94 (151 mm) |
| Net Weight | 13.93 Lbs (6.32kg) |
| Shipping Weight | 18.27 Lbs (8.29 kg) |
| Carton Dimensions W x L x H | 14.3 x 14.3 x 8.1 (363 x 363 x 205mm) |
...
