PRV Audio 12W2000 12" PRO AUDIO WOOFER

PRV Audio 12W2000 12" PRO AUDIO WOOFER

Precio regular $260.99
Precio de venta $260.99 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

The 12W2000 woofer features a special 4 split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features a huge magnet assembly that will guarantee very good low dynamic range with a very low distortion output.

This professional low frequency driver is especially recommended for sound competition where you can push this 12 at extreme levels for a few seconds in a ported enclosure, in which it will deliver solid, deep bass output.

  • 4 split copper voice coil wound on a fiberglass former for high-temp performance, 8 Ohm
  • Ventilated voice coil gap reduces power compression
  • 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
  • 2000 watts continuous program power RMS rating makes high acoustic output
  • High BL factor and Xmax for outstanding Low output
  • Exclusive made for sound competition with the recommended Ported Box

12W2000 12 woofer is designed to produce tremendously low frequency midbass in a ported box, a great option for sound competitions when you need extra power handling.

The specially designed rigid cast aluminum frame features side forced cooling system openings, allowing airflow to cool the voice coil. Additionally, a huge motor assembly and its new improved spider allows it to handle up to 2000 watts RMS without any problems.

The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support.

Our cone is supported by a new double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to withstand short bursts of excessive power without damage.

The coil is wound inside-outside on a fiberglass former and has a generous 27.5 mm winding length to ensure extended Xmax and better power handling in the competition lanes.



GENERAL SPECIFICATIONS

Nominal Diameter 12" (305 mm)
Nominal impedance 8 Ohm
Nominal Power Handling 1000 Watts
Continuous Program Power (RMS) 2000 Watts
Max Peak Power 4000 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover** **For Full Power Handling 60 Hz** **12db Per Octave Crossover
Frequency Response 50 - 2,200 Hz
Voice Coil Diameter 4" (100 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 28.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 15.0 mm
Frame Material Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 38.7 l
Excursion (mathematical)*** Xmax 10.25 mm
Free Air Resonance Fs 53.4 Hz
Mechanical Factor Qms 12.25
Electrical Factor Qes 0.38
Total Factor Qts 0.37
Cone Area Sd 594 cm
Mechanical Mass Mms 113.2 g
Bl Factor Bl 22.65 Tm
Dc Resistance Re 5.1 Ohm
Inductance Le 1.50 mH at 1 kHz
Mechanical Mass Without Air Mmd 105.0 g
Mechanical Compliance Cms 0.078 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

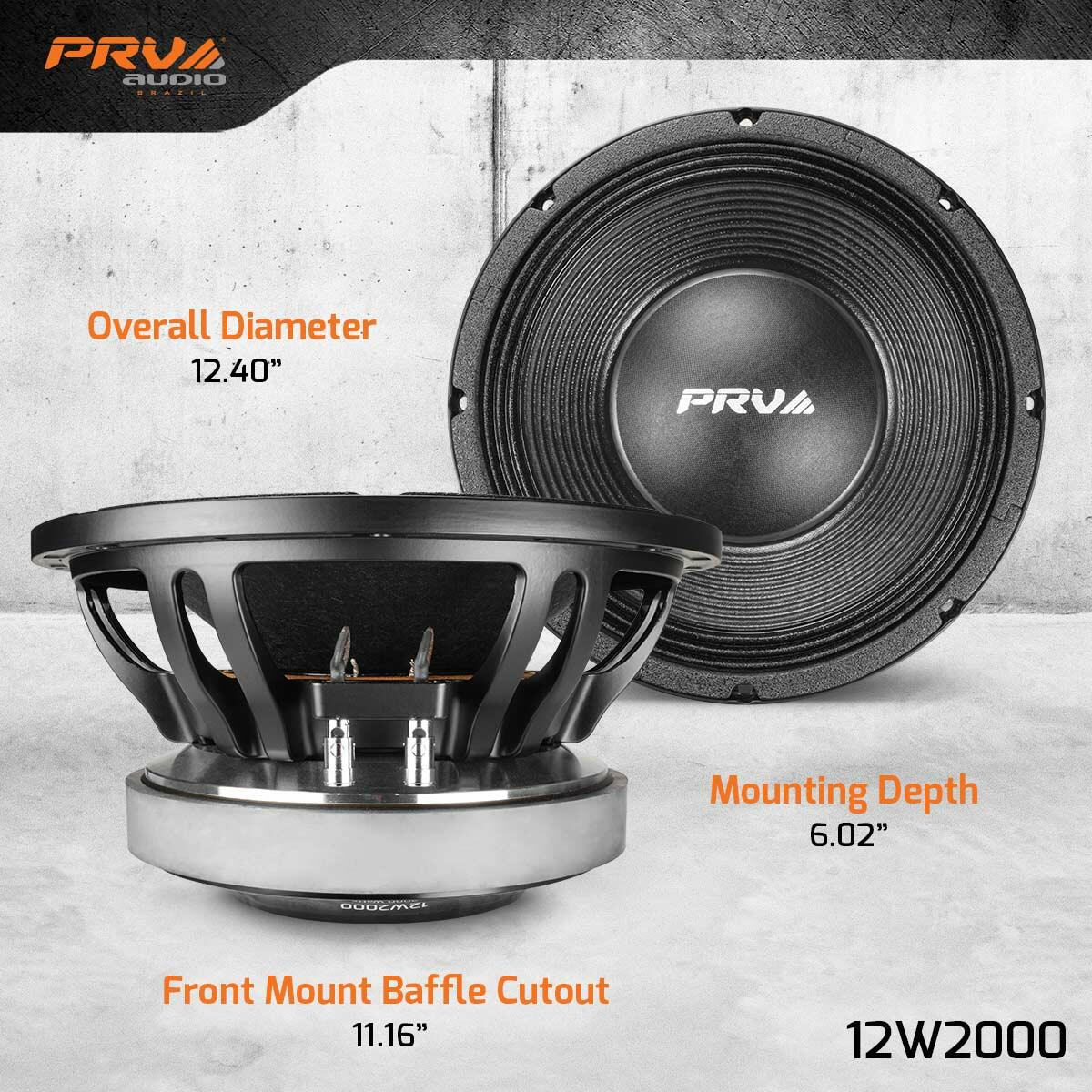

EXTRA INFO

Overall Diameter 12.40 (315 mm)
Front Mount Baffle Cutout 11.16 (283.4 mm)
Mounting Depth 6.02 ( 153 mm)
Overall Depth 6.45 (163.7 mm)
Net Weight 31.52 Lbs (14.30 kg)
Shipping Weight 33.51 Lbs (15.20 kg)
Carton Dimensions W x L x H 13.19" x 13.19" x 7.68" (335 x 335 x 195 mm)
