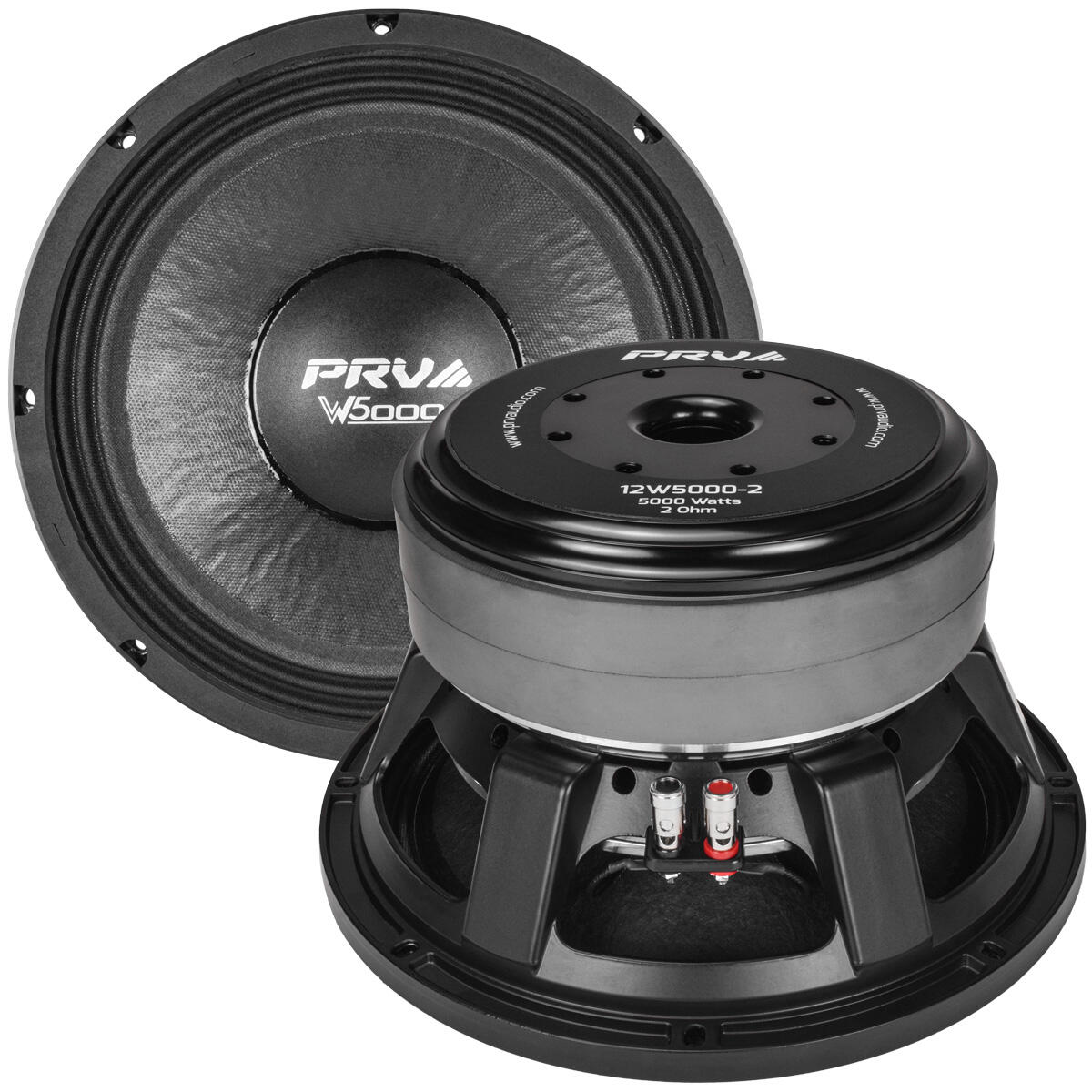

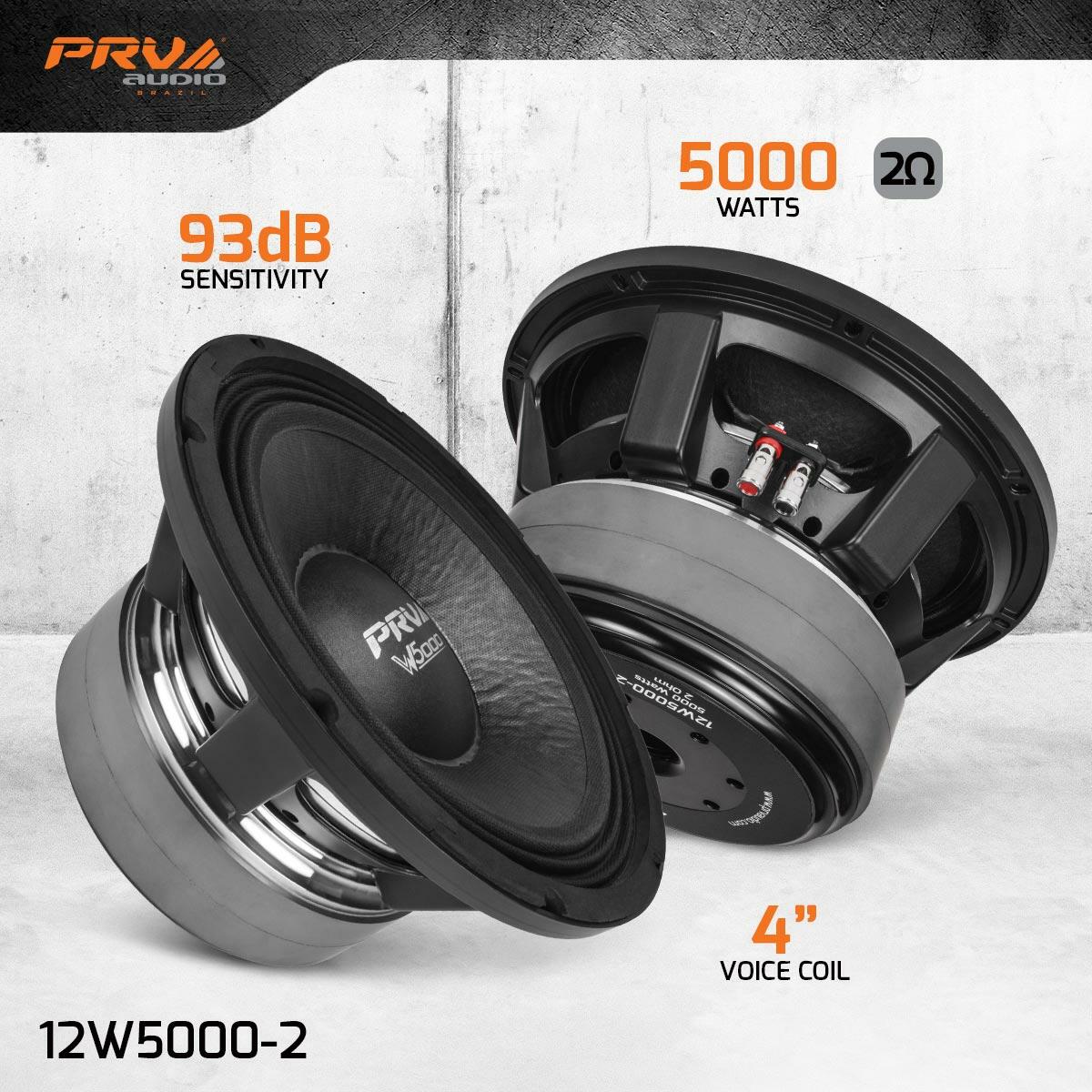

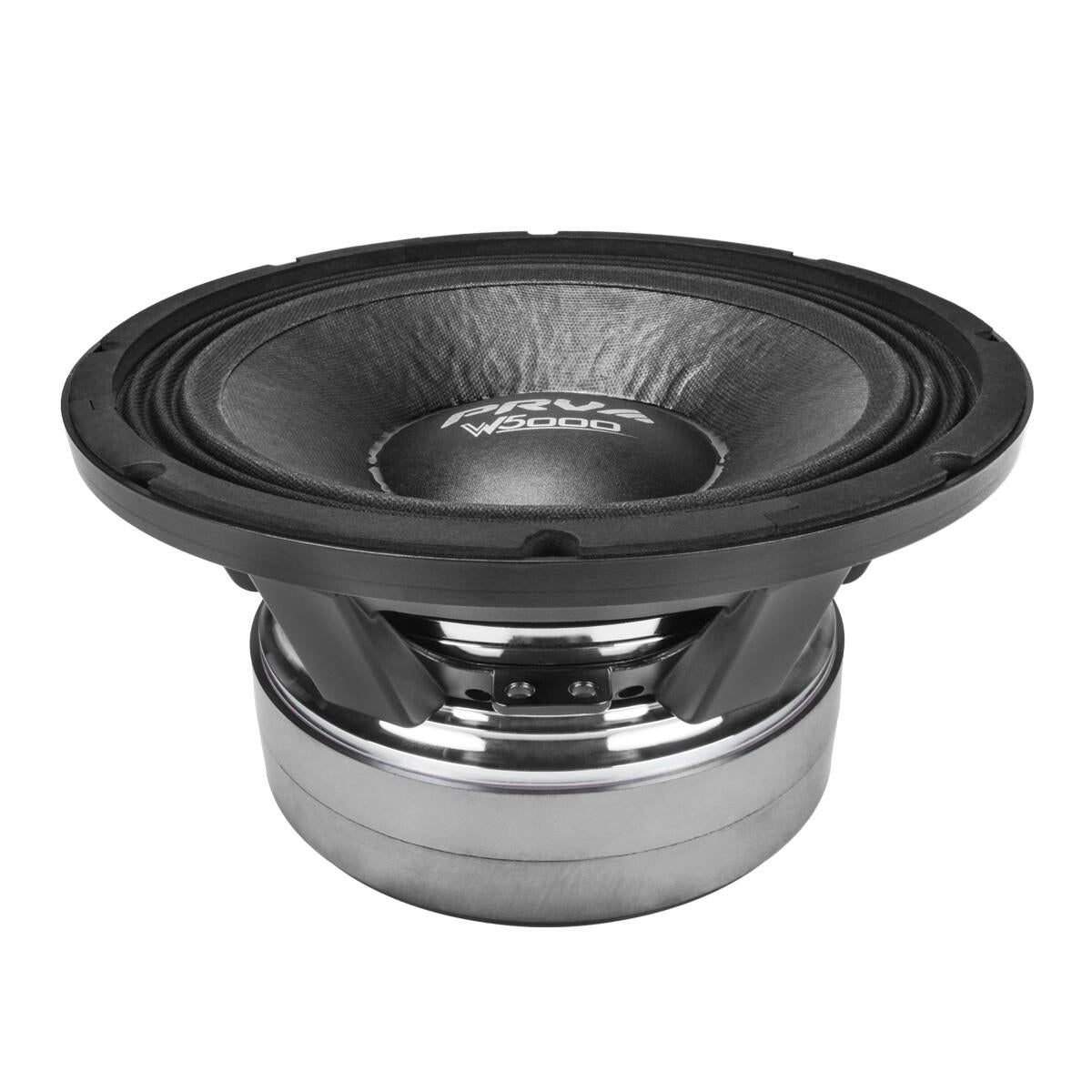

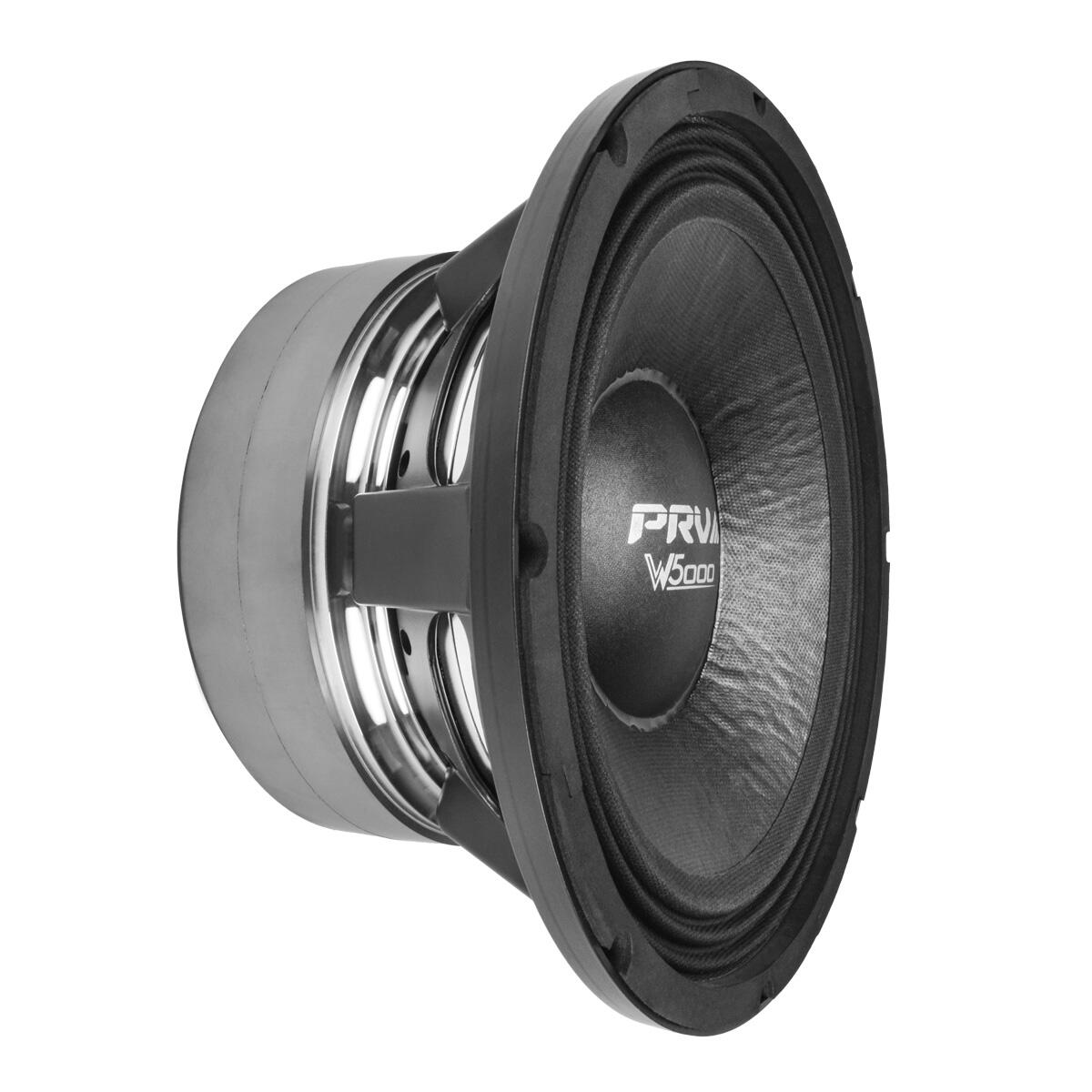

PRV Audio 12W5000-2 12" PRO AUDIO WOOFER

PRV Audio 12W5000-2 12" PRO AUDIO WOOFER

Precio regular $434.99
Precio de venta $434.99 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

Are you ready to experience a woofer designed for high-performance systems, delivering clean sound with powerful sound pressure in the low mid-bass range?

The 12W5000-2 is not your normal woofer, they are designed to produce low mid frequency in ported boxes in open air, such as stuntwall or Cajn Brasileo.

Designed for extreme car audio systems that want to experience a whole new level of sound pressure! Whether you like to compete or just want to be the loudest in the parking lot, this woofer will take you to another level! Also available in 4 Ohm version.

  • 2 Ohm Voice Coil, Able to Handle 5000 Watts RMS +
  • 10 mm of Xmax for deep low frequency response
  • High BL motor for impressive control and massive output
  • Reinforced Cone and Surround to withstand high pressure tones
  • Designed and engineered for sound competition with the recommended Ported Box Design

Our goal with this woofer was to make it stand out from the competition by focusing on having the tonality of 12W1600 that can take high power handling! Unlike other high power woofers that can take power but not play music, you will be blown away by its wide range and very musical tonality.

Easily capable of handling 5000 Watts RMS, its suspension, spider and cone are built to withstand intense sound pressure. When used with the recommended box and crossover points below.



GENERAL SPECIFICATIONS

Nominal Diameter 12" (305 mm)
Nominal impedance 2 Ohm
Nominal Power Handling 2500 Watts
Continuous Program Power (RMS) 5000 Watts
Max Peak Power 10000 Watts
Sensitivity 2.83V at 1m 93 dB
Recommended High Pass Crossover* *For Full Power Handling 65 Hz (BT24)** **24db Per Octave Crossover
Recommended Low Pass Crossover* *For Full Power Handling 300 Hz (BT24)** **24db Per Octave Crossover
Frequency Response 60 - 800 Hz
Voice Coil Diameter 4" (100 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 29.0 mm
Former Material Glass Fiber
Magnetic Gap Depth 18.0 mm
Frame Material Die Cast Aluminum
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 11.76 l
Excursion (mathematical)*** Xmax 10.00 mm
Free Air Resonance Fs 86.9 Hz
Mechanical Factor Qms 19.19
Electrical Factor Qes 0.44
Total Factor Qts 0.43
Cone Area Sd 573 cm
Mechanical Mass Mms 138.3 g
Bl Factor Bl 17.01 Tm
Dc Resistance Re 1.7 Ohm
Inductance Le 0.81 mH at 1 kHz
Mechanical Mass Without Air Mmd 130.6 g
Mechanical Compliance Cms 0.024 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

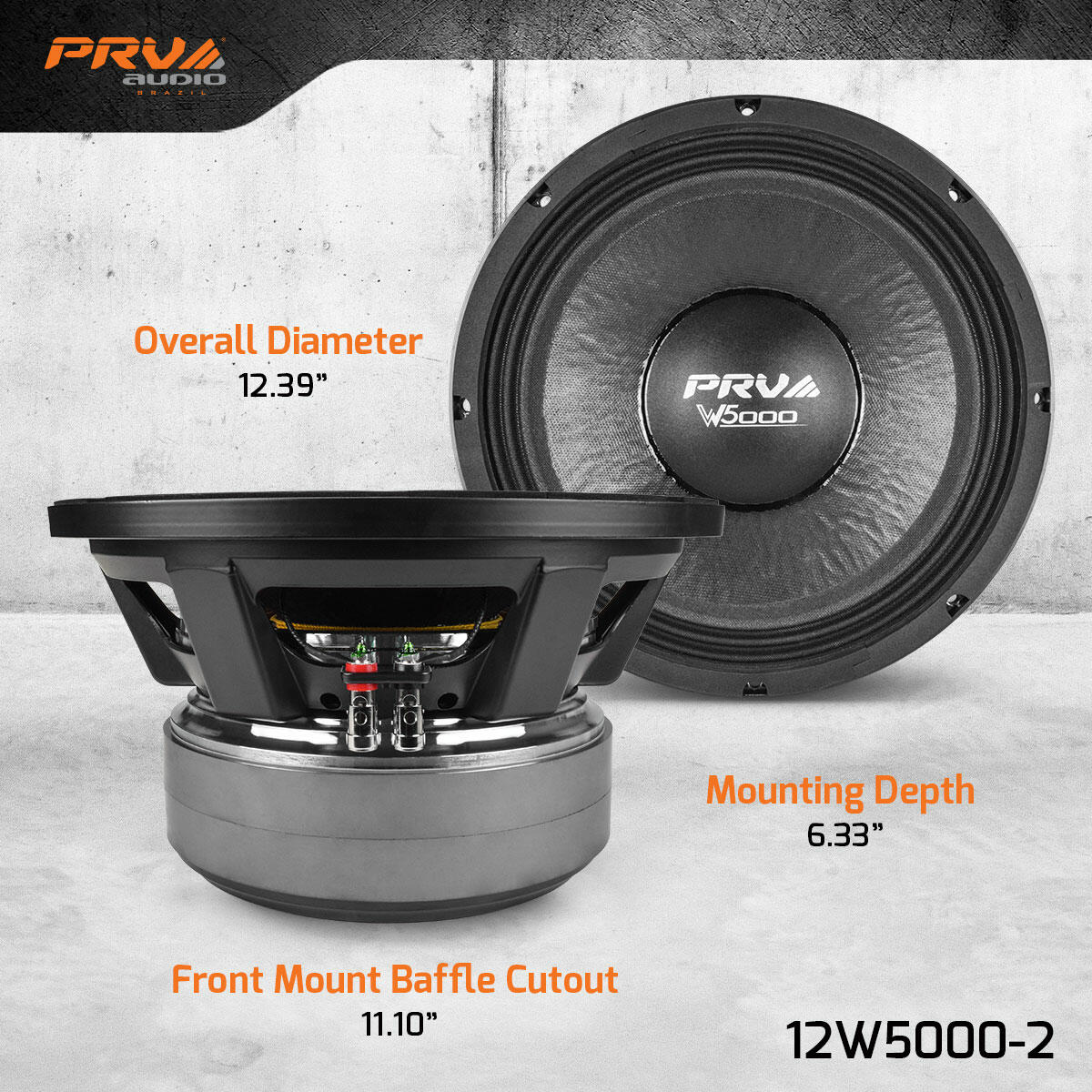

Overall Diameter 12.39" (314.7 mm)
Front Mount Baffle Cutout 11.10 (281.9 mm)
Mounting Depth 6.33" (160.8 mm)
Overall Depth 6.95" (176.7 mm)
Net Weight 43.87 Lbs (19,90 kg)
Shipping Weight 47.87 Lbs (21.70 kg)
Carton Dimensions W x L x H 16.73" x 16.85" x 11.42 (425 x 428 x 290 mm)

FEATURES
