PRV Audio 69CX380-4 2-WAY FULLRANGE 6x9" PRO AUDIO COAXIAL
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 69CX380-4 2-WAY FULLRANGE 6x9" PRO AUDIO COAXIAL
Features

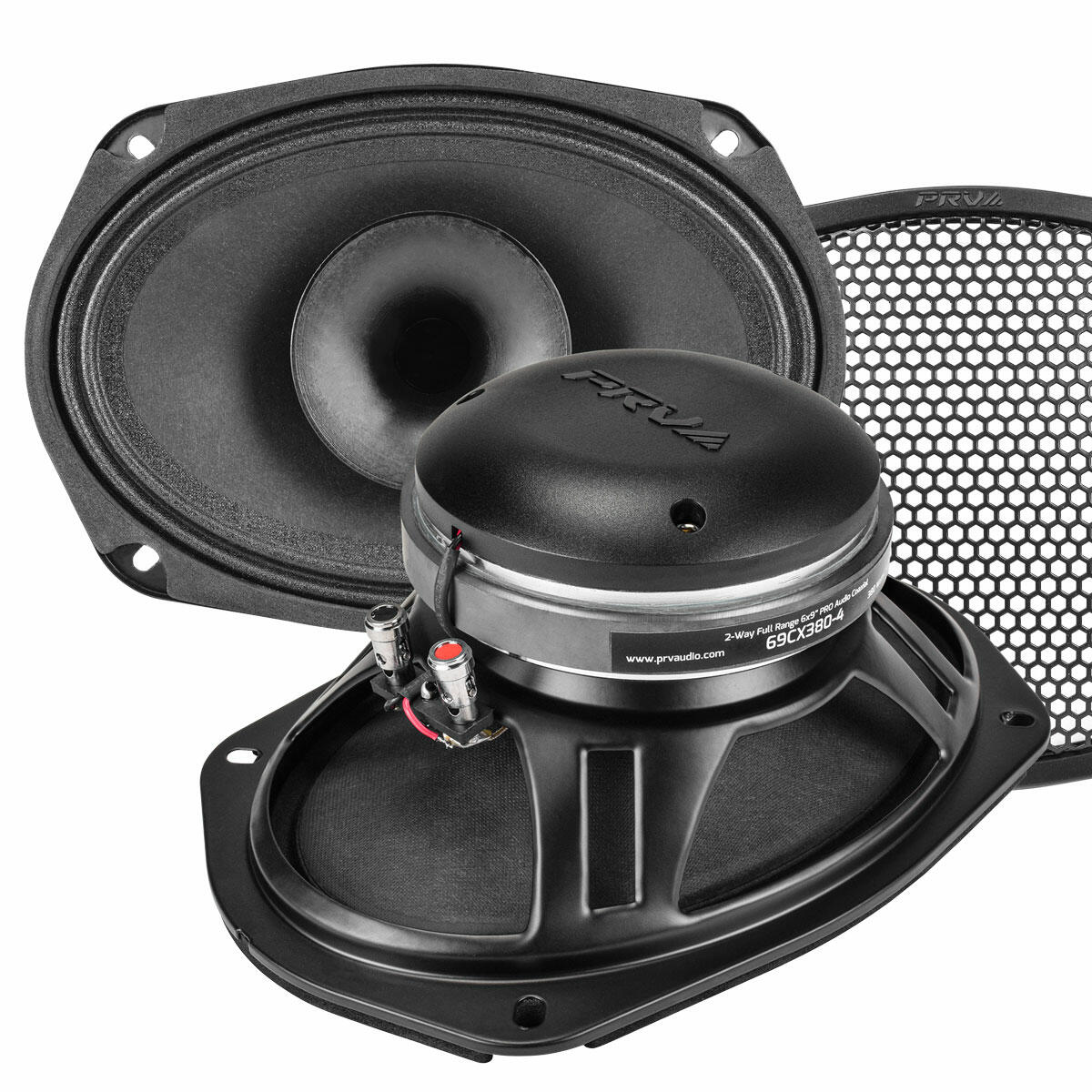

The best of the pro audio and car audio worlds are combined in this 69 speaker! The 69CX380-4 coaxial speaker has a built-in tweeter driver, an innovative design that delivers amazing sound clarity.
This 2-way coaxial is the perfect solution for sedans that just want to swap their 69 on the back deck for high-output sound without having to drill additional holes for tweeters or drivers.
- 2-Way Coaxial Transform your sound stereo with one speaker that will play low midbass frequencies and highs at the highest sound output.

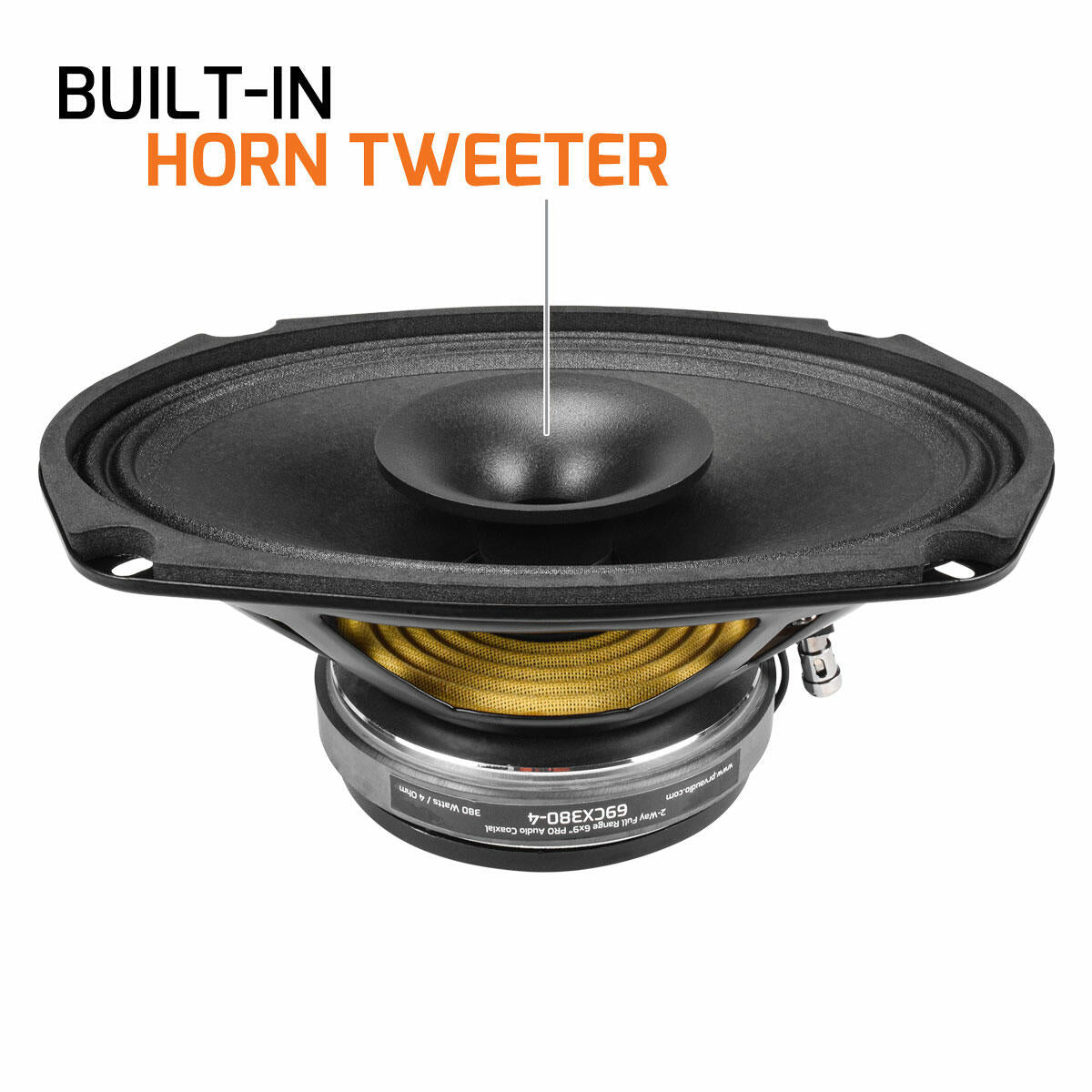

- A built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response. Full Range Response

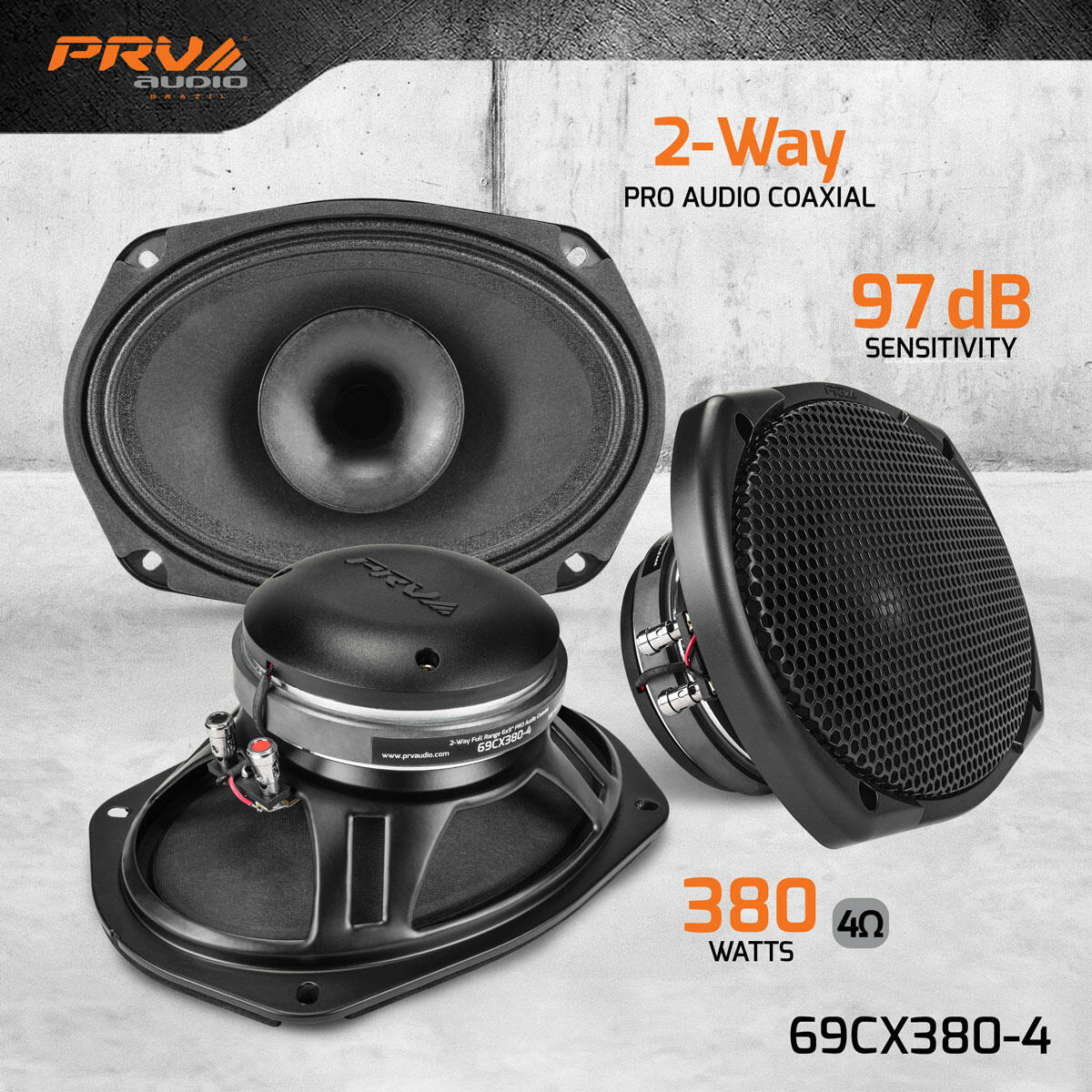

- 380 Watts RMS Music Power Handling, with 97 dB Sensitivity, capable of generating a lot of sound from one speaker!

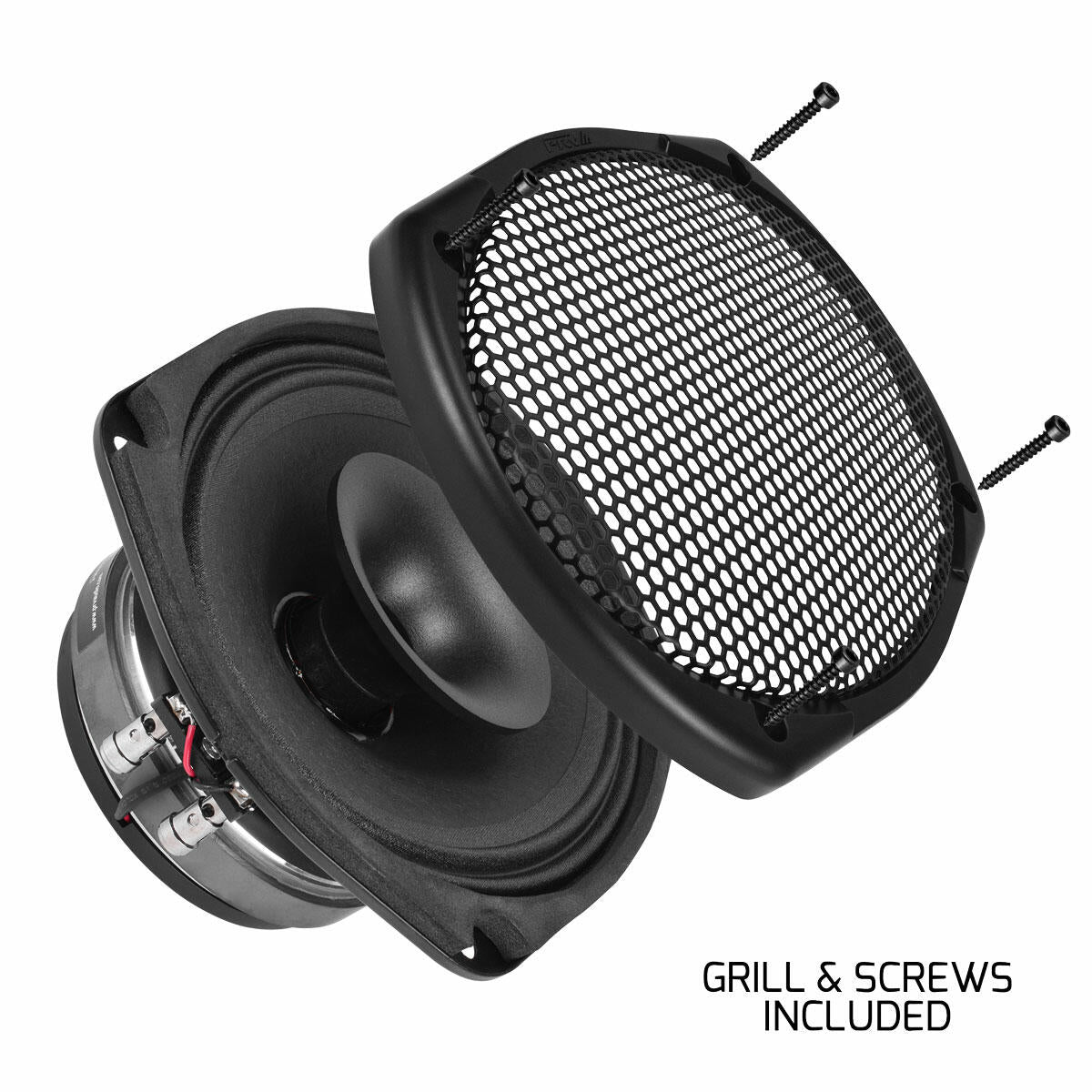

- Grill and Mounting Screws Included
- Also available in 8 8CX380-4 SLIM and 6.5- 6CX380-4 SLIM
By combining elements from the PRO Audio and Car Audio segments, we have developed a new type of highly efficient coaxial that is able to give high levels of output in a small compact custom system, or even your stock speaker location.
Loud and clear vocals are all within 3.69 of mounting depth which makes it really easy to drop in any stock speaker location without much modification.
Its specially composed spider reduces distortion at midbass frequencies, and its double roll surround keeps cone travel linear, while its premium tinsel lead wire is capable of high temperatures.
This makes this speaker not only unique but also gives it all high-performance characteristics and high-quality components, providing exceptional clarity, detail, and dynamic sound.
PRV Audio 69 Full Range 2-Way Coaxial 69CX380-4 Car Speaker 380 Watts 4 Ohm High Output PRO Audio Sound
Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:
Low Power Stereo Setup, One Speaker per Channel, no LPF.
2 Speakers 1x QS800.4 2 Ohm, 1 speaker per channel in the Rear Channel
Amplifier HPF at 90 Hz with 140 Watts RMS musical power
Other 2 Front Channels can be used for the speakers for the Front Setup
High Power Stereo Setup, One Speaker per Channel
2 Speakers 1x MDX1200.2 2 Ohm, 1 or 2 speakers per channel
110 Hz at 18 dB per octave filter Crossover / BT18, no LPF
when using up to 380 Watts RMS musical power
Custom System, High Power
4 Speakers 1x MDX1800.1 1 Ohm, 4 speakers in parallel
110 Hz at 18 dB per octave filter Crossover / BT18, no LPF
when using up to 380 Watts RMS musical power
GENERAL SPECIFICATIONS
| Nominal and Throat Diameter | Low Freq. 6x9" (152x228 mm) | High Freq. 1" (25.4mm) |
| Nominal impedance | 4 Ohm | |
| Nominal Power Handling* | 190 Watts | |
| Continuous Program Power (RMS)** | 380 Watts | |
| Max Peak Power*** | 760 Watts | |
| Sensitivity 2.00V at 1m | 97 dB | |
| Recommended Hi Pass Crossover For Full Power Handling | 110 Hz 12db Per Octave Crossover | |
| Frequency Response | 90 - 20,000Hz | |
| Voice Coil Diameter | 1.5" (38 mm) | 1.0"(25mm) |
| Voice Coil Wire | Copper | CCAW |
| Voice Coil Winding Depth | 8.0 mm | N/A |
| Former Material | Kapton | Kapton |
| Magnetic Gap Depth | 5.0 mm | N/A |
| Frame and Diaphragm Material | S. Steel | Mylar |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 25.32 l |
| Excursion (mathematical)*** | Xmax | 2.75 mm |
| Free Air Resonance | Fs | 86.6 Hz |
| Mechanical Factor | Qms | 9.26 |
| Electrical Factor | Qes | 0.68 |
| Total Factor | Qts | 0.63 |
| Cone Area | Sd | 240 cm |
| Mechanical Mass | Mms | 10.74 g |
| Bl Factor | Bl | 5.17 Tm |
| Dc Resistance | Re | 3.1 Ohms |
| Inductance | Le | 0.22 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 8.63 g |
| Mechanical Compliance | Cms | 0.314 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

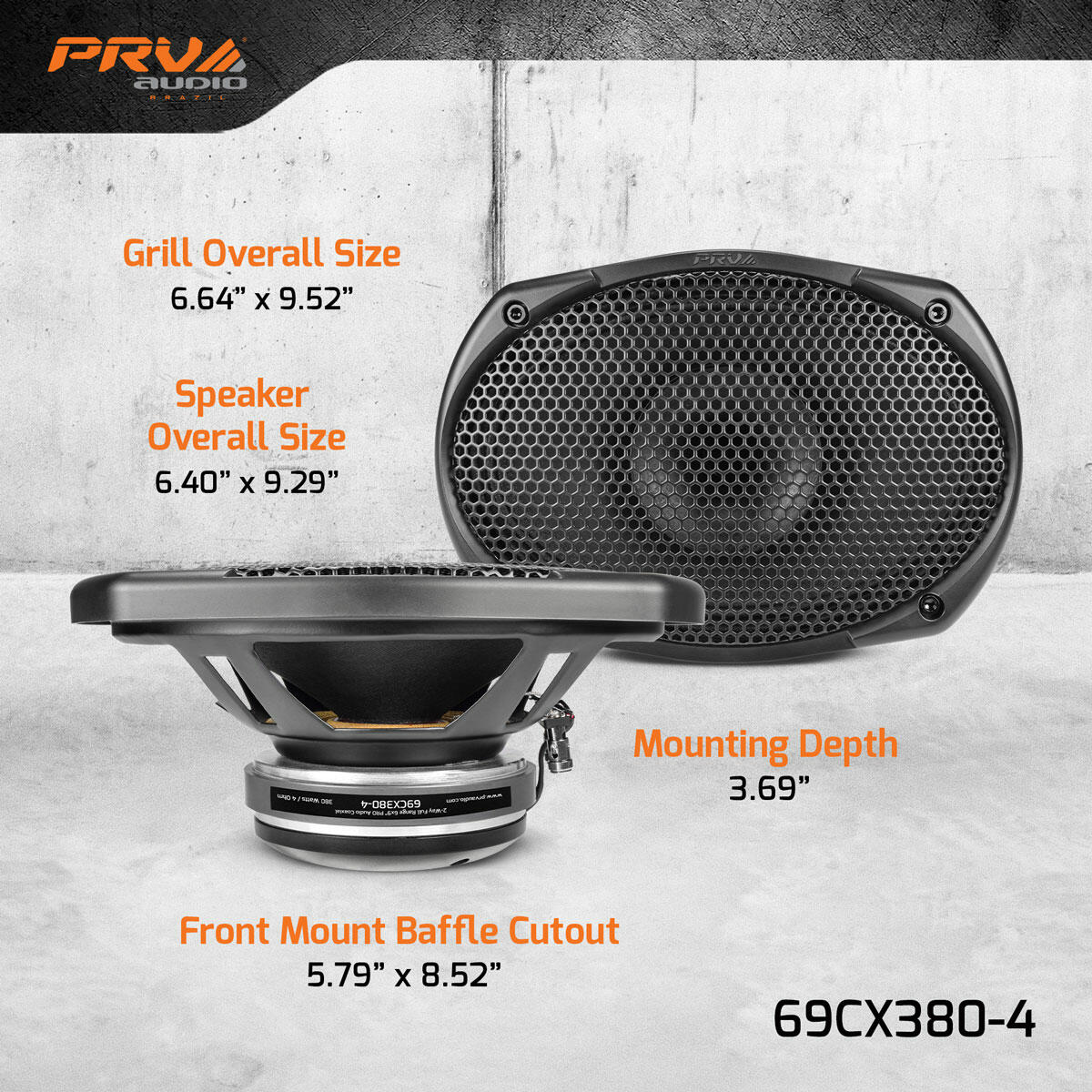

EXTRA INFO
| Overall Speaker Size | 9.29"x6.40" (236x162.7 mm) |
| Front Mount Baffle Cutout | 8.52"x5.80" (216.5x147.3 mm) |
| Mounting Depth | 3.69" (93.7 mm) |
| Overall Depth | 4.55" (115.6 mm) (with grill) |
| Net Weight | 4.07 Lbs (1.85 kg) |
| Shipping Weight | 4.62 Lbs (2.10 kg) |
| Carton Dimensions W x L x H | 10.11"x 7.36" x 5.70" (257 x 187 x 145mm) |
