Product Description
Shipping
Returns
Questions?

PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)



Features

The PRV Pro Audio 6MB200-4 v2 midbass woofer offers exceptional durability and the smooth punch of mid bass response in a small enclosure. This midbass is perfect for car audio applications such as door speakers to significantly increase output using the stock location.

  • A deep midbass response along with a strong vocal response
  • Outstanding durability and strong impactful midbass for a car stereo
  • Natural paper cone and double-roll surround for smooth response
  • Handles 200 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for car audio systems 4 Ohm impedance also available in 8 Ohm

The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. Loud and clear vocals all within 2.60 of mounting depth without sacrificing quality and performance.

The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.

Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for custom door panels.

PRV Audio 6.5 Car Speaker 6MB200-4 Midbass 200 Watts 4 Ohm High Output Loudspeaker

2 Speakers 1x QS400.4 2 Ohm, 1 speaker per bridged channel
4x Speakers 1x QS800.4 2 Ohm, 1 speaker per channel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 200 Watts RMS musical power ( without clipping )

  • 125 Hz at 12 dB per octave filter Crossover / BT12
  • 100 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 4,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.



GENERAL SPECIFICATIONS

Nominal Diameter 6" (152 mm)
Nominal impedance 4 Ohm
Nominal Power Handling 100 Watts
Continuous Program Power (RMS) 200 Watts
Max Peak Power 400 Watts

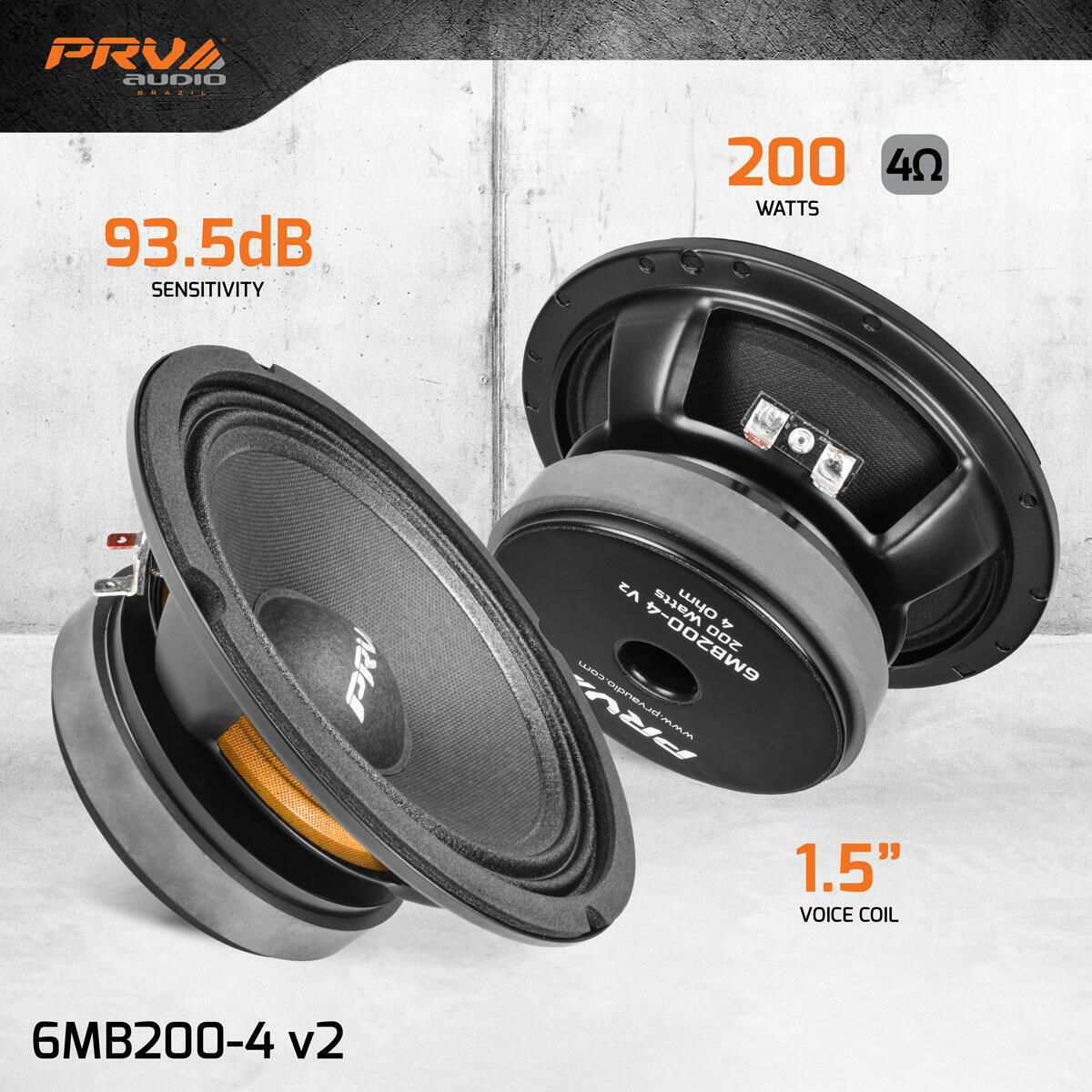

Sensitivity 2.00V at 1m 93.5 dB
Recommended Hi Pass Crossover* *For Full Power Handling 125 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 125 - 6,500 Hz
Voice Coil Diameter 1.5" (38 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 12.5 mm
Former Material Kapton
Magnetic Gap Depth 5.8 mm
Frame Material Stamped Steel
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 3.97 l
Excursion (mathematical)*** Xmax 4.80 mm
Free Air Resonance Fs 123.79 Hz
Mechanical Factor Qms 20.84
Electrical Factor Qes 1.02
Total Factor Qts 0.97
Cone Area Sd 154 cm
Mechanical Mass Mms 11.89 g
Bl Factor Bl 5.79 Tm
Dc Resistance Re 3.7 Ohms
Inductance Le 0.18 mH at 1 kHz
Mechanical Mass Without Air Mmd 10.92 g
Mechanical Compliance Cms 0.139 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

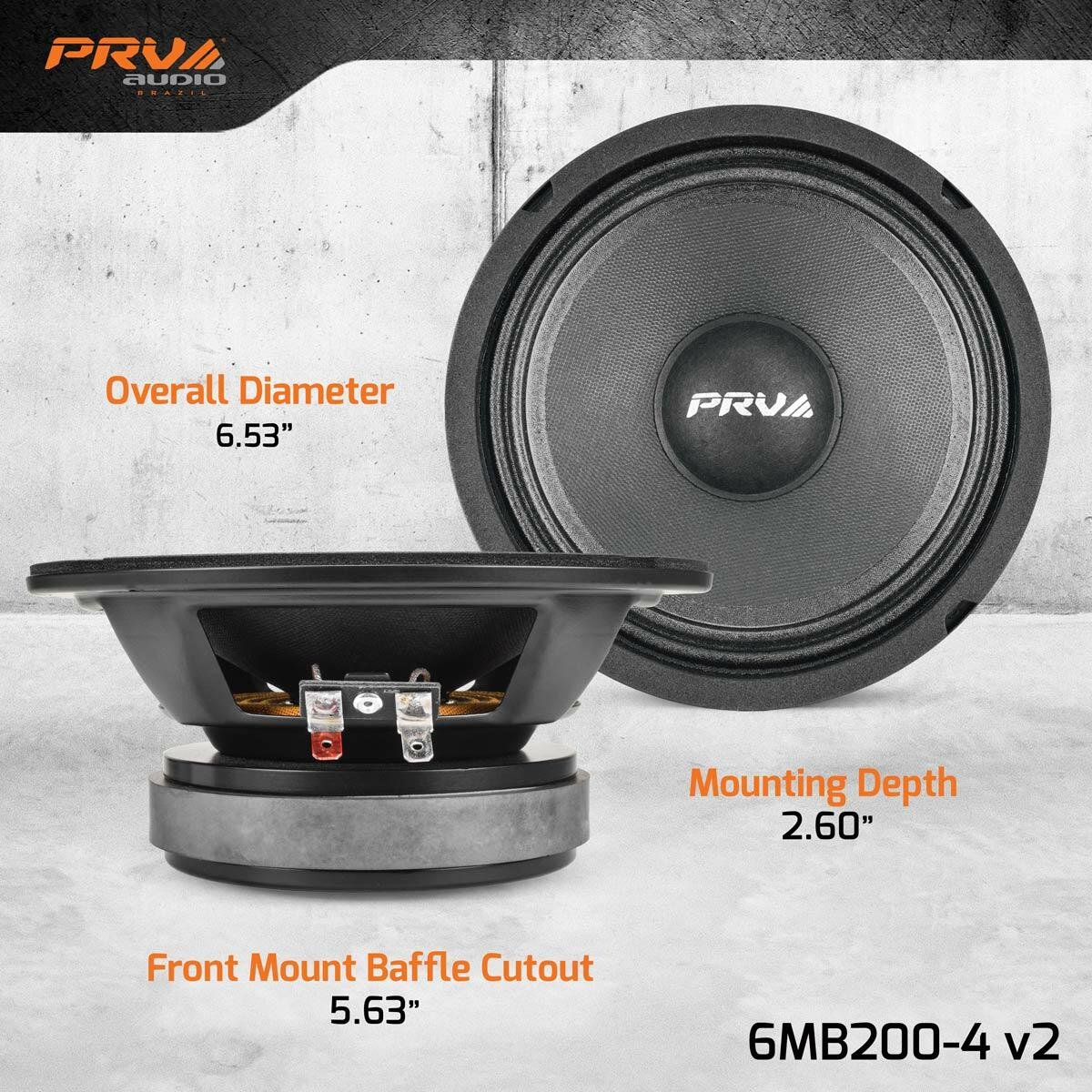

Overall Diameter 6.53" (166 mm)
Front Mount Baffle Cutout 5.63" (143 mm)
Mounting Depth 2.6" (66 mm)
Overall Depth 2.91" (74 mm)
Net Weight 3.30 Lbs (1.50 kg)
Shipping Weight 3.62 Lbs (1.64 kg)
Carton Dimensions W x L x H 7.17" x 7.17" x 4.13" (182 x 182 x 105 mm)
