PRV Audio 6MB400-4 6.5 Midbass Loudspeaker
Features
- A fast and tight midbass response along with a strong vocal response
- Small profile design capable of handling high power
- Natural paper cone and double-roll surround for smooth response
- Handles 400 Watts, guaranteeing endurance at loudest volumes
- Impressive choice for car audio sound systems 4 Ohm impedance
Built with many premium components to ensure absolute high sound fidelity, one of which is its compact push terminals, which connect to its silver tinsel lead wires attached to its high temperature CCAW voice coil.
Dont underestimate its compact motor design! Featuring the latest technology, we can increase tremendously the magnet field without huge magnet, making this midbass one of its kinda, small profile capable of handling high power!
Featuring a naturally damp paper cone, this professional speaker is able to cover a wide range of frequencies from 95 Hz to 7,500 Hz in three-way systems.
Developed to perform well in tight enclosures, its double roll surround keeps cone travel linear at high excursion. The right combination of cone and suspension gives this speaker an excellent human vocal reproduction with dynamic midbass sound.
PRV 6.5 Midbass Speaker 6MB400-4 PRO Audio 400 Watts / 4 Ohm
Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP or the amplifier filter, when using the recommended power below:
Stereo System, Low Power
2 Speakers 1x QS800.4 2 Ohm, One Speaker per Channel ( using CH1 & CH2)
Fixed HPF from amplifier 90 Hz at 12 dB per octave filter Crossover
May use the other 2 free channels on the amplifier for tweeters.
Stereo System, High Power
2 or 4 Speakers 1x MDX1200.2 2 Ohm, 1 or 2 Speakers per Channel
Fixed HPF from amplifier 80 Hz at 12 dB per octave filter Crossover
when using up to 300 Watts RMS musical power
Custom System, High Power
4 Speakers 1x MDX1800.1 at 1 Ohm, 4 speakers in parallel
90 Hz at 18 dB per octave filter Crossover / BT18
when using up to 400 Watts RMS musical power
If you have compression drivers on your system the recommended LPF is 4,200 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6" (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 200 Watts |
| Continuous Program Power (RMS)** | 400 Watts |
| Max Peak Power*** | 800 Watts |

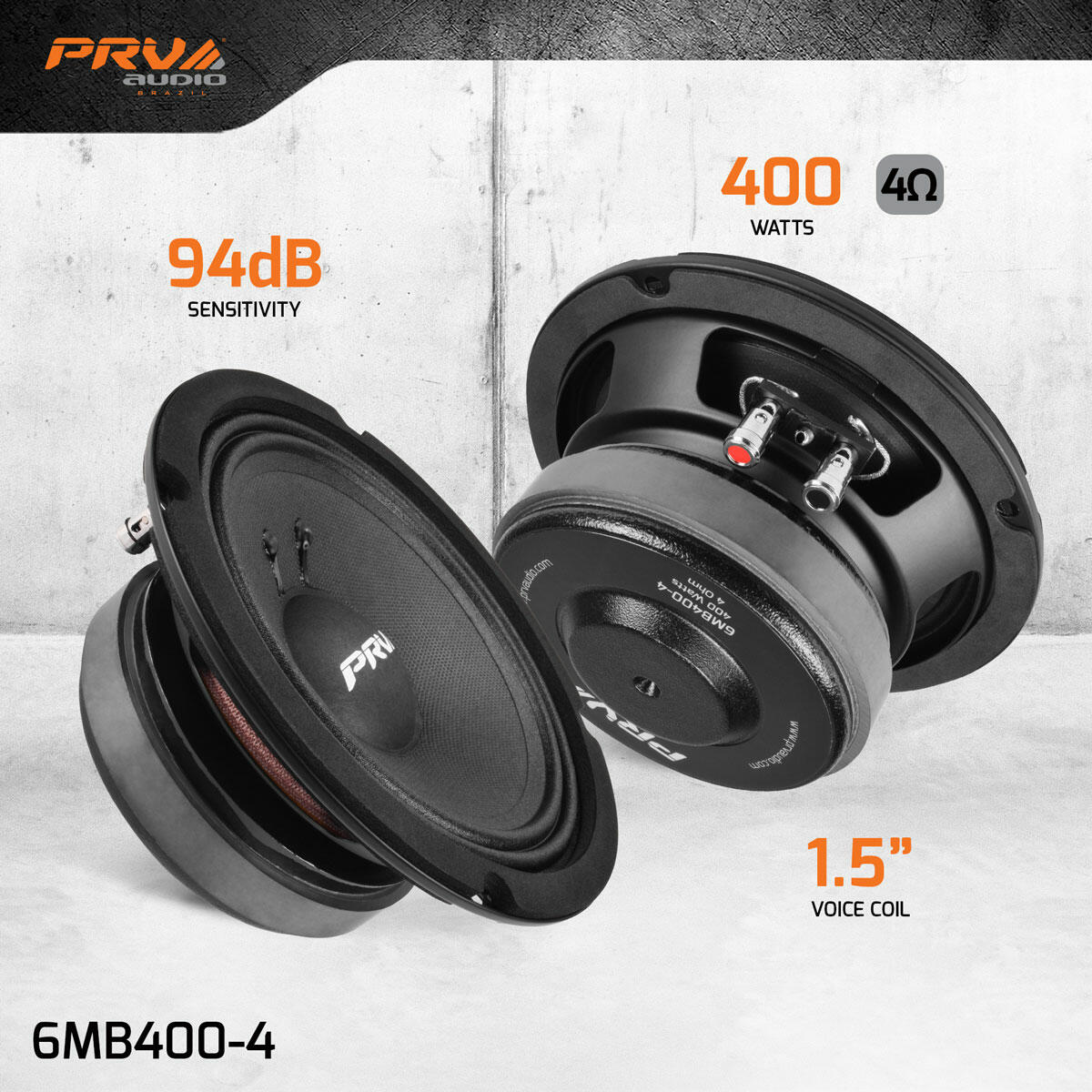

| Sensitivity 2.83V at 1m | 94 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 95 Hz 12db Per Octave Crossover |
| Frequency Response | 95 - 7,500 Hz |
| Voice Coil Diameter | 1.5" (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 10.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 5.3 l |
| Excursion (mathematical)*** | Xmax | 3.00 mm |
| Free Air Resonance | Fs | 124.8 Hz |
| Mechanical Factor | Qms | 9.53 |
| Electrical Factor | Qes | 0.56 |
| Total Factor | Qts | 0.52 |
| Cone Area | Sd | 147 cm |
| Mechanical Mass | Mms | 9.30 g |
| Bl Factor | Bl | 6.58 Tm |
| Dc Resistance | Re | 3.3 Ohm |
| Inductance | Le | 0.36 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 8.29 g |
| Mechanical Compliance | Cms | 0.174 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

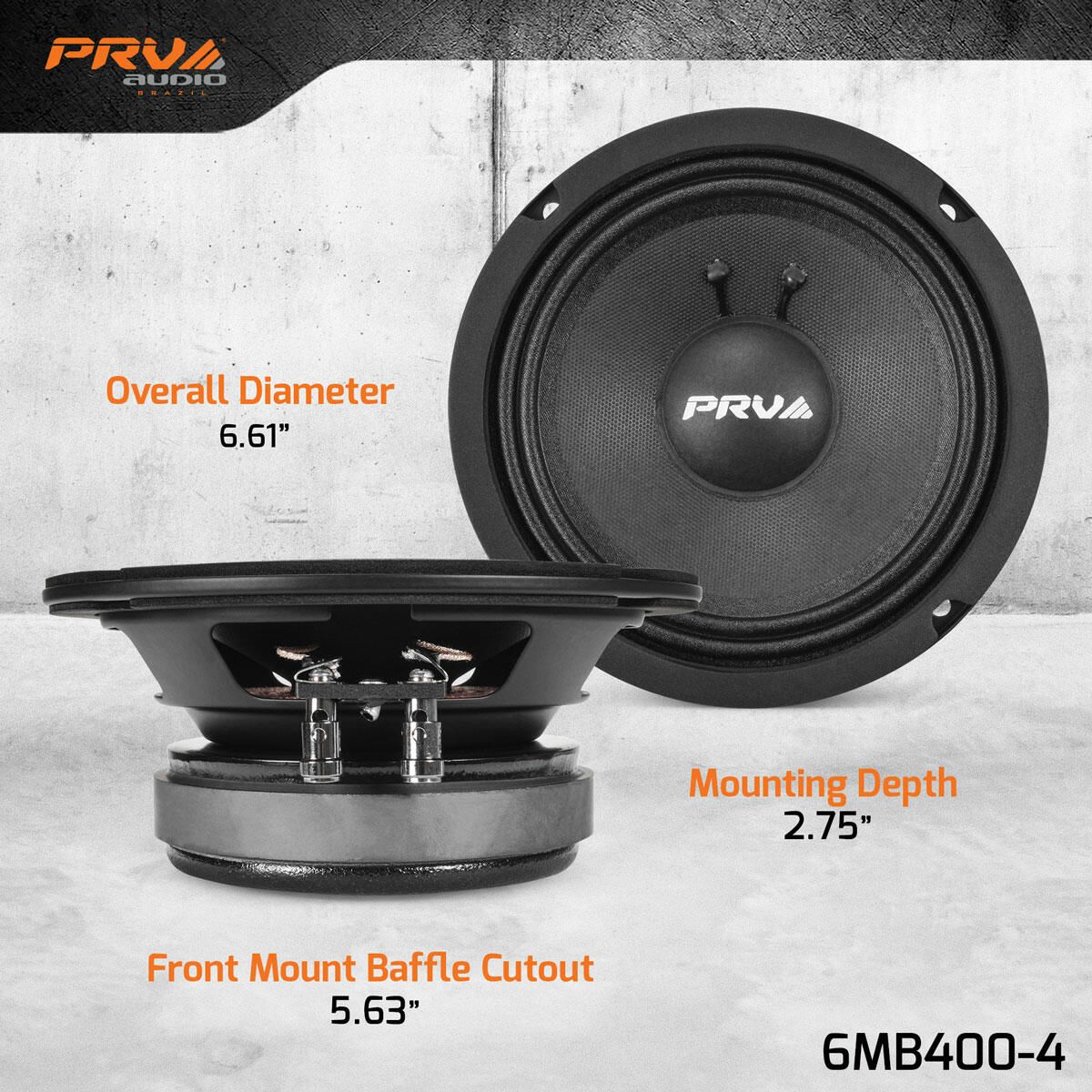

| Overall Diameter | 6.61" (168 mm) |
| Front Mount Baffle Cutout | 5.63" (143 mm) |
| Mounting Depth | 2.75" (70 mm) |
| Overall Depth | 3.07" (78 mm) |
| Net Weight | 4.80 Lbs (2.16 kg) |
| Shipping Weight | 5.10 Lbs (2.32 kg) |
| Carton Dimensions W x L x H | 7.09" x 7.09" x 3.35" (180 x 180 x 85 mm) |
