PRV Audio 6MR250B-4 SLIM 6.5" Midrange Bullet Slim Loudspeaker (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The MR SLIM series was designed as PRO Audio On Wheels solution for shallow doors, featuring an Aluminum Phase Plug (Bullet). This mid is built like a professional midrange loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels!
By combining elements from PRO Audio and Car Audio we have developed a NEW type of high efficient midrange that is able to give high levels of output from stock speaker location in your car.
- Slim Design Perfect for door stock location
- Sound Quality without Cutting up interior Panels
- Endurance at Loudest Volumes
- Vented Air pole piece for heat dissipation
- Center phase plug for even sound distribution
- 4 Ohms Impedance
- Also available in 8- 8MR400B-4 SLIM
The bullet phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.
Also featuring a cloth M-roll surround helping resonance to be kept under control making for an easy transition to a super tweeter.
The suspension design of this midrange features the single layer spider which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.
You can expect outstanding sound stage quality and realistic sound reproduction for a great value.
Built for compact spaces and able to handle 250 watts of continuous power. Its slim design makes this the perfect car audio door speaker, allowing it to be utilized in endless ways.
Loud and clear vocals all within 2.14 of mounting depth without sacrifice quality and performance.
PRV Audio 6.5 Car Speaker 6MR250B-4 SLIM Shallow Midrange Bullet Mid 250 Watts 4 Ohm Perfect for door stock location
2 Speakers 1xQS400.4 2 Ohm, 1 speaker per bridged channel
4x Speakers 1xQS800.4 2 Ohm, 1 speaker per channel
RecommendedHPFusing PRVDigital Signal Processor DSPwhen using up to 200 Watts RMS musical power ( without clipping )
- 145 Hz at 12 dB per octave filter Crossover / BT12
- 125 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers on your system the recommendedLPF is 6,000 at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6" (152 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 125 Watts |
| Continuous Program Power (RMS)** | 250 Watts |
| Max Peak Power*** | 500Watts |

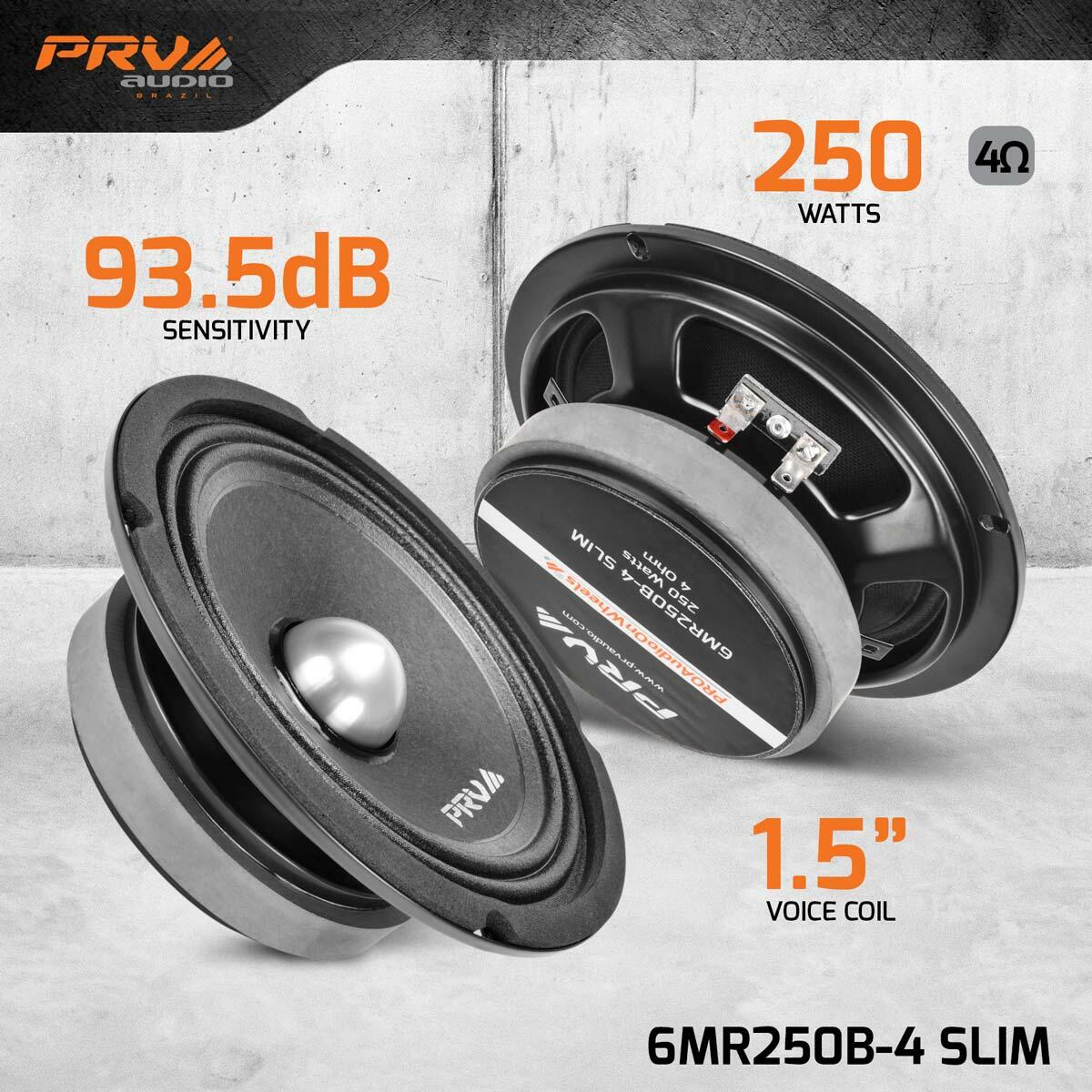

| Sensitivity 2.00V at 1m | 93.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
| Frequency Response | 145 - 8,000 Hz |
| Voice Coil Diameter | 1.5" (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 9.5 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 4.0 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 142.9 Hz |
| Mechanical Factor | Qms | 28.73 |
| Electrical Factor | Qes | 0.85 |
| Total Factor | Qts | 0.82 |
| Cone Area | Sd | 143 cm |
| Mechanical Mass | Mms | 8.89 g |
| Bl Factor | Bl | 5.82 Tm |
| Dc Resistance | Re | 3.6 Ohms |
| Inductance | Le | 0.135 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 7.92 g |
| Mechanical Compliance | Cms | 0.139 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

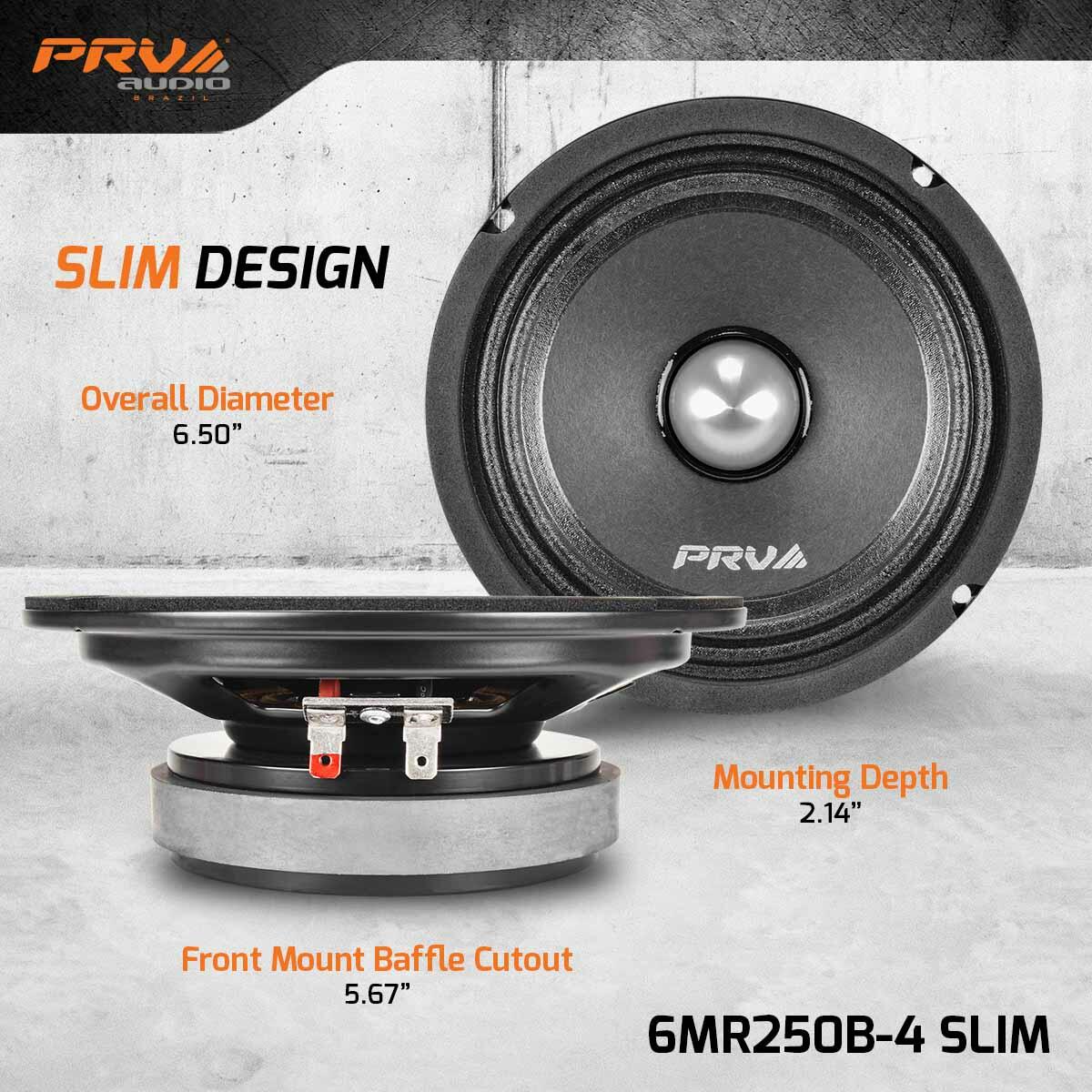

| Overall Diameter | 6.50" (165 mm) |
| Front Mount Baffle Cutout | 5.67" (144 mm) |
| Mounting Depth | 2.14" (54.5 mm) |
| Overall Depth | 2.38" (60.5 mm) |
| Net Weight | 3.53 Lbs (1.60 kg) |
| Shipping Weight | 3.96 Lbs (1.80 kg) |
| Carton Dimensions W x L x H | 6.89" x 6.89" x 2.95" (175 x 175 x 75 mm) |
