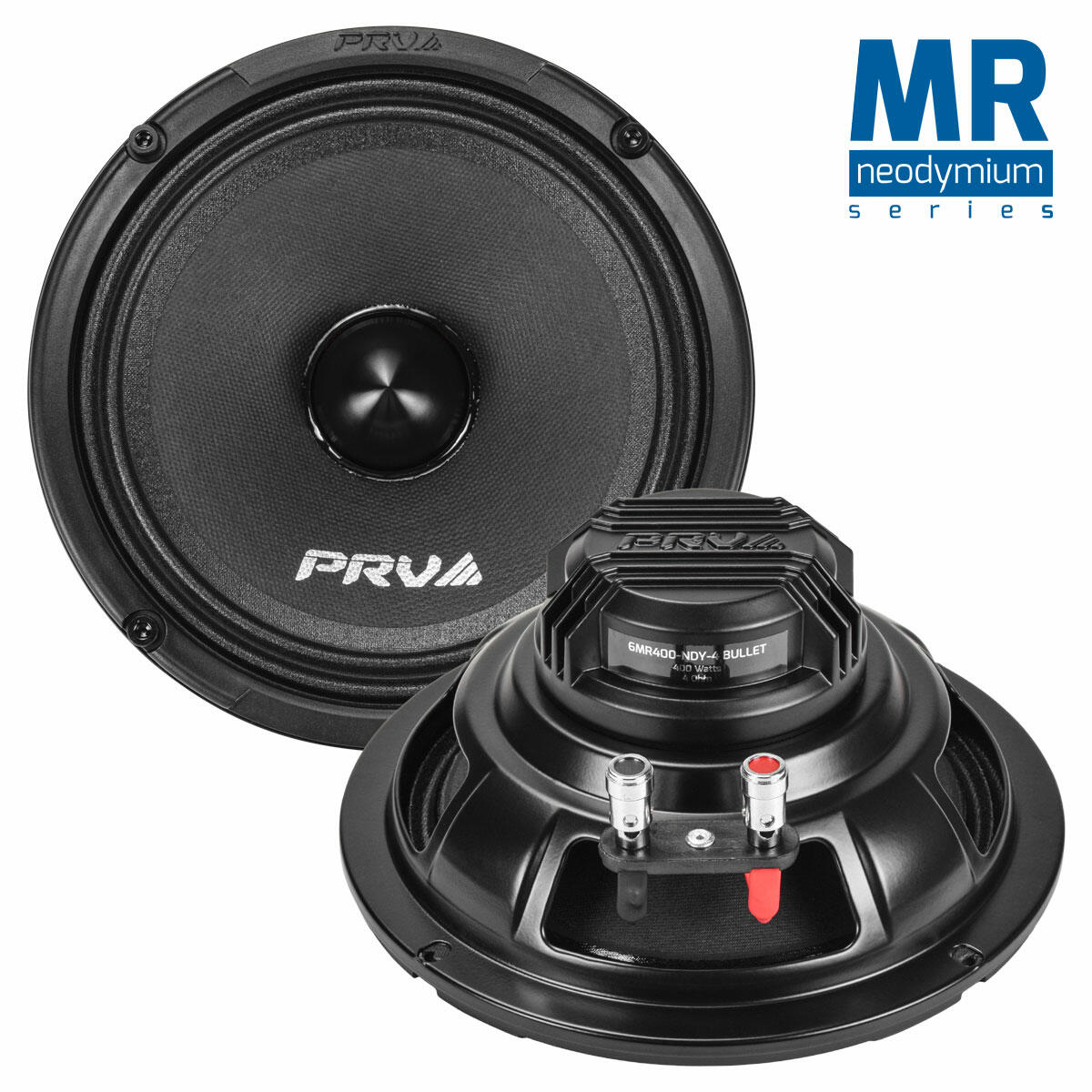

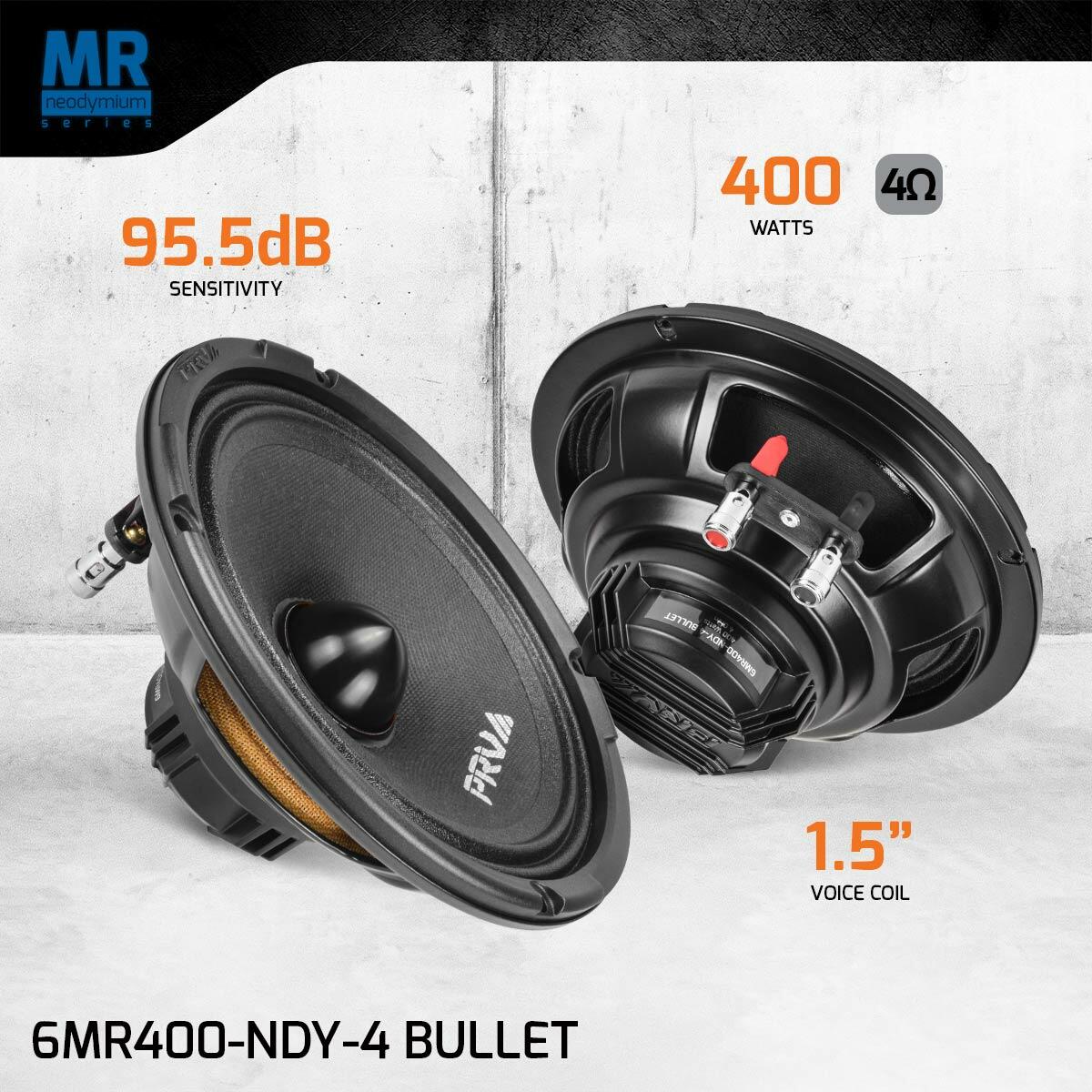

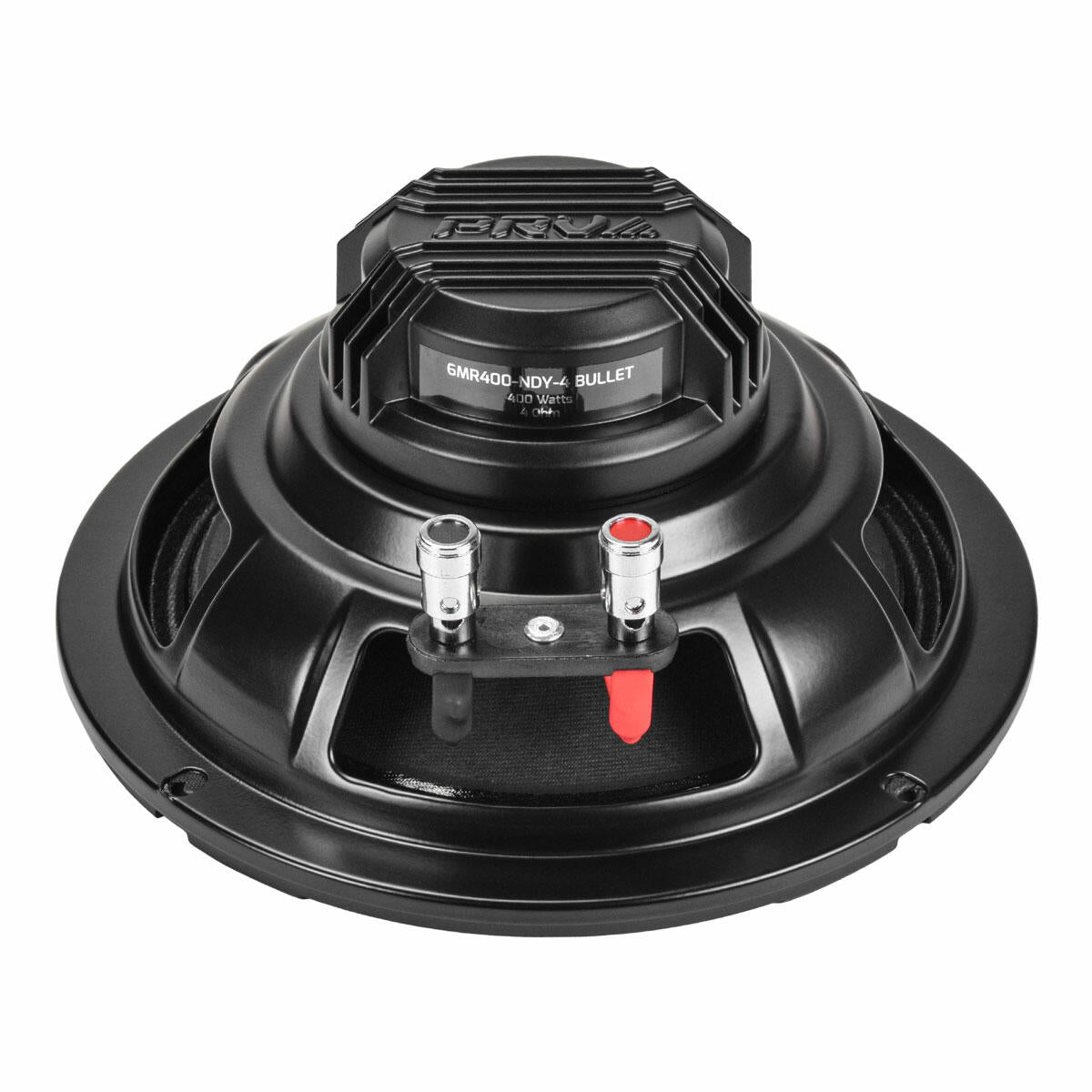

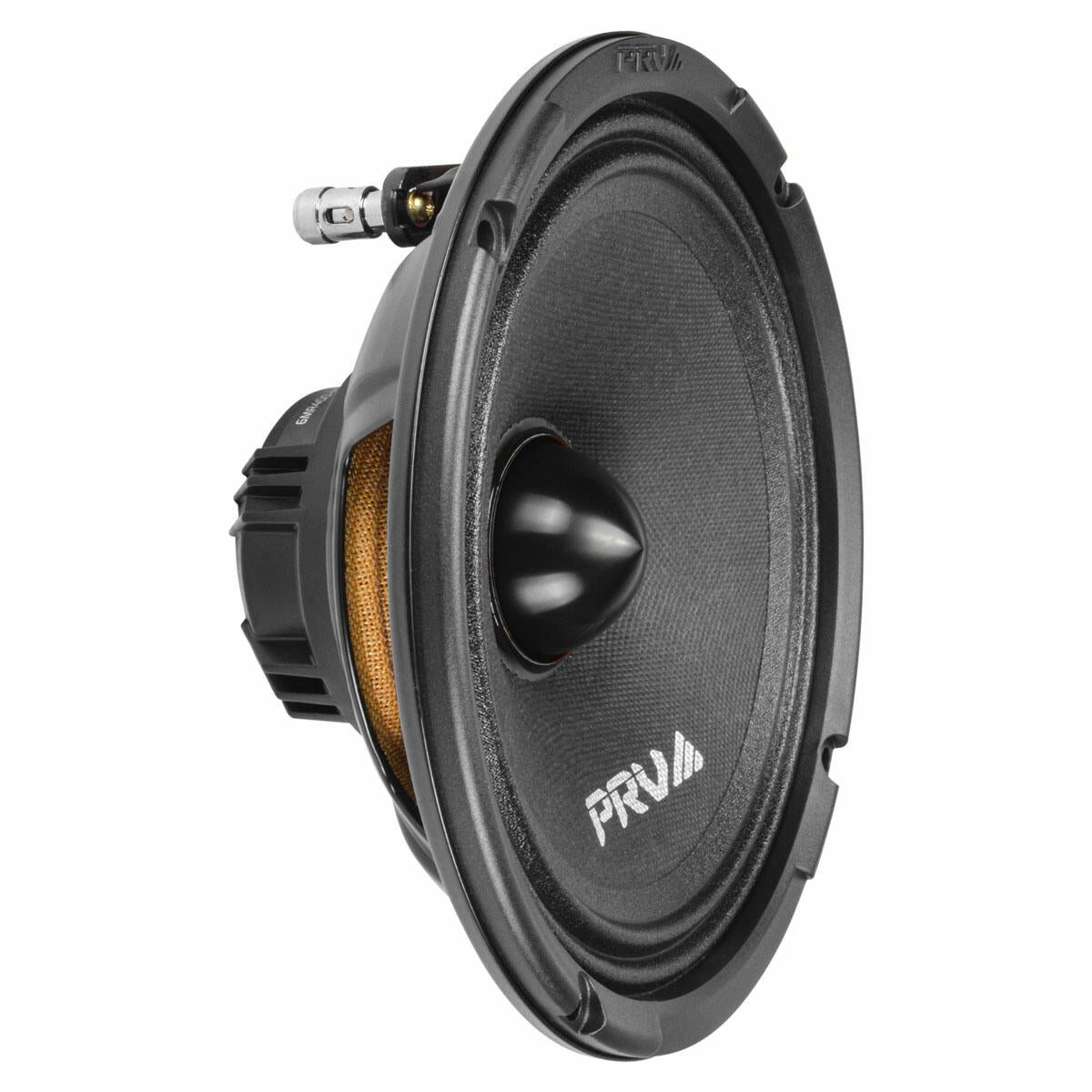

PRV Audio 6MR400-NDY-4 BULLET 6.5 MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 6MR400-NDY-4 BULLET 6.5 MIDRANGE LOUDSPEAKER
Features
Featuring a sleek black aluminum phase plug (Bullet), this mid is built like a professional midrange loudspeaker, but it has been designed for and optimized for car audio applications, as we call Pro Audio On Wheels!
By combining key elements from PRO Audio performance and Car Audio practicality, we have developed a NEW type of high efficient compact midrange speaker that is able to give extreme high levels of output for your custom door.
- Built to Perform at Wide Frequency Range: 145 14,000 Hz
- Highest Quality 6.5 Speaker with bullet design available
- High efficiency: 95.5 dB guarantees High Output Levels
- Handles 400 Watts Endurance at Loudest Volumes
- Its high energy, rare-earth neodymium motor
- Center phase plug (Bullet) for even sound distribution
- 4 Ohm Impedance
- Also available in 8 8MR500-NDY-4 BULLET
A M-roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speakers frequency response is smooth and extends to the high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!
Its low-mass yet stiff cone helps provide clean, detailed, high-impact sound reproduction. to ensure the speakers extended frequency response to 14,000Hz and strong vocal presence.
You can expect outstanding sound quality and realistic sound reproduction in the smallest profile. Theres no better value in high-performance bullet speakers than the 6MR400-NDY-4 BULLET loudspeaker.
With a shallow and versatile footprint that only measures 2.68 in depth, weve designed a midrange loudspeaker that gives you everything you need without sacrificing performance.
The rare-earth neodymium motor combined with other fine materials will resolve the finest details in audio, demanded by car audio and motorcycle custom builders.
Built to perform and able to handle 400 Watts RMS, this midrange is the perfect match on 3-way custom system such as:
8MB700FT-NDY-4 + 6MR400-NDY-4 BULLET + TW450Ti-ND-4 making the ultimate sound reproduction machine, with unbeatable sound quality and output.
This speaker is perfect for applications where weight and space is limited, such as custom doors panels, motorcycle fairing and saddlebags.
PRV 6.5 Midrange Speaker 6MR400-NDY-4 BULLET 400 Watts / 4 Ohm Neodymium Bullet Loudspeaker
Recommended Amplifier configurations and crossover points:
2 Speakers 1x MDX1200.2 1 Ohm, Bridged both speakers in parallel
4 Speakers 1x QS2000 1 Ohm, 4 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 400 Watts RMS musical power
- 145 Hz at 12 dB per octave filter Crossover / BT12
- 135 Hz at 18 dB per octave filter Crossover / BT18
If you have a super tweeter on your system the recommended LPF is 8,000 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 6.5" (165 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 200 Watts |
| Continuous Program Power (RMS)** | 400 Watts |
| Max Peak Power*** | 800 Watts |
| Sensitivity 2.83V at 1m | 95.5 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 145 Hz 12db Per Octave Crossover |
| Frequency Response | 145 - 14,000 Hz |
| Voice Coil Diameter | 1.5 (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 9.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.0 mm |
| Frame Material | Stamped steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 2.44 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 178.3 Hz |
| Mechanical Factor | Qms | 10.6 |
| Electrical Factor | Qes | 0.94 |
| Total Factor | Qts | 0.87 |
| Cone Area | Sd | 143 cm |
| Mechanical Mass | Mms | 9.31 g |
| Bl Factor | Bl | 6.04 Tm |
| Dc Resistance | Re | 3.3 Ohm |
| Inductance | Le | 0.13 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 8.34 g |
| Mechanical Compliance | Cms | 0.085 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

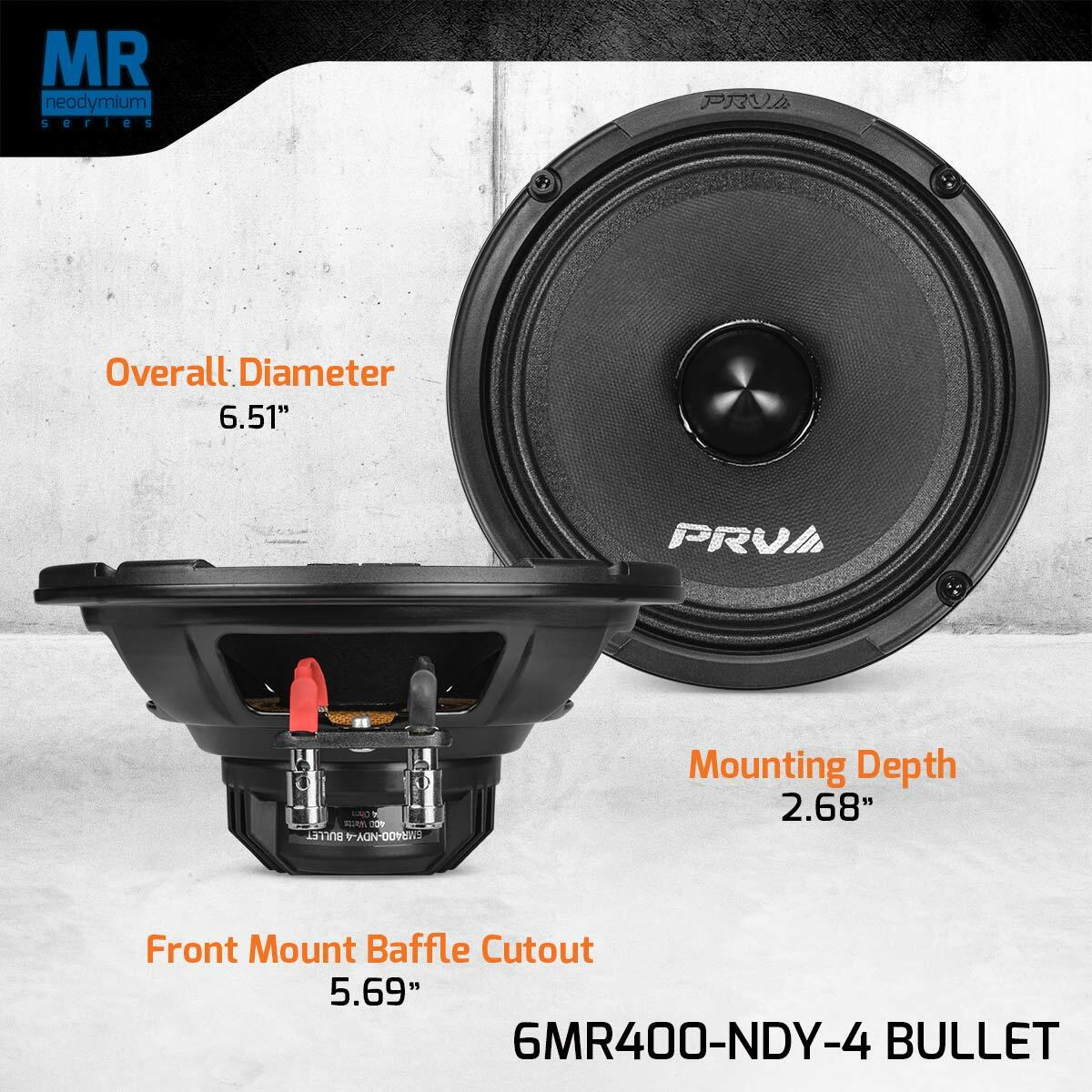

| Overall Diameter | 6.51" (165.5 mm) |
| Front Mount Baffle Cutout | 5.69" (144.5 mm) |
| Mounting Depth | 2.68" (68 mm) |
| Overall Depth | 3.07" (78 mm) |
| Net Weight | 1.54 Lbs (0.70 kg) |
| Shipping Weight | 2.42 Lbs (1.10 kg) |
| Carton Dimensions W x L x H | 6.89" x 6.89" x 3.38" (175 x 175 x 86 mm) |
