PRV Audio 6MR600X-NDY-4 6.5" NEODYMIUM MIDRANGE LOUDSPEAKER (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 6MR600X-NDY-4 6.5" NEODYMIUM MIDRANGE LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The 6MR600X-NDY-4 from PRV Audio showcases the breakthrough advances of our product line like no other. After significant development, and assembling top of the line components, we have created a midrange loudspeaker that offers long lasting play, even during intense use, as well as outstanding durability.
The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.
- 2 Inside/Out voice coil wound on a hi-temp former, 4 Ohm
- 600 Watts RMS Power Handling, with a 97.5 dB Sensitivity, capable of generating very high output!
- Low inductance and extended frequency response with wide directivity
- New Generation of Halo Neodymium Magnet Structure
- Ideal solution for compact full-range applications demanding high acoustic output, also available at 8 Ohm
- Coaxial Performance from a single speaker
This is the ultimate midrange loudspeaker, the 6MR600X-NDY-4s output on upper midrange frequencies compares to a compression driver! The naturally damped paper cone gives this speaker the ability to reach up to 13,000Hz.
Also, its extreme output eliminates the need for a high frequency compression driver in the system, providing 2-way coaxial performance from a single speaker!
Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio and motorcycle custom builders.
This midrange takes performance to the next level with its wide frequency bandwidth, high output levels between 3,000 to 10,000Hz, and unbelievable 600 Watts RMS music power handling, completely eliminating the need for a compression driver on your system!
This midrange incorporates a 2 double layered copper clad aluminum wire voice coil, and a symmetrical inductance profile. Its 11 mm winding length also ensures high heat dissipation and high sensitivity, even on high power, and with minimum distortion.
Everything about this speaker has been designed for reliable and consistent high output levels, even when driven to its limit, allowing you to achieve high fidelity sound at low distortion for the best possible listening experience.
PRV 6.5 Midrange Speaker 6MR600X-NDY-4 High Power 600 Watts / 4 Ohm Neodymium Best In Its Class PRO Audio Loudspeaker
Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:
Stereo Setup, One Speaker per Channel, no LPF.
4 Speakers 1x MDX2000.4 2 Ohm, 1 speaker per channel
120 Hz at 18 dB per octave filter Crossover / BT18
when using up to 330 Watts RMS musical power
Front Stage Stereo Setup, One Speaker per Channel
2 Speakers 1x MDX2000.2 2 Ohm, 1 speaker per channel
150 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
Custom System, Middle Power
4 Speakers 1x MDX1800.1 1 Ohm, 4 speakers in parallel
130 Hz at 18 dB per octave filter Crossover / BT18
when using up to 450 Watts RMS musical power
Custom System, High Power
4 Speakers 1x MDX2500.1 1 Ohm, 4 speakers in parallel
150 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
If you have compression drivers or super tweeters on your system the recommended LPF<... ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4GENERAL SPECIFICATIONS
Nominal Diameter 6" (152 mm) Nominal impedance 4 Ohm Nominal Power Handling* 300 Watts Continuous Program Power (RMS)** 600 Watts Max Peak Power*** 1200 Watts Sensitivity 2.83V at 1m 97.5 dB Recommended Hi Pass Crossover For Full Power Handling 160 Hz 12db Per Octave Crossover Frequency Response 90 - 13,000 Hz Voice Coil Diameter 2" (50 mm) Voice Coil Wire CCAW Voice Coil Winding Depth 11.0 mm Former Material Kapton Magnetic Gap Depth 8.0 mm Frame Material Die Cast Aluminum
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 5.17 l Excursion (mathematical)*** Xmax 3.50 mm Free Air Resonance Fs 95.2 Hz Mechanical Factor Qms 12.54 Electrical Factor Qes 0.20 Total Factor Qts 0.19 Cone Area Sd 143 cm Mechanical Mass Mms 15.45 g Bl Factor Bl 12.66 Tm Dc Resistance Re 3.4 Ohm Inductance Le 0.005 mH at 1 kHz Mechanical Mass Without Air Mmd 14.49 g Mechanical Compliance Cms 0.180 mm/N
EXTRA INFO

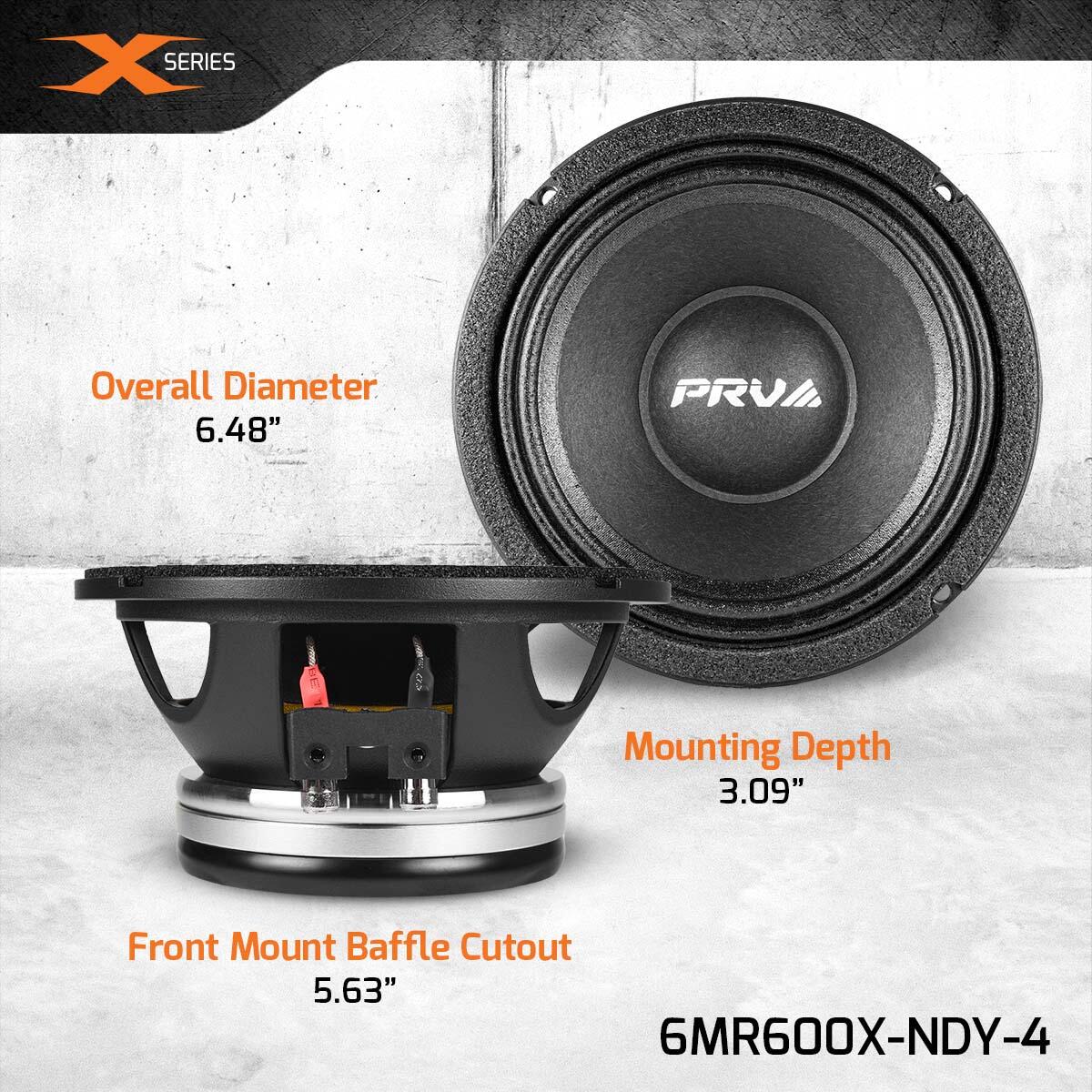

Overall Diameter 6.48 (164.5 mm) Front Mount Baffle Cutout 5.63 (143 mm) Mounting Depth 3.09 (78.5 mm) Overall Depth 3.43 (87 mm) Net Weight 4.63 Lbs (2.1 kg) Shipping Weight 5.00 Lbs (2.3 kg) Carton Dimensions W x L x H 7.0x 7.0 x 4.25 (178 x 178 x 108mm)
FEATURES
