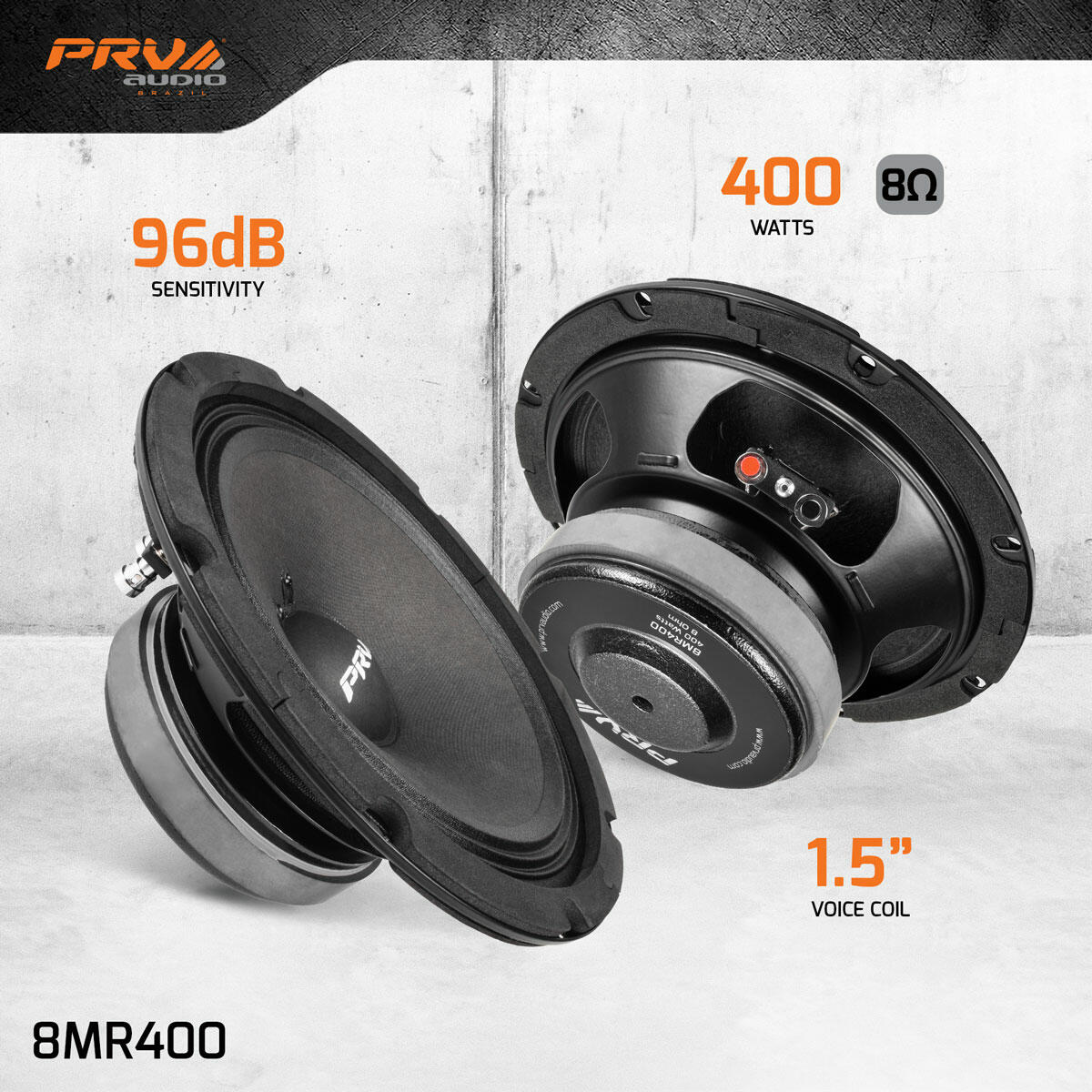

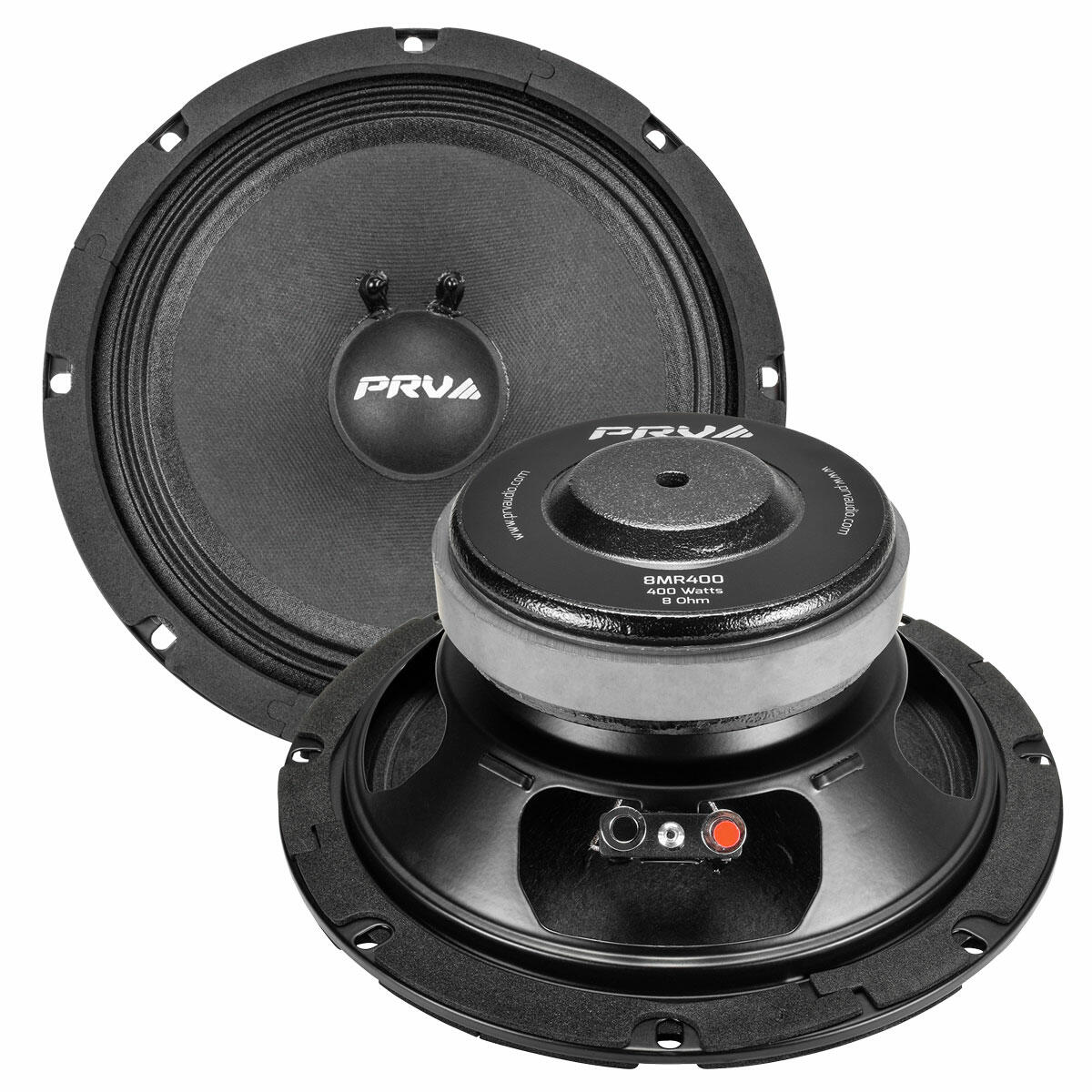

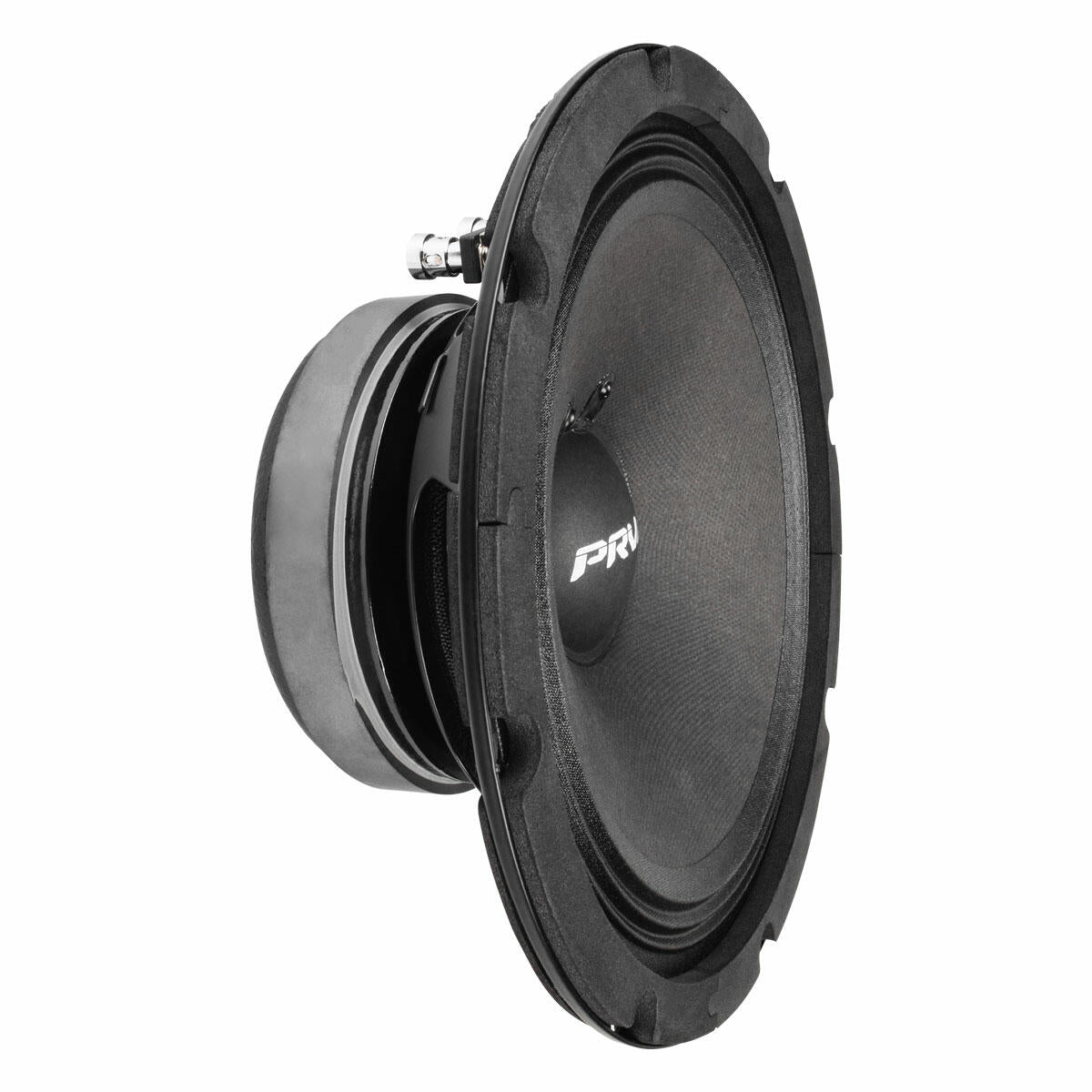

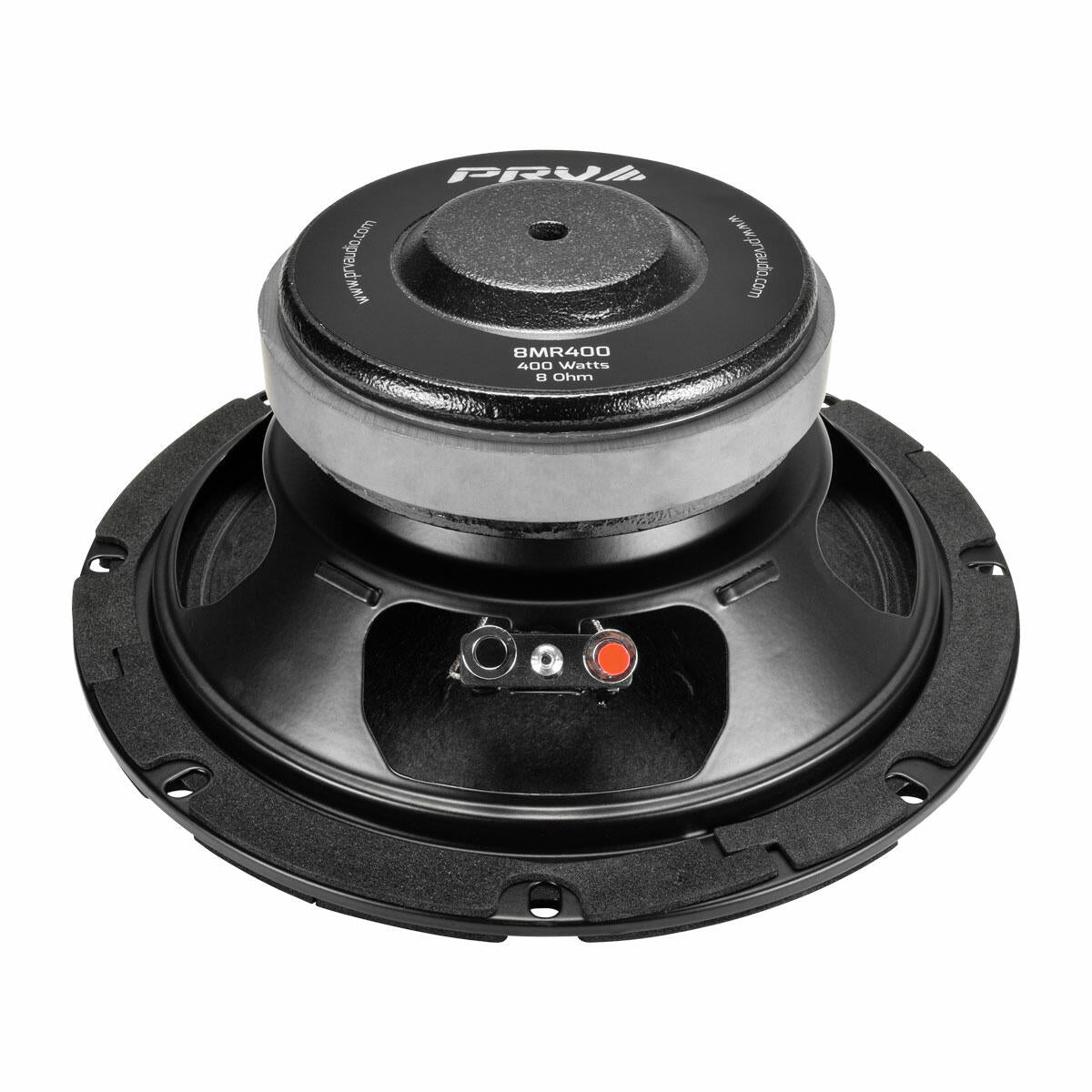

PRV Audio 8MR400 8" MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 8MR400 8" MIDRANGE LOUDSPEAKER
Features
Bringing back the true value of PRO audio speakers with this economy 8 midrange, not only will it perform amazingly well for its price, but it will also truly show our advanced technology on PRO Audio speakers!
Bringing to you an option that offers the lowest price without sacrificing performance.
- Perfect balance between value and performance
- Lightweight paper cone with triple cloth surround, gives high efficiency 96 dB
- Great value for professional, high output home audio, and car audio applications. 8 Ohm Voice coil.
- Handles 400 Watts, guaranteeing endurance at loudest volumes
Its compact design allows for easy installation in any space, making it versatile and suitable for various audio setups. Featuring a compact push terminal for easy, quick installation.
Dont underestimate its compact motor design! Featuring the latest technology we can increase tremendously the magnet field without huge magnet.
PRV 8MR400 8 professional midrange speaker is purpose-built to cover from 90 Hz to 7,500 Hz in three-way speakers, but also works great as a door speaker in car audio applications. Easy to blend in with any 10 or 12 midbass and a super tweeter.
PRV 8 Midrange Speaker 8MR400 PRO Audio 400 Watts / 8 Ohm
4 Speakers 1x MDX1800.1 2 Ohm, 4 speakers in parallel
8 Speakers 1x QS3000 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 400 Watts RMS musical power ( without clipping )
- 125 Hz at 12 dB per octave filter Crossover / BT12
- 120 Hz at 18 dB per octave filter Crossover / BT18
If you have compression drivers or super tweeters on your system the recommended LPF is 6,000 Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 200 Watts |
| Continuous Program Power (RMS) | 400 Watts |
| Max Peak Power | 800 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 125Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 90 - 7,500 Hz |
| Voice Coil Diameter | 1.5" (38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 6.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 20.23 l |
| Excursion (mathematical)*** | Xmax | 4.00 mm |
| Free Air Resonance | Fs | 78.2 Hz |
| Mechanical Factor | Qms | 8.52 |
| Electrical Factor | Qes | 0.56 |
| Total Factor | Qts | 0.52 |
| Cone Area | Sd | 222 cm |
| Mechanical Mass | Mms | 14.05 g |
| Bl Factor | Bl | 8.15 Tm |
| Dc Resistance | Re | 5.4 Ohm |
| Inductance | Le | 0.42 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 12.18 g |
| Mechanical Compliance | Cms | 0.295 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

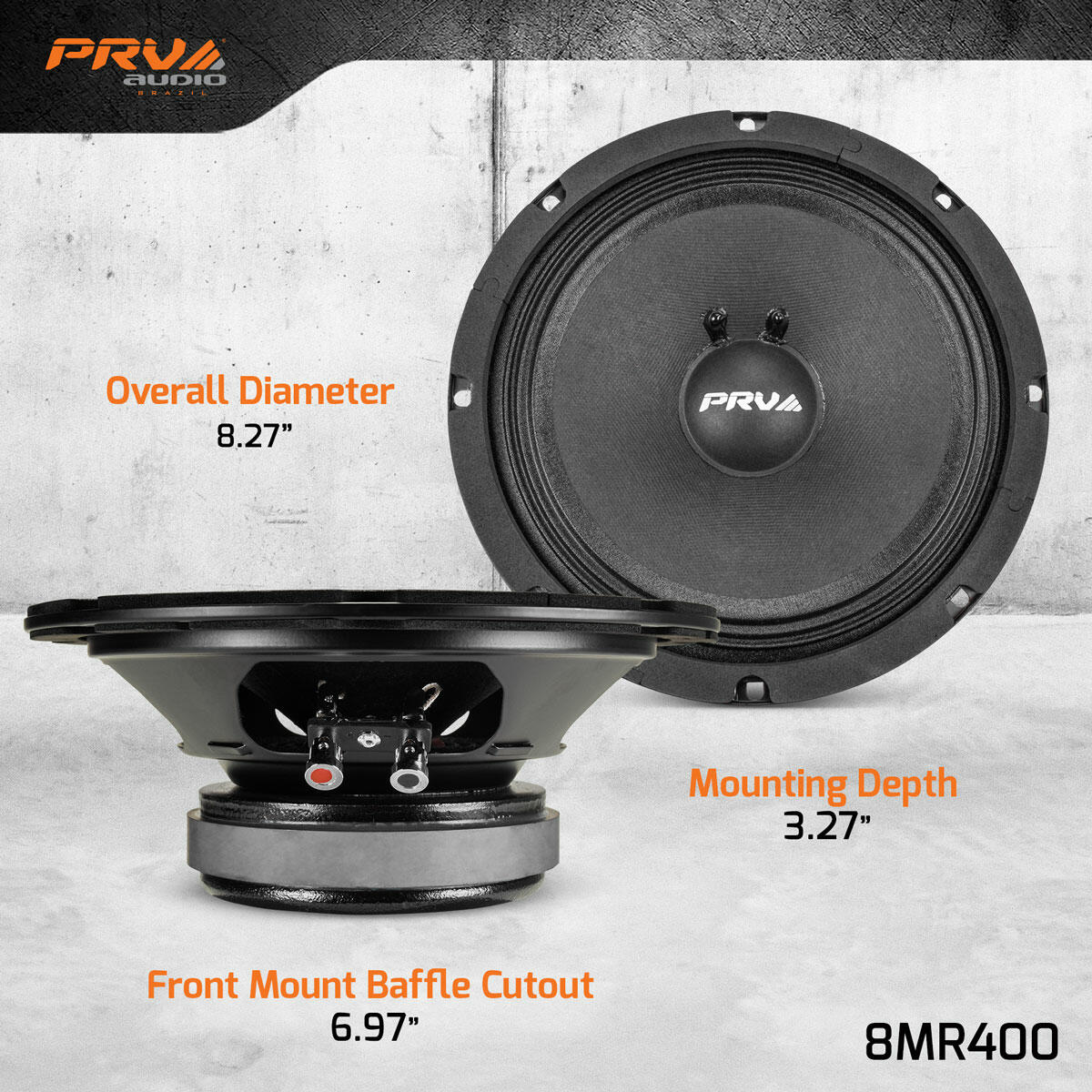

| Overall Diameter | 8.27" (210 mm) |
| Front Mount Baffle Cutout | 6.97" (177 mm) |
| Mounting Depth | 3.27" (83 mm) |
| Overall Depth | 3.58" (91 mm) |
| Net Weight | 4.85 Lbs (2.20 kg) |
| Shipping Weight | 5.45 Lbs (2.48 kg) |
| Carton Dimensions W x L x H | 9.05" x 9.05" x 3.98" (230 x 230 x 100 mm) |
