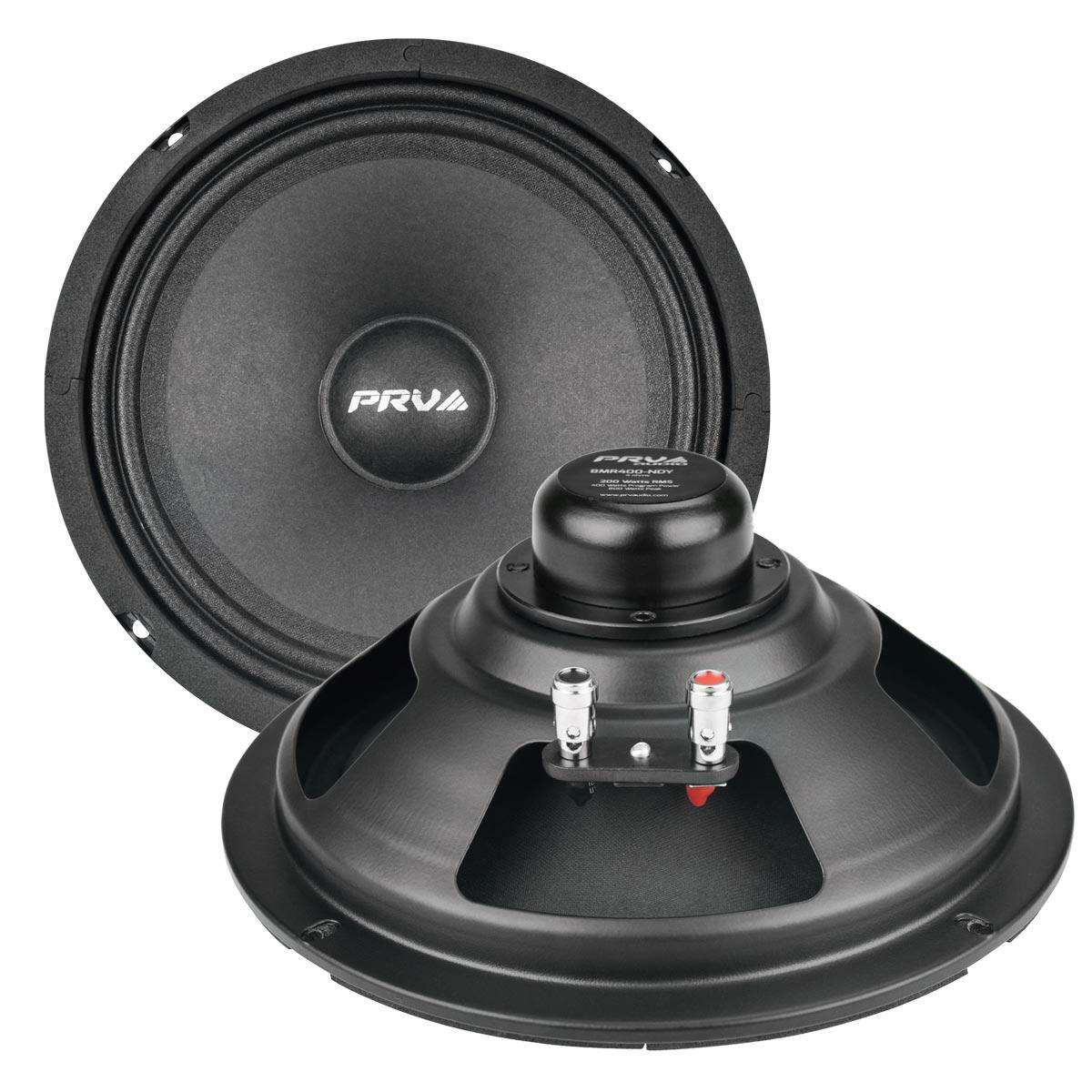

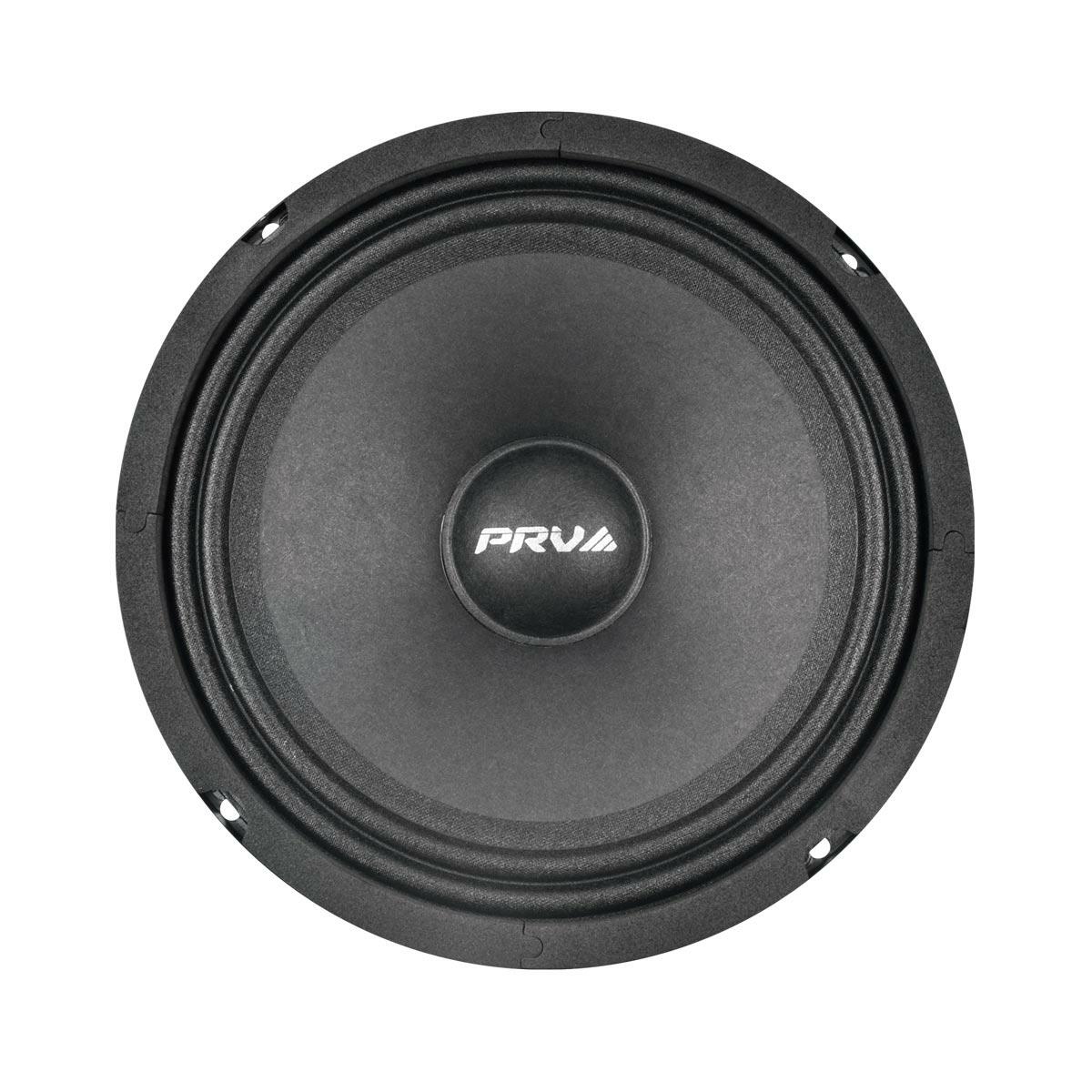

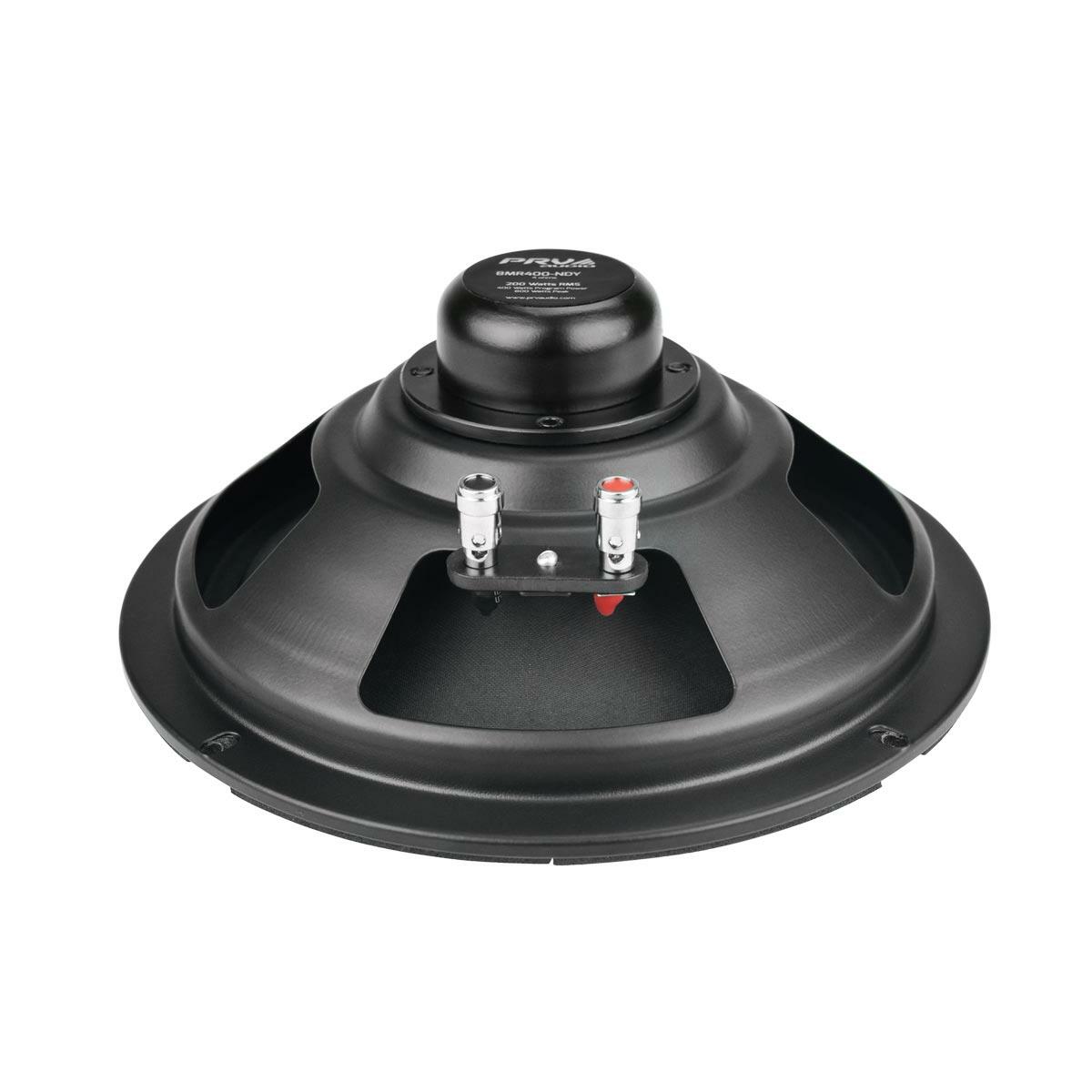

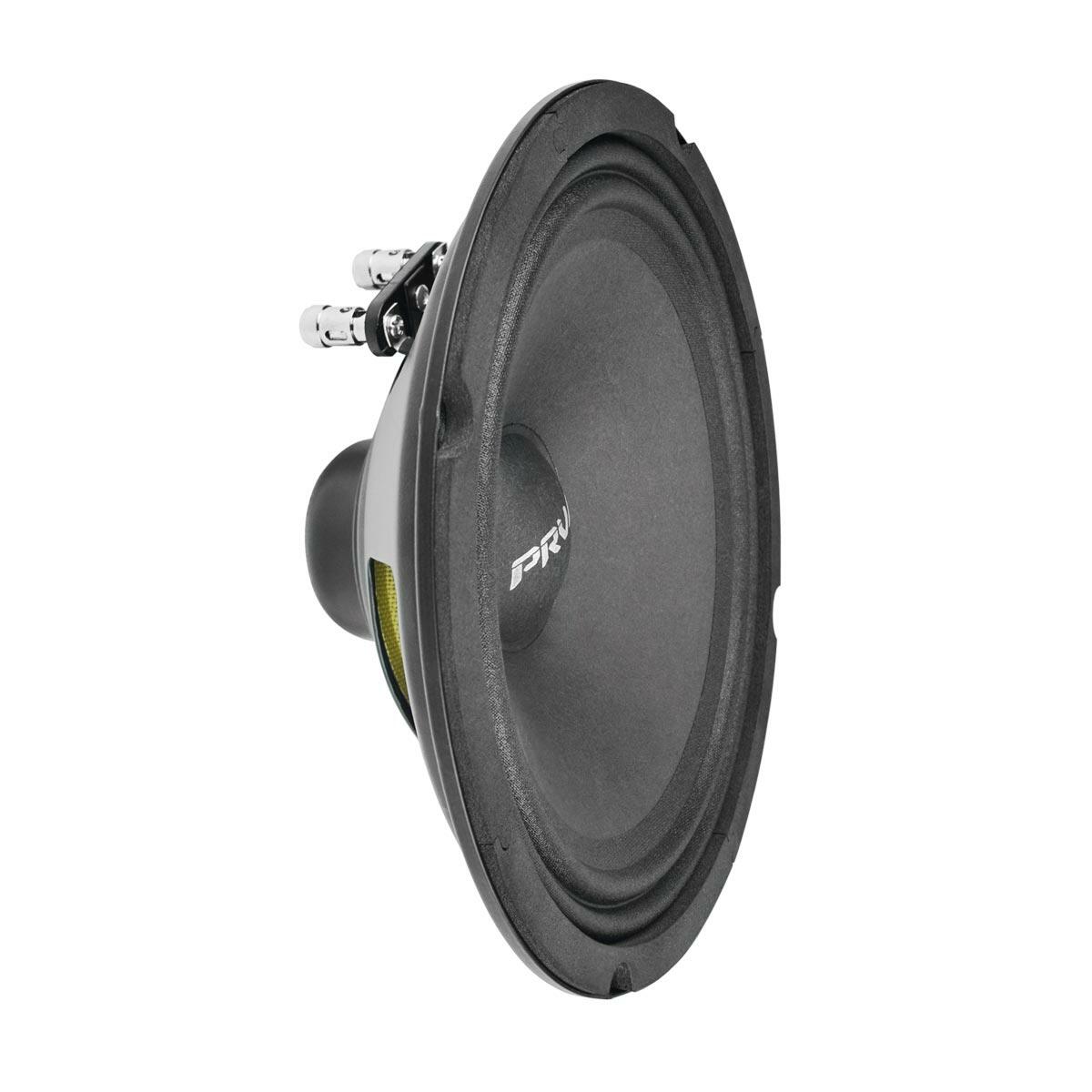

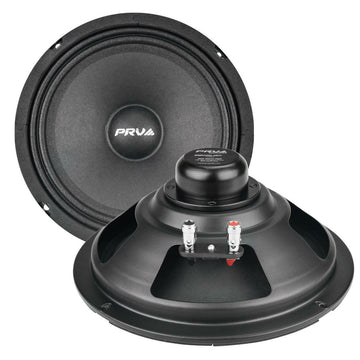

PRV Audio 8MR400-NDY 8" NEODYMIUM MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 17 - Jun 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio 8MR400-NDY 8" NEODYMIUM MIDRANGE LOUDSPEAKER
Features
The 8MR400-NDY offers slim design for narrow and shallow profile installation without sacrificing performance. This professional Midrange Neodymium magnet loudspeaker delivers smooth clear vocals that will impress any listener and the efficiency makes it easy to power; all thanks to a specially designed light weight cone which delivers very smooth Midrange and Midbass response through the upper Midrange area of an amazing 8.5 kHz.
With only 2.95 of depth, car audio enthusiasts gravitate towards this driver for use in their systems when looking for a lightweight and shallow Midrange that can sustain long hours of extreme operation on a sealed enclosure and is a perfect option for Midrange driver replacements in three way cabinets. It also has become a popular choice for home audio Hi-Fi speakers.
The Neodymium magnet assembly attached to a sturdy reinforced steel frame completes the 8MR400-NDY to ensure a solid support structure, for long lasting play in most any environment and its light weight of only 1.6lbs helps keep your enclosures and car audio installs light.
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 200 Watts
- Program Power: 400 Watts
- Sensitivity (1W/1m): 94 dB
- Voice Coil Diameter: 1.5
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 200 Watts |
| Program Power | 400 Watts |
| Sensitivity 2.83V at 1m | 94 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 190 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 115 - 8,500 Hz |
| Voice Coil Diameter | 1.5" (38 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Winding Depth | 12.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 5.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 6.40 l |
| Excursion (mathematical)*** | Xmax | 4.75 mm |
| Free Air Resonance | Fs | 111.3 Hz |
| Mechanical Factor | Qms | 7.75 |
| Electrical Factor | Qes | 1.17 |
| Total Factor | Qts | 1.01 |
| Cone Area | Sd | 241 cm |
| Mechanical Mass | Mms | 20.39 g |
| Bl Factor | Bl | 8.32 Tm |
| Dc Resistance | Re | 5.7 Ohms |
| Inductance | Le | 0.37 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 18.6 g |
| Mechanical Compliance | Cms | 0.100 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 8.12" (206 mm) |
| Front Mount Baffle Cutout | 7.09" (180 mm) |
| Mounting Depth | 3.07" (78 mm) |
| Overall Depth | 3.31" (84 mm) |
| Net Weight | 1.31 Lbs (0.59 kg) |
| Shipping Weight | 1.78 Lbs (0.8 kg) |
| Carton Dimensions W x L x H | 9.0" x 9.0" x 5.0" (228 x 228 x 127 mm) |
