PRV Audio 8MR500SEAL PRO 8" SEALED BASKET MIDRANGE LOUDSPEAKER

PRV Audio 8MR500SEAL PRO 8" SEALED BASKET MIDRANGE LOUDSPEAKER

Precio regular $73.99
Precio de venta $73.99 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

The 8MR500SEAL PRO offers very smooth midrange response to the upper midrange up to 9,000 Hz. Designed to provide definition and high output on midrange frequencies, perfect for use in any high output 3-way system.

Now you can pair this 8 speaker with any 10 or 12 speaker from our PRO Series, to build the ultimate custom Chuchero or PRO Audio systems.

  • A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.
  • Capable of handling 500 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).
  • Its naturally damped paper cone is coated with a waterproof coating, ensuring high performance even in harsh damp or wet weather conditions.
  • Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 9,000 Hz. A powerful output peak at 400hz reaches 104dB of sensitivity at 1w/1m.

A light paper cone is mated to a large 2 voice coil for great power handling of 500 watts. A durable spider suspension, woven cloth surround, and closed back pressed steel basket are combined for durability over many hours of use.

Cabinet builders gravitate towards this driver for use in their systems when looking for a powerful sealed basket midrange, to keep up with high sensitivity low frequency speakers.

Using a closed basket design in a speaker like the 8MR500SEAL PRO offers several advantages. Firstly, it prevents interference from a woofer or midbass in a shared cabinet design, resulting in a cleaner and more accurate midrange response.

Additionally, the closed basket design contributes to a smooth punch of midbass and midrange, enhancing the overall audio performance of the speaker.

PRV 8 Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm High Performance Waterproof Cone



GENERAL SPECIFICATIONS

Nominal Diameter 8" (203 mm)
Nominal impedance 8 Ohm
Nominal Power Handling 250 Watts
Continuous Program Power (RMS) 500 Watts
Max Peak Power 1000 Watts
Sensitivity 2.83V at 1m 97 dB
Recommended Hi Pass Crossover** **For Full Power Handling 400 Hz** **12db Per Octave Crossover
Frequency Response at -10DB 400 - 9,000 Hz
Voice Coil Diameter 2" (50 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 12.0 mm
Former Material Kapton
Magnetic Gap Depth 8.0 mm
Frame Material Stamped Steel
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 0.97 l
Excursion (mathematical)*** Xmax 4.00 mm
Free Air Resonance Fs 392.2 Hz
Mechanical Factor Qms 18.14
Electrical Factor Qes 2.58
Total Factor Qts 2.26
Cone Area Sd 241 cm
Mechanical Mass Mms 13.63 g
Bl Factor Bl 8.83 Tm
Dc Resistance Re 6.0 Ohm
Inductance Le 0.25 mH at 1 kHz
Mechanical Mass Without Air Mmd 11.53g
Mechanical Compliance Cms 0.012 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

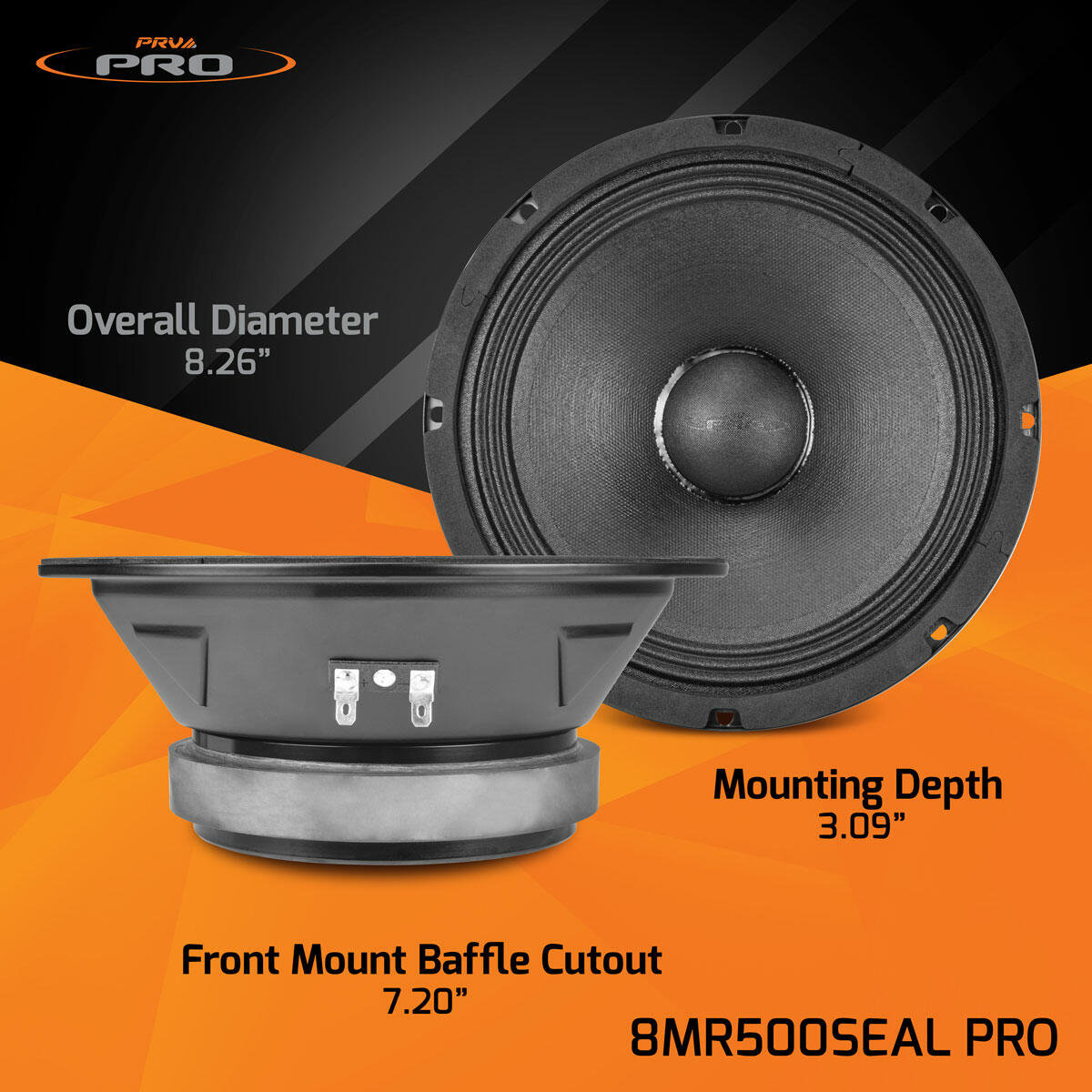

Overall Diameter 8.26" (209.7 mm)
Front Mount Baffle Cutout 7.20" (183 mm)
Mounting Depth 3.09" (78.5 mm)
Overall Depth 3.40" (86.5 mm)
Net Weight 6.40 Lbs (2.90 kg)
Shipping Weight 7.0 Lbs (3.18 kg)
Carton Dimensions W x L x H 9.05" x 9.05" x 3.94" (230 x 230 x 100 mm)
