PRV Audio 8MR600X-4 8" MIDRANGE LOUDSPEAKER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
X-treme midrange performance is what PRV Audios 8MR600X-4 is all about. Made to be a class leading mid range in the car audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for custom car audio applications to perform best on very small enclosures, a pro audio version is available at 8ohms 8MR600X
The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression.
Capable of high output and low distortion, this midrange is perfect for filling in the important midrange response in any high output sound system.
- 2 DUAL layer CCAW voice coil wound on polyimide former, 4 ohms
- Ventilated voice coil gap reduces power compression
- High Xmax for more Midbass output
- 600 watts continuous program power rating makes high acoustical output
- Excellent performance in compact enclosures
- Unique double roll dimple suspension design
The 51 mm (2 in) copper clad aluminum wire is wound in a double layer using a high temperature resin adhesive on a strong polyimide former and features a generous 14.2 mm winding length for extended Xmax and less distortion.
The 2 voice coil also ensures high heat dissipation and the necessary motor strength to deliver high sensitivity even on high power with the minimum distortion.
A Qts of 0.37 and an unique double roll dimple suspension design allows for a flat response from 200Hz to 2500Hz, even at high excursion controlling well its natural paper cone at its 5.10 mm Xmax.
Its composite cone is built with non-pressed paper (visible on the back side) for reduced break-up and smooth sound.Its extended frequency response up 8,500hz makes this midrange driver a perfect to combine with any Super Tweeter
PRV 8 Midrange Speaker 8MR600X-4 600 Watts / 4 Ohm High Power PRO Audio Loudspeaker
Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:
Custom System, High Power
2 Speakers 1x MDX1200.2 at 1 Ohm Bridged at 2 Ohm, 2 speakers in parallel
135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
Custom System, Middle Power
4 Speakers 1x MDX1800.1 at 1 Ohm, 4 speakers in parallel
125 Hz at 18 dB per octave filter Crossover / BT18
when using up to 450 Watts RMS musical power
Custom System, High Power
4 Speakers 1x MDX2500.1 at 1 Ohm, 4 speakers in parallel
135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
If you have a super tweeter on your system the recommended LPF is 5,500 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling | 300 Watts |
| Continuous Program Power (RMS) | 600 Watts |
| Max Peak Power | 1200 Watts |

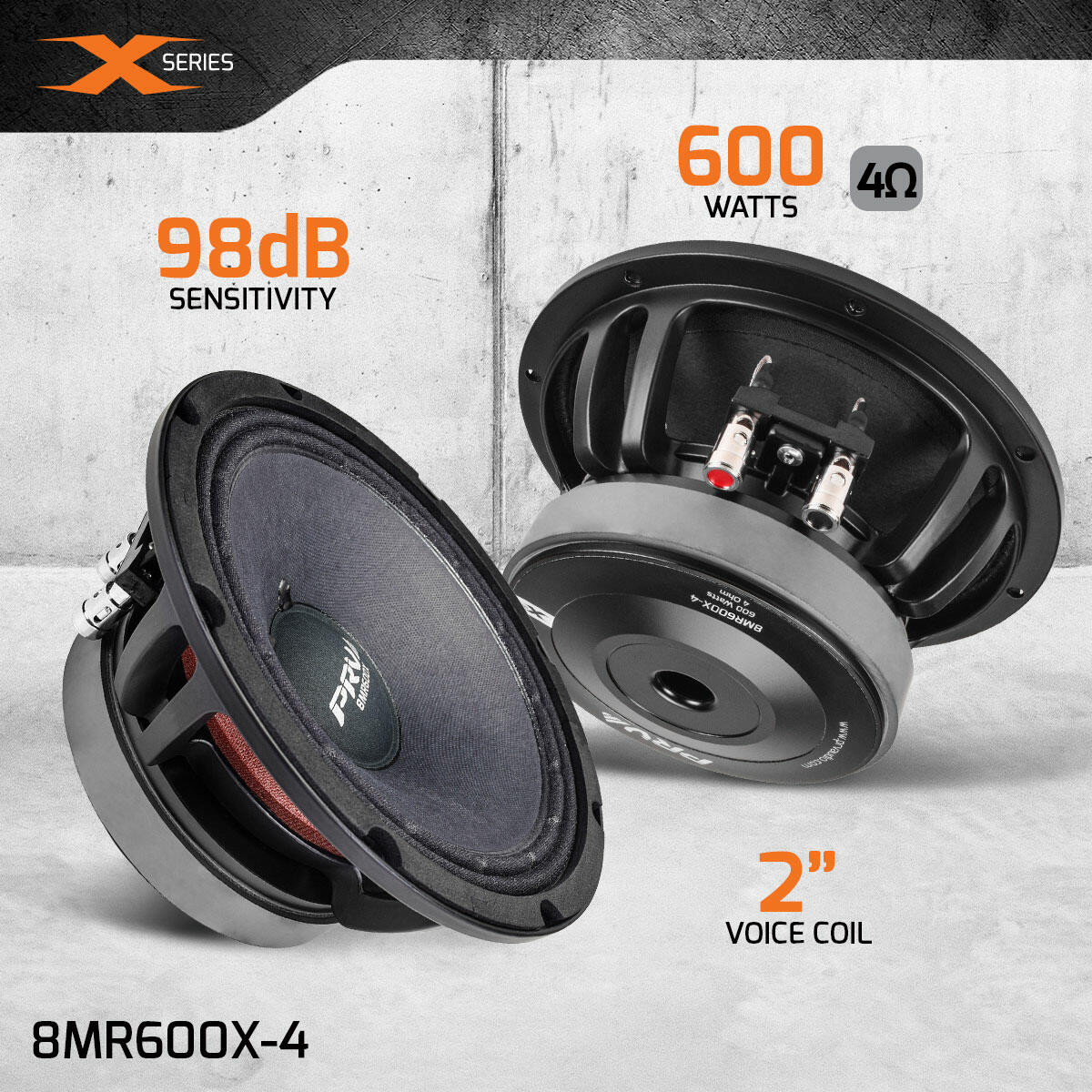

| Sensitivity 2.83V at 1m | 98 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 145 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 85 - 8,500 Hz |
| Voice Coil Diameter | 2.0" (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 14.2 mm |
| Former Material | Polyimide |
| Magnetic Gap Depth | 8.0 mm |
| Frame Material | Die cast aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 19.65 l |
| Excursion (mathematical)*** | Xmax | 5.10 mm |
| Free Air Resonance | Fs | 77.22 Hz |
| Mechanical Factor | Qms | 6.71 |
| Electrical Factor | Qes | 0.36 |
| Total Factor | Qts | 0.34 |
| Cone Area | Sd | 241 cm |
| Mechanical Mass | Mms | 17.46 g |
| Bl Factor | Bl | 8.93 Tm |
| Dc Resistance | Re | 3.4 Ohms |
| Inductance | Le | 0.31 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 15.34 g |
| Mechanical Compliance | Cms | 0.243 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

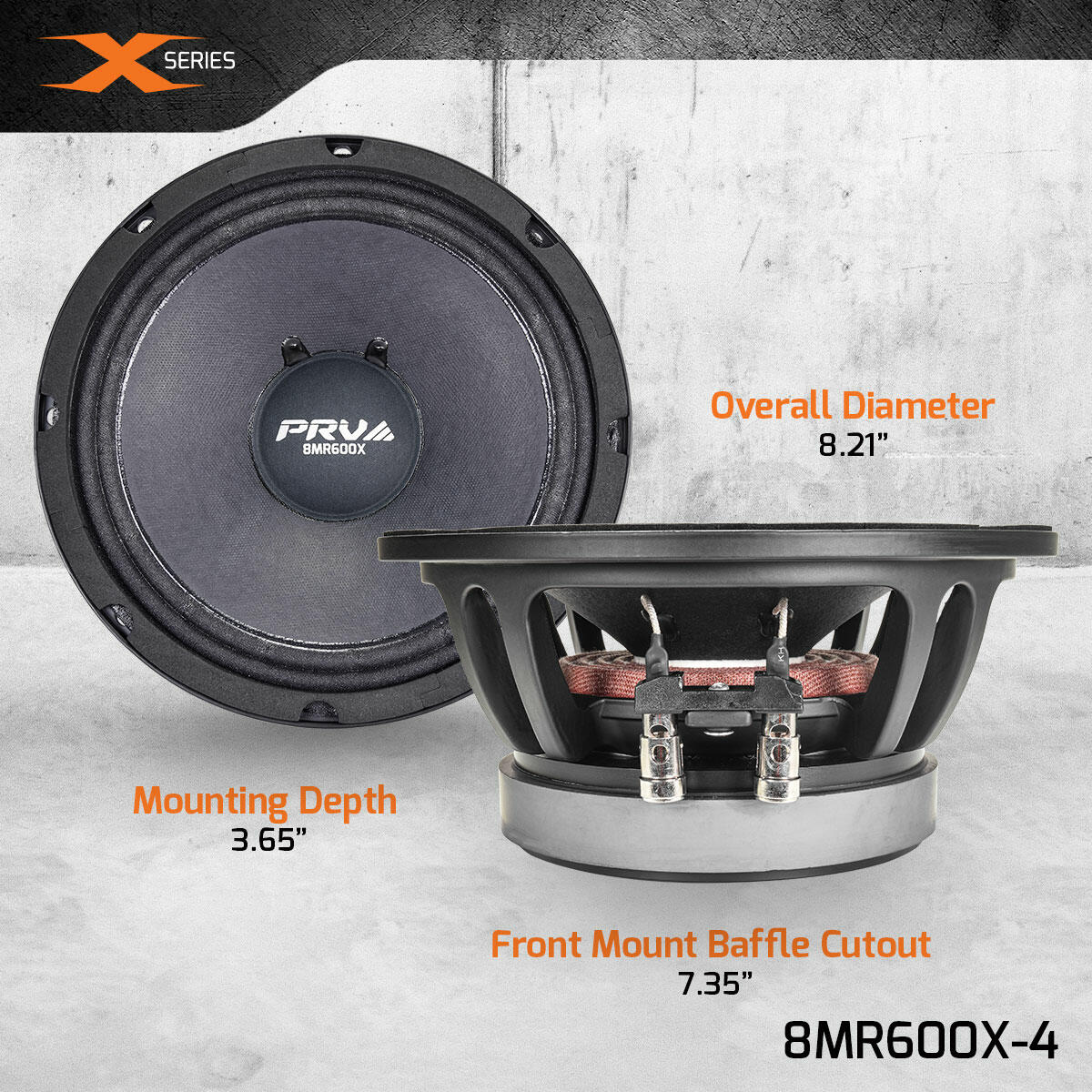

| Overall Diameter | 8.21 (208.5 mm) |
| Front Mount Baffle Cutout | 7.35 (186.5 mm) |
| Mounting Depth | 3.65 (92.5 mm) |
| Overall Depth | 4.03 (102.5 mm) |
| Net Weight | 7.04 Lbs (3.20 kg) |
| Shipping Weight | 7.60 Lbs (3.45 kg) |
| Carton Dimensions W x L x H | 8.85 x 8.85 x 4.92 (225 x 225 x 125 mm) |
