PRV Audio 8MR600X-NDY 8" MIDRANGE LOUDSPEAKER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT

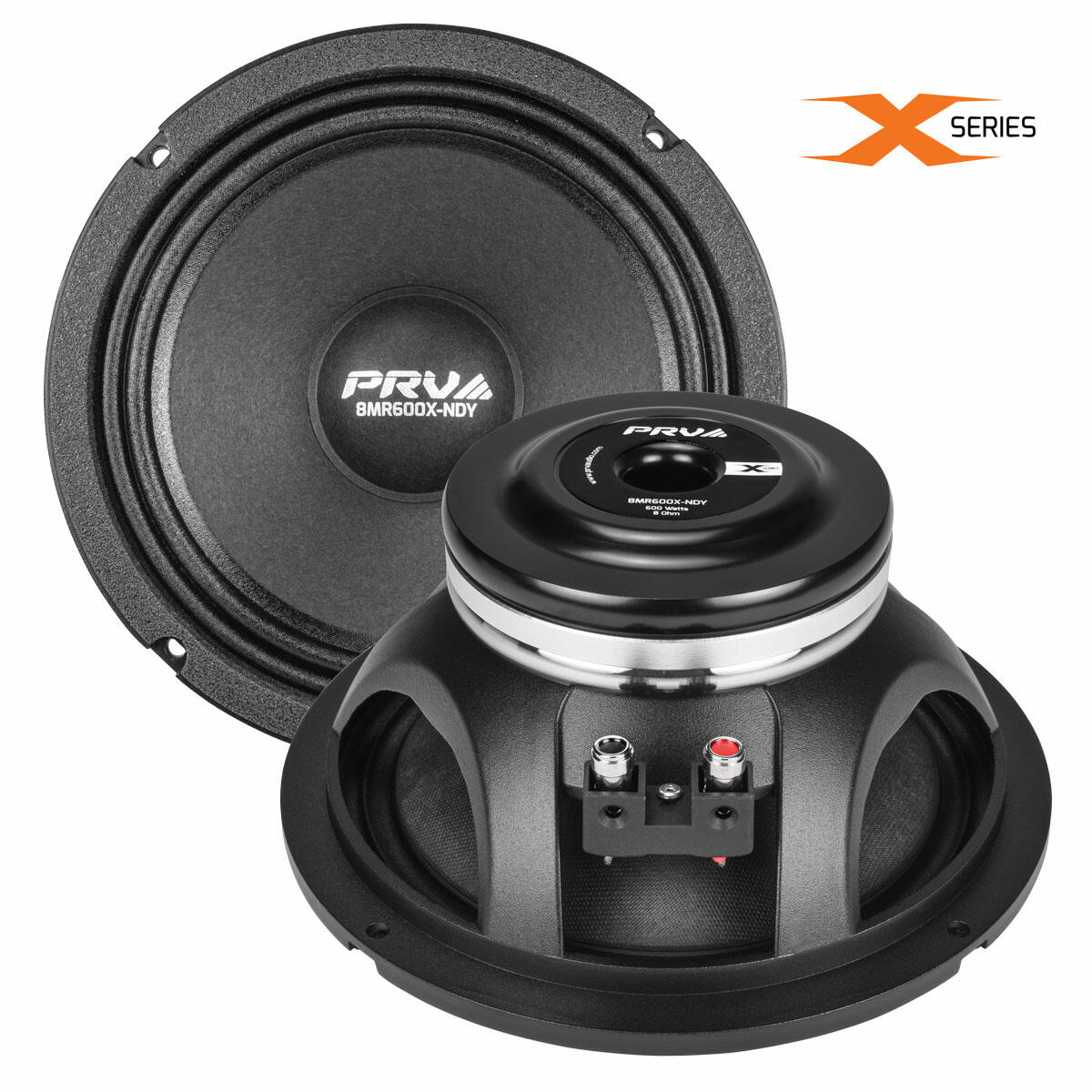

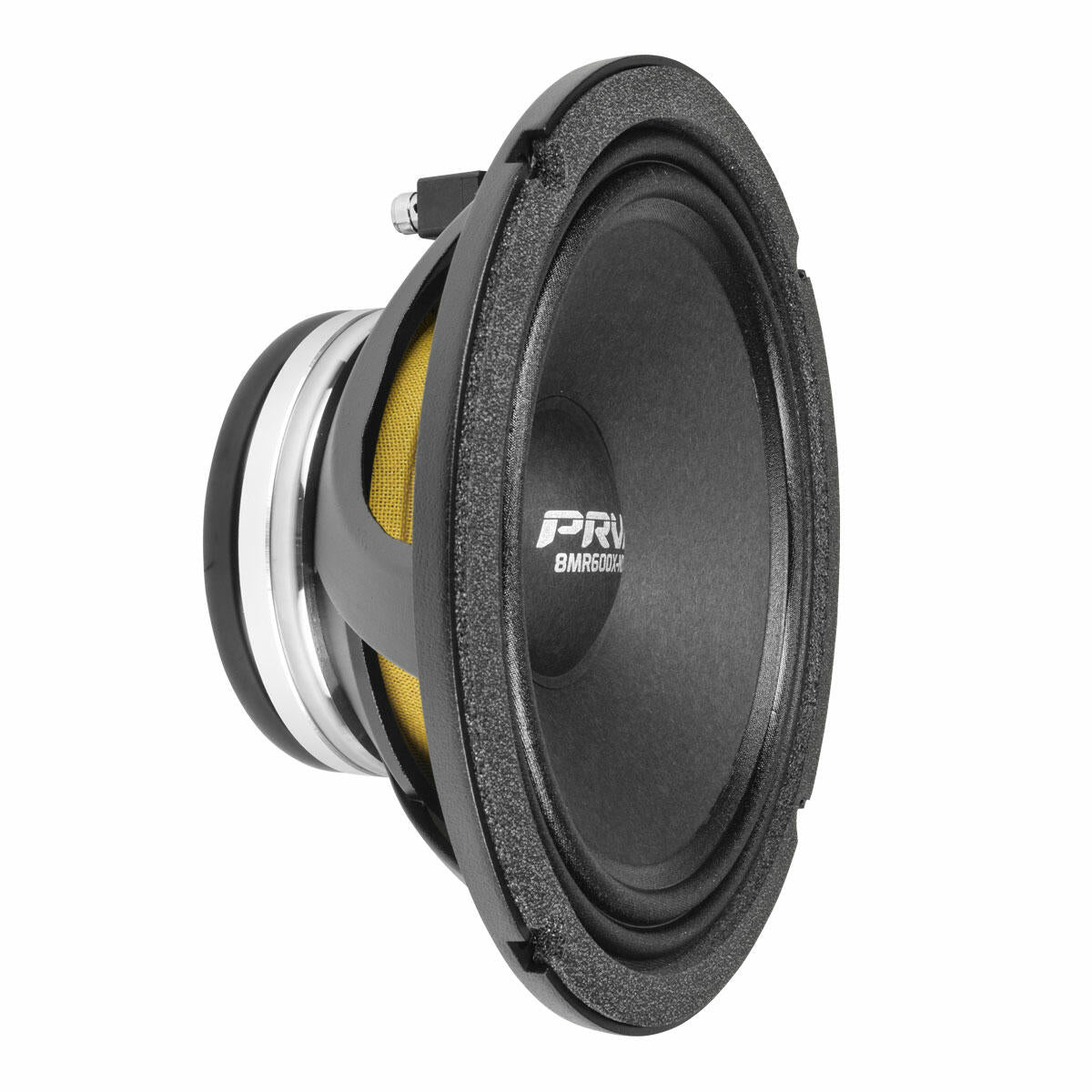

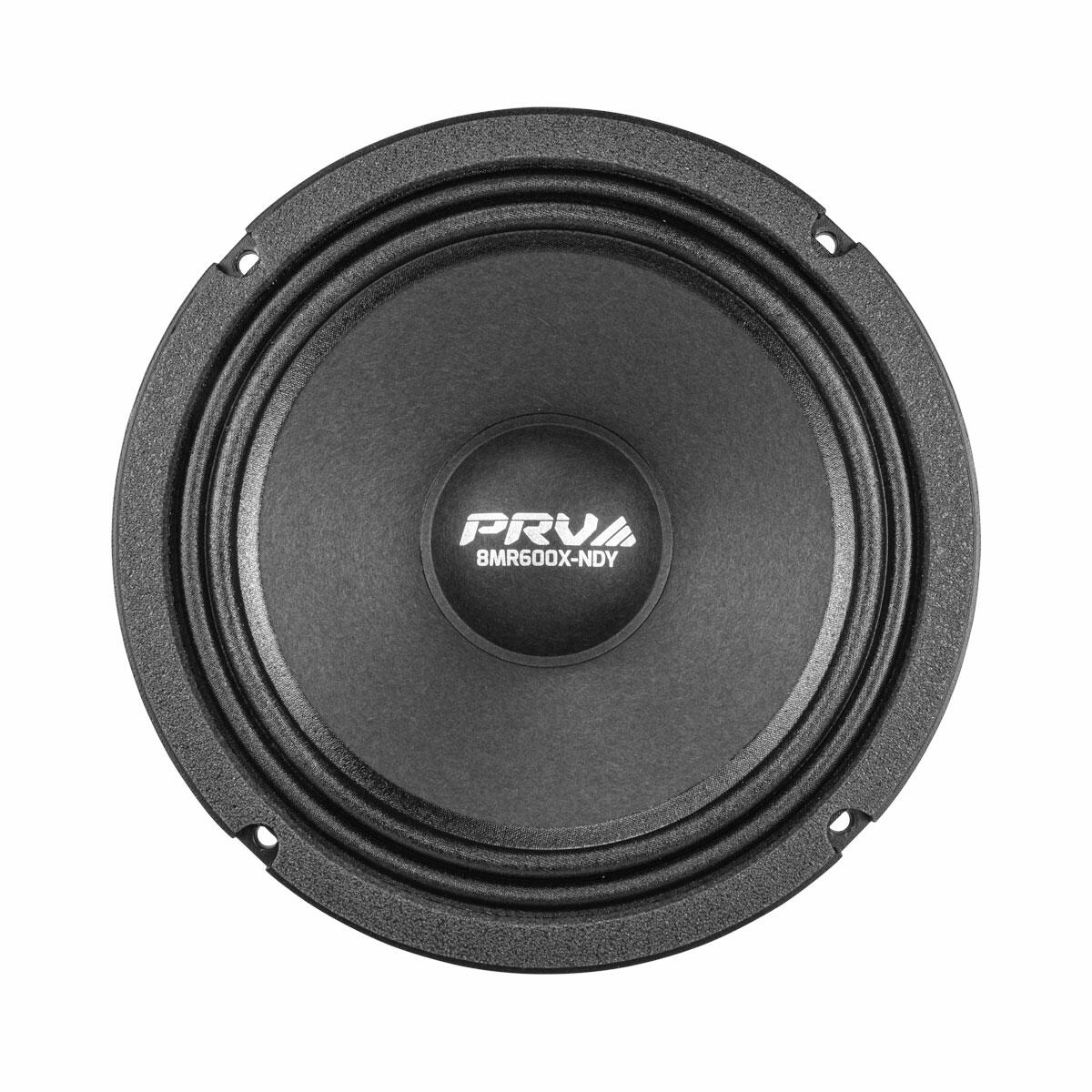

PRV Audio 8MR600X-NDY 8" MIDRANGE LOUDSPEAKER
Features
The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.
Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.
- 2 DUAL layer CCAW voice coil wound on a Kapton former, 8 Ohm
- This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.
- Low inductance and extended frequency response with wide directivity
- 600 watts RMS continuous program power rating makes high acoustical output
- Ideal solution for compact full-range applications demanding high acoustic output
- Detailed vocal response and pristine instrument sound reproduction
A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response taking performance to the next level with its wide frequency bandwidth, high output levels between 3,200 to 10,000Hz
Making the 8MR600X-NDY an excellent solution for high sound quality two or three-way systems.
Extreme car audio enthusiasts will find PRV Audios 8MR600X-NDY to be the perfect 8 midrange door speaker, capable of handling up to 600 watts RMS power (with a suggested 135 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)!
Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.
PRV 8 Midrange Speaker 8MR600X-NDY 600 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker
Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:
Custom System, Middle Power
4 Speakers 1x MDX1800.1 2 Ohm, 4 speakers in parallel
125 Hz at 18 dB per octave filter Crossover / BT18
when using up to 450 Watts RMS musical power
Custom System, High Power
4 Speakers 1x MDX2500.1 2 Ohm, 4 speakers in parallel
135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
Custom System, High Power
8 Speakers 1x QS5000 at 1 Ohm, 8 speakers in parallel
135 Hz at 18 dB per octave filter Crossover / BT18
when using up to 600 Watts RMS musical power
If you have a super tweeter on your system the recommended LPF is 7,000 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 300 Watts |

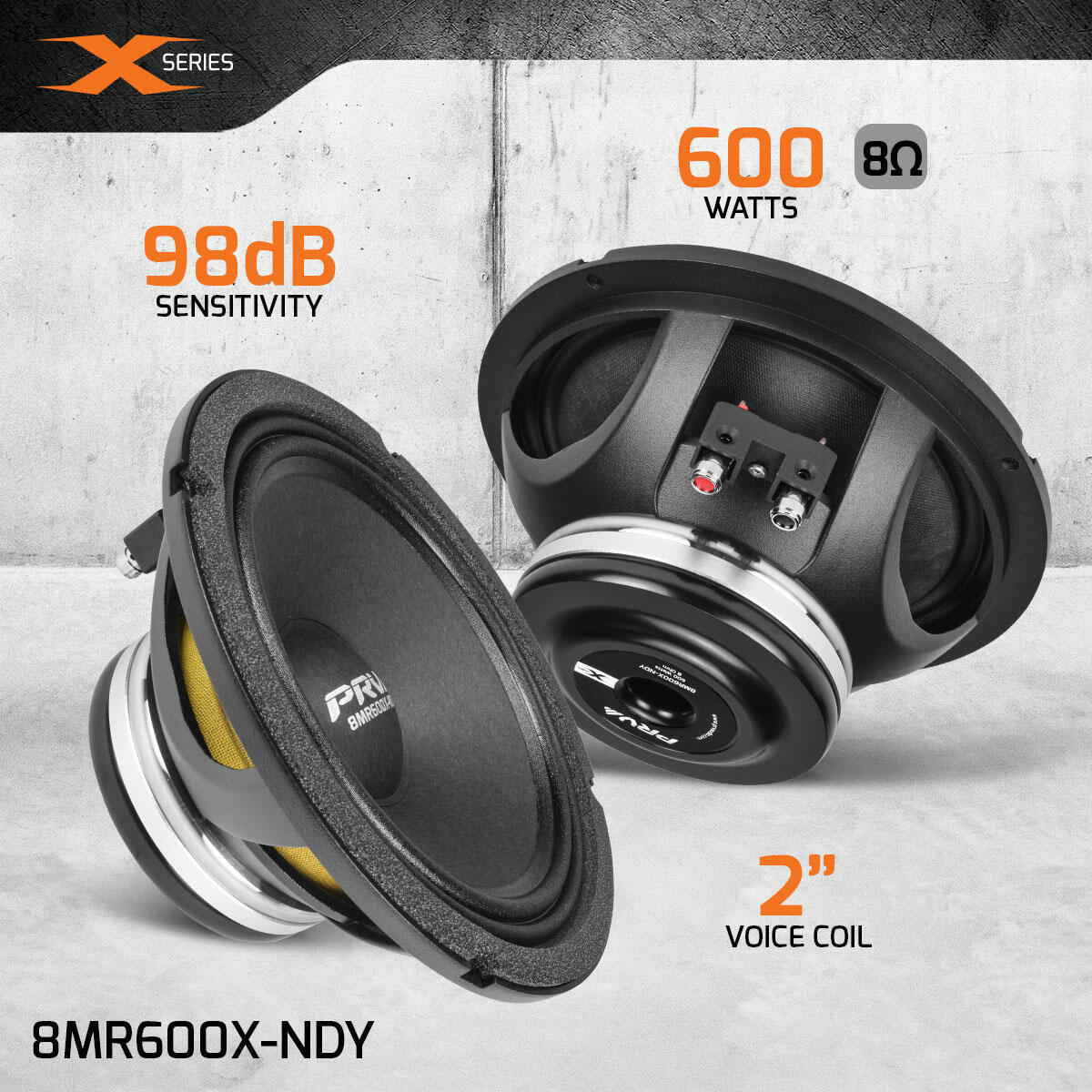

| Continuous Program Power (RMS) | 600 Watts |
| Max Peak Power | 1200 Watts |
| Sensitivity 2.83V at 1m | 98.5 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 145Hz** **12db Per Octave Crossover |
| Frequency Response at -10DB | 95 - 10,500 Hz |
| Voice Coil Diameter | 2" (50 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 11.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 7.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 12.58 l |
| Excursion (mathematical)*** | Xmax | 3.75 mm |
| Free Air Resonance | Fs | 87.6 Hz |
| Mechanical Factor | Qms | 17.78 |
| Electrical Factor | Qes | 0.30 |
| Total Factor | Qts | 0.29 |
| Cone Area | Sd | 232 cm |
| Mechanical Mass | Mms | 19.73 g |
| Bl Factor | Bl | 15.17 Tm |
| Dc Resistance | Re | 6.3 Ohm |
| Inductance | Le | 0.03 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 17.72 g |
| Mechanical Compliance | Cms | 0.167 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

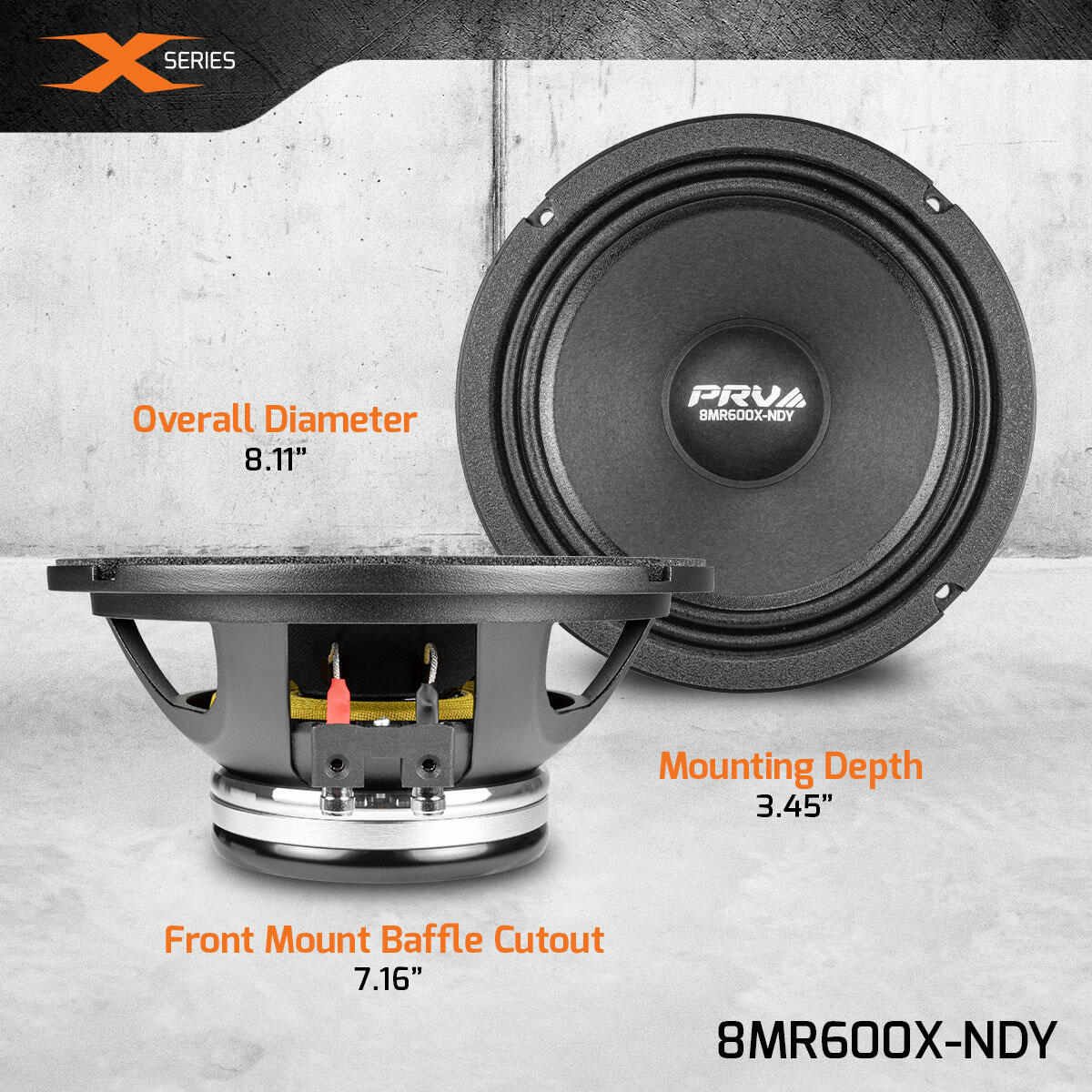

| Overall Diameter | 8.11" (206 mm) |
| Front Mount Baffle Cutout | 7.16" (182 mm) |
| Mounting Depth | 3.45" (87.6 mm) |
| Overall Depth | 3.81" (96.7 mm) |
| Net Weight | 5.00 Lbs (2.26 kg) |
| Shipping Weight | 5.55 Lbs (2.52 kg) |
| Carton Dimensions W x L x H | 8.66" x 8.66" x 4.72" (220 x 220 x 120 mm) |
