PRV Audio D280Ti-B 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio D280Ti-B 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The D280Ti-B high frequency compression driver, with superior audio clarity and power, is designed to output high sound pressure levels, making it perfect for professional sound systems. This is an excellent upgrade for DJ speaker cabinets with screw-on horns.
Standard 2 and 3 bolt patterns make them an easy replacement and upgrade option for many Pro audio cabinets, where manufacturers typically use the cheapest component possible. This drivers high sensitivity translates into a clearer, more effortless sound than ever before from your speaker cabinet.
Performance per weight ratio is a great factor on this driver which makes it easier to transport, which is crucial for mobile sound systems ( DJ Cabinets ) and professional touring systems. It also reduces speaker cabinets overall weight, making them more manageable without sacrificing performance. This balance of portability and power makes it the most popular high frequency driver in this segment.

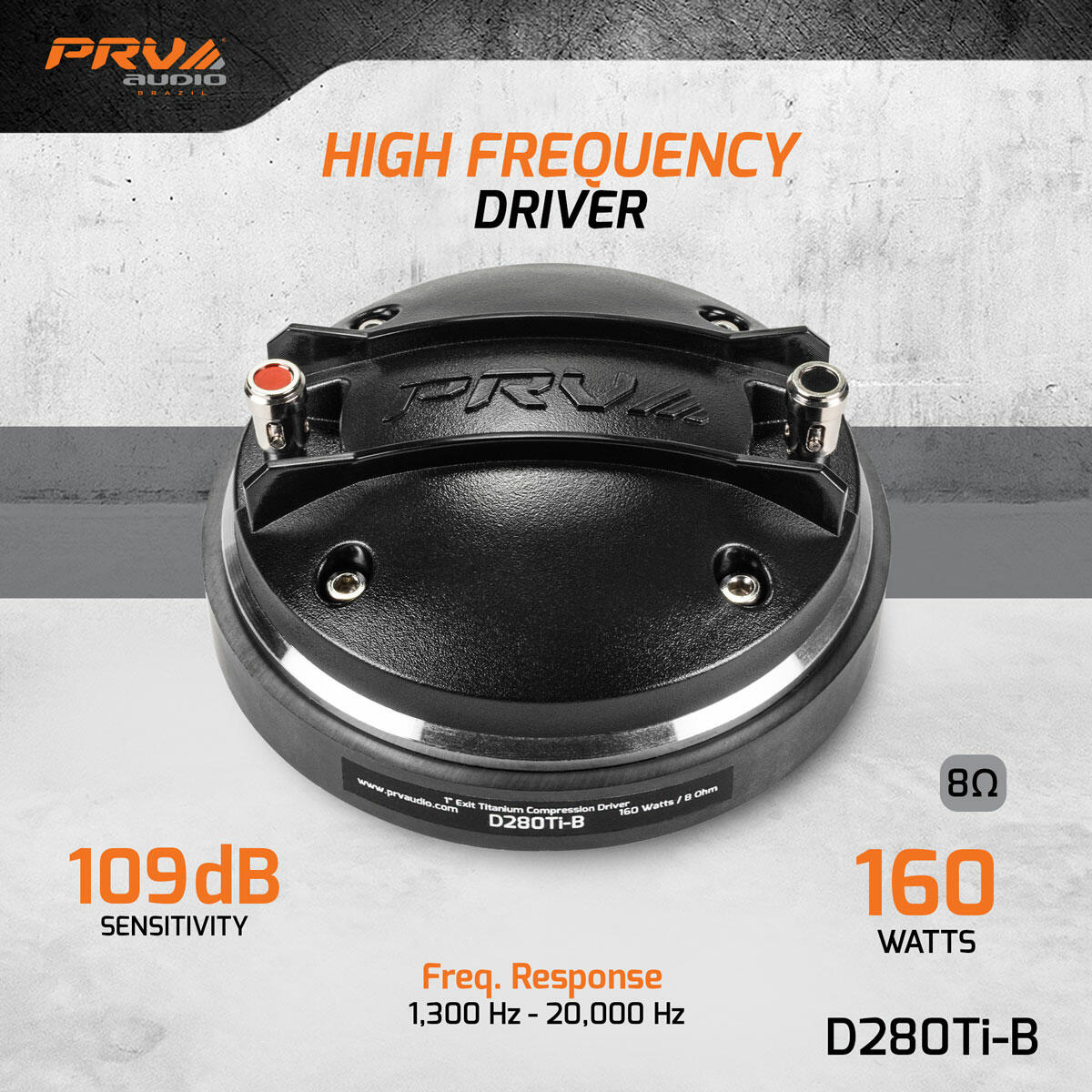

- Pure Titanium diaphragm with a large 1.75 Voice Coil, providing high power handling with excellent output 109 dB Sensitivity.
- This driver offers the famous PRV Audio crisp high output on high frequency response, with accuracy (from 1,300 to 20,000 Hz) with a linear frequency response.

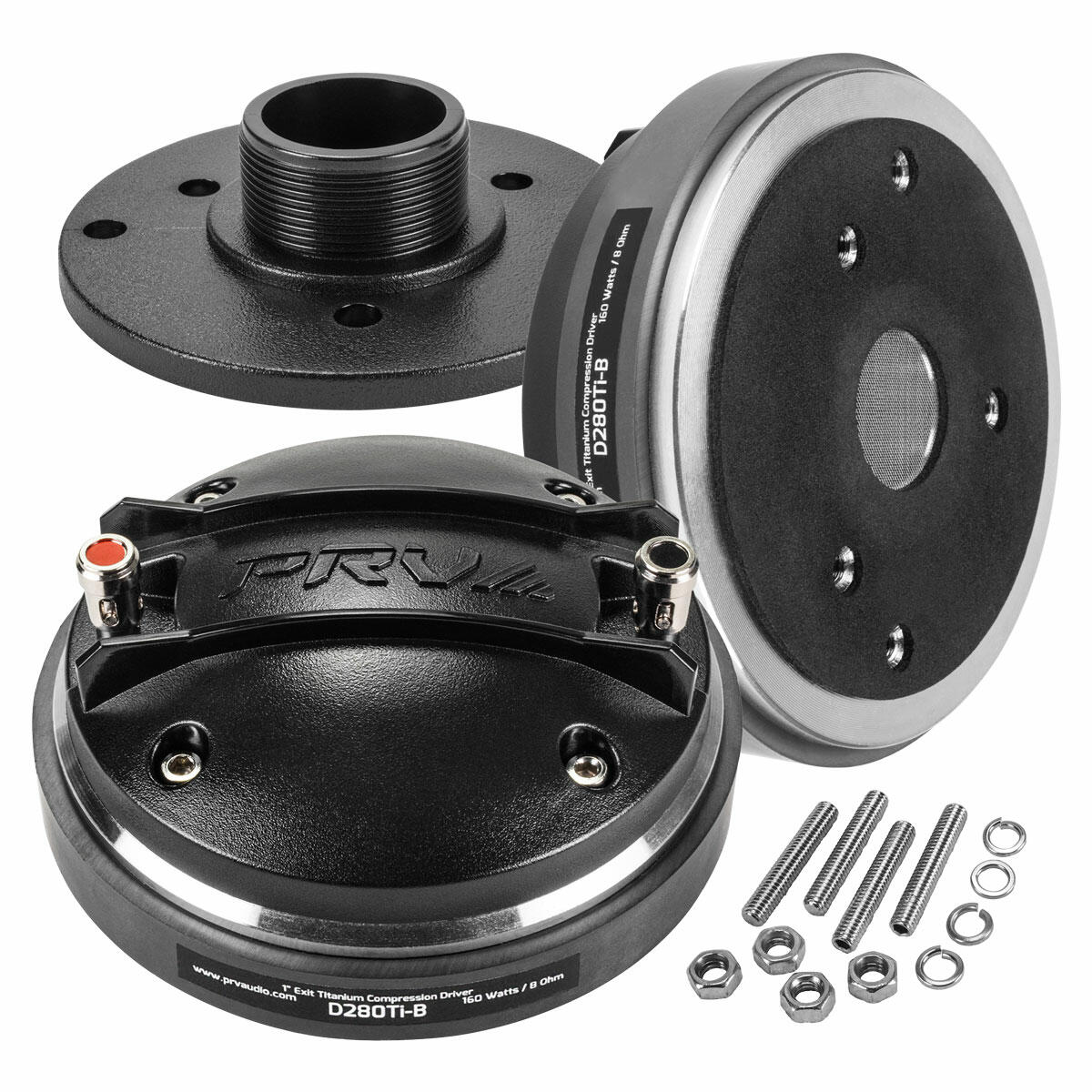

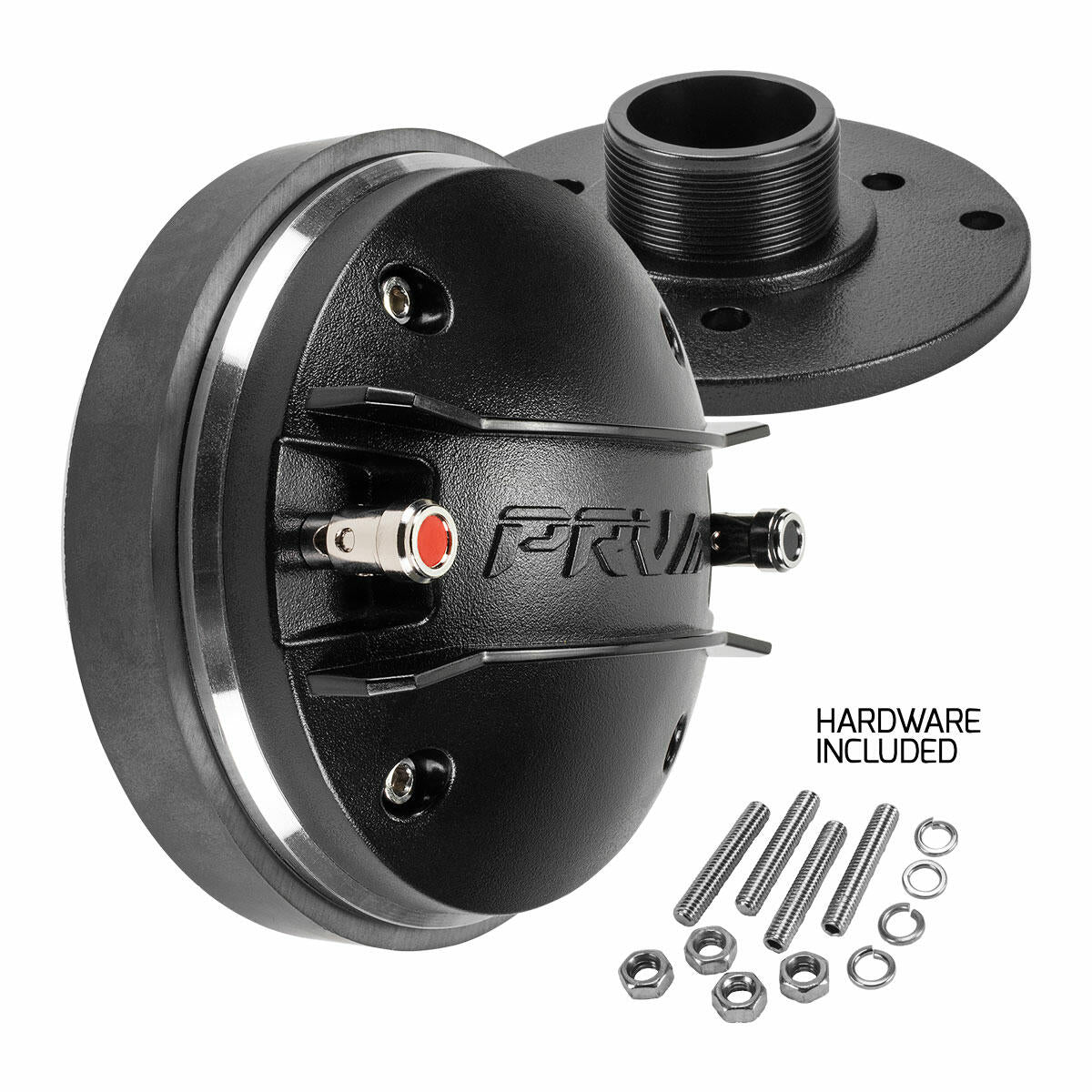

- Easy replacement and upgrade option for any sound systems that uses a 1 exit bolt-on horn. Perfect high frequency driver for 2-Way system. Includes bolt-on to screw-on adapter with mounting hardware
- Designed to reproduce the all-important vocal range with detailed high frequencies at high power handling with only 4.50 diameter.
- PRO Audio high frequency driver, able to handle 160 Watts Continuous Program Power (RMS) with music. Also Available in a Screw-On Version.
The one-piece titanium diaphragm reduces the amount of moving mass, which enhances the drivers ability to produce clear and crisp high frequencies. Its injected-molded phase plug eliminates undesirable phase cancellations.
This configuration allows for an extended high frequency response, making it ideal for applications that demand detailed and accurate sound reproduction. As a result, you can expect clarity and precision in audio output, especially at higher frequencies.
Recommended Crossover Settings:
The titanium diaphragm is attached to a 1.75 diameter copper-clad aluminum wire with Kapton former for a 160 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP
- 1800 Hz at 12 dB per octave filter Crossover / BT12
- 1700 Hz at 18 dB per octave filter Crossover / BT18
PRV 1 Exit Bolt-on High Frequency Driver 160 Watts 8 Ohm D280Ti-B Titanium Diaphragm 1.75 Voice Coil, Premium Cabinet Replacement Driver
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 80 Watts |
| Continuous Program Power (RMS) | 160 Watts |
| Peak Power | 320 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 - 20,000 Hz |
| Voice Coil Diameter | 1.75(44.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
EXTRA INFO

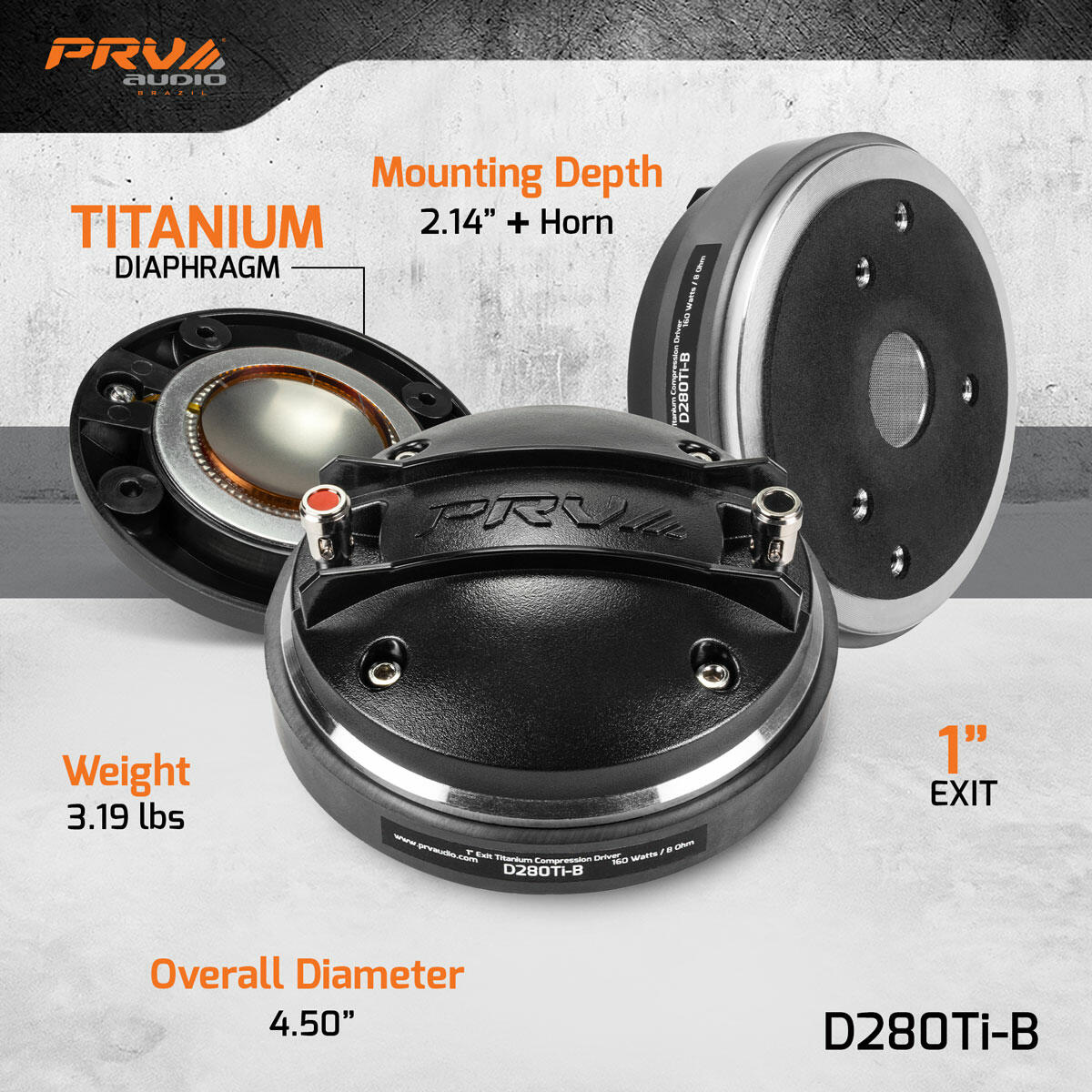

| Overall Diameter | 4.53 (115 mm) |
| Overall Depth | 2.14 (50 mm) |
| Mounting Bolt Circle | M6 x 2 3 (76.2 mm) M6 x 3 2.4 (61.1 mm) |
| Net Weight | 3.19 lbs (1.45 kg) |
| Shipping Weight | 3.52 lbs (1.60 kg) |
| Carton Dimensions W x L x H | 5.31 x 4.96 x3.36 (135 x 126 x 88 mm) |
