PRV Audio D3220Ti-Nd-16 PRO AUDIO TITANIUM COMPRESSION DRIVER (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features

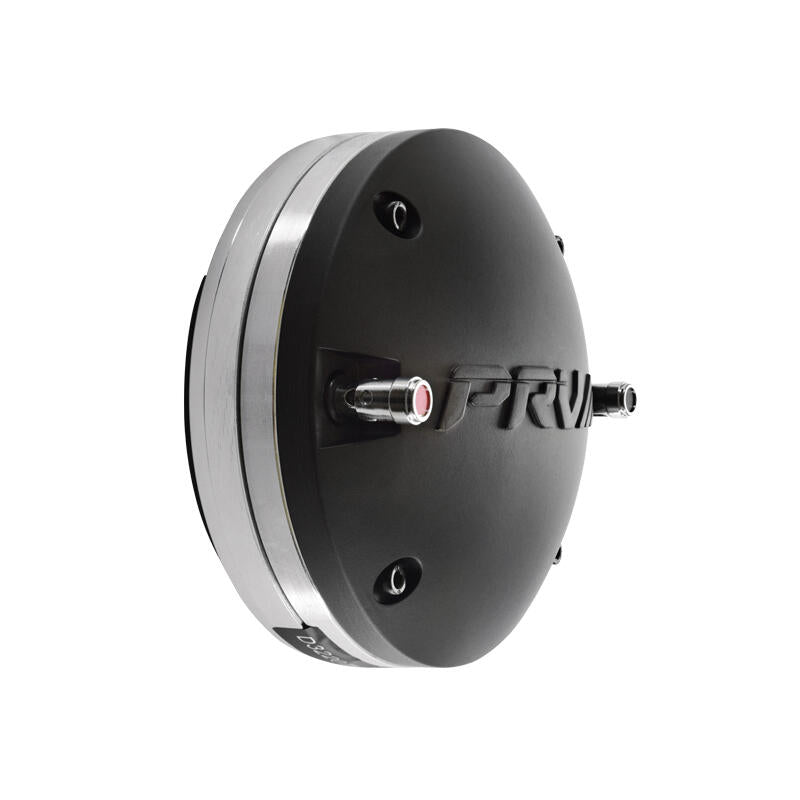

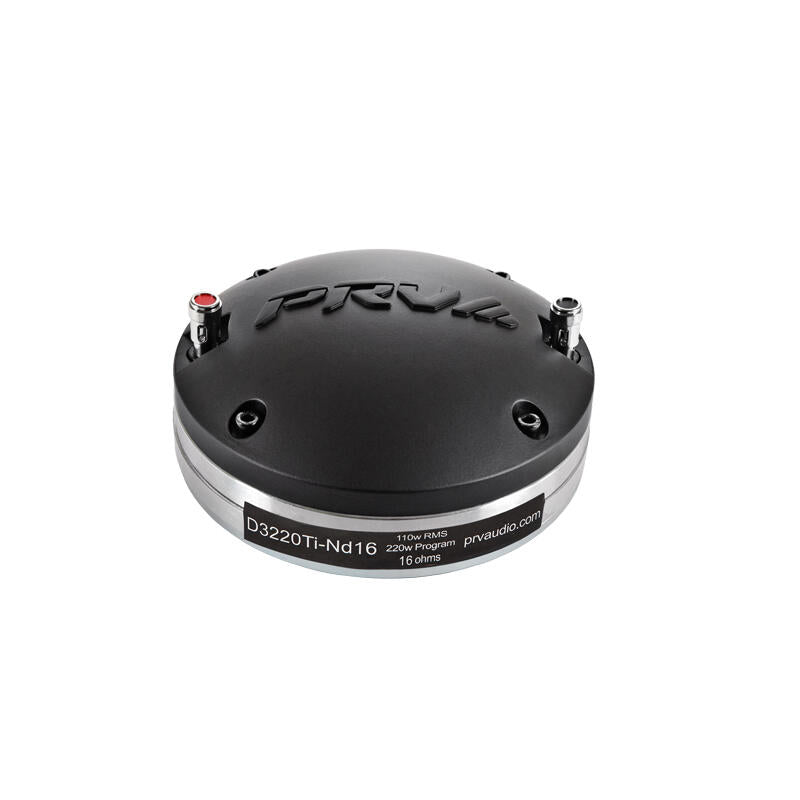

The powerful D3220Ti-Nd16 features a 1.4 exit and 16 ohm voice coil for line array applications. This PRV Audio pro audio compression driver features a Titanium diaphragm supported by a 3 voice coil that allows for accurate reproduction through 17kHz. The pure titanium diaphragm is supported by a Kapton former and results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
The Neodymium magnet assembly reduces the weight to just 4.89lbs. The D3220Ti-Nd16 was designed to work with the WG35-35 Wave Guide and as a package, the weight is just 6.6lbs.
Highlights
- Throat Diameter: 1.4
- Type: Bolt-On
- Nominal Impedance: 16
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1.4 (35.5 mm) |
| Nominal impedance | 16 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 4.00V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,600 - 17,000 Hz |
| Voice Coil Diameter | 3(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.80 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 4.88 (124 mm) |
| Overall Depth | 2.21 (56 mm) |
| Mounting Bolt Circle | M6x4 4 (101.6 mm) |
| Net Weight | 4.81 lbs (2.18 kg) |
| Shipping Weight | 5.36 lbs (2.43 kg) |
| Carton Dimensions W x L x H | 5.70 x 5.70 x 3.15 (145 x 145 x 80 mm) |
