PRV Audio D4500Ph 2" Exit Midrange Compression Driver

Precio regular $189.91
Precio de venta $189.91 Precio regular
Precio unitario
Ahorre
Comparar Hacer una pregunta

Hacer una pregunta

* Campos requeridos

 Guia de tallas Compartir

  • Estimated Delivery:Jun 17 - Jun 21

  • Free Shipping*: excludes oversized items

GUARANTEED SAFE & SECURE CHECKOUT

PRV Audio D4500Ph 2" Exit Midrange Compression Driver PRV Audio

PRV Audio D4500Ph 2" Exit Midrange Compression Driver

Precio regular $189.91
Precio de venta $189.91 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

The D4500Ph uses the latest Brazilian Phenolic technology TRIO by PRV designed for vocal reproduction. This 2 Exit phenolic compression driver features a 4 voice coil and new and improved motor that is all about high output and low distortion vocal reproduction all the way down to 500 Hz!

  • 108 dB efficient driver is perfect for the highest output audio systems
  • Large 4 voice coil can handle up to 500 watts max musical power
  • Phenolic diaphragm delivers natural response throughout the vocal range
  • Type Bolt-On Nominal Impedance: 8 Ohms

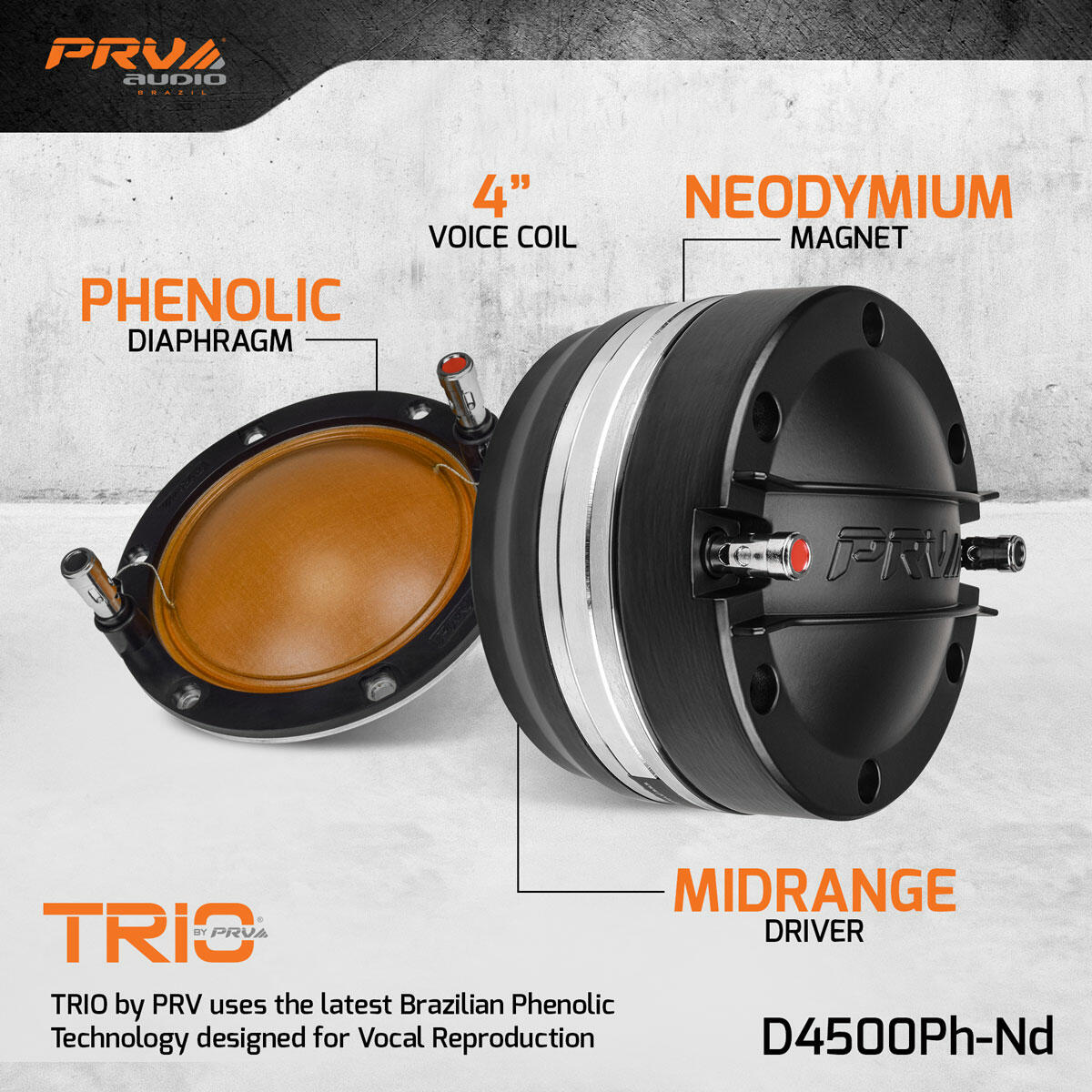

  • A Neodymium version is available, D4500Ph-Nd, which reduces the overall size and weight
The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 450 to 6000 Hz. This driver is recommended for midrange support in multi-way PAs, stage monitors, side fills and high SPL car audio systems.

The phenolic diaphragm is attached to a 4 diameter copper-clad aluminum wire with Kapton former for a high 500 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 600 Hz at 12 dB per octave filter Crossover / BT12
  • 550 Hz at 18 dB per octave filter Crossover / BT18

Its incredible output capabilities make this midrange driver one of most popular vocal driver on the market!

An injected and machined, high-precision aluminum phase plug provides better voice coil heat dissipation and high output levels.

Designed to be the smallest possible without sacrificing any performance in the motor for its 4 voice coil, we have used a 7.48 diameter ferrite motor, to keep the smallest size and weight on its category. Car audio SPL enthusiasts use this driver for vocal reinforcement on 3 way systems.

PRV Trio 2 Midrange Driver D4500Ph 500 Watts 4 Voice Coil 8 Ohm TRIO Phenolic Diaphragm



GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohms
Nominal Power Handling 250 Watts
Continuous Program Power (RMS) 500 Watts
Peak Power 1000 Watts

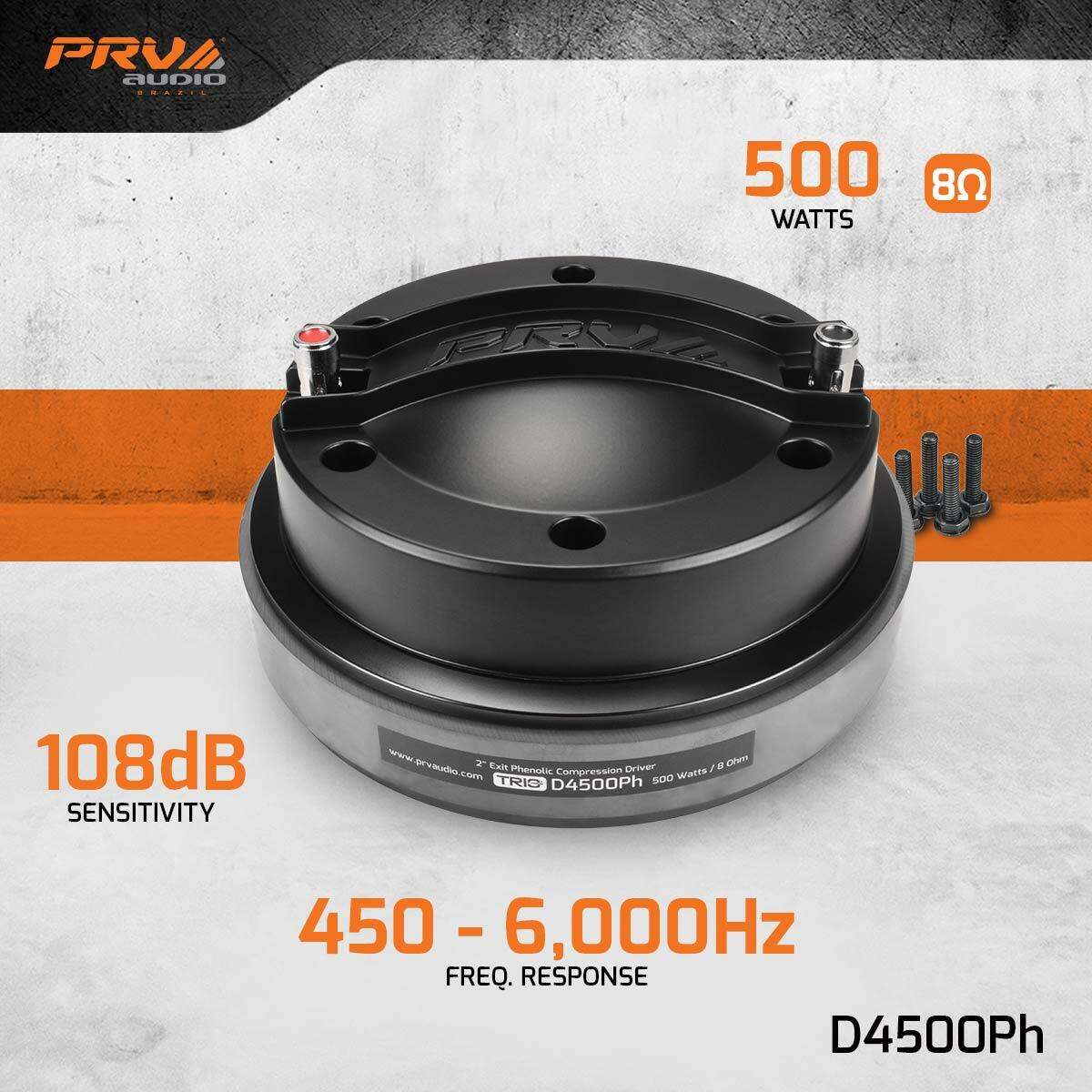

Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover** **For Full Power Handling 600 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 450 - 6,000 Hz
Voice Coil Diameter 4(98 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic
Flux Density 1.72 T
Magnet Material Ferrite
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

Overall Diameter 7.48" (190 mm)
Overall Depth 3.94" (100 mm)
Mounting Bolt Circle M6x4 4 (102 mm)
Net Weight 16.65 lbs (7.55 kg)
Shipping Weight 17.20 lbs (7,80 kg)
Carton Dimensions W x L x H 7.87" x 7.87" x 5.63" (200 x 200 x 143 mm)

FEATURES
