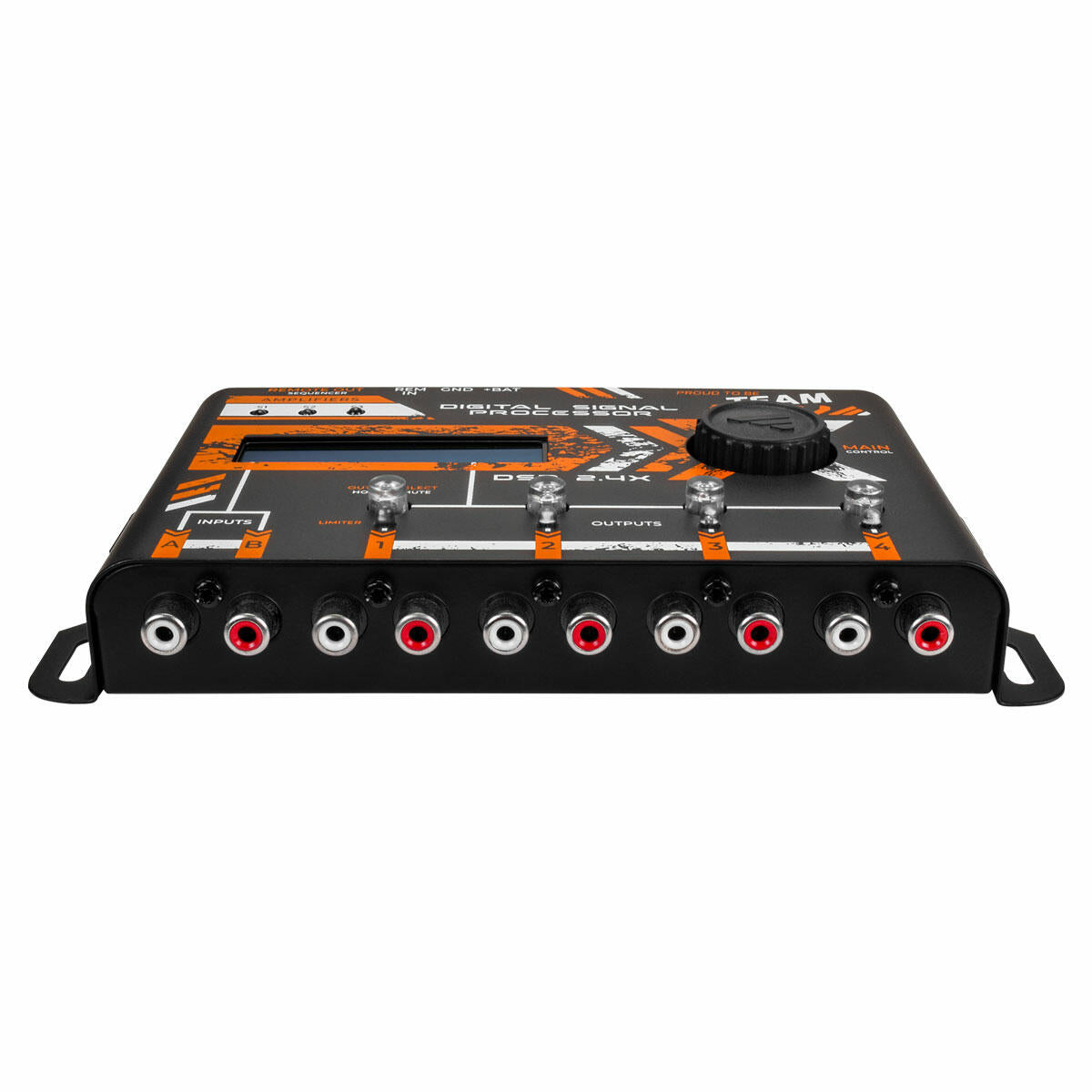

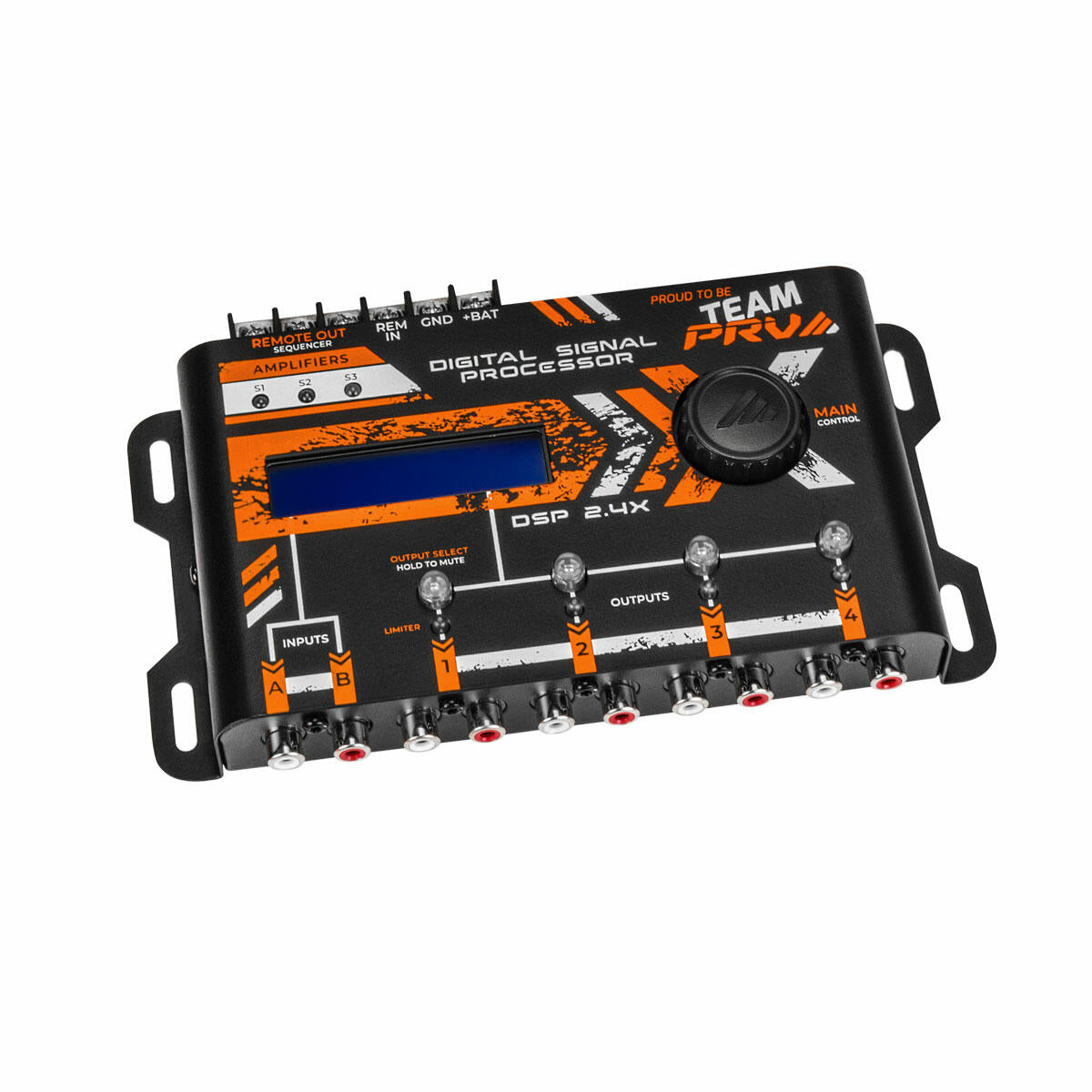

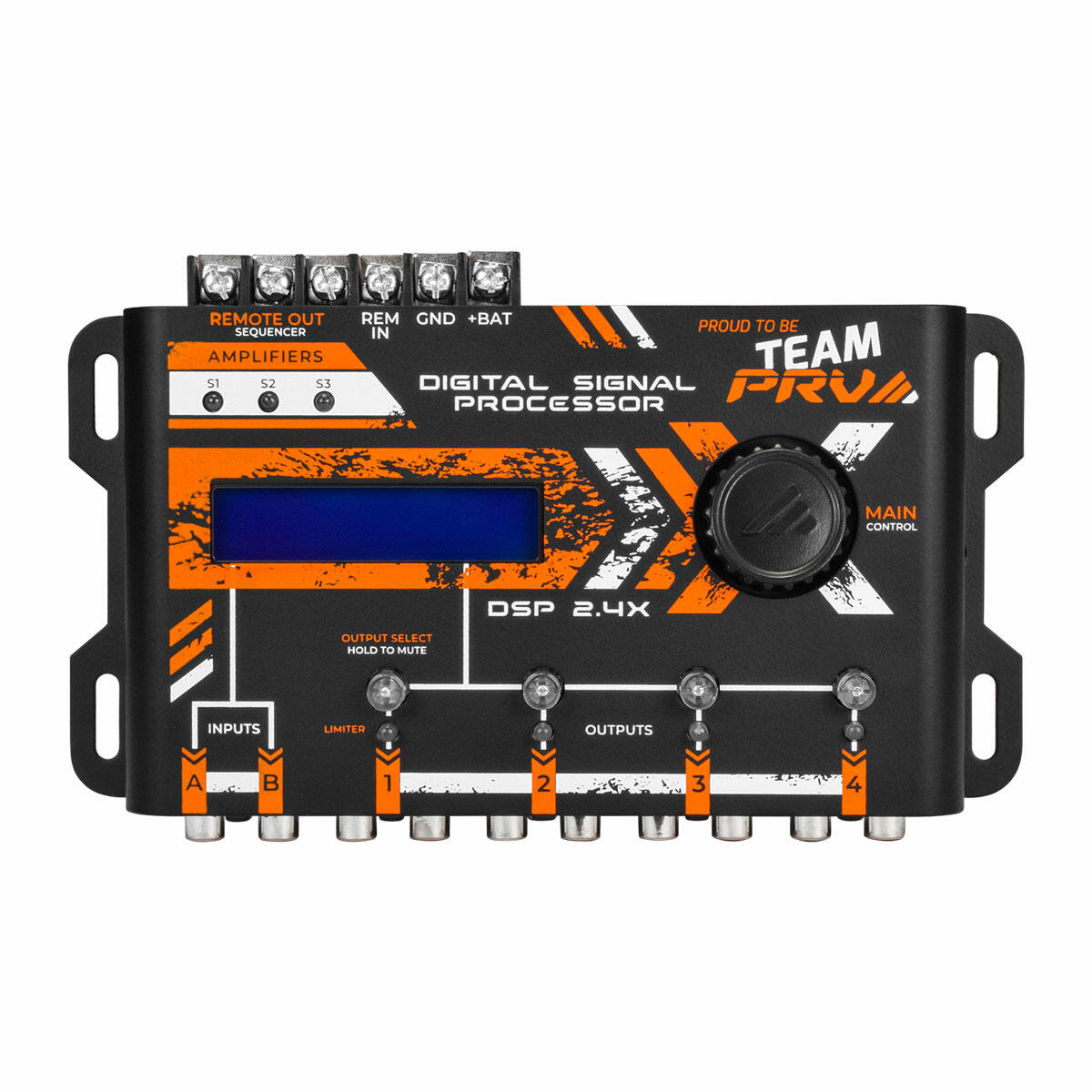

PRV Audio DSP 2.4X TEAM 4 Channel Digital Signal Processor

Features

This is a limited edition 4 channel digital signal processor from Team. Get them while they last!

DSP 2.4X TEAM Digital Audio Processor, Crossover & Equalizer 2 Inputs & 4 Outputs 15- Band Graphic Equalization

Bringing innovation and technology to the Automotive Sound market, PRV Audio launches the DSP2.4X TEAM Digital Signal Processor, capable of making various Real-time signal adjustments, from crossover filters, graphic and parametric equalization, alignment, phase inversion, limiter, audio generator, among others. Enhancing Your Audio System!

Through an LCD display and intuitive interface, it allows real-time audio adjustments. The DSP 2.4X TEAM features 2 audio inputs (A and B) and 4 independent outputs and allows you to choose the audio source (A, B or A + B) for each output. It has an integrated equalization system, with 15-band graphic equalizer, manual tuning, or through 12 presets (Flat, Loudness, Bass Boost, Mid Bass, Treble Boost, Powerful, Electronic, Rock, Hip Hop, Pop, Vocal and Pancado)

---

In the audio treatment, it also has Alignment capabilities through High Accuracy Delay, Phase Inversion, Independent Gain by Output and Master Level. For accurate measurements and adjustments, the DSP 2.4X features an integrated Audio Generator with tone generation and frequency sweep, and Pink Noise. Configuration Copy functions between output channels.

It also has functions of Management, Save and Load Settings in memory, Security Password that blocks the editing of the parameters, Marquee / Text Display, and Language Selection.

For more information on all functionalities please read the instruction manual.

---

---

• PRV DSP 2.4X TEAM enables detailed configurations for 4-Way car audio sound projects, giving you tools such as graphic and parametric equalizations, high-precision crossover filters, time alignment, phase inversion and adjustable limiters
• 15 Band Graphic Equalization attenuate or boost up to 12 dB per band
• 2 Channel Inputs A and B Support 2 different Signal Inputs ( Left and Right Stereo)
• 4 Channel Outputs with Independent Gain, Crossover and Parametric Eq Setting per Channel
• Advanced Controls for Limiter, Phase and Delay Controls per output channel
• 10 Digital Crossover Filters Options for HPF and LPF Settings
• Built-In Remote Out Control ( Sequencer )
• Built-in Tools such as: Tone Generator and Frequency Sweeps.

---

PRV AUDIO Car Audio DSP 2.4X TEAM Digital Crossover and Equalizer 4 Channel Digital Signal Audio Processor DSP with...

GENERAL SPECIFICATIONS

Number of processors (DSPs)	1
Input Channels	2
Output Channels	4
Output Gain	Yes
Master Level	0 ~ 100%
Graphic Equalizer	15 Band
Graphic Equalizer Presets	12
Parametric Equalizer Input	1
Parametric Equalizer Output	4 / 1 per Channel
Routing	A,B / A+B
Crossover Butterworth (dB/8)	12/18/24/36/48
Crossover Linkwitz-Riley (dB/8)	12/18/24/36/48
Limiter	Yes
Automatic Attack/Release	Yes
Delay	0 to 8 ms (275 cm)
Frequency Generator	10Hz - 22kHz, Level -60 at 0dB
Frequency Scan	10Hz - 22kHz / Level -60 at 0dB / Control of speed
Display	LCD16x2 Characters
Screen Saver	Text
Security Password	Yes
Frequency Response(+/-3dB)	10Hz @ 22.5kHz @ -1dB
Latency	1.08ms
Signal to Noise	>90dB
THD	<0,01%
Channel Separation	> 80 dB
Maximum Input Voltage	5,6 Vpp (+8,2 dBu)
Maximum Output Voltage	5,6 Vpp (+8,2 dBu)
Supply Voltage	9V to 16V DC
Dimensions (HxWxL)	1.45" x 7.87" x 3.97"
Weight	1 Lbs

---
