PRV Audio MDX2000.2 2 Ohm Mini 2 Channel Full Range Amplifier
Features
The mini MDX2000.2 2 Ohm delivers 2000 Watts RMS power over 2 channels in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

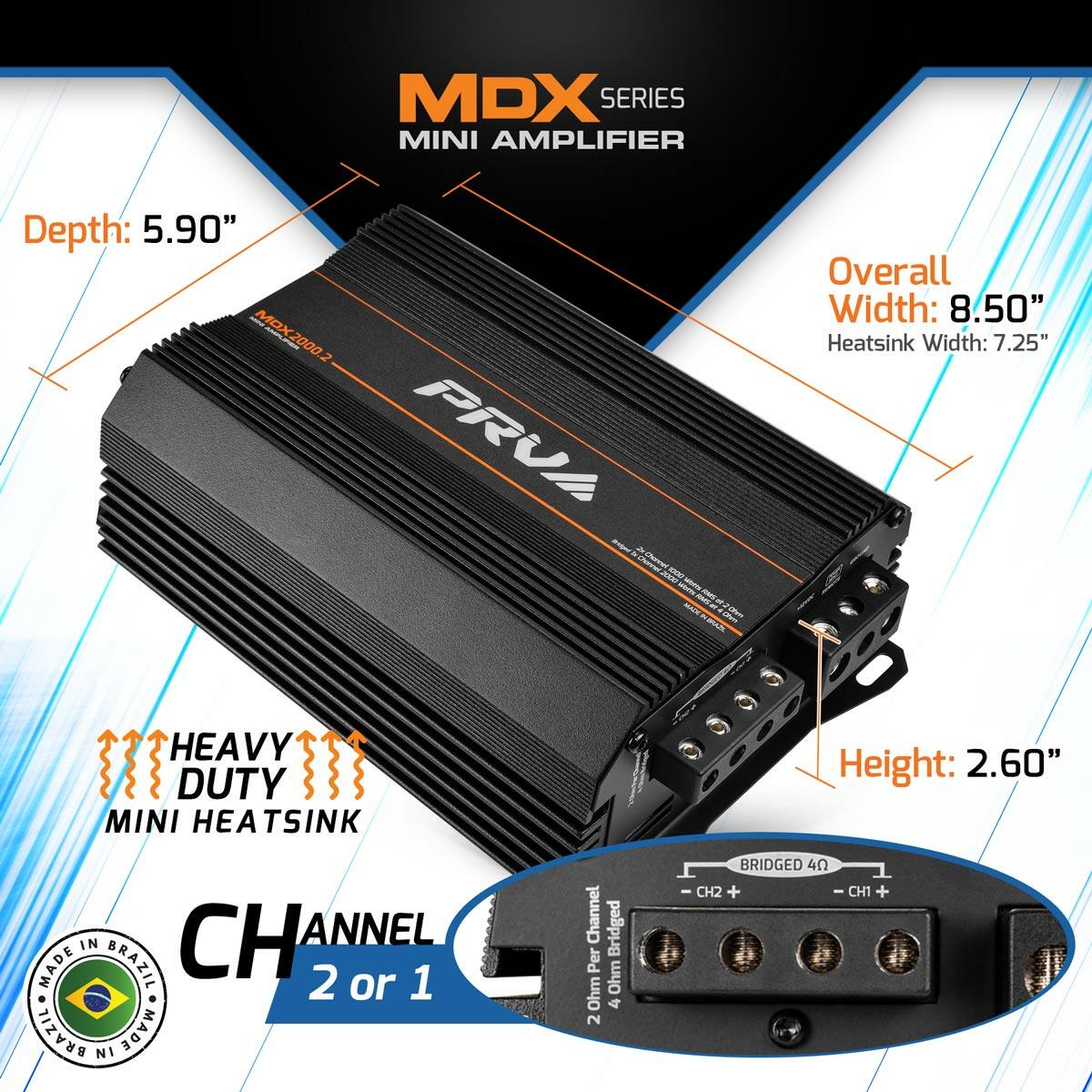

- A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 8.50 Width by 5.90 Length and only 2.60 Height.
- 2 x 1000 watts at 2 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
- 1 Channel Bridged Double the power output to your speakers by bridging two channels. 1x 2000 Watts RMS at a minimum impedance of 4 Ohm on bridged channel.
- The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams
The ability to choose between 2 or 1 channel configurations is one of this amps best features!
When you use with 2 channel configuration, its high power output channels allow you to install 4x 8 Ohm speakers in parallel.
You can take to a whole new level of stereo power and install just 2x 4 Ohm speakers in parallel giving 500w per speaker! Or just bridge it and turn it into a 1 channel amplifier.
1000 Watts at 2 Ohm per Channel
2000 Watts at 4 Ohm on Bridged Channel
The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!
High Output that takes up little space!
Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.
At only 3.95 lbs allows any custom system to achieve the highest performance and weight ratio possible.
PRV Audio MDX2000.2 2 Ohm MINI 2 Channel Car Audio Amplifier 2 x 1000 Watts RMS at 2 Ohm High Power Stereo Amp
Popular Installation configurations with this amplifier:
2 Channel Configuration for 8 Ohm Components
Its high power output channels allow you to install 4x 8 Ohm speakers, drivers or tweeters in parallel per channel, giving up to 250 watts per component.
2 Channel Configuration for 4 Ohm components
Its high power output channels allow you to install 2x 4 Ohm speakers in parallel per channel, giving up to 500 watts per component.
1 Channel Configuration (Bridged) for 8 Ohm components
Its high power output channels allow you to install 2x 8 Ohm speakers in parallel per channel, giving up to 1000 watts per component.
Before Installing:
You must follow the instructions for the products installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25.
Always use OFC 4 AWG Copper wire for p...
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm per Channel |
| Channels | 2 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 2x 1000 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 2x 660 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 1x 2000 Watts RMS |
| Average Efficiency | 90% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 89 A |
| Minimal Power Wire Input | (OFC) 4 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 80 Hz |
| Minimal Speaker Wire Output | 12 Gauge |
| Frequency Response(-3dB) | 10 - 22,000 Hz |
| Min. Input Sensitivity for Max. Output | 0.2 to 4v |
| Signal Input | RCA Cables |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 8.50 x 5.90 x 2.60 |
| Weight | 3.95 Lbs |
