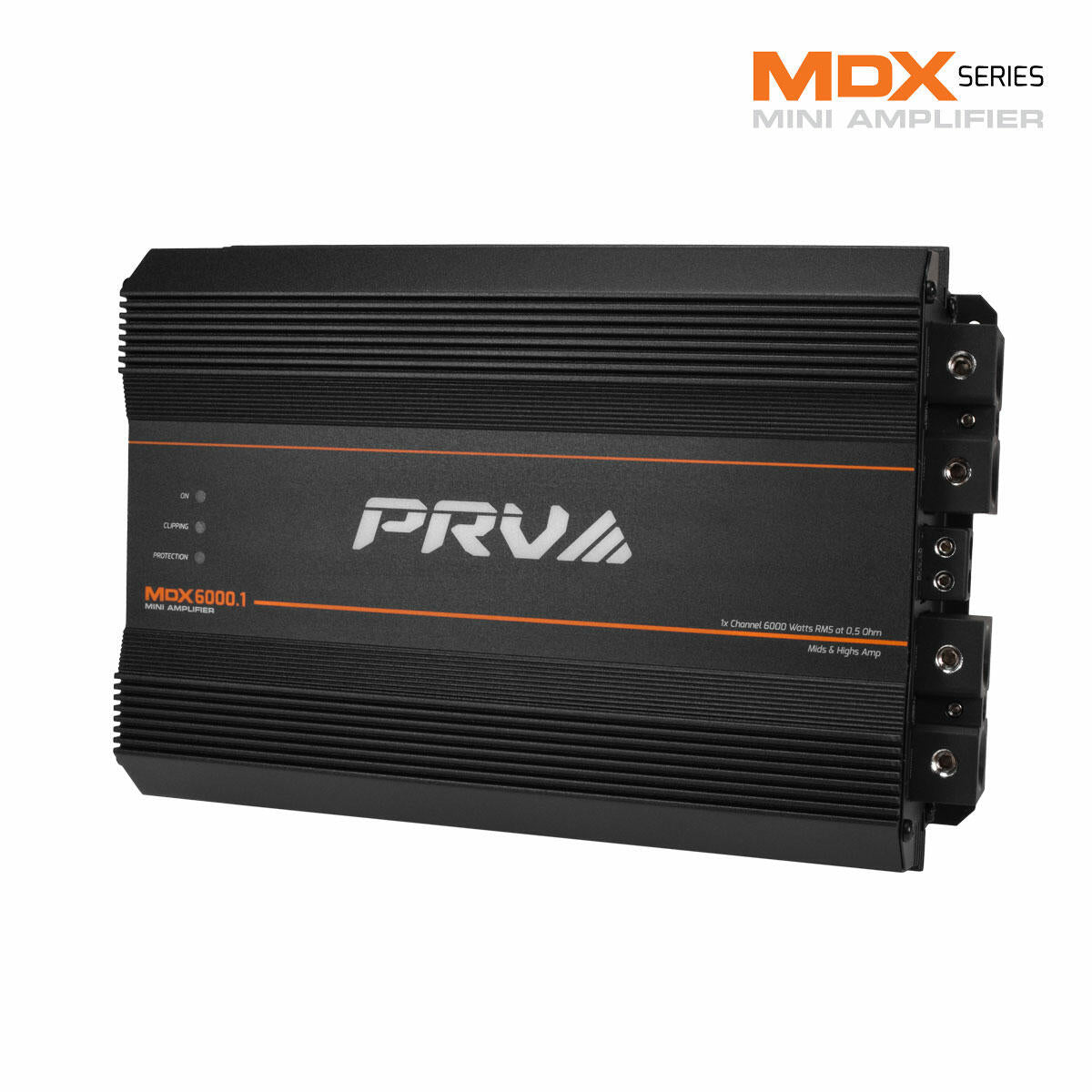

PRV Audio MDX6000.1 0.5 Ohm 1 Channel Full Range Amplifier
Features
The MDX6000.1 0.5 Ohm brings a dimension to full range 1 Channel amplifiers, giving the possibility of installing 16x 8 Ohm drivers, tweeters or speakers to a single amplifier.
Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

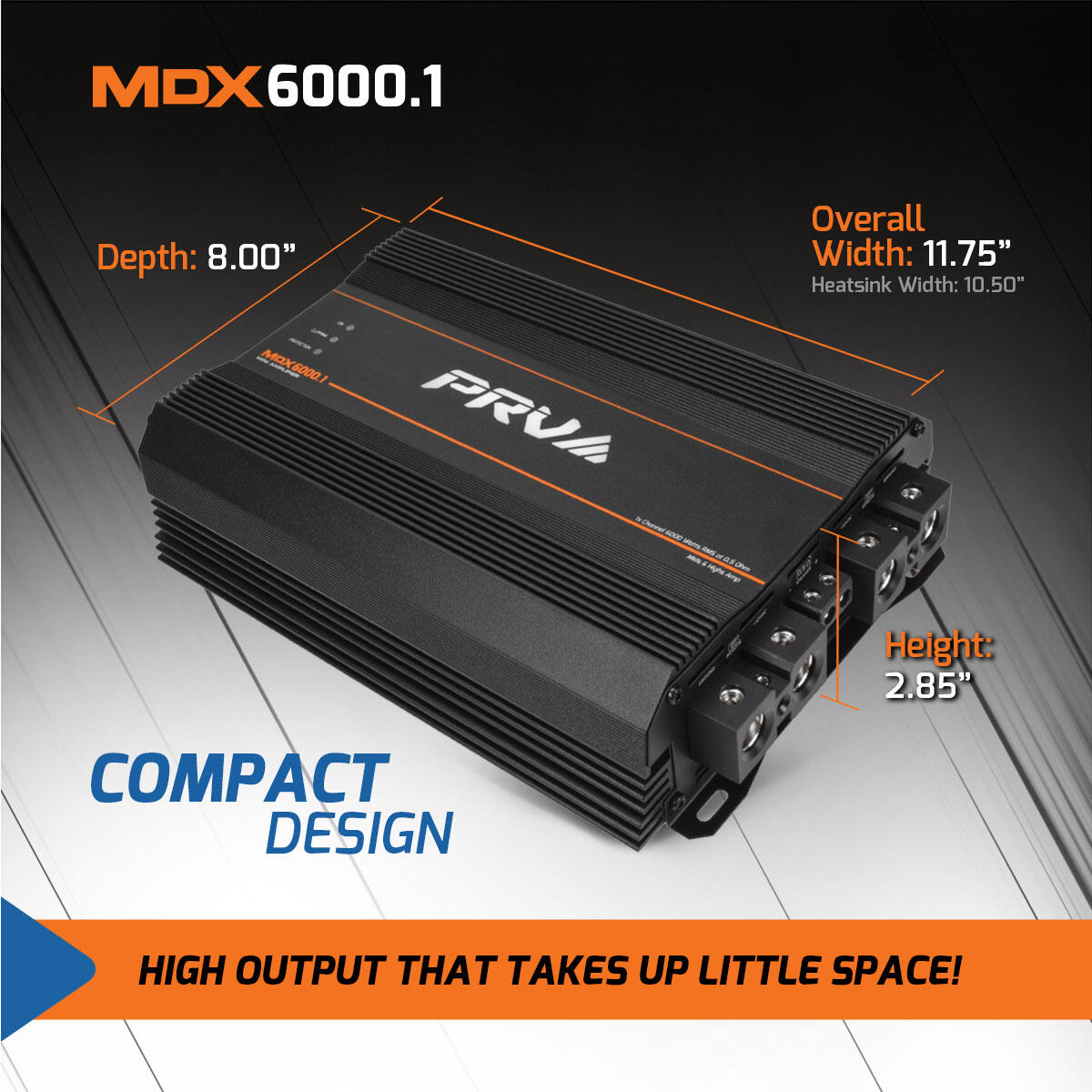

- COMPACT MINI DESIGN A small footprint heavy duty heatsink make this amplifier delivery big power and reliability in the smallest profile. Overall 11.75 Width by 8.00 Length and only 2.85 Height.
- UNMATCHED PERFORMANCE Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

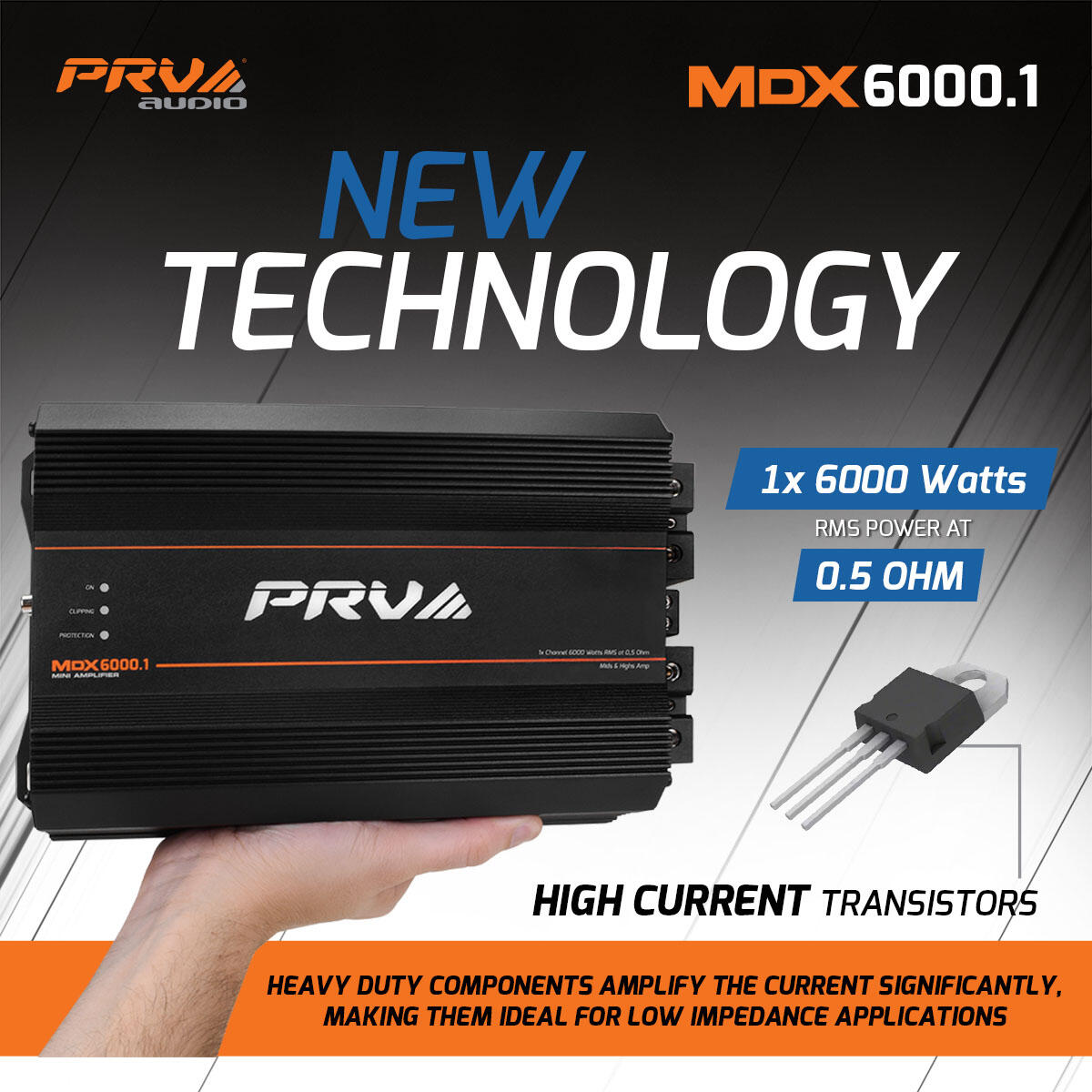

- MORE POWER ON COMPACT SIZE 1 Channel 6000 watts at 0.5 Ohm TRUE RMS certified. Full Range Digital Class D Technology, gives you the benefit of wiring 16 speakers and dividing the power, 375 Watts RMS per 8 Ohm components or 750 Watts RMS for 8x 4 Ohm speakers.
- TECHNOLOGY 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams.
Its wide frequency response allows you to use it in many different applications, such as midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.
Featuring an ultra-fast microchip processor to guarantee the highest sound fidelity.
6000 Watts at 0.5 Ohm 1 Channel full range 10 to 15,000Hz.

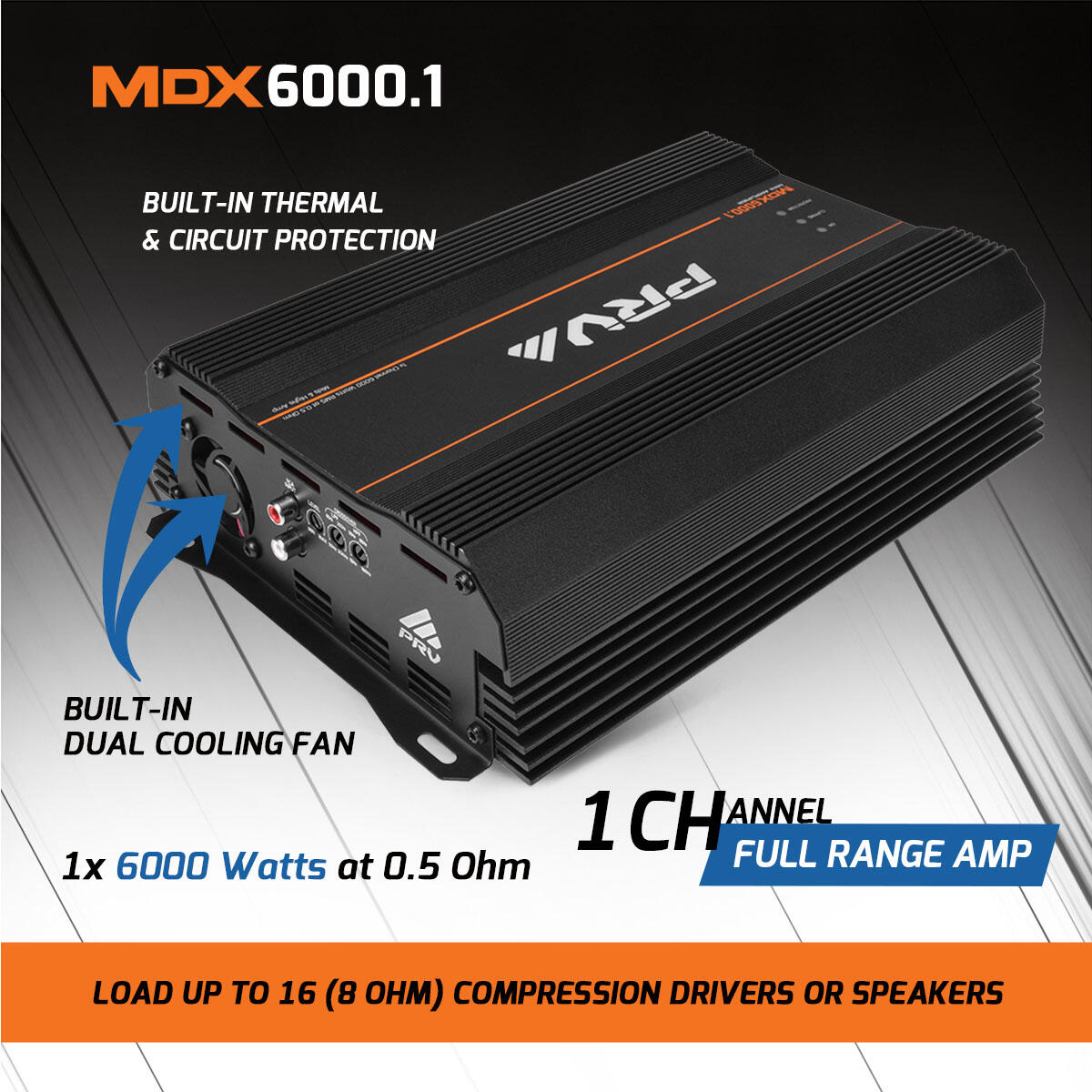

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.
Built to perform, this amplifier weights 8.90 lbs, featuring a heavy duty power supply with extra copper to endure the high current demand from a 0.5 Ohm amplifier.
PRV Audio MDX6000.1 0.5 1 Channel Mids & Highs Amplifier 6000 Watts RMS at 0.5 Ohm Full Range High Output Amp
Popular Installation configurations with this amplifier:
1 channel configuration for 8 Ohm components, its high power output channel allow you to install 16x 8 Ohm Speakers, drivers or tweeters in parallel at 0.5 Ohm, giving up to 375 watts per component.
1 channel configuration for 4 Ohm components, its high power output channel allow you to install 8x 4 Ohm Speakers in parallel at 1 Ohm, giving up to 750 watts per component..
Before Installing:
You must follow the instructions for the products installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25.
Always use OFC 0 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Cop...
GENERAL SPECIFICATIONS
| Impedance | 0.5 Ohm |
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 0.5 Ohm | 1x 6000 Watts RMS |
| Rated RMS Power at 14.0 V at 1 Ohm | 1x 4000 Watts RMS |
| Average Efficiency | 84% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 300A |
| Minimal Power Wire Input | (OFC) Double 0 Gauge wires |

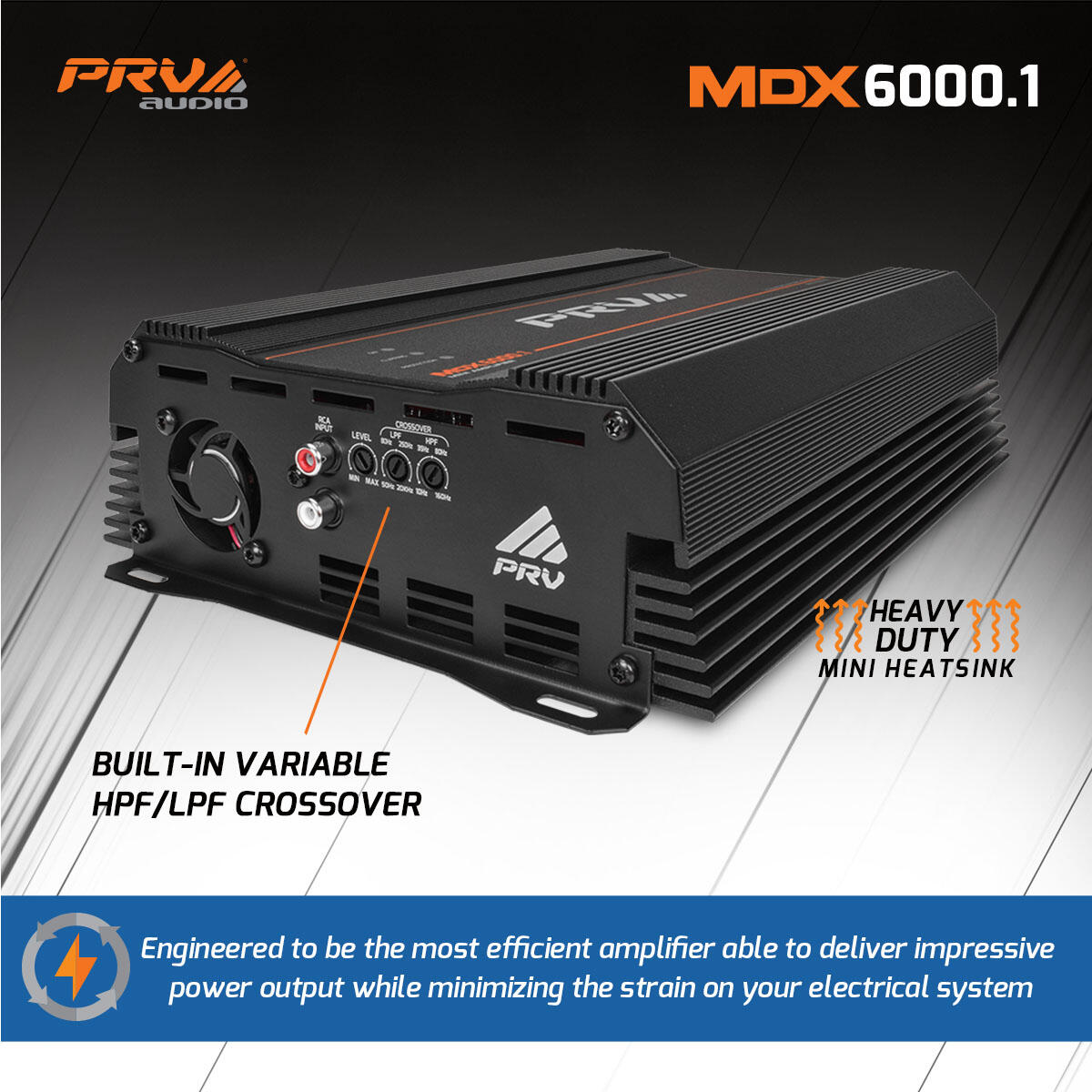

| Built-in Crossover | Variable HPF 10Hz 160Hz & LPF 50Hz 15kHz |
| Minimal Speaker Wire Output | 10 Gauge |
| Frequency Response(-3dB) | 10 - 15,000 Hz |
| RCA Min/Max Voltage Input | 0.2 to 2v |
| Speaker Wire Min/Max Voltage Input | 1.5 to 15v |
| Signal Input | RCA Cables OR Speaker Wire Inputs |
| Signal to Noise | >90 dB |
| Protection System | Low & High Supply Voltage / Shortage on Output / Low Impedance on Output |
| Heat Sink Type | Mini Heavy Duty Cast Aluminum |
| Dimensions ( Width x Depth x Height ) | 11.75 x 8 x 2.85 |
| Weight | 8.9 Lbs |
