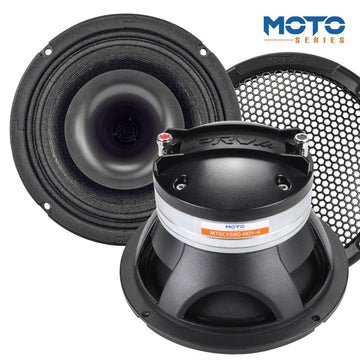

PRV Audio MT6CX580-NDY-4 6.5 COAXIAL LOUDSPEAKER

Precio regular $215.99
Precio de venta $215.99 Precio regular
Precio unitario
Ahorre
Comparar Hacer una pregunta

Hacer una pregunta

* Campos requeridos

Guia de tallas Compartir
  • Estimated Delivery:Jun 27 - Jul 01

  • Free Shipping*: excludes oversized items

GUARANTEED SAFE & SECURE CHECKOUT

PRV Audio MT6CX580-NDY-4 6.5 COAXIAL LOUDSPEAKER

PRV Audio MT6CX580-NDY-4 6.5 COAXIAL LOUDSPEAKER

Precio regular $215.99
Precio de venta $215.99 Precio regular
Precio unitario
FREE SHIPPING ON SELECT ORDERS
FINANCING OPTIONS AVAILABLE
Product Description
Shipping
Returns
Questions?

Features

PRV Audio is proud to present our MT6CX580-NDY-4 Coaxial Speaker from the MOTO Series (MT), high performance PRO audio line dedicated to motorsports installations.

This coaxial speaker is an easy fit and does not require an additional tweeter. Made from the highest quality materials and components to resist weather conditions and provide an easy and simple bolt on installation that transforms your system into the best sound reproduction available by replacing your factory speaker.

This 2-way coaxial loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.

  • Waterproof treated paper cone and surround stand up to the harshest conditions with true PRO audio performance
  • Full Range Sound, 2-Way coaxial with low frequency speaker combined with 1 exit Titanium driver, able to respond from 100 Hz all the way up to 20,000 Hz
  • High Output Speaker for 4 Wheelers, Slingshots, and Motorcycles that mounts practically in almost every stock location
  • Common Neodymium motor design for both low frequency and high frequency, reducing phase problems and providing the smallest profile without sacrificing performance
  • 6.5 High performance coaxial speaker Built to Perform! Capable of high output levels, with separated midbass speaker and horn driver for two amplifier installation.

This coaxial features a built-in horn driver with D280Ti titanium diaphragm on a 70 conical wide coverage horn waveguide.

Its horn features a screw-on design to make it easy for the speaker to be serviced. Made from the toughest PM-4 Polycarbonate high wear-resistance material to ensure long life on its treads.

It is capable of reproducing the highest frequencies at easy covering a wide range, phasing up perfect with its low frequency speaker.


This low frequency speaker can keep up with its high frequency drivers thanks to its large voice coil and extreme sensitivity of 95dB, combined with large neodymium magnets for efficient heat dissipation.

It generates an average of 130 dB of output, making it easy to match up with its high efficiency horn tweeter.

Thanks to its special spider composition, no distortion occurs at high excursion, while its silver tinsel lead wire is capable of high current, providing exceptional reliability and dynamic sound.


This 6.5 coaxial ( horn speaker ) is capable of high output levels and comes with a separate midbass speaker and horn driver for two amplifiers.

The separate midbass speaker is designed to handle lower frequencies, providing a rich and full bass sound, while the horn driver focuses on delivering clear and precise high frequencies. This division of labor allows each component to operate more efficiently, reducing distortion and ensuring a more balanced and dynamic overall sound quality.

Its incredible output capabilities make this coaxial one of the loudest speaker on the market!


PRV Audio 6.5 Coaxial Speaker Neodymium MT6CX580-NDY-4 Full Range 2-Way Motorcycle Speaker

How to Install them:
This Coaxial speaker will need 500 Watts RMS per speaker for its low frequency and 80 Watts RMS per driver for its high frequency with recommended HPF using PRV Digital Signal Processor DSP

  • 95 Hz at 18 dB per octave filter Crossover / BT18 for low frequency component
  • 1400 Hz at 18 dB per octave filter Crossover / BT18 for high frequency component

Recommended LPF for speaker is 6,000 Hz at 18 dB per octave filter Crossover / BT18 or you may set it lower to 2000hz depending on the other components in your system.

One Amplif...

GENERAL SPECIFICATIONS

Nominal and Throat Diameter Low Freq. 6.5" (152 mm) High Freq. 1" (25.4 mm)
Nominal impedance 4 Ohm 8 Ohm
Nominal Power Handling* 300 Watt 40 Watt
Continuous Program Power (RMS)** 500 Watt 80 Watt
Max Peak Power*** 1200 Watt 160 Watt
Sensitivity 2.00V at 1m 95 dB 106 dB
Recommended Hi Pass Crossover *For Full Power Handling 105 Hz* *12db Per Octave Crossover 1800 Hz* *12db Per Octave Crossover
Frequency Response 100 - 10 kHz 1.3 - 20 kHz
Voice Coil Diameter 2" (51 mm) 1.75" (44 mm)
Voice Coil Wire CCAW CCAW
Voice Coil Winding Depth 11.0 mm N/A
Former Material Kapton Kapton
Magnetic Gap Depth 8.0 mm N/A
Frame Material Aluminum Titanium
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 5.77 l
Excursion (mathematical) Xmax*** 3.50 mm
Free Air Resonance Fs 105.9 Hz
Mechanical Factor Qms 8.54
Electrical Factor Qes 0.43
Total Factor Qts 0.41
Cone Area Sd 143 cm
Mechanical Mass Mms 11.19 g
Bl Factor Bl 7.16 Tm
Dc Resistance Re 3.0 Ohm
Inductance Le 0.178 mH at 1 kHz
Mechanical Mass Without Air Mmd 10.33 g
Mechanical Compliance Cms 0.202 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

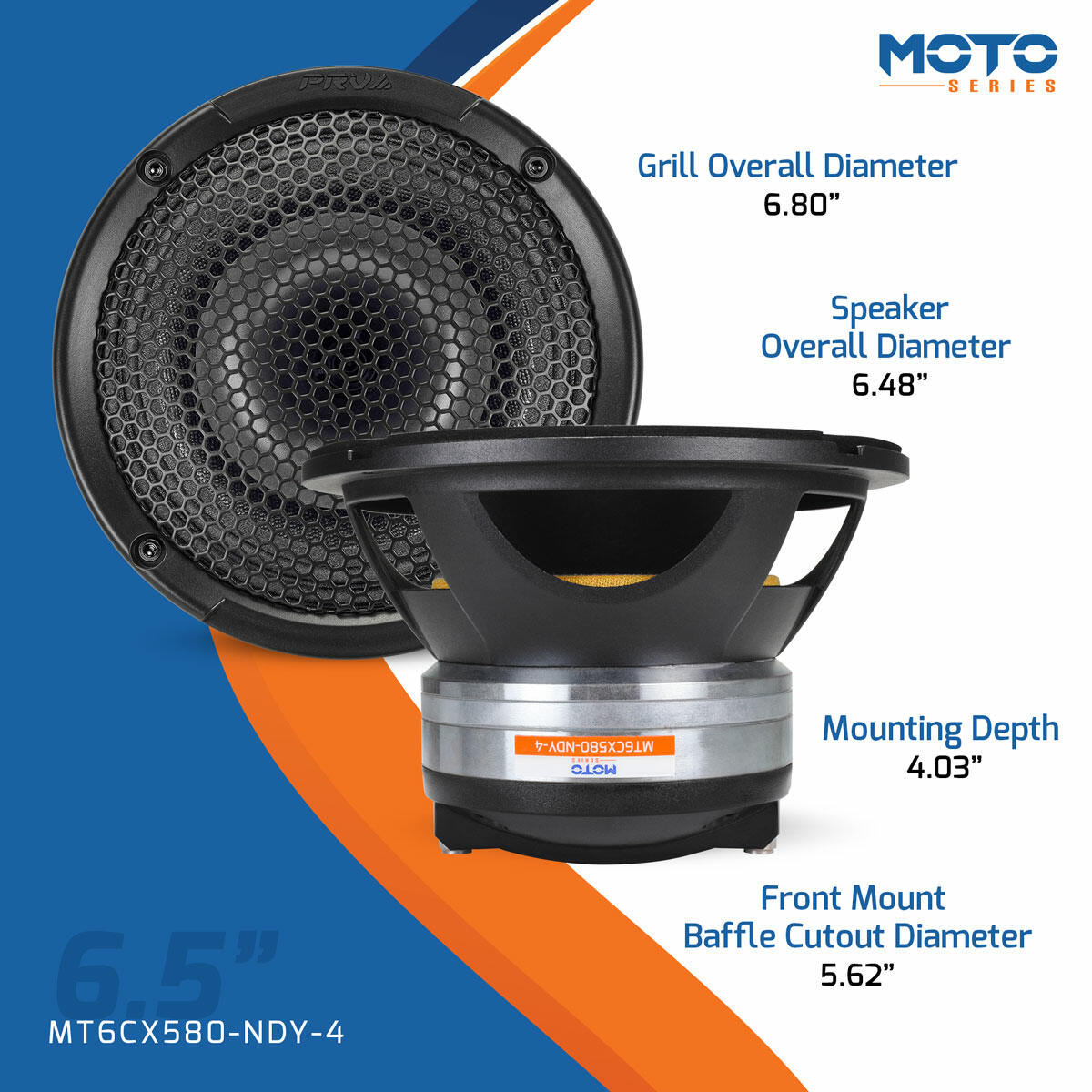

Overall Diameter 6.48" (164.5 mm)
Front Mount Baffle Cutout 5.62" (143 mm)
Mounting Depth 4.03" (102.3 mm)
Overall Depth 5.06" (128.5 mm) With Grill
Net Weight 4.18 Lbs (1.9 kg)
Shipping Weight 4.62 Lbs (2.1 kg)
Carton Dimensions W x L x H 7.55"x 7.35" x 6.70" (192 x 187 x 170mm)

FEATURES
