PRV Audio MT8CX680-NDY-4 8 Neodymium Coaxial Loudspeaker
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio MT8CX680-NDY-4 8 Neodymium Coaxial Loudspeaker
Features
PRV Audio is proud to present our MT8CX680-NDY-4 Coaxial Speaker from the MOTO Series (MT), high performance PRO audio line dedicated to motorsports installations.
This coaxial speaker is an easy fit and does not require an additional tweeter. Made from the highest quality materials and components to resist weather conditions and provide an easy and simple bolt on installation that transforms your system into the best sound reproduction.
This 2-way coaxial loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.
- Waterproof treated paper cone and surround stand up to the harshest conditions with true PRO audio performance.
- Full Range Sound, 2-Way coaxial with low frequency speaker combined with 1 exit Titanium driver, able to respond from 80 Hz all the way up to 20,000 Hz

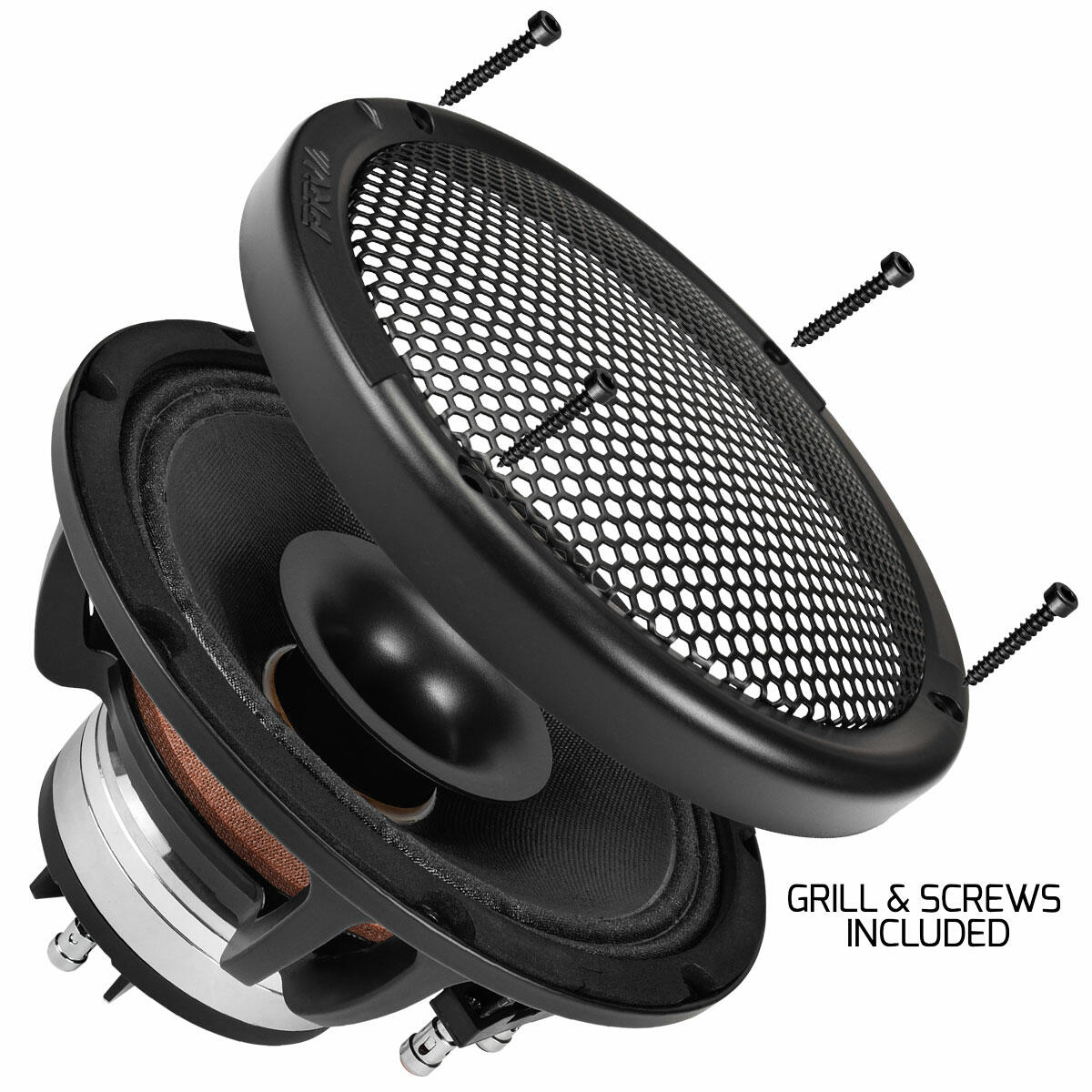

- High Output Speaker for 4 Wheelers, Slingshots, and Motorcycles that mounts practically in almost aftermarket pods or custom panels. Grill and Screws Included.
- Shared Neodymium motor design for both low frequency and high frequency, reducing phase problems and providing the smallest profile without sacrificing performance
- 8 High performance coaxial speaker Built to Perform! Capable of high output levels, with separated midbass speaker and horn driver for two amplifier installation.
Its horn features a screw-on design to make it easy for the speaker to be serviced. Made from the toughest PM-4 Polycarbonate high wear-resistance material to ensure long life on its treads.
It is capable of reproducing the highest frequencies at easy covering a wide range, phasing up perfect with its low frequency speaker.
This low frequency speaker can keep up with its high frequency drivers thanks to its large voice coil and extreme sensitivity of 97 dB, combined with large neodymium magnets for efficient heat dissipation.
At 600 Watts this mid can generate an average of 130 dB of output, making it easy to match up with its horn driver tweeter.
Thanks to its special spider composition, no distortion occurs at high excursion, while its silver tinsel lead wire is capable of high current, providing exceptional reliability and dynamic sound.
This 8 coaxial ( horn speaker ) is capable of high output levels and comes with a separate midbass speaker and horn driver for two amplifiers.
The separate midbass speaker is designed to handle lower frequencies, providing a rich and full bass sound, while the horn driver focuses on delivering clear and precise high frequencies. This division of labor allows each component to operate more efficiently, reducing distortion and ensuring a more balanced and dynamic overall sound quality.
Its incredible output capabilities make this coaxial one of the loudest speaker on the market!
PRV Audio 8 Coaxial Speaker Neodymium MT8CX680-NDY-4 Full Range 2-Way Motorcycle Speaker
How to Install them:

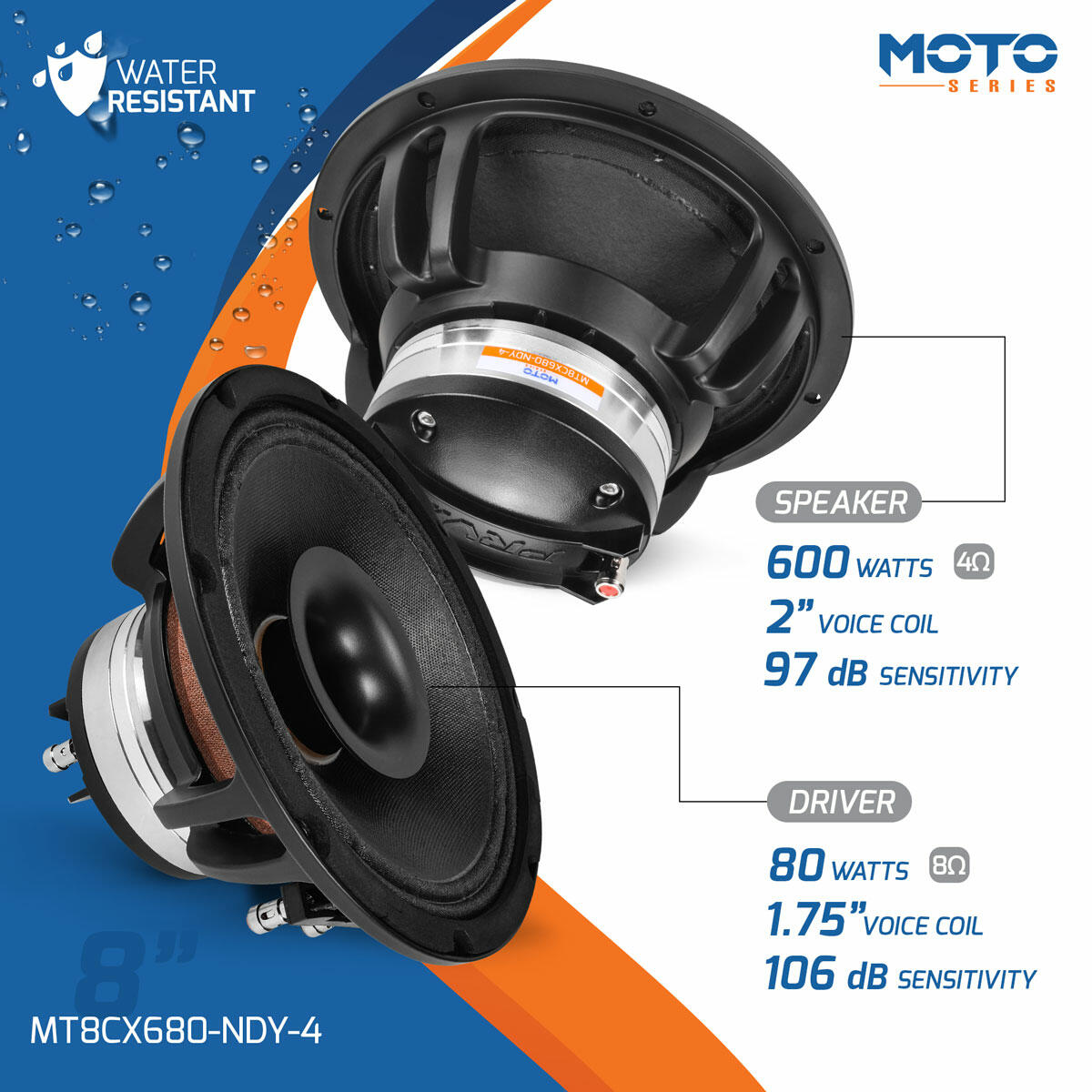

This Coaxial speaker will need 600 Watts RMS per speaker for its low frequency and 80 Watts RMS per driver for its high frequency with recommended HPF using PRV Digital Signal Processor DSP
- 85 Hz at 18 dB per octave filter Crossover / BT18 for low frequency component
- 1400 Hz at 18 dB per octave filter Crossover / BT18 for high frequency component
Recommended LPF for speaker is 5,000 Hz at 18 dB per octave filter Crossover / BT18 or you may set it lower to 2000hz depending on the other components in your system.
One Amplifier ***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
2 Speakers Setup 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel into CH1 and 2 Drivers in parallel into CH2
One Amplifie...GENERAL SPECIFICATIONS
Nominal and Throat Diameter Low Freq. 8 (205.5 mm) High Freq. 1" (25.4 mm) Nominal impedance 4 Ohm 8 Ohm Nominal Power Handling* 300 Watt 40 Watt Continuous Program Power (RMS)** 600 Watt 80 Watt Max Peak Power*** 1200 Watt 160 Watt Sensitivity 2.00V at 1m 97 dB 106 dB Recommended Hi Pass Crossover *For Full Power Handling 90 Hz* *12db Per Octave Crossover 1800 Hz* *12db Per Octave Crossover Frequency Response 80 - 9 kHz 1.3 - 20 kHz Voice Coil Diameter 2" (51 mm) 1.75" (44 mm) Voice Coil Wire CCAW CCAW Voice Coil Winding Depth 11.0 mm N/A Former Material Kapton Kapton Magnetic Gap Depth 8.0 mm N/A Frame Material Aluminum Titanium
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 17.1 l Excursion (mathematical)*** Xmax 3.50 mm Free Air Resonance Fs 87.7 Hz Mechanical Factor Qms 6.96 Electrical Factor Qes 0.44 Total Factor Qts 0.41 Cone Area Sd 243 cm Mechanical Mass Mms 15.92 g Bl Factor Bl 8.0 Tm Dc Resistance Re 3.2 Ohm Inductance Le 0.18 mH at 1 kHz Mechanical Mass Without Air Mmd 13.77 g Mechanical Compliance Cms 0.206 mm/N
EXTRA INFO

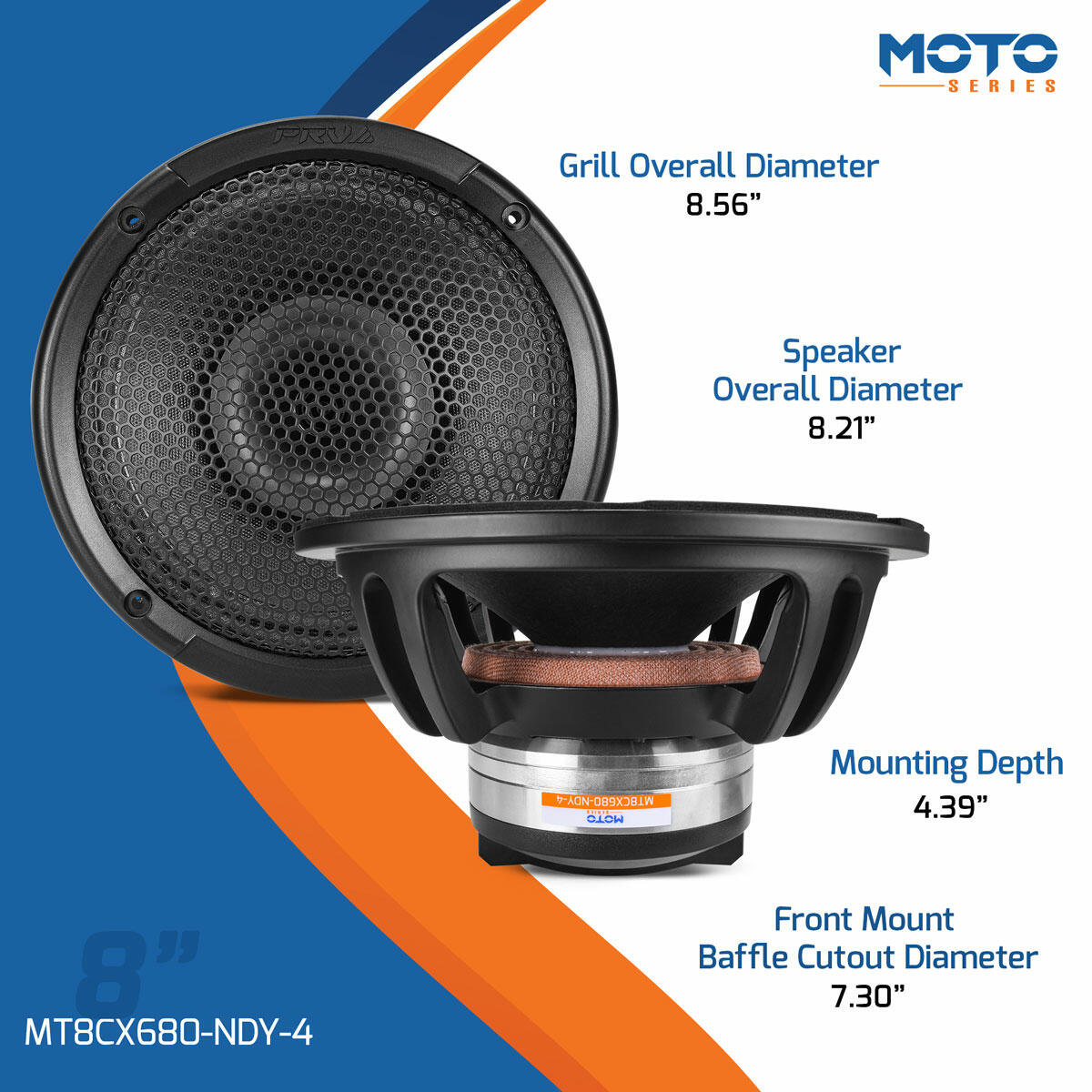

Overall Diameter 8.21 (205.5 mm) Front Mount Baffle Cutout 7.30 (185.3 mm) Mounting Depth 4.39 (111.5 mm) Overall Depth 5.57 (141.5 mm) With Grill Net Weight 4.63 Lbs (2.1 kg) Shipping Weight 5.29 Lbs (2.4 kg) Carton Dimensions W x L x H 9.45"x 9.25" x 7.25" (240 x 235 x 184mm)
FEATURES
