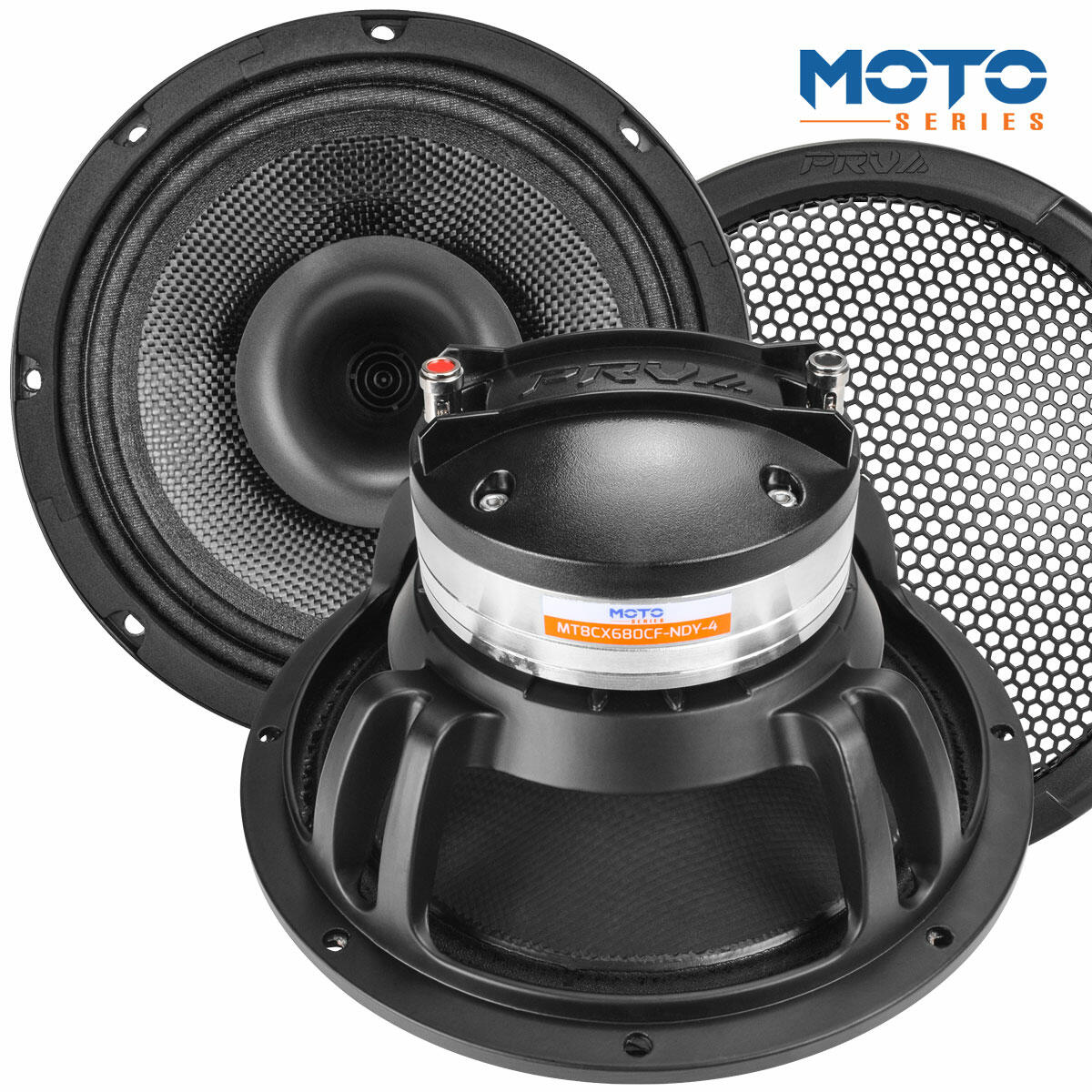

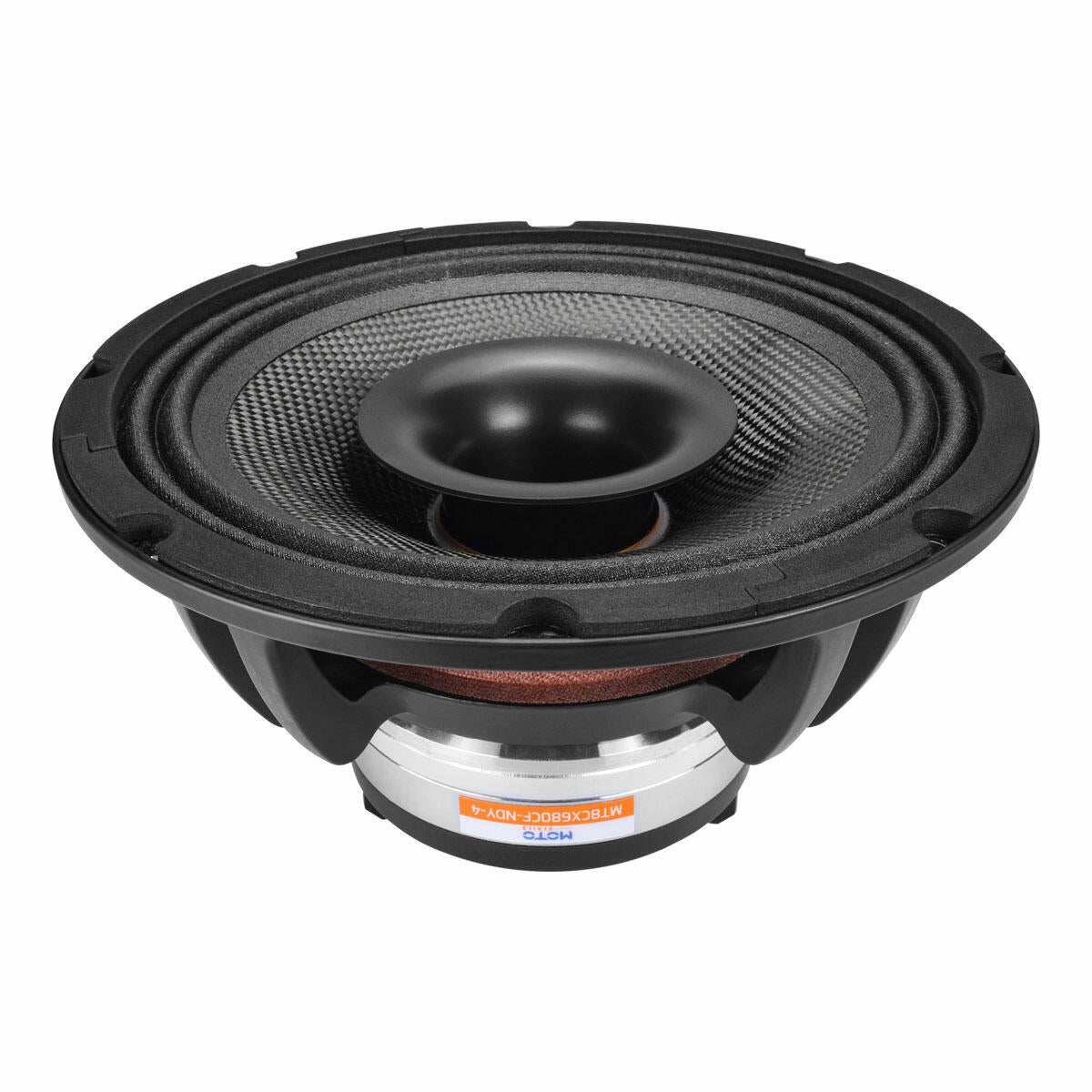

PRV Audio MT8CX680CF-NDY-4 8 Carbon Fiber Neodymium Coaxial Loudspeaker
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio MT8CX680CF-NDY-4 8 Carbon Fiber Neodymium Coaxial Loudspeaker
Features
PRV Audio is proud to present our MT8CX680-NDY-4 Coaxial Speaker from the MOTO Series (MT), high performance PRO audio line dedicated to motorsports installations.
This coaxial speaker is an easy fit and does not require an additional tweeter. Made from the highest quality materials and components to resist weather conditions and provide an easy and simple bolt on installation that transforms your system into the best sound reproduction.
This 2-way coaxial loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.
- Carbon Fiber Cone with Coated Suspension to Handle harshest Outdoor Applications with true PRO audio performance.
- Full Range Sound, 2-Way coaxial with low frequency speaker combined with 1 exit Titanium driver, able to respond from 80 Hz all the way up to 20,000 Hz

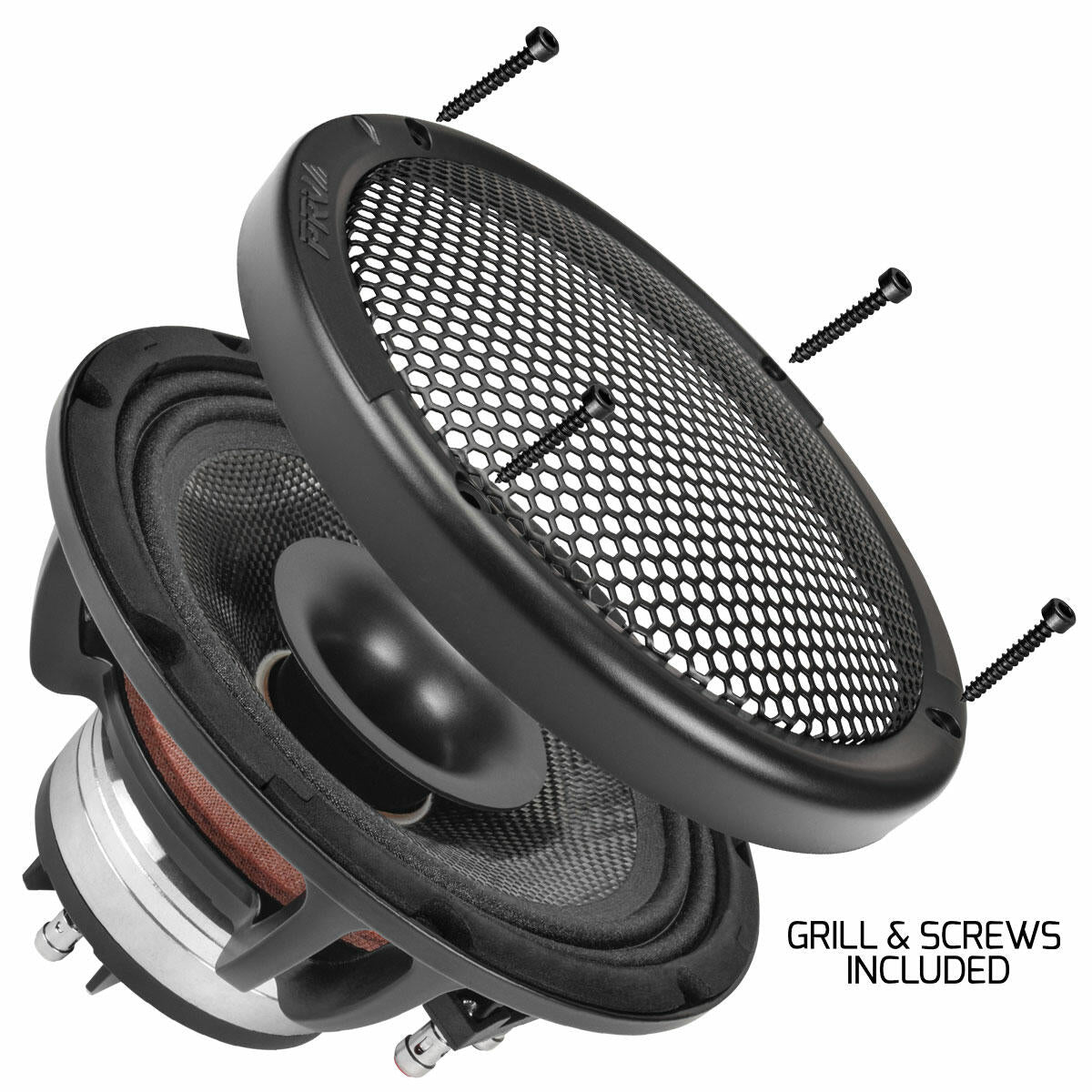

- High Output Speaker for 4 Wheelers, Slingshots, and Motorcycles that mounts practically in almost aftermarket pods or custom panels. Grill and Screws Included.
- Shared Neodymium motor design for both low frequency and high frequency, reducing phase problems and providing the smallest profile without sacrificing performance
- 8 High performance coaxial speaker Built to Perform! Capable of high output levels, with separated midbass speaker and horn driver for two amplifier installation.
This coaxial feature a built-in horn driver with D280Ti titanium diaphragm on a 70 conical wide coverage horn waveguide.
Its horn features a screw-on design to make it easy for the speaker to be serviced. Made from the toughest PM-4 Polycarbonate high wear-resistance material to ensure long life on its treads.
It is capable of reproducing the highest frequencies at easy covering a wide range, phasing up perfect with its low frequency speaker.

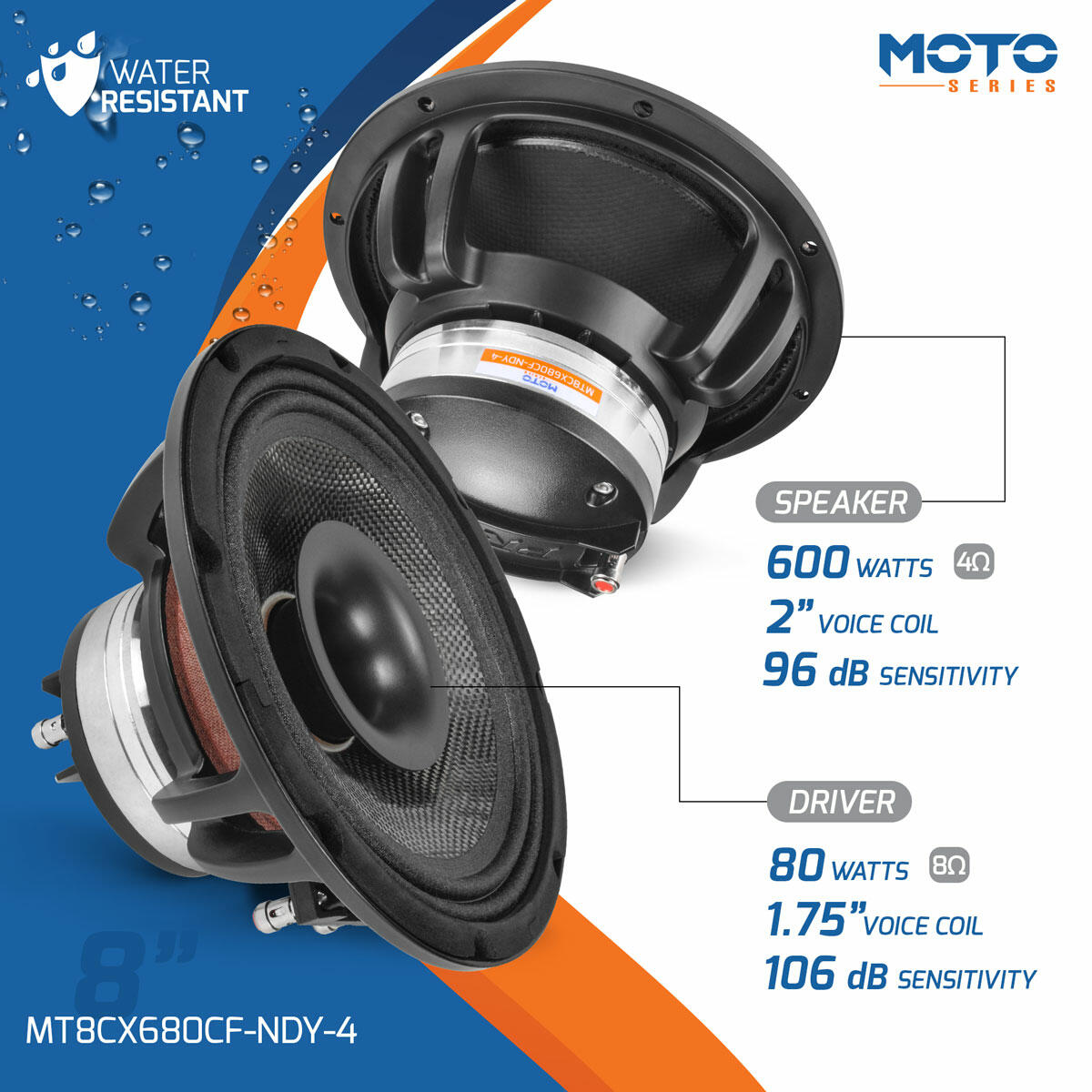

This low frequency speaker can keep up with its high frequency drivers thanks to its large voice coil and extreme sensitivity of 96 dB, combined with large neodymium magnets for efficient heat dissipation.
At 600 Watts this mid can generate an average of 130 dB of output, making it easy to match up with its horn driver tweeter.
Thanks to its special spider composition, no distortion occurs at high excursion, while its silver tinsel lead wire is capable of high current, providing exceptional reliability and dynamic sound.
This 8 coaxial ( horn speaker ) is capable of high output levels and comes with a separate midbass speaker and horn driver for two amplifiers.
The separate midbass speaker is designed to handle lower frequencies, providing a rich and full bass sound, while the horn driver focuses on delivering clear and precise high frequencies. This division of labor allows each component to operate more efficiently, reducing distortion and ensuring a more balanced and dynamic overall sound quality.
Its incredible output capabilities make this coaxial one of the loudest speaker on the market!
PRV Audio 8 Coaxial Speaker Neodymium MT8CX680-NDY-4 Full Range 2-Way Motorcycle Carbon Fiber Speaker
How to Install them:
This Coaxial speaker will need 600 Watts RMS per speaker for its low frequency and 80 Watts RMS per driver for its high frequency with recommended HPF using PRV Digital Signal Processor DSP
- 85 Hz at 18 dB per octave filter Crossover / BT18 for low frequency component
- 1400 Hz at 18 dB per octave filter Crossover / BT18 for high frequency component
Recommended LPF for speaker is 5,000 Hz at 18 dB per octave filter Crossover / BT18 or you may set it lower to 2000hz depending on the other components in your system.
One Amplifier
GENERAL SPECIFICATIONS
| Nominal and Throat Diameter | Low Freq. 8 (205.5 mm) | High Freq. 1" (25.4 mm) |
| Nominal impedance | 4 Ohm | 8 Ohm |
| Nominal Power Handling* | 300 Watt | 40 Watt |
| Continuous Program Power (RMS)** | 600 Watt | 80 Watt |
| Max Peak Power*** | 1200 Watt | 160 Watt |
| Sensitivity 2.00V at 1m | 96 dB | 106 dB |
| Recommended Hi Pass Crossover *For Full Power Handling | 90 Hz* *12db Per Octave Crossover | 1800 Hz* *12db Per Octave Crossover |
| Frequency Response | 80 - 9 kHz | 1.3 - 20 kHz |
| Voice Coil Diameter | 2" (51 mm) | 1.75" (44 mm) |
| Voice Coil Wire | CCAW | CCAW |
| Voice Coil Winding Depth | 11.0 mm | N/A |
| Former Material | Kapton | Kapton |
| Magnetic Gap Depth | 8.0 mm | N/A |
| Frame Material | Aluminum | Titanium |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 18.9 l |
| Excursion (mathematical)*** | Xmax | 3.50 mm |
| Free Air Resonance | Fs | 84.2 Hz |
| Mechanical Factor | Qms | 14.4 |
| Electrical Factor | Qes | 0.49 |
| Total Factor | Qts | 0.48 |
| Cone Area | Sd | 248 cm |
| Mechanical Mass | Mms | 16.36 g |
| Bl Factor | Bl | 7.57 Tm |
| Dc Resistance | Re | 3.3 Ohm |
| Inductance | Le | 0.20 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 14.13 g |
| Mechanical Compliance | Cms | 0.218 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

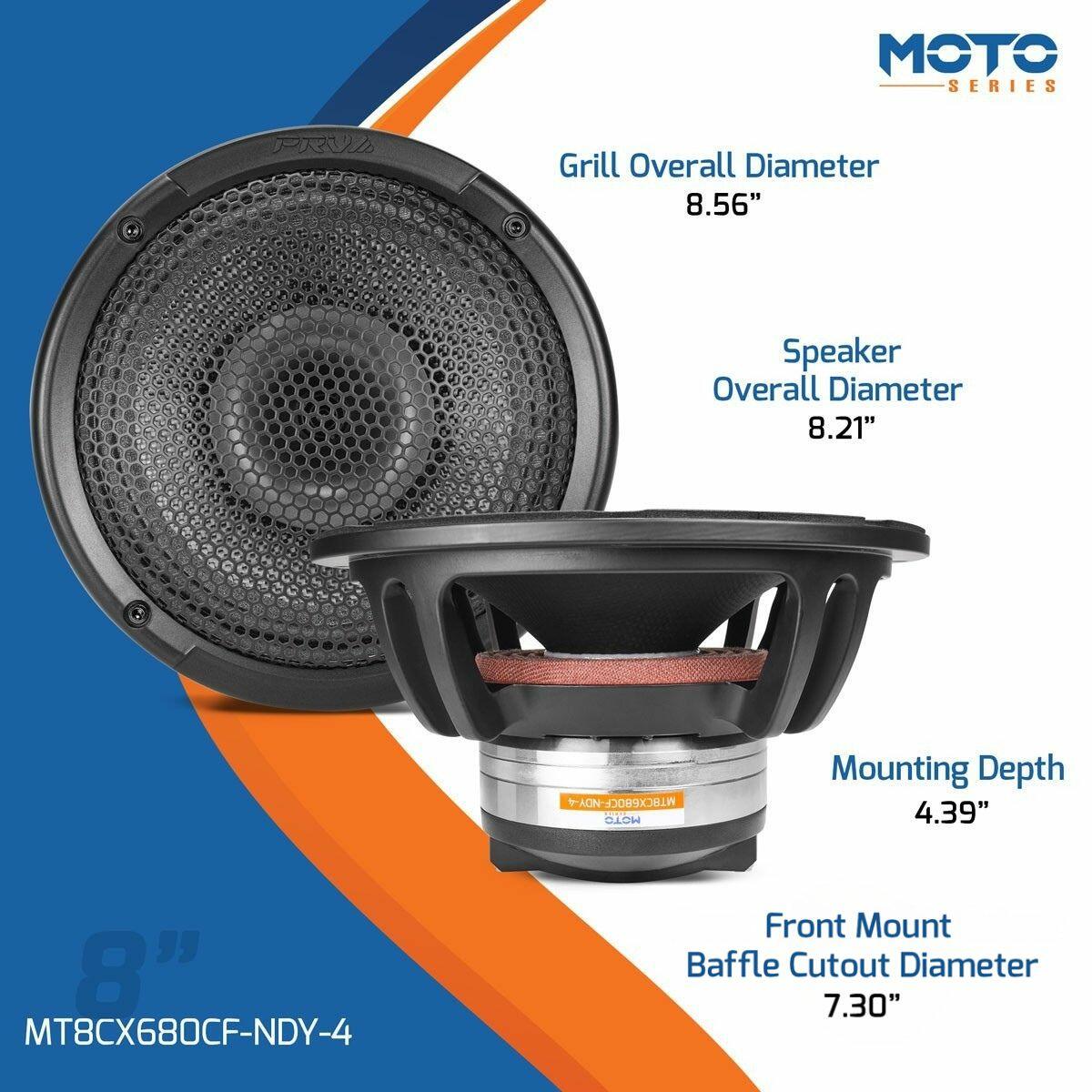

| Overall Diameter | 8.21 (205.5 mm) |
| Front Mount Baffle Cutout | 7.30 (185.3 mm) |
| Mounting Depth | 4.39 (111.5 mm) |
| Overall Depth | 5.57 (141.5 mm) With Grill |
| Net Weight | 4.63 Lbs (2.1 kg) |
| Shipping Weight | 5.29 Lbs (2.4 kg) |
| Carton Dimensions W x L x H | 9.45"x 9.25" x 7.25" (240 x 235 x 184mm) |
