PRV Audio MT8MB600CF-NDY-4 8" NEODYMIUM MIDBASS LOUDSPEAKER
Features
PRV Audio is proud to present our new MOTO Series (MT), high performance PRO audio line dedicated for motorsports installations, focused on bringing to you the latest innovative materials and components to resist weather conditions and to provide the highest sound reproduction possible.
This midrange loudspeaker established the new benchmark for vocal reproduction for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4 wheeler, Slingshot or Motorcycle.
Due to the premium materials used in its construction, such as a special treated carbon fiber cone, a high-temperature voice coil, and a strong neodymium magnet motor, this speaker produces its natural sound with remarkably low distortion.
- Water Resistant Speaker with true PRO Audio Midbass low frequency performance
- Coated lightweight carbon fiber cone lowers moving mass and minimizes unwanted resonances
- 8 PRO Audio Midbass loudspeaker designed for Low Frequencies at High Power 4 Ohm
- Able to handle 600 Watts RMS, with a 96 dB Sensitivity with a High Xmax of 4.75 mm
- Premier Outdoor Speaker Designed for Sound Competition is perfect for applications with limited weight or space, such as slingshot pods, motorcycle fairings, and saddlebags

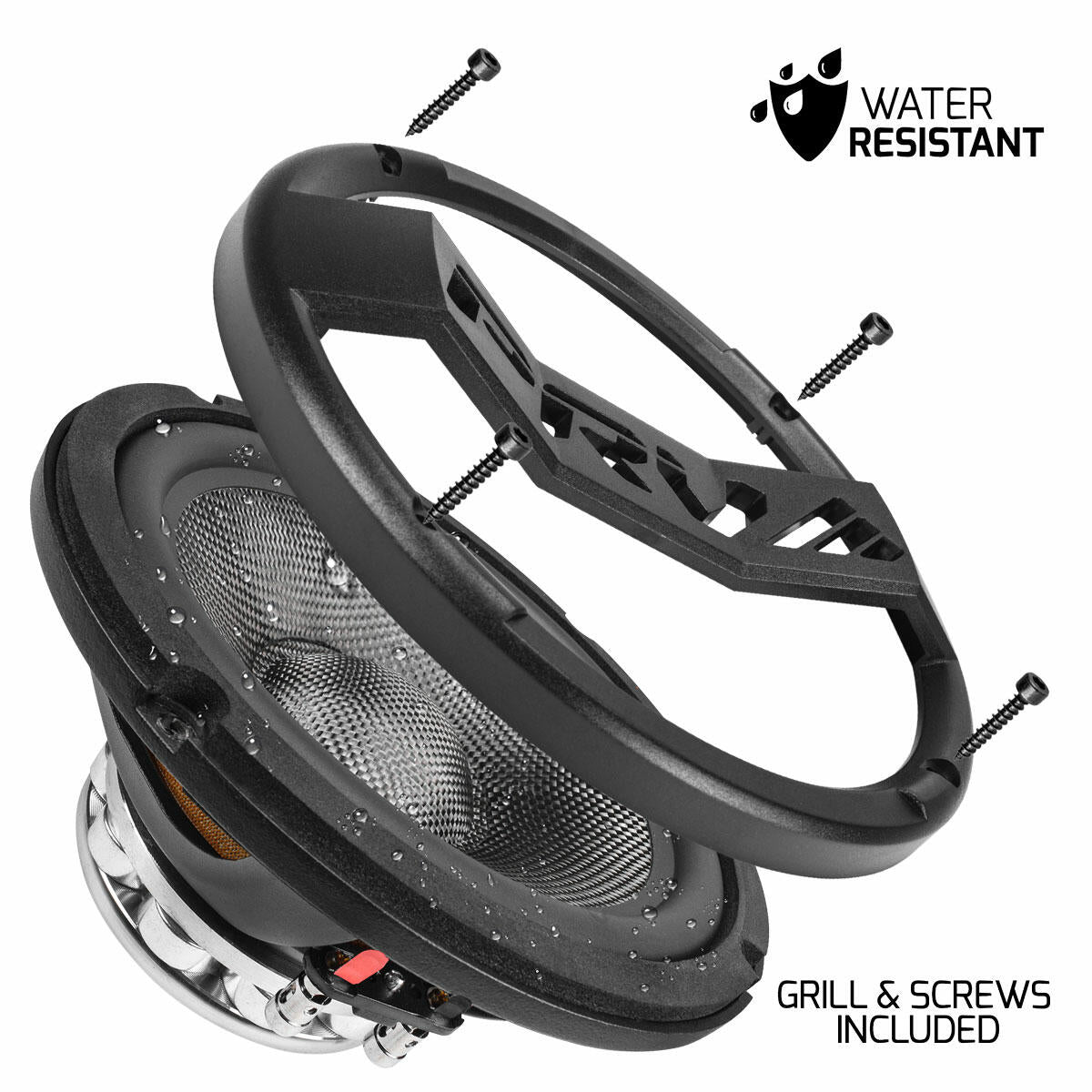

- Grill and screws are included
Its low-mass yet stiff cone produces clean, detailed, high-impact sound reproduction and consistent high output levels in a low frequency bandwidth between 65 and 5,700 Hz, making sure to reproduce all low frequencies with authority!
This mid is perfect for applications where weight and space is limited, such as custom slingshot pods, motorcycle fairings and saddlebags, that make this driver a popular speaker choice among high output car and motorsport audio enthusiasts.
PRV 8 Motorcycle Speaker MT8MB600CF-NDY-4 Water Resistant 600 Watts / 4 Ohm Neodymium Low Frequency Midbass High Power
Recommended Amplifier configurations and crossover points:
- 2 Speakers 1x MDX1200.2 1 Ohm, Bridged both speakers in parallel
- 4 Speakers 1x MDX2000.2 2 Ohm, 2 speakers per channel in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 600 Watts RMS musical power
- 80 Hz at 12 dB per octave filter Crossover / BT12
- 70 Hz at 18 dB per octave filter Crossover / BT18
Recommended LPF is 2,200 at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system.
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 300 Watts |
| Continuous Program Power (RMS)** | 600 Watts |
| Max Peak Power*** | 1200 Watts |
| Sensitivity 2.83V at 1m | 96 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 80 Hz 12db Per Octave Crossover |
| Frequency Response | 65 - 5,700 Hz |
| Voice Coil Diameter | 2.0" (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 13.0 mm |
| Former Material | Kapton |
| Magnetic Gap Depth | 7.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 18.8 l |
| Excursion (mathematical)*** | Xmax | 4.75 mm |
| Free Air Resonance | Fs | 64.5 Hz |
| Mechanical Factor | Qms | 14.06 |
| Electrical Factor | Qes | 0.38 |
| Total Factor | Qts | 0.37 |
| Cone Area | Sd | 227 cm |
| Mechanical Mass | Mms | 23.32 g |
| Bl Factor | Bl | 9.32 Tm |
| Dc Resistance | Re | 3.5 Ohm |
| Inductance | Le | 0.202mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 21.39 g |
| Mechanical Compliance | Cms | 0.261 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Magnetic Gap Depth/4
EXTRA INFO

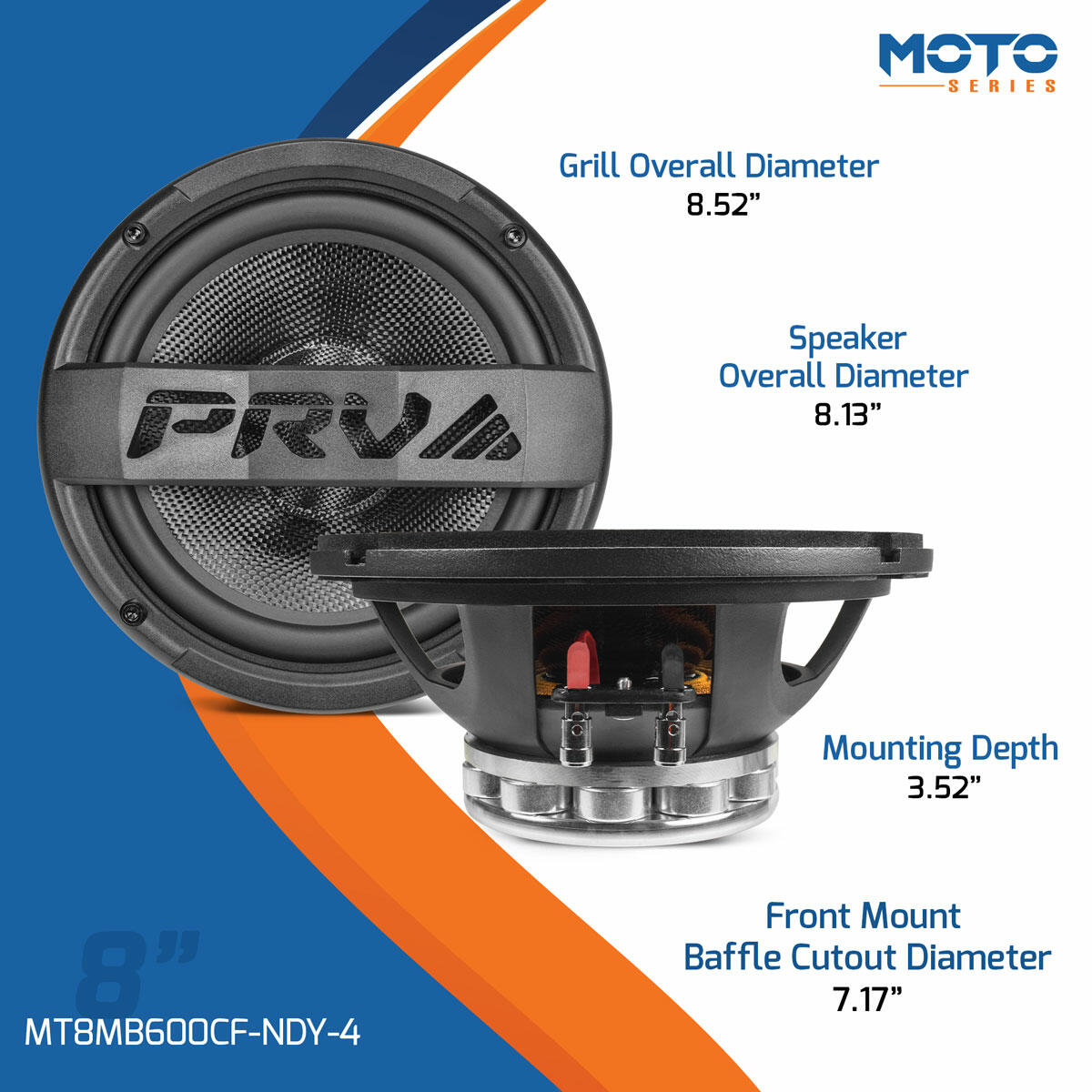

| Overall Diameter | 8.13" (206.5 mm) |
| Front Mount Baffle Cutout | 7.17" (182.2 mm) |
| Mounting Depth | 3.52" (89.5 mm) |
| Overall Depth | 4.84 (123 mm) |
| Net Weight | 4.55 Lbs (2.1 kg) |
| Shipping Weight | 5.07 Lbs (2.3 kg) |
| Carton Dimensions W x L x H | 10.35" x 9.92" x5.71" (263 x 252 x 145 mm) |
