PRV Audio MT8SW800 D4 8" SHALLOW SUBWOOFER
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT

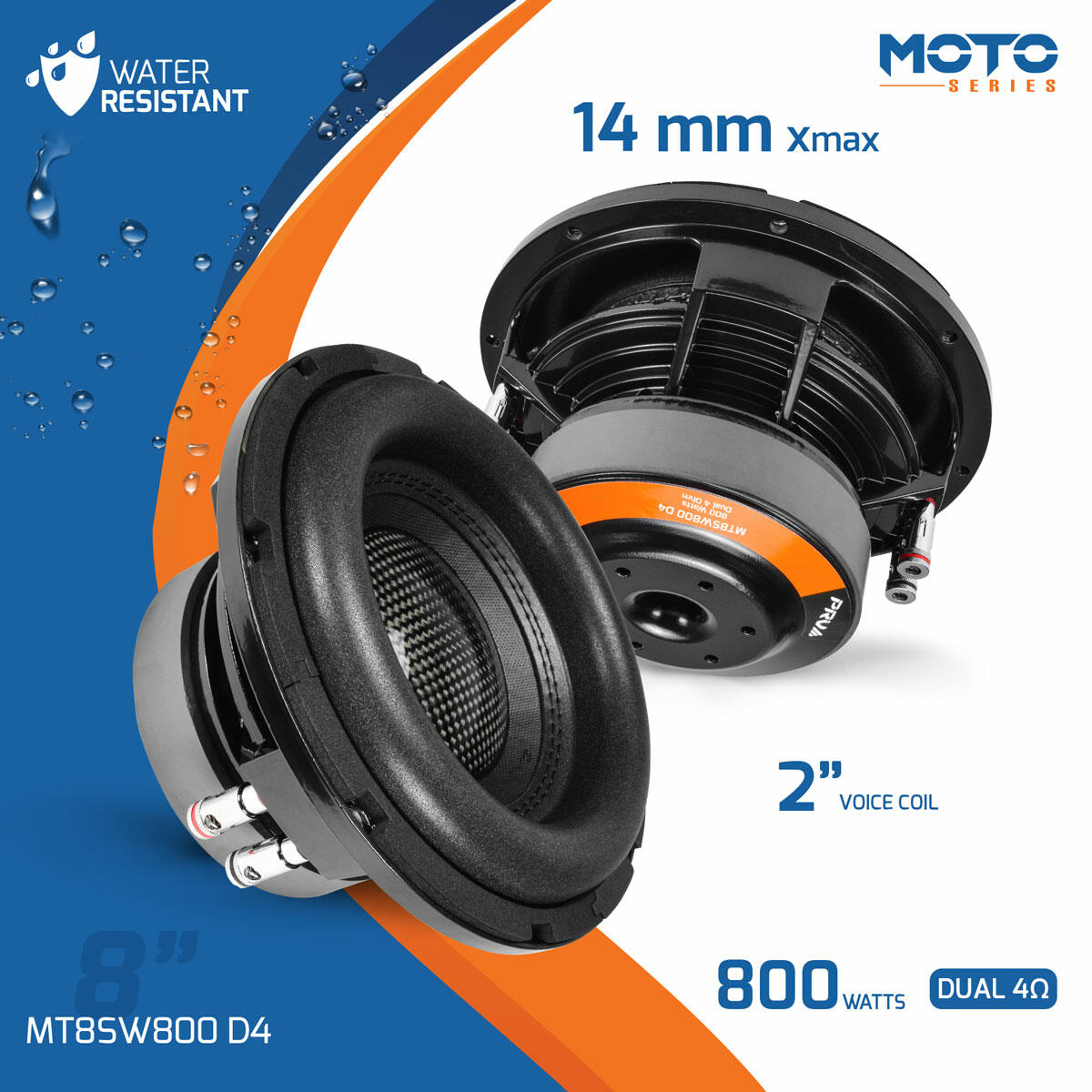

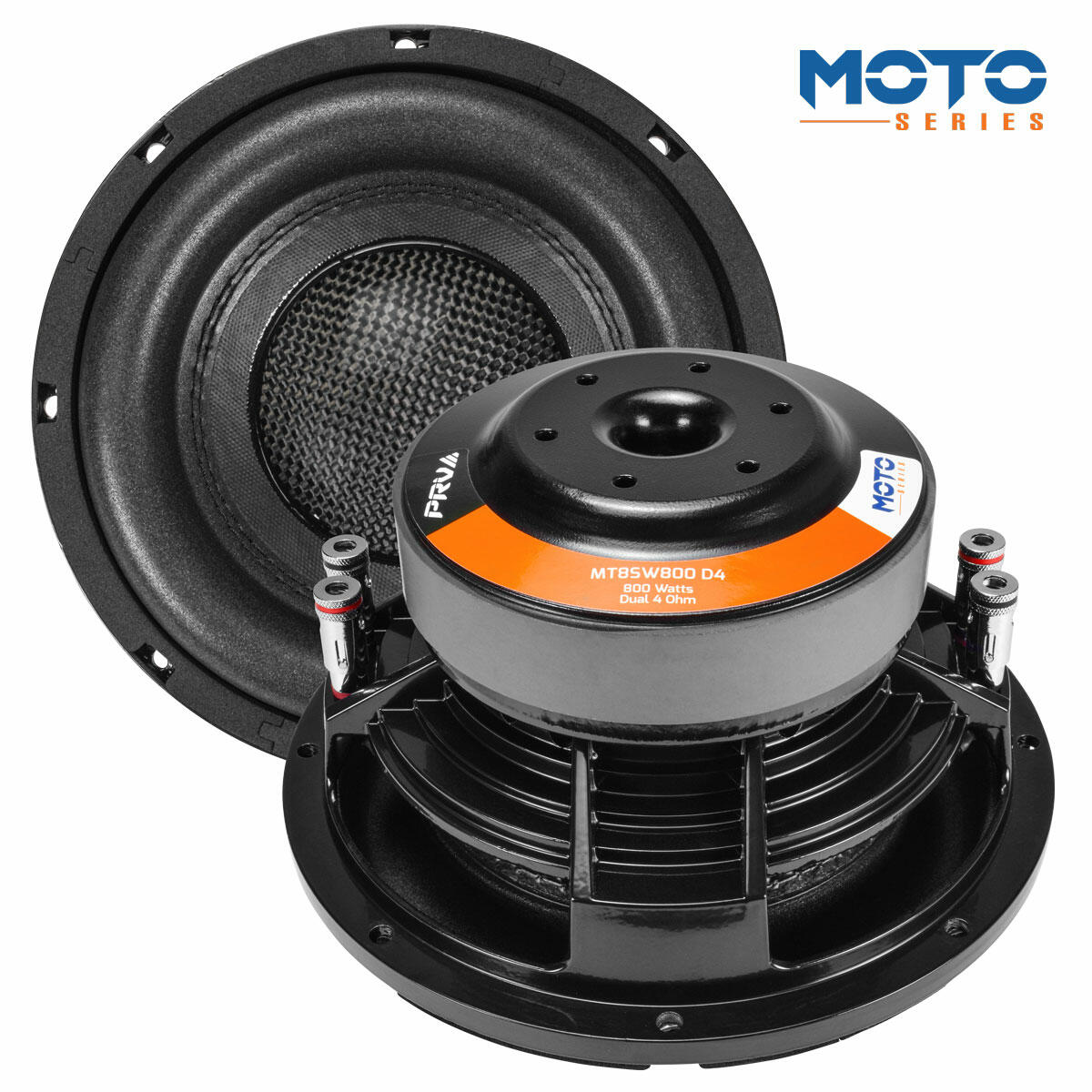

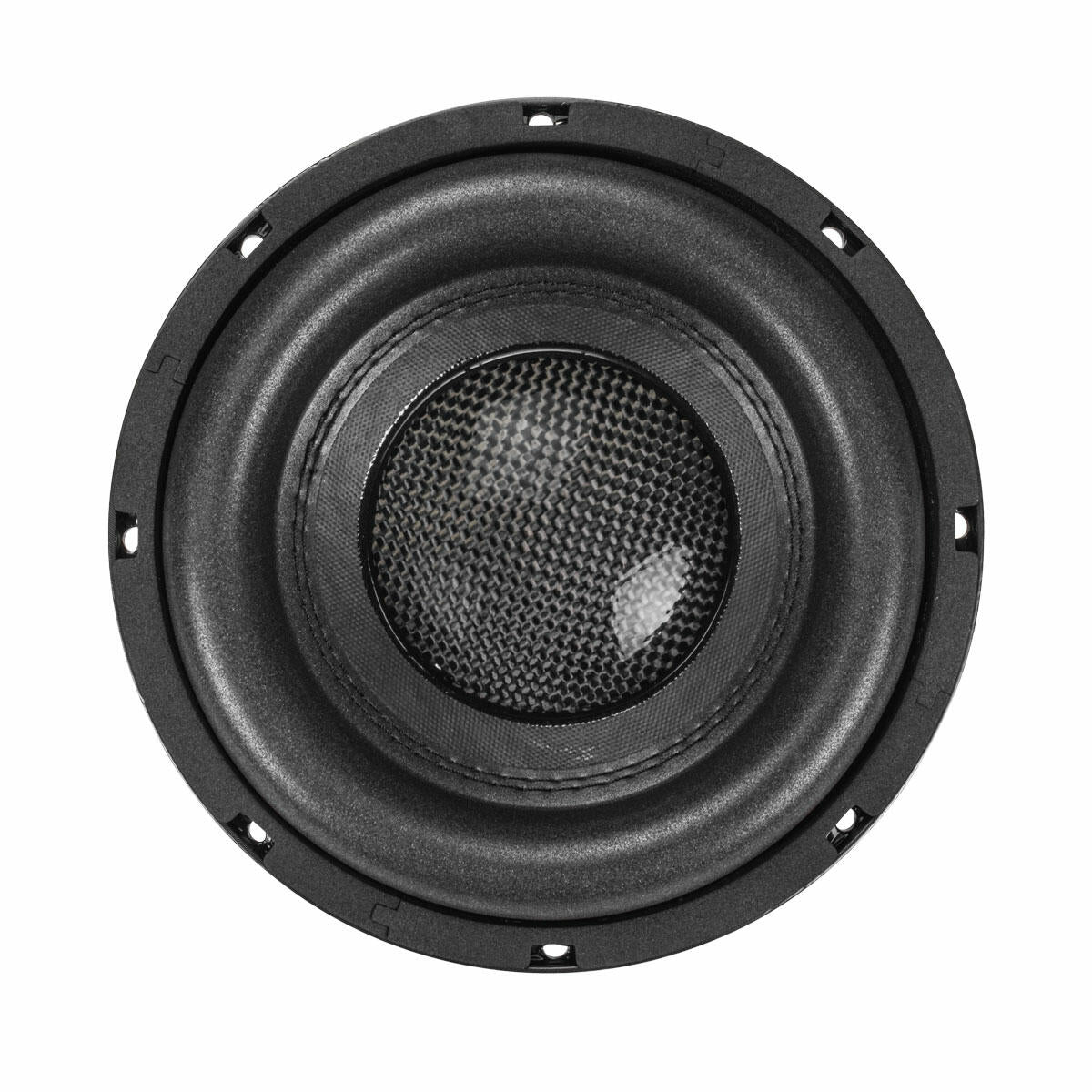

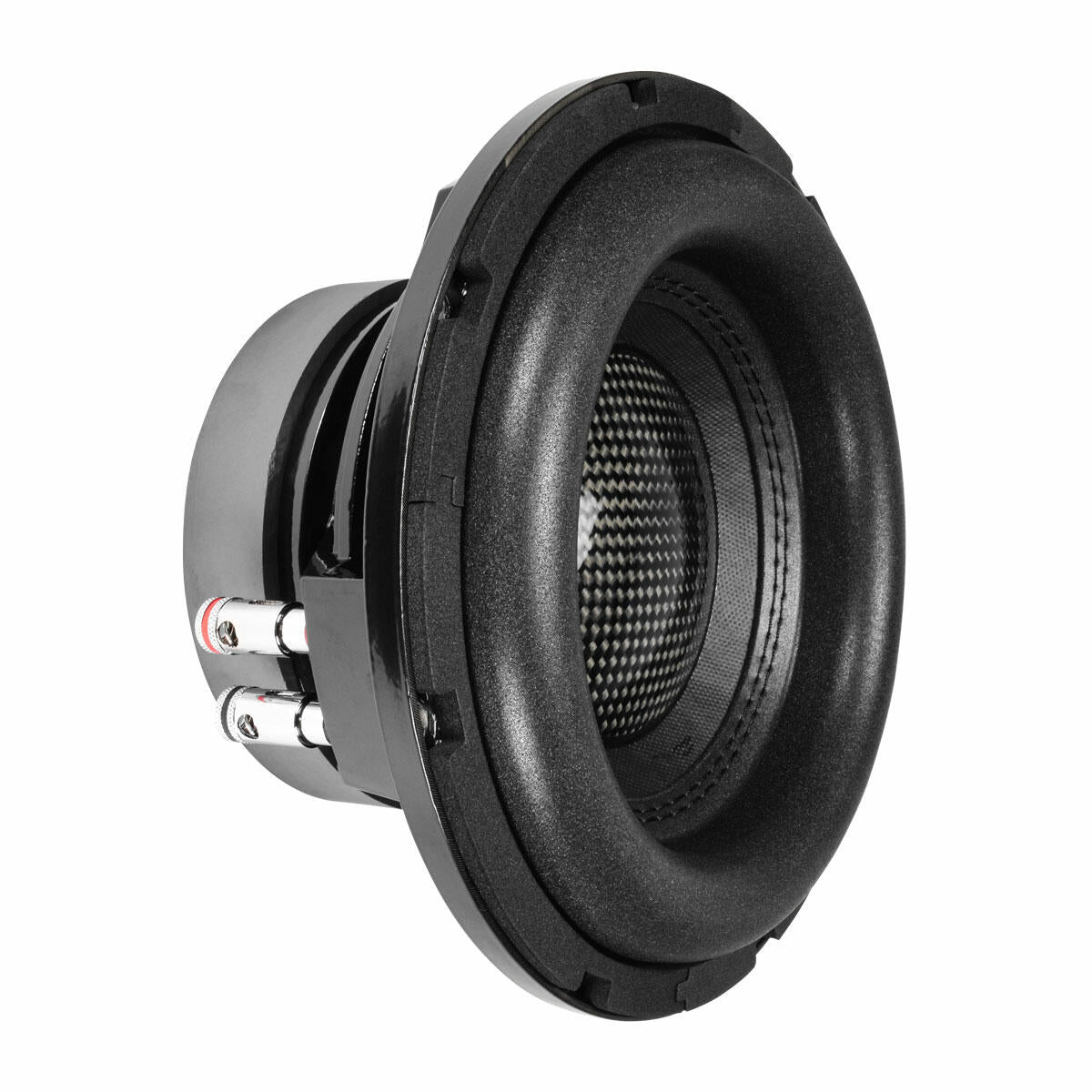

PRV Audio MT8SW800 D4 8" SHALLOW SUBWOOFER
Features
PRV Audio is proud to present our MT8SW800 D4 Subwoofer from the MOTO Series (MT), a high performance line dedicated to motorsport installations.
Designed for small enclosures, this subwoofer will work in motorcycle saddlebags, slingshot pods, or any other enclosure around 1 cubic foot in size. This sub is made from the best materials and components to withstand the elements, so you can enjoy the highest low frequency output while riding or sitting in an open parking lot.
- Designed for small enclosures, ideal for under or behind seat truck boxes, best for jeeps, slingshot and motorcycle enclosures under 1 cubic foot.
- 4 layer high-temperature copper voice coil capable of handling 800 watts RMS program power, which makes high acoustic output
- High roll U surround is attached to the cone with dual stitching allowing a generous 14 mm of Xmax for deep bass reproduction without any issues.
- Another Key premium components that ensure power handling, durability at high excursion are its large premium grade spider with weaved copper tinsel lead.
- Side Forced Cooling System with vented back plate Design for Better Heat Dissipation
- Dual 4 Ohm, Works well with RS1400 BASS 1 Ohm Connect two subs in parallel to 1 ohm.
Its shallow profile takes up very little space inside any enclosure. This compact design will fit and sound great in any saddlebag that has about 1 cubic foot.
Recommended enclosure:
- Compact Sealed Box: 0.9 cubic feet
- Compact Ported Box: 1 cubic foot with a 3 Diameter by 6 Long Port Tube tuned at 47Hz
- Optimal Ported Box: 1.25 cubic feet with a 3 Diameter by 9 Long Port Tube tuned at 39Hz
This subwoofer established the new benchmark for low frequency for outdoor applications, making it ideal for improving the sound system in your boat, UTV, 4-wheeler, Slingshot or motorcycle.
This 8-inch subwoofer delivers the kind of bass output you feel outdoors, not just vibrations. Also Available in 10 inch MT10SW1000 D4
PRV 8 Motorsports Subwoofer MT8SW800 Dual 4 Ohm 800 Watts Shallow Sub for Motorcycle Slingshot Waterproof
GENERAL SPECIFICATIONS
| Nominal Diameter | 8" (203 mm) |
| Nominal impedance | 4 + 4 Ohm |
| Nominal Power Handling | 400 Watts |
| Continuous Program Power (RMS) | 800 Watts |
| Max Peak Power | 1600 Watts |
| Sensitivity 1.41V at 1m | 81 dB (Parallel VC) |
| Voice Coil Diameter | 2.0" (50 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 33.0 mm |
| Former Material | Black Aluminum |
| Magnetic Gap Depth | 10 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 8.44 l |
| Excursion (mathematical)*** | Xmax | 14.00 mm |
| Free Air Resonance | Fs | 45.15 Hz |
| Mechanical Factor | Qms | 10.35 |
| Electrical Factor | Qes | 1.00 |
| Total Factor | Qts | 0.92 |
| Cone Area | Sd | 213 cm |
| Mechanical Mass | Mms | 96.23 g |
| Bl Factor | Bl | 6.78 Tm |
| Dc Resistance (Parallel VC) | Re | 1.7 Ohm |
| Inductance | Le | 1.18 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 94.43 g |
| Mechanical Compliance | Cms | 0.129 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

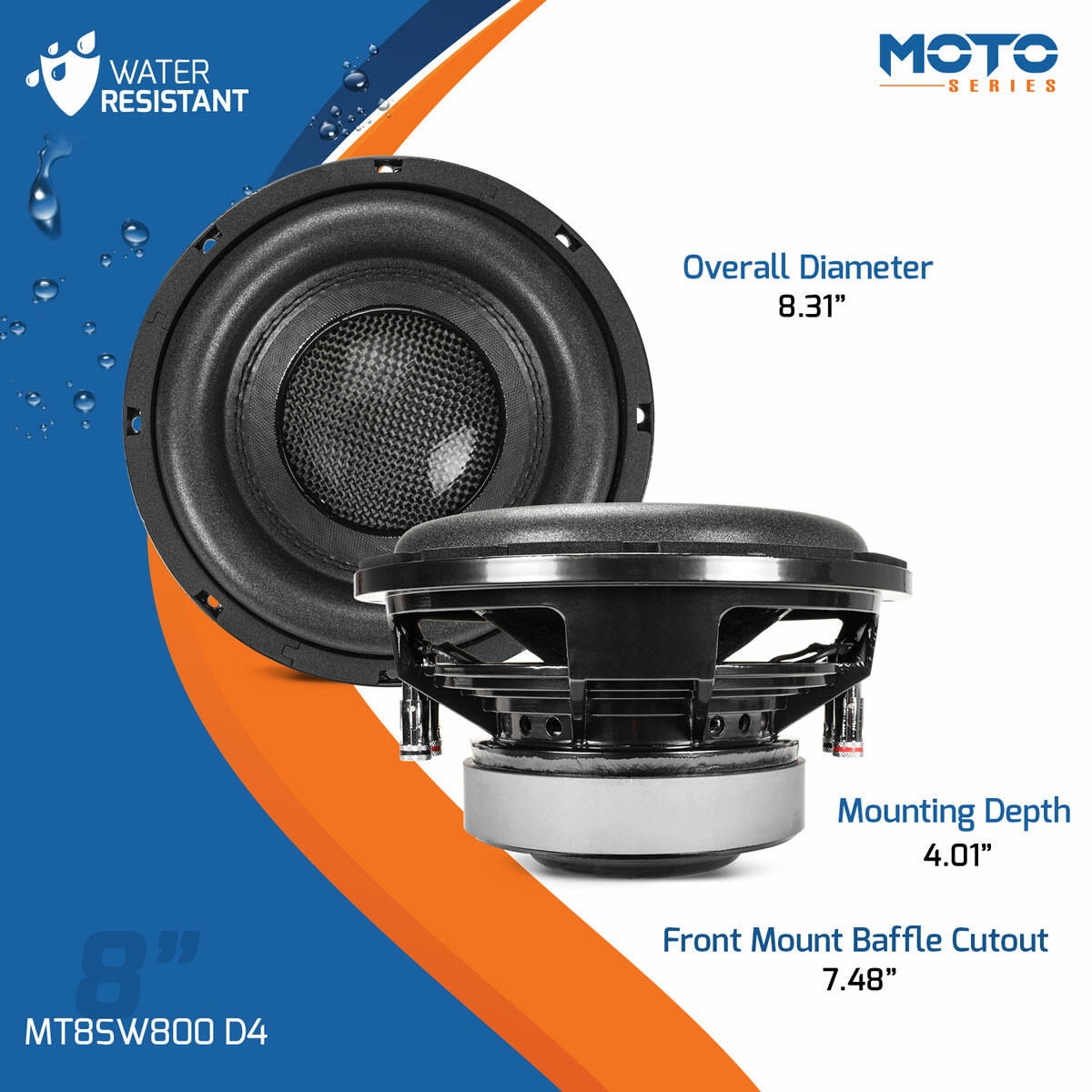

| Overall Diameter | 8.31" (211 mm) |
| Front Mount Baffle Cutout | 7.48" (190 mm) |
| Mounting Depth | 4.01" (102 mm) |
| Overall Depth | 5.00" (127 mm) |
| Net Weight | 8.71 Lbs (3.95 kg) |
| Shipping Weight | 9.92 Lbs (4.5 kg) |
| Carton Dimensions W x L x H | 9.84" x 9.84" x 6.3" (250 x 250 x 160 mm) |
