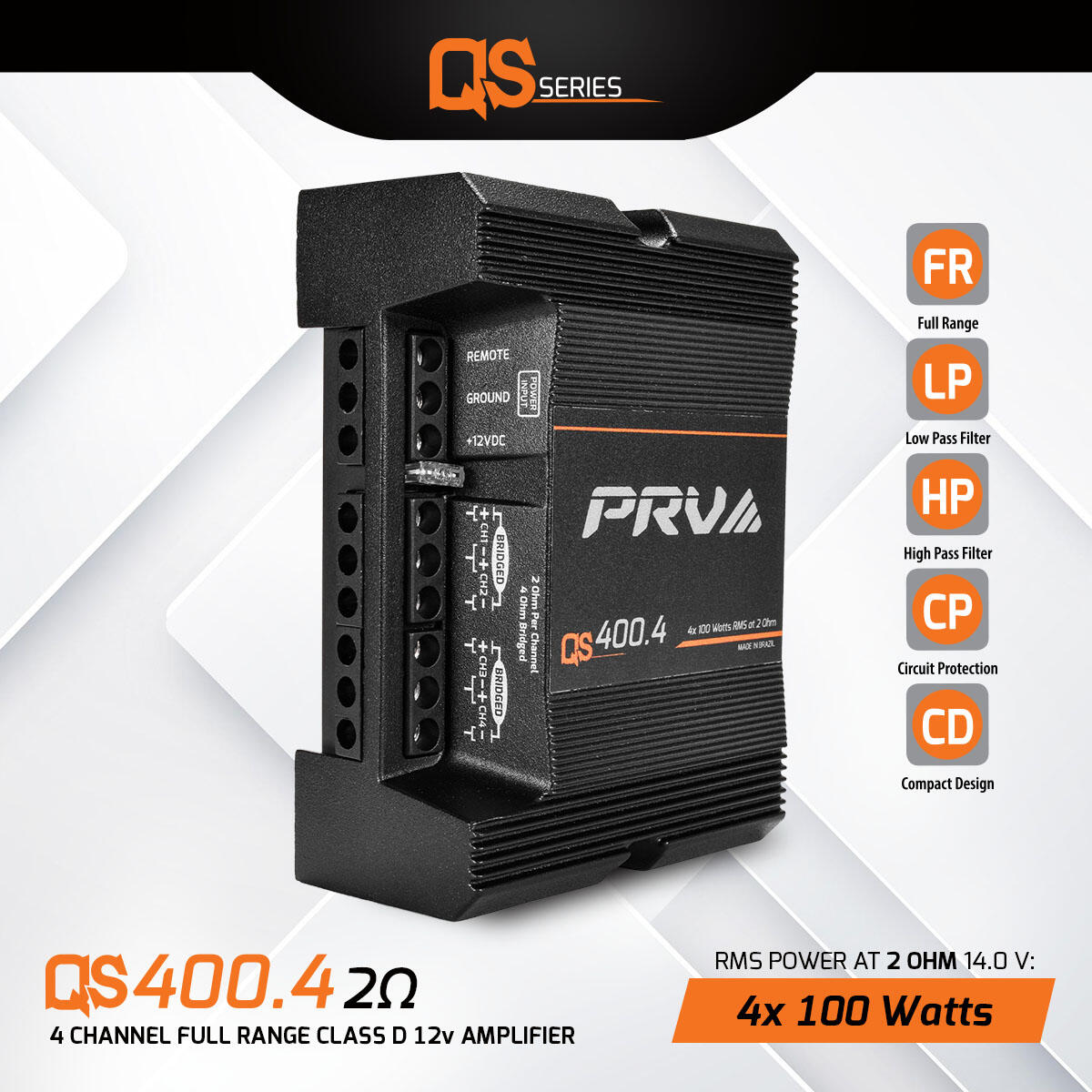

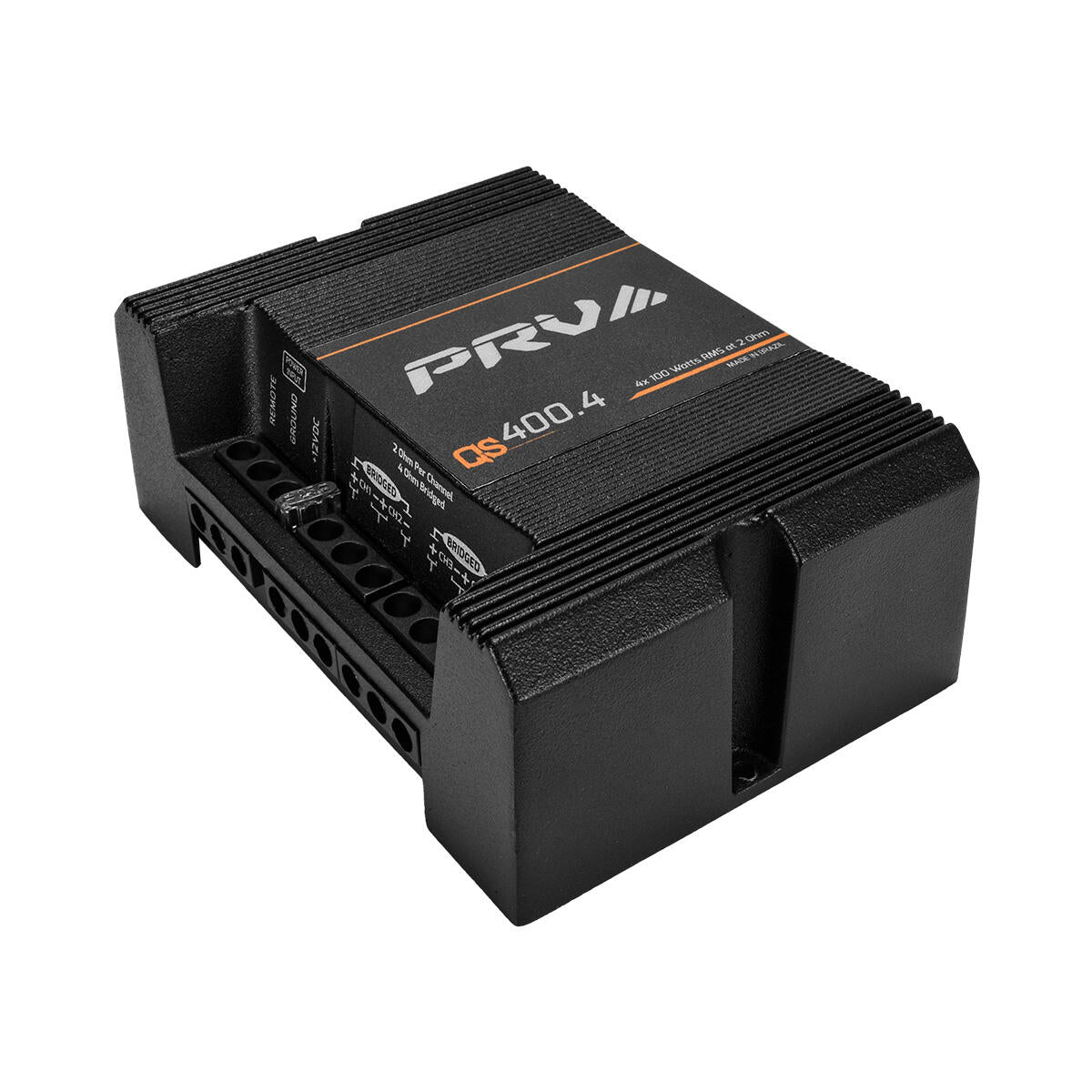

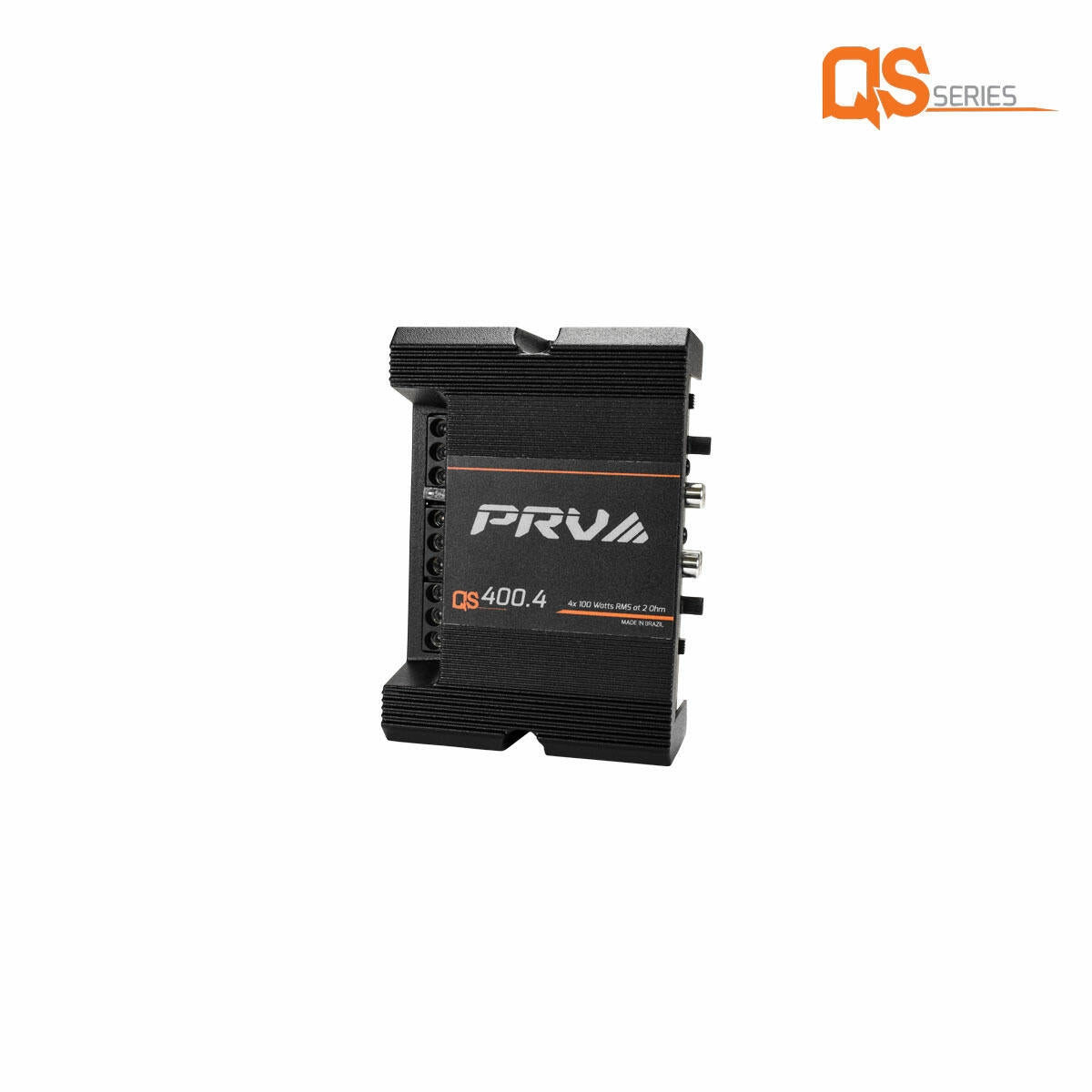

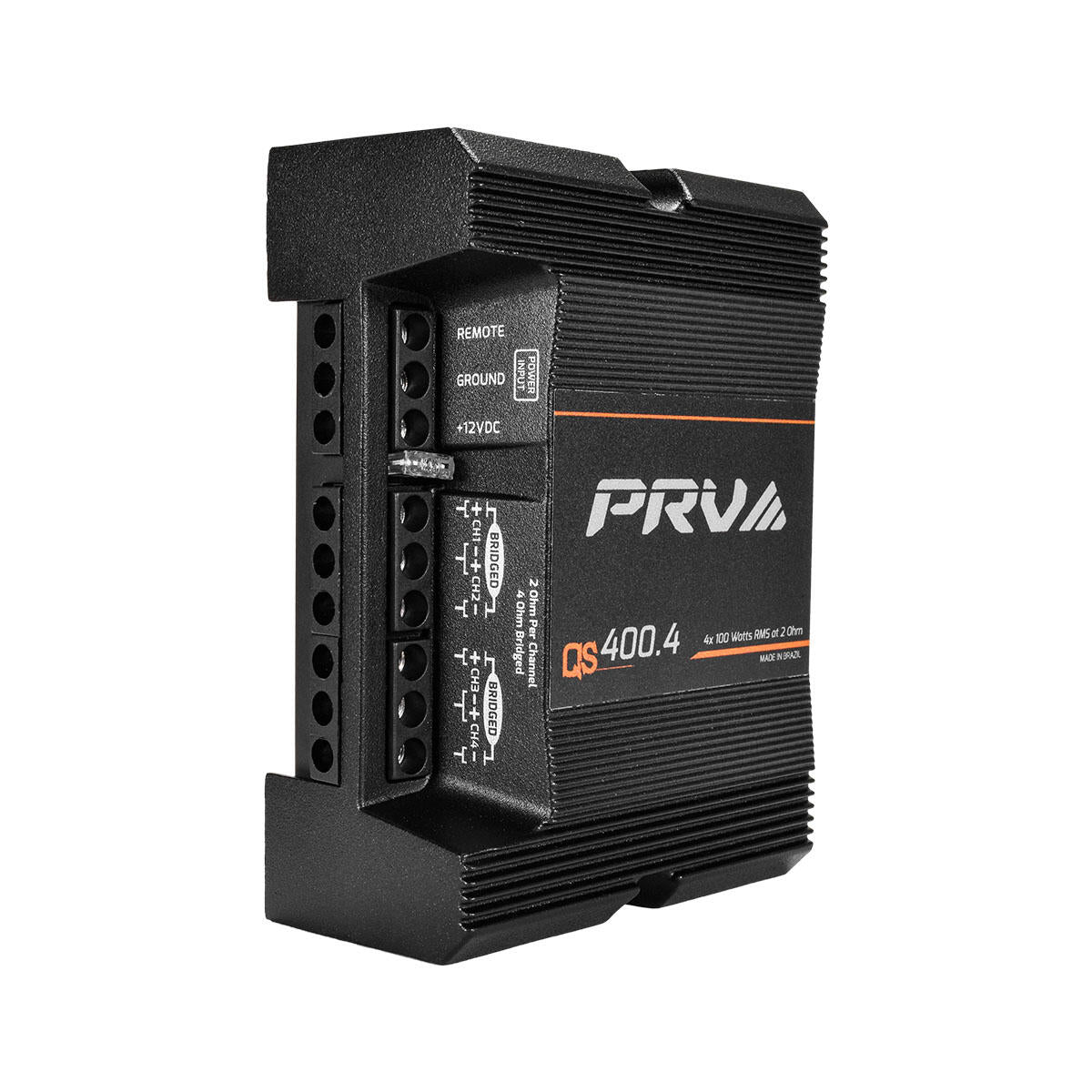

PRV Audio QS400.4 2 Ohm 4 Channel Full Range Amplifier
-
Estimated Delivery:Jun 17 - Jun 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio QS400.4 2 Ohm 4 Channel Full Range Amplifier
Features
- 4 x 100 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
- 4 Channel car audio amplifier stable at 2 Ohm gives you the benefit of wiring multiple speakers and dividing the power per channel.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicles electrical system!
- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 4 Wide x 5.40 Length x 2 Height
- 2 Channel Bridged double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohms per bridged channel at output power of 2 x 200 Watts RMS.
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 100 Watts |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 70 Watts |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 200 Watts |
PRV Audio QS400.4 2 Ohm Mini Compact 4 Channel Car Audio Amplifier 4 x 100 Watts RMS at 2 Ohm
Before Installing:You must follow the instructions for the products installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 25A fuse 12 inches away from the battery as a safety precaution
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 100Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
PRV Audio products are guaranteed for a period of ONE (1) YEAR f...
GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 4 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 4x 100 Watts RMS |
| Rated RMS Power at 14.0 V at 4 Ohm | 4x 70 Watts RMS |
| Bridged Rated RMS Power at 14.0 V at 4 Ohm | 2x 200 Watts RMS |
| Average Efficiency | 80% |
| Operating Voltage | 9 to 15 Volts |
| Musical Current Draw | 45 A |
| Minimal Power Wire Input | (OFC) 8 Gauge wires |
| Built-in Crossover | Fixed HPF & LPF at 90 Hz |
| Minimal Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 20 - 25,000 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |
| Signal Input | 2 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | High Temperature / Short circuit on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |

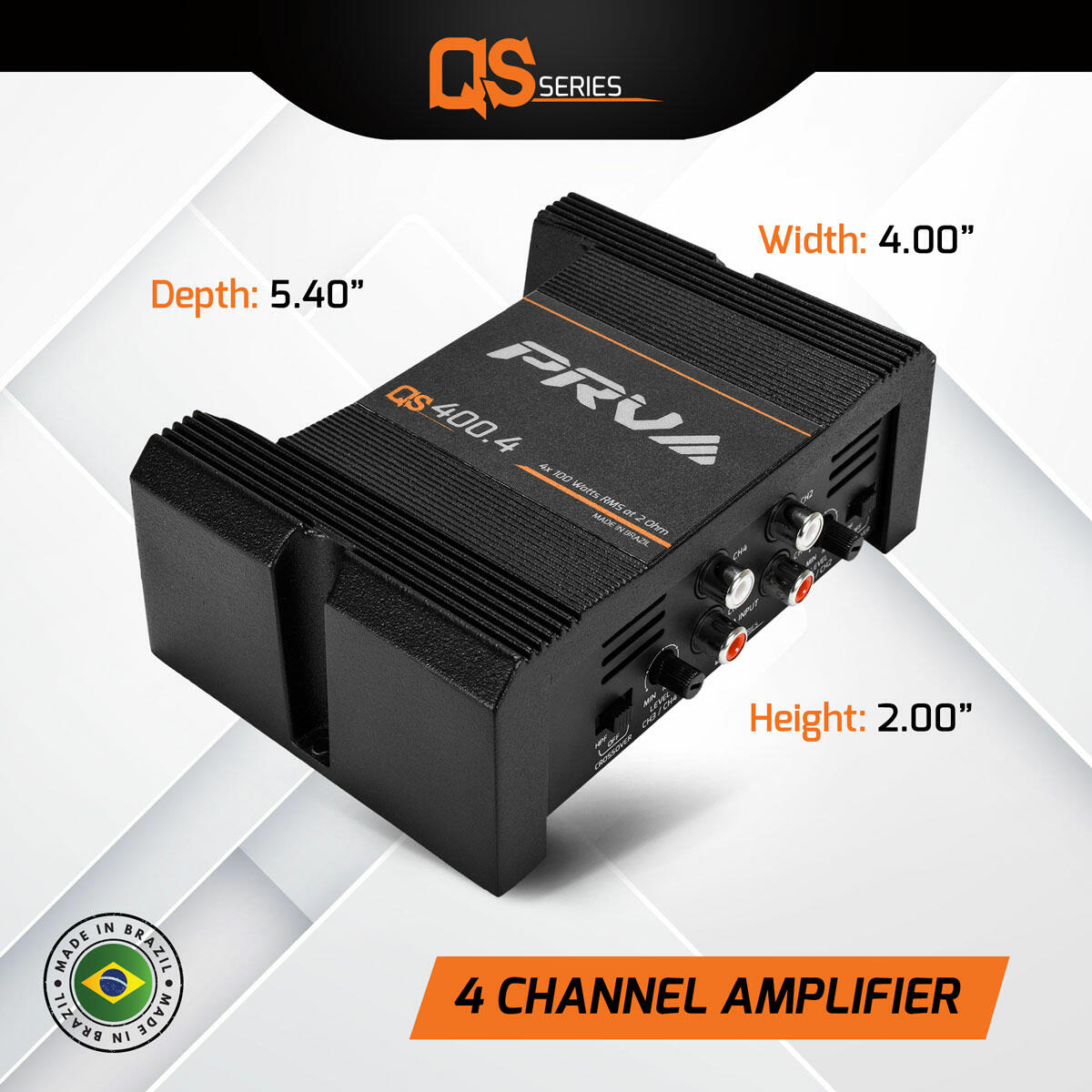

| Dimensions ( Width x Depth x Height ) | 4.00" x 5.40" x 2.00" |
| Weight | 1.18 Lbs |
