PRV Audio QS5000 1 Ohm 1 Channel Full Range Amplifier
Features

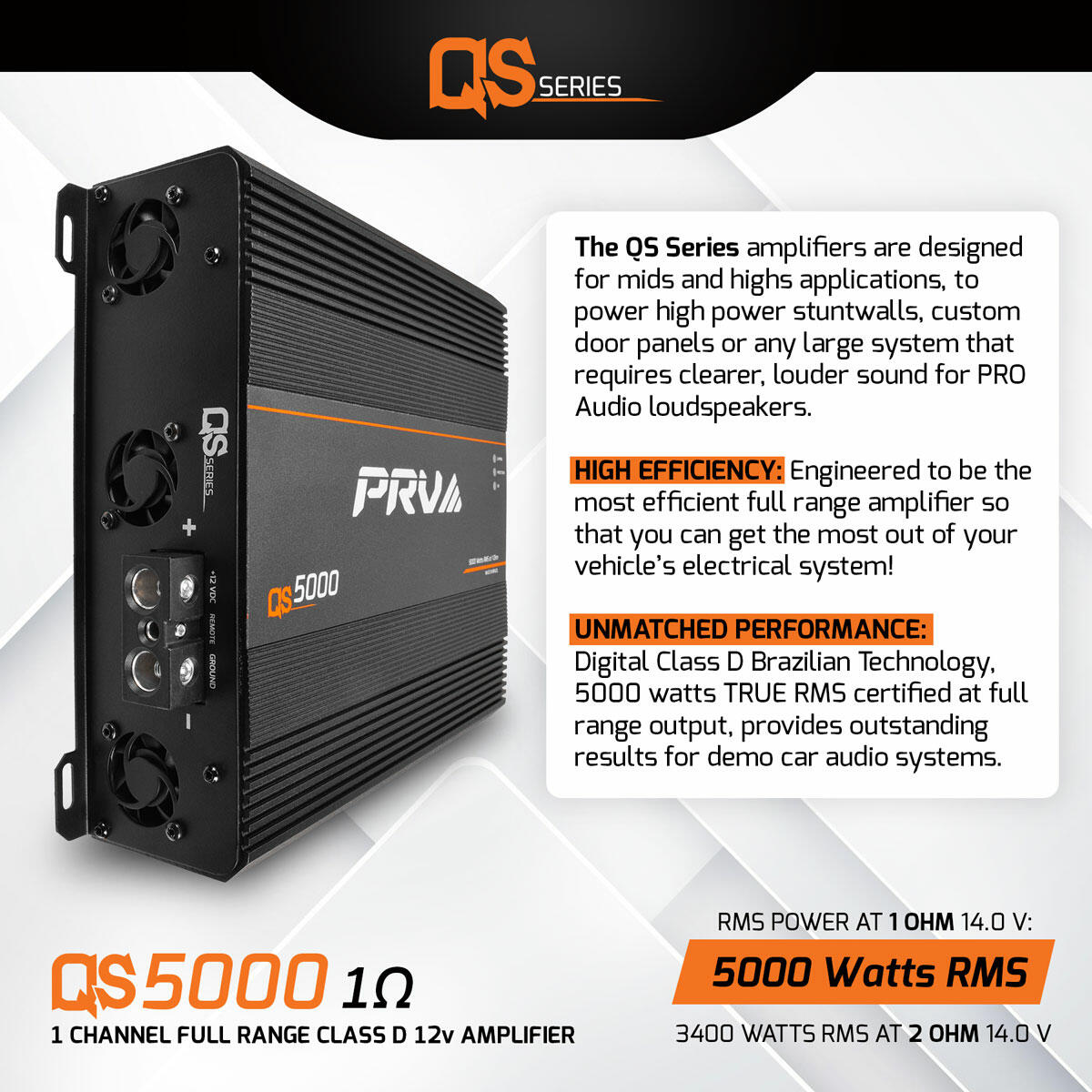

The QS Series amplifiers are designed for mids and highs applications, to power high power stuntwalls, custom door panels or any large system that requires clearer, louder sound for PRO Audio loudspeakers.
The QS5000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 8090% in a small aluminum heatsink.
Looking for a bass amplifier? You may want to consider the RS Series if you need a SPL bass amplifier that delivers a constant deep bass response.
- UNMATCHED PERFORMANCE: Digital Class D Brazilian Technology, 5000 watts TRUE RMS certified at full range output, provides outstanding results for demo car audio systems.
- 1 Channel car audio amplifier stable at 1 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
- HIGH EFFICIENCY: Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicles electrical system!

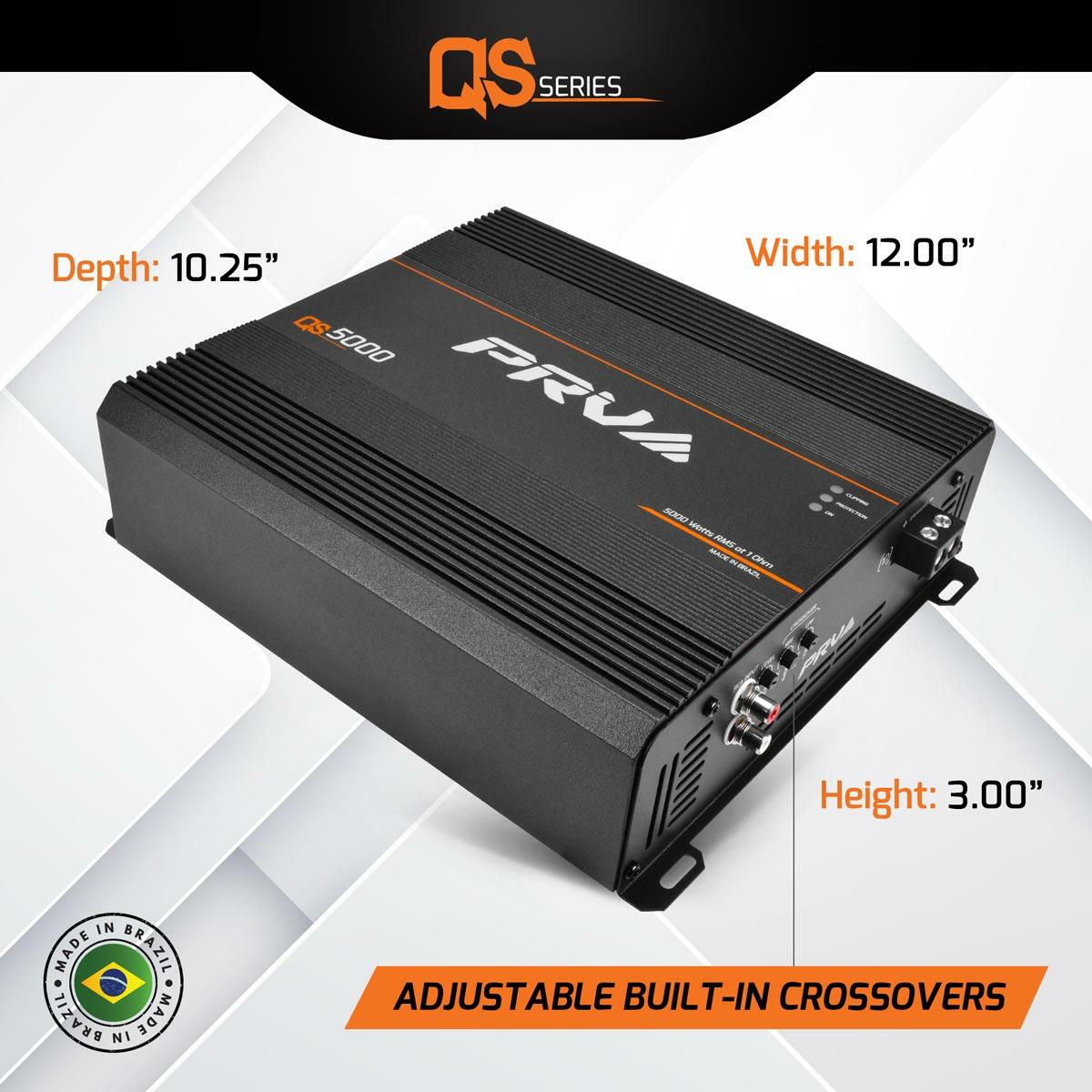

- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 12 Wide x 10.25 Length x 3.00 Height
- 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm | 5000 Watts |
| Rated RMS Power at 14.0 V at 2 Ohm | 3400 Watts |
High Power Amplifier for your custom car audio system. The QS series brings the best Full Range HD Sound for clearer, louder sound for PRO Audio loudspeakers.
QS5000 at 1 Ohm Stable, also available at 2 Ohm.
Its wide frequency response allows you to use it in many different applications, such as woofers, midbass, midrange, phenolic drivers, titanium drivers, among others. This amplifier is the perfect solution for large car audio systems.
Built-in HIGH and LOW pass filters allow the user to set the right frequency range for his equipment, from deep bass all the way to high frequencies.

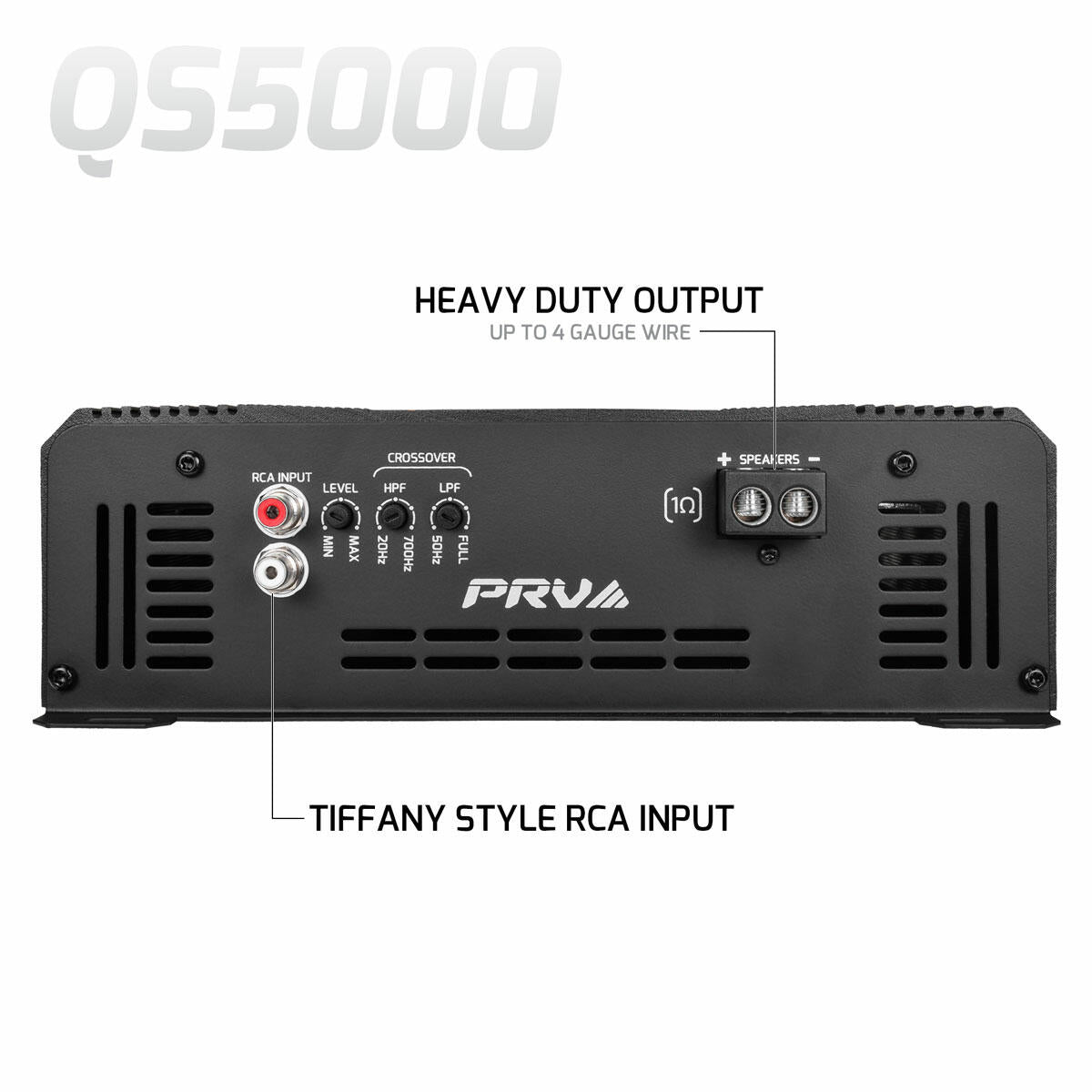

Premium tiffany style RCA inputs ensure a more secure and tight connection, preventing any vibration problems.
This proprietary heat dissipation design will ensure a high air flow cooling fans controls its temperature to run cool on the most demanding playlists.
The LED indicator is a simple built-in tool that allows you to easily monitor the status of your amplifier while it is in use.
Its clipping indicator flashes at the limit of its maximum power output without any distortion, providing excellent sound performance while giving you the best value! All are protected by four-stage intelligent protection circuitry.
PRV Audio QS5000 1 Ohm Compact 1 Channel Car Audio Amplifier 5000 Watts RMS at 1 Ohm Full Range Amp
Popular Installation configurations with this amplifier:Its high power output channel allow you to install 8x 8 Ohm Speakers or drivers in parallel at 1 Ohm, giving up to 625 watts per component..
Its high power output channel allow you to install 4x 4 Ohm Speakers in parallel at 1 Ohm, giving up to 1250 watts per component..
Before Installing:
Before connecting your amplifier review all recommendations thoroughly, Any connection to the amplifier input or output must be performed only when the amplifier is OFF.
The gauge of the power supply wiring is extremely important to reach ...
GENERAL SPECIFICATIONS
| Impedance | 1 Ohm |
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm | 5000 Watts |
| Rated RMS Power at 14.0 V at 2 Ohms | 3400 Watts |
| Average Efficiency | 79% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 245 A |
| Minimum Power Wire Input | (OFC) 0 Gauge |
| Protection Fuse or Circuit Breaker | 250 Amps |
| Minimum Speaker Wire Output | 14 Gauge |
| Frequency Response(-3dB) | 20 - 15,000 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |
| Signal Input | 1 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | Low & High Supply Voltage / Shortage on Output / Low Impedance on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |
| Dimensions ( W x D x H ) | 12" x 10.25" x 3" |
| Weight | 9.50 Lbs |
The power rated data are based on equipment from the PRV Audio Group laboratory. Frequency reference of 60Hz to 1kHz with THD+N to 1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications (with speakers), any load test (resistant load) is not recommended.
