PRV Audio RS10-SUBD4 10" Car Subwoofer
Features
For 15 years, PRV Audio has developed and marketed live PRO audio speakers, and is thrilled to introduce the RS Series bringing new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.
This 10 car subwoofer will give you bass like never before! The RS10-SUBD4 is perfect for boosting the lows in your car system or shaking your entire neighborhood.
This subwoofer was designed to be a great combination of price and performance without a compromise on quality. It is a must-have for daily builds where you want to keep electrical upgrades to a minimal and get excellent performance with a minimal amount of power.
- Bass machine that will reproduce low-end frequencies with authority with small amount of power

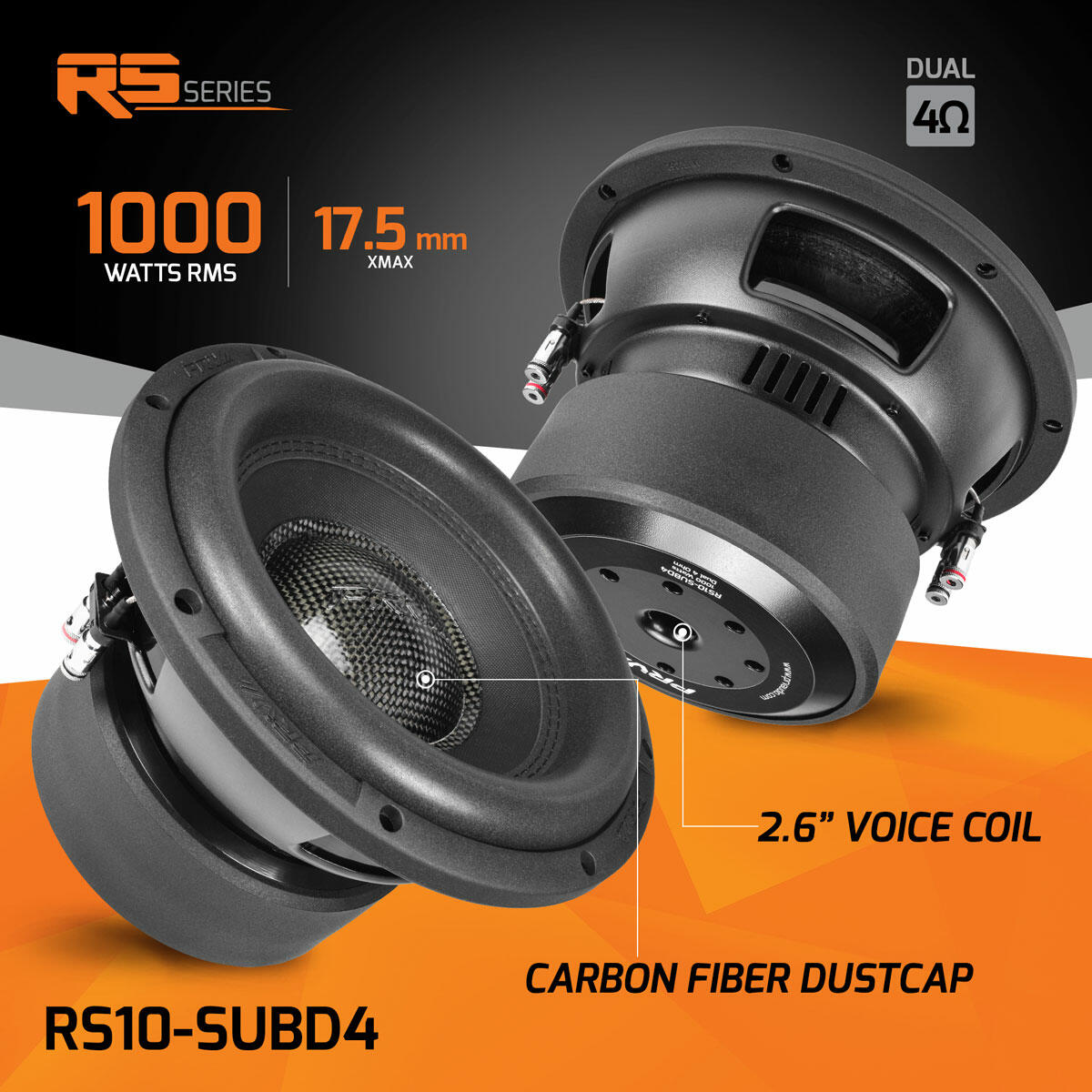

- 4 layer high-temperature copper voice coil capable of handling 1000 watts RMS program power, which makes high acoustic output
- High roll U surround gives an 17.5 mm of Xmax for low bass reproduction without any issues.
- Side forced cooling system with vented back plate design for better heat dissipation
- Dual 4 Ohm, easy setup to connect two subs in parallel to 1 ohm
This subwoofer features a beefy magnet motor that enhances its power and bass response, allowing it to handle more power and produce richer, fuller bass tones.
Its double magnet motor combined with flexible high foam surround allows for a remarkable 17.5mm Xmax, delivering high excursion guaranteeing to put out some crazy output.
Put some extra lows in your system with this 10 sub, which can reach 1.50 peak-to-peak excursion before damage! Providing deep low frequency bass!
PRV 10 Car Subwoofer RS10-SUB Dual 4 Ohm 1000 Watts Double Stacked Magnet 17.5mm Xmax
Recommended Amplifier configurations:
- 1 Subwoofer 1x RS900 BASS 2 Ohm, one sub in parallel
- 2 Subwoofers 1x RS3200 BASS 1 Ohm, both subs in parallel
The LPF on amplifiers should be set between 60 90 Hz when using musical power up to 1000 Watts RMS, Subsonic filters should be set according to music style, this will help to avoid subwoofer damage from excess excursion caused by ultra low frequencies.
Take your time and break them in! A brand-new sub is always a little stiff after break-in, the subwoofer soft parts will stretch out! This means with less power you will create the same output with more extended low bass tones

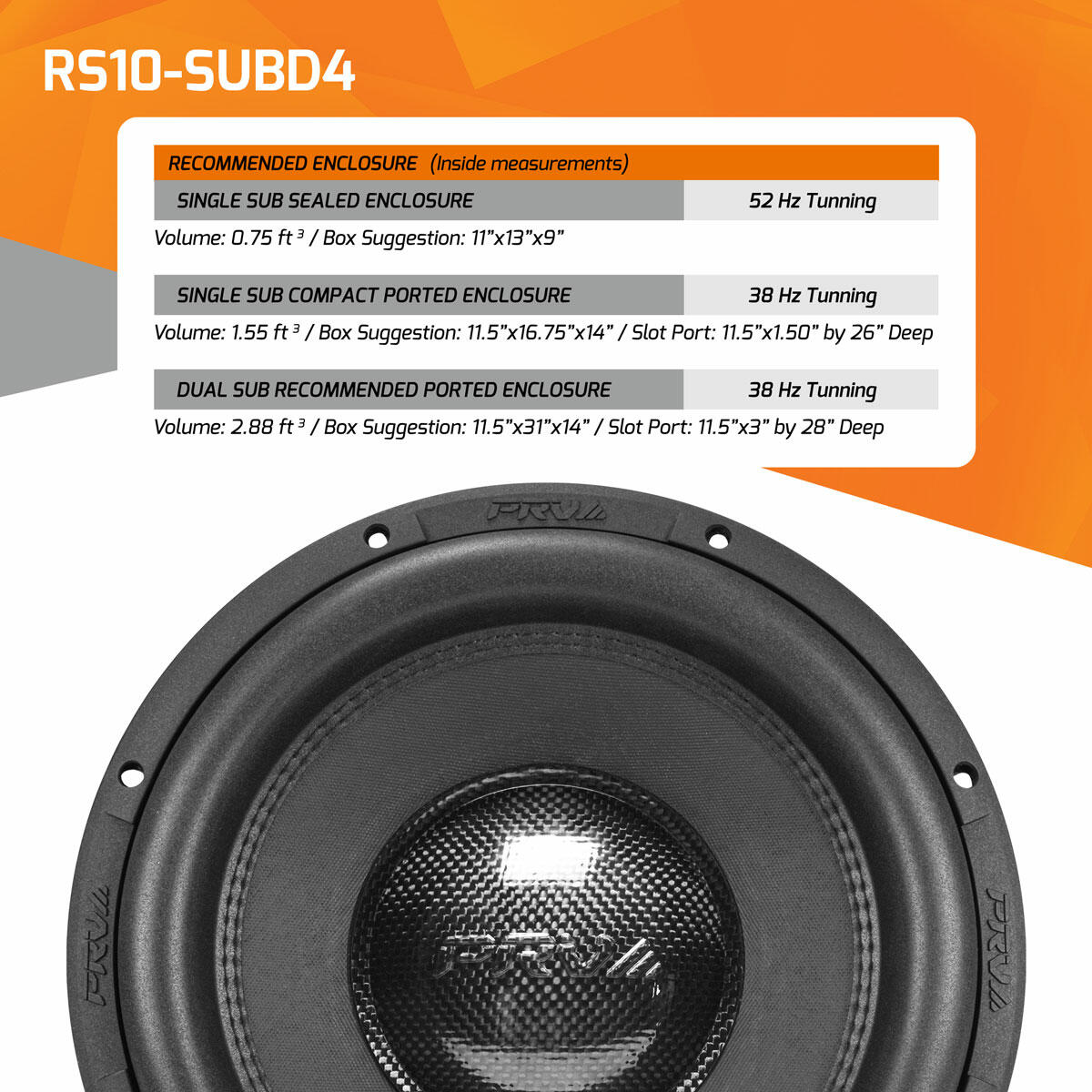

Recommended Custom Enclosures: Inside measurements based with 3/4 wood material.
Single Sub Sealed Enclosure 52 Hz Tunning
All sealed-enclosures should be filled to 50% of poly-fil.
| Volume | Box Suggestion | Port Size |
|---|---|---|
| 0.75 ft3 | 11x13x9 | N/A |
Single Sub Compact Ported Enclosure 38 Hz Tunning
| Volume | Box Suggestion | Port Size |
|---|---|---|
| 1.55 ft3 | 11.5x16.75x14 | Slot Port 11.5x1.50 by 26 Total Length |
Dual Sub Recommended Ported Enclosure 38 Hz Tunning
| Volume | Box Suggestion | Port Size |
|---|---|---|
| 2.88 ft3 | 11.5x31x14 | Slot Port 11.5x3 by 28 Total Length |
GENERAL SPECIFICATIONS
| Nominal Diameter | 10" (254 mm) |
| Nominal impedance | 4 + 4 Ohm |
| Nominal Power Handling | 500 Watts |
| Continuous Program Power (RMS) | 1000 Watts |
| Max Peak Power | 2000 Watts |
| Sensitivity 1.41V at 1m | 84 dB (Parallel VC) |
| Voice Coil Diameter | 2.6" (65.5 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 40.0 mm |
| Former Material | Black Aluminum |
| Magnetic Gap Depth | 10.0 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 8.22 l |
| Excursion (mathematical)*** | Xmax | 17.5 mm |
| Free Air Resonance | Fs | 48.5 Hz |
| Mechanical Factor | Qms | 10.00 |
| Electrical Factor | Qes | 0.74 |
| Total Factor | Qts | 0.69 |
| Cone Area | Sd | 330 cm |
| Mechanical Mass | Mms | 198.7 g |
| Bl Factor | Bl | 11.76 Tm |
| Dc Resistance (Parallel VC) | Re | 1.7 Ohm |
| Inductance | Le | 1.54 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 195.3 g |
| Mechanical Compliance | Cms | 0.054 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO

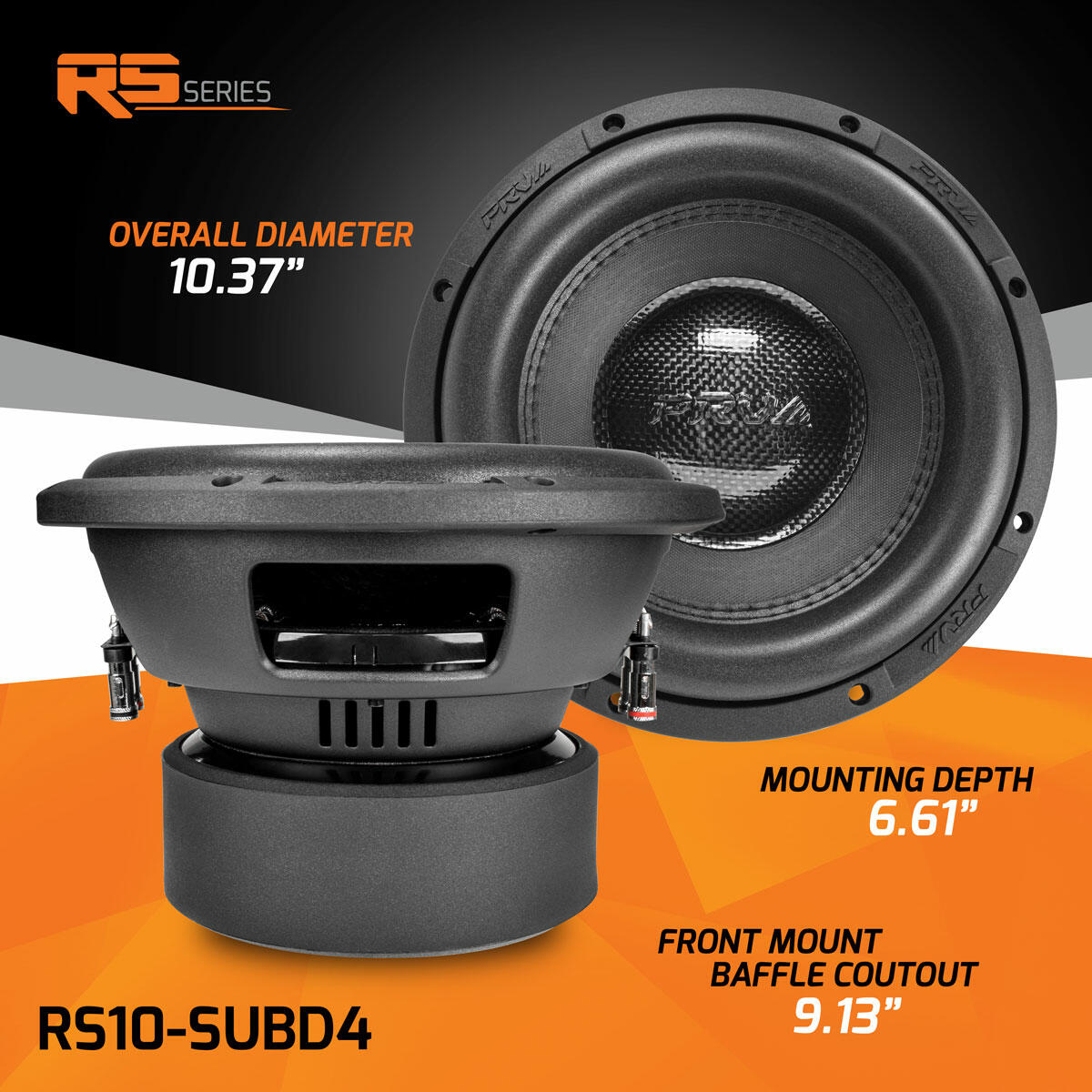

| Overall Diameter | 10.37" (263.5 mm) |
| Front Mount Baffle Cutout | 9.13" (232 mm) |
| Mounting Depth | 6.61" (168 mm) |
| Overall Depth | 7.16" (182 mm) |
| Net Weight | 21.27 Lbs (9.65 kg) |
| Shipping Weight | 24.25 Lbs (11.00 kg) |
| Carton Dimensions W x L x H | 11.61" x 11.61" x 7.87" (295 x 295 x 200 mm) |
