PRV Audio RS500 BASS 2 Ohm 1 Channel Monoblock Amplifier
Features
The RS Series is designed for SPL competitors or those looking to bang harder on their daily systems. This Class-D monoblock amplifier has an overbuilt power supply with true copper to provide optimum bass response.
Our engineering team focused on achieving a deep bass response, making our bass amplifiers have a completely different response than our full range amplifiers! Featuring an overbuilt power supply on a heavy-duty PCB board, this amplifier takes performance to the next level with consistent power output.
- Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

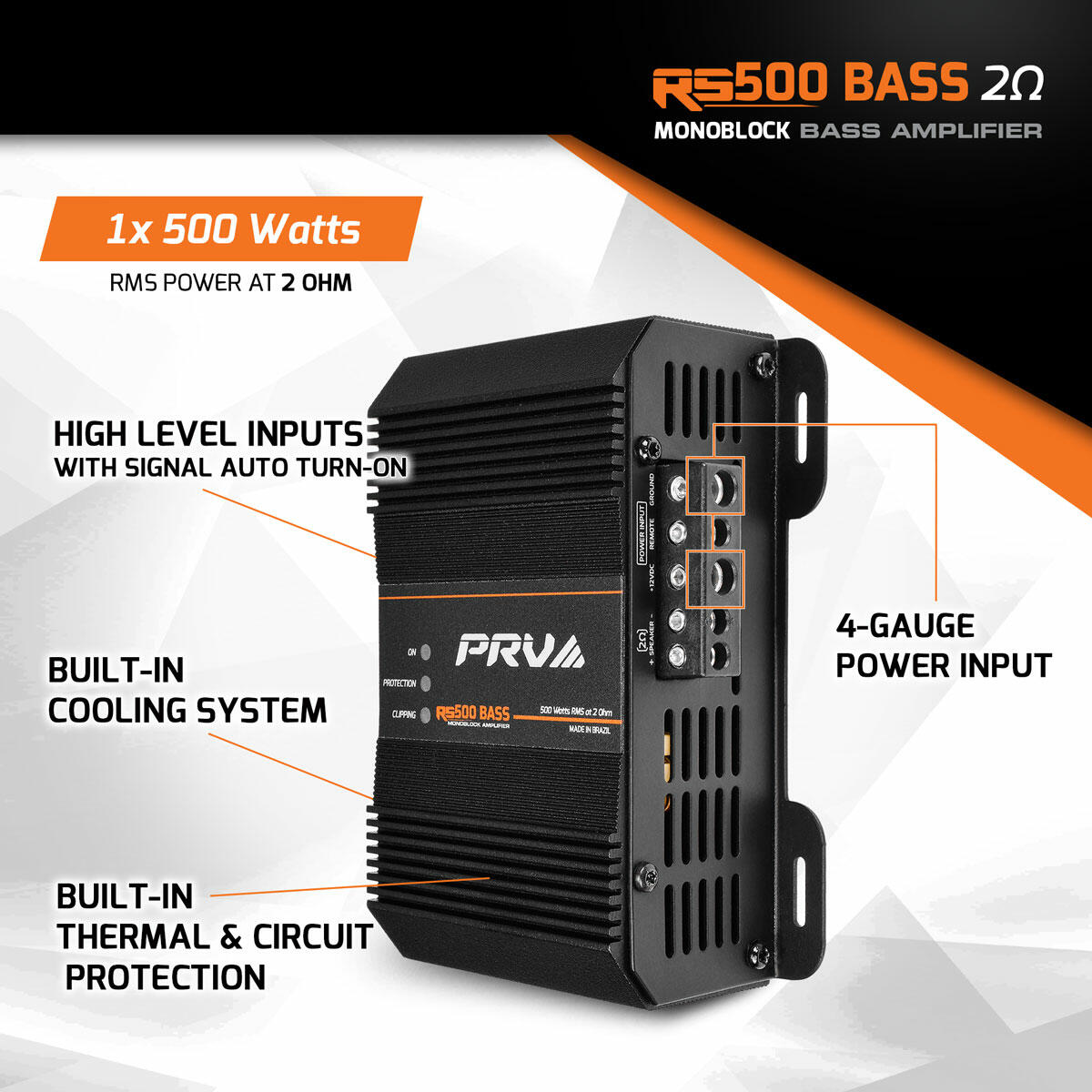

- Smart Bass Amplifier Monoblock 1 Channel 500 watts at 2 Ohm TRUE RMS certified. Intelligent 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Clip LED indicators on the top panel.
- Manufactured with the highest quality components, such as Tiffany RCA inputs that are extreme vibration resistant, it assures a flawless audio connection and heavy duty high current flow 4 gauge power inputs and 10 gauge speaker outputs.
- High Capacitance Reserve Large capacitor bank designed to store more energy and provide a consistent bass, capable of astonishing power output over 900 Watts. Operating Voltage 9 to 16 volts.
Adding amplifiers to your stock system is easy with this HIGH-LEVEL INPUT converter. This system attaches directly to speaker wires using a speaker-level input as your audio input to the amplifier and with signal auto turn-on it eliminates the need to run a turn-on remote wire.
While targeted primarily subwoofer applications, the RS500 has a built-in BASS BOOST level control from 0 to +12 dB with a variable frequency knob from 35 to 50Hz, to easily set the lowest tones you want from your system.
500 Watts RMS at 2 Ohm, tailored for bass frequencies between 10 and 200Hz, which can be set in different ranges on its built-in SUBSONIC and LPF Filters.
Built for Bass, experience lower, louder and more impressive bass than ever before!
Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.

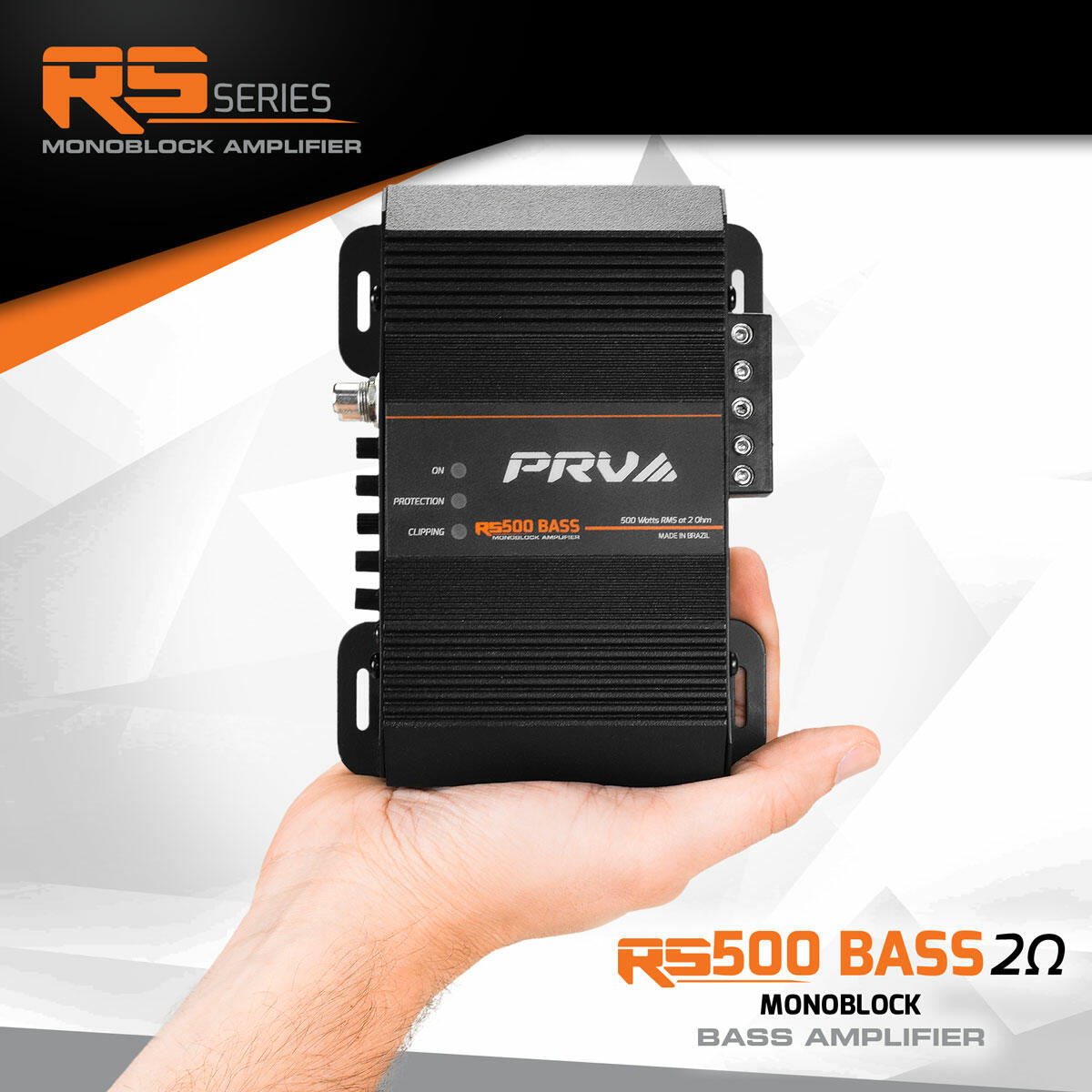

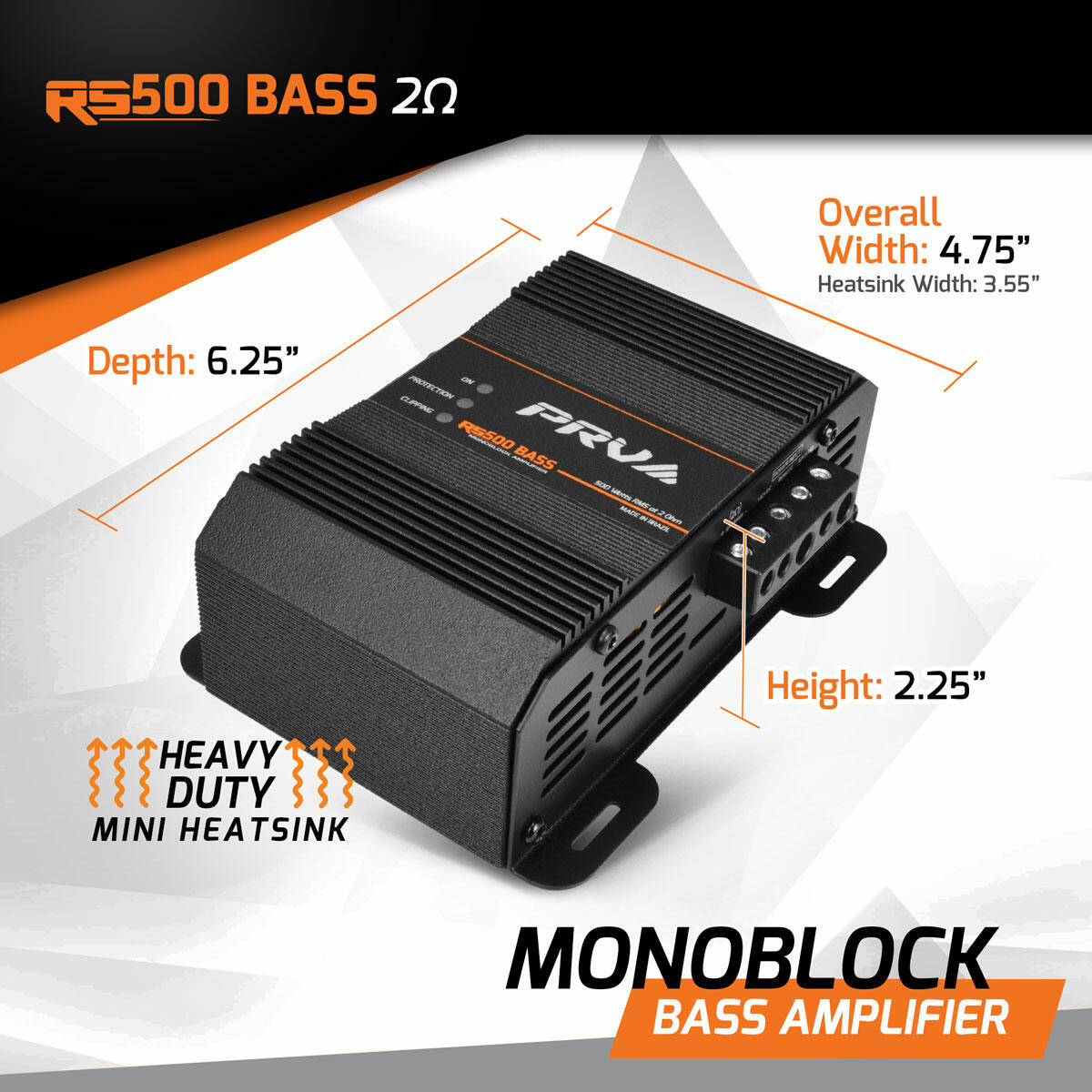

A small footprint heavy duty heatsink makes this small amplifier easy to install anywhere in vehicle. Overall 4.75 Width by 6.25 Length and only 2.25 Height. At only 2 lbs. allows any custom system to achieve the highest performance and weight ratio possible.
PRV Audio RS500 BASS 2 Ohm Monoblock 1 Channel Subwoofer Amplifier 500 Watts RMS at 2 Ohm
Popular Installation configurations with this amplifier:
Configuration for DUAL 4 Ohm subwoofer, its high power output channel allow you to install 1x subs in parallel at 2 Ohm, giving up to 500 watts to the sub.
Before Installing:
You must follow the instructions for the products installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25.
Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guar...

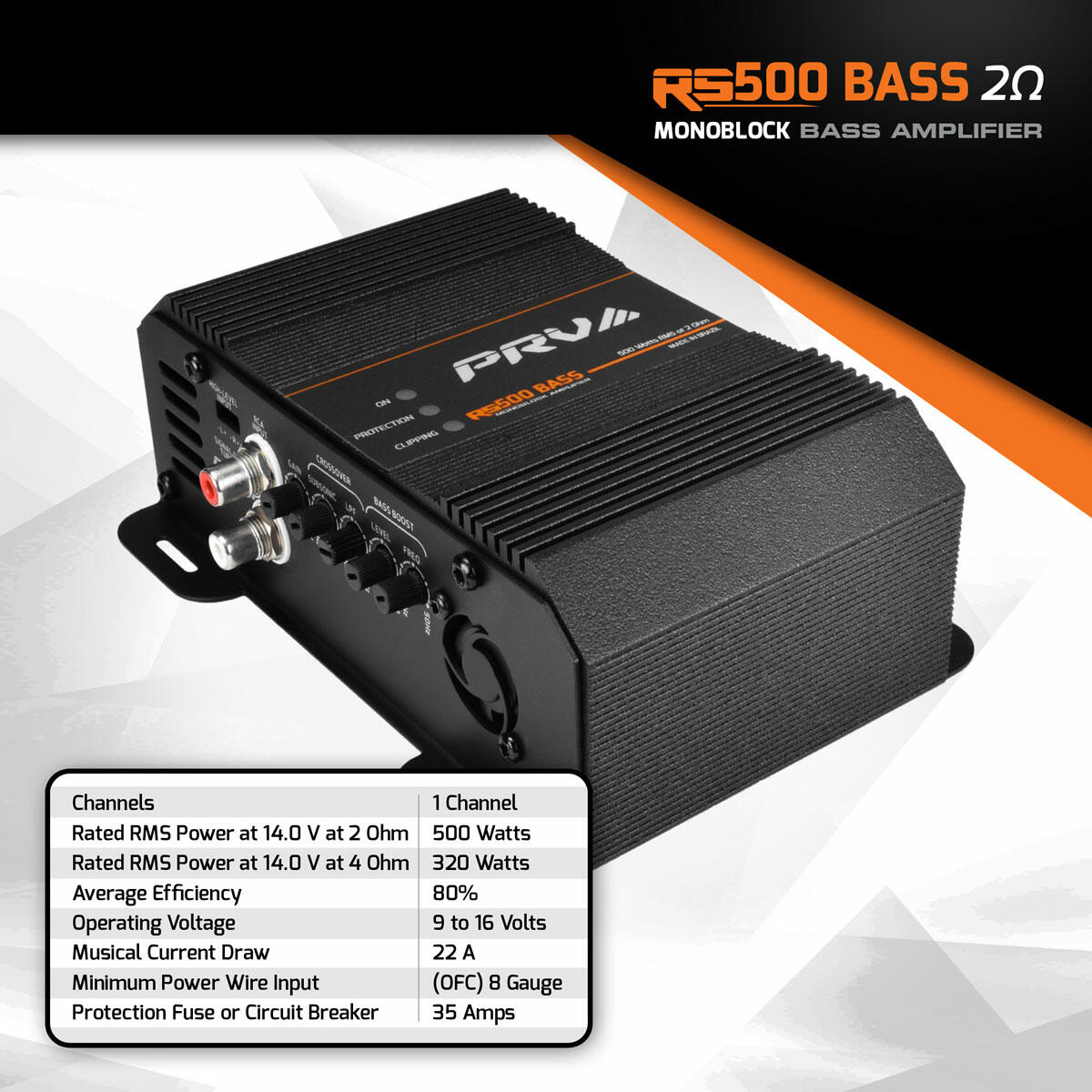

GENERAL SPECIFICATIONS
| Impedance | 2 Ohm |
| Channels | 1 Channel |
| Rated RMS Power at 14.0 V at 2 Ohm | 500 Watts |
| Rated RMS Power at 14.0 V at 4 Ohm | 320 Watts |
| Average Efficiency | 80% |
| Operating Voltage | 9 to 16 Volts |
| Musical Current Draw | 22 A |
| Minimum Power Wire Input | (OFC) 8 Gauge wires |
| Protection Fuse or Circuit Breaker | 35 Amps |
| Minimum Speaker Wire Output | 16 Gauge |
| Frequency Response(-3dB) | 10 - 200 Hz |
| Min. Input Sensitivity for Max. Output | 200 mV |
| Signal Input | 1 Pair RCA |
| Signal to Noise | >90 dB |
| Protection System | Shortage on Output |
| Heat Sink Type | Heavy Duty Cast Aluminum |
| Dimensions ( W x D x H ) | 4.75 x 6.25 x 2.25 |
| Weight | 2 Lbs |
