PRV Audio TW400Ti-Nd-4 SLIM Shallow Neodymium Tweeter (Pair)
PLEASE NOTE: THIS ITEM IS SOLD AS A PAIR
Features
The PRV Audio TW400Ti-Nd-4 SLIM Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight and size dramatically without compromising any performance.

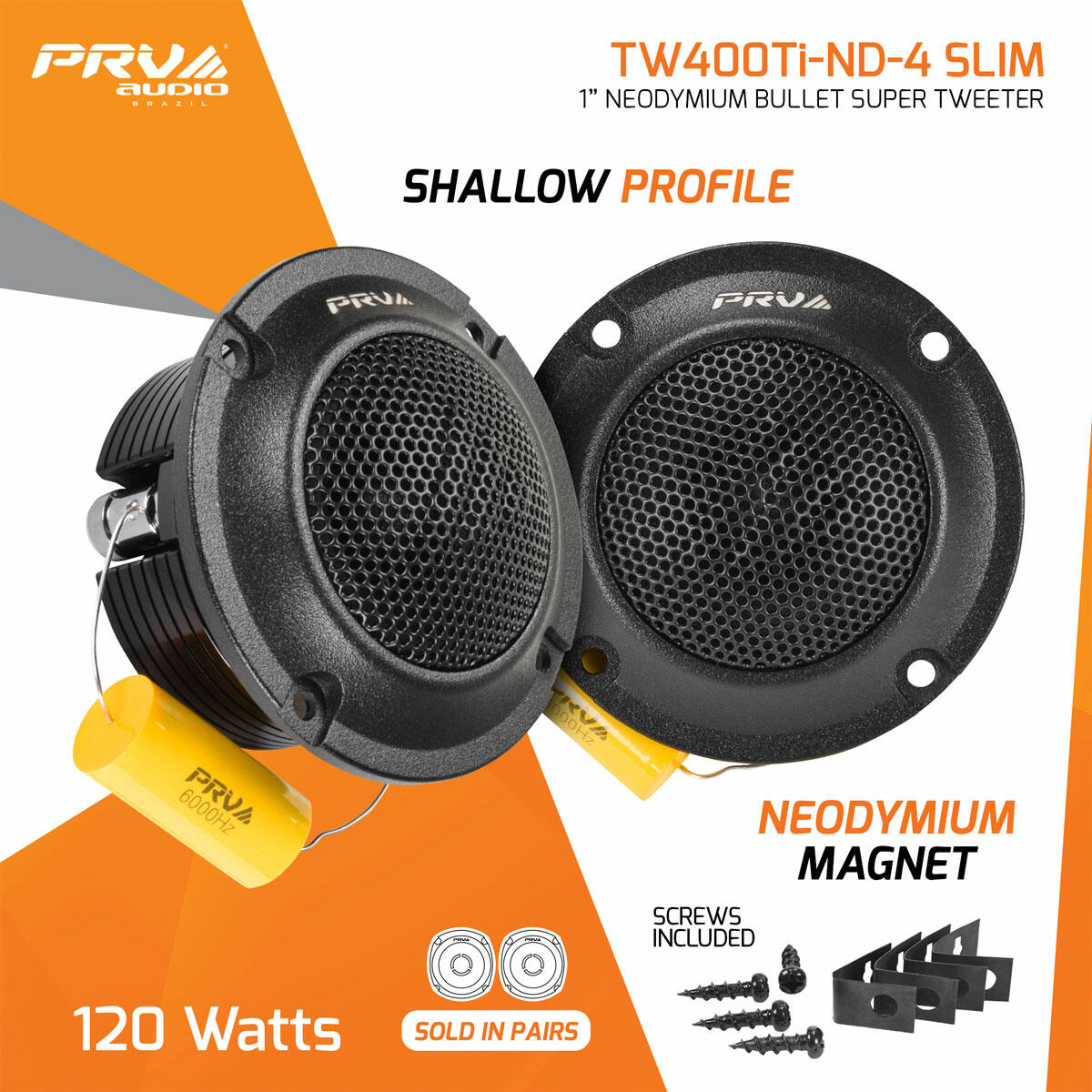

- Designed to fit in tight spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any interior system
- Hidden push terminal connection, takes less space on installation

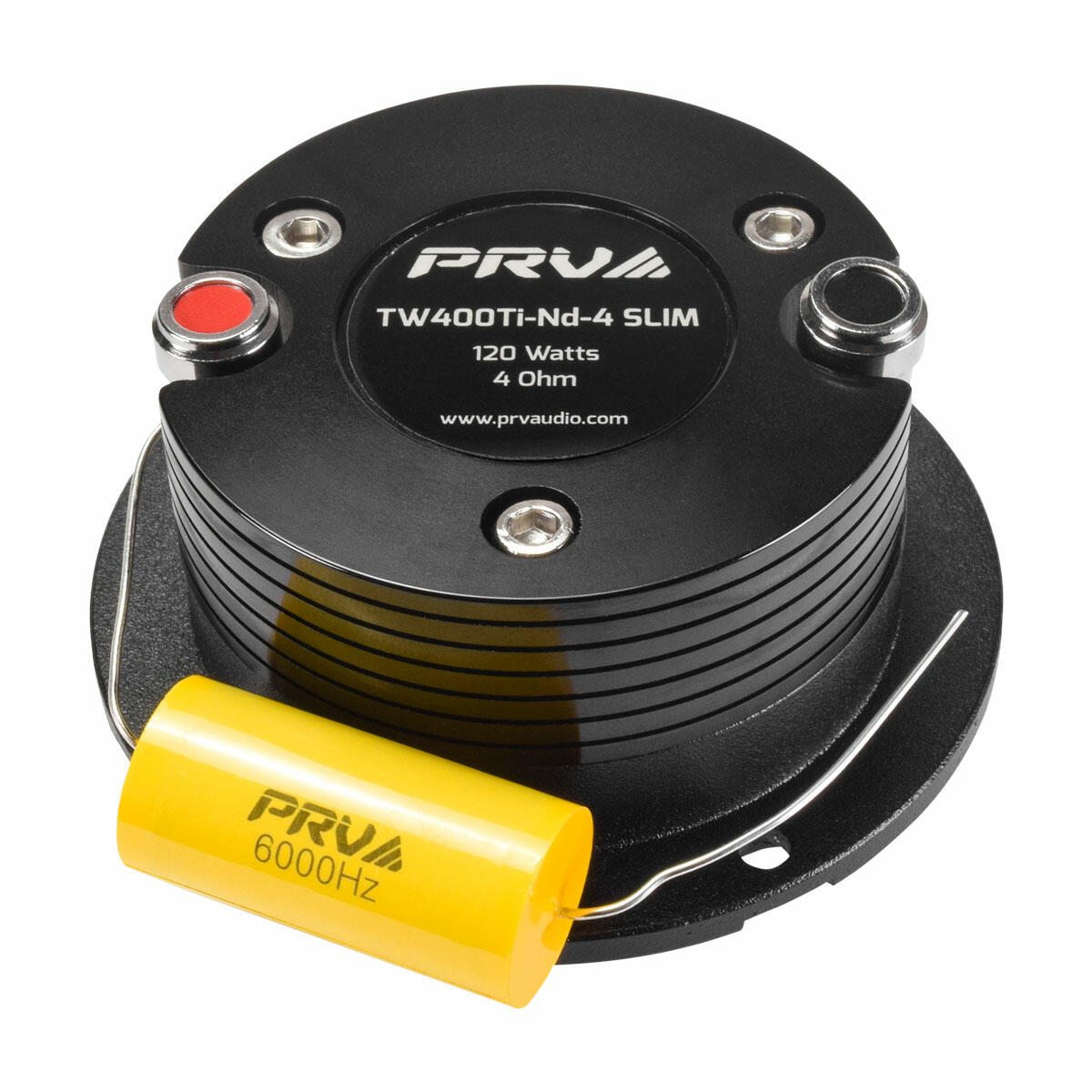

- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz

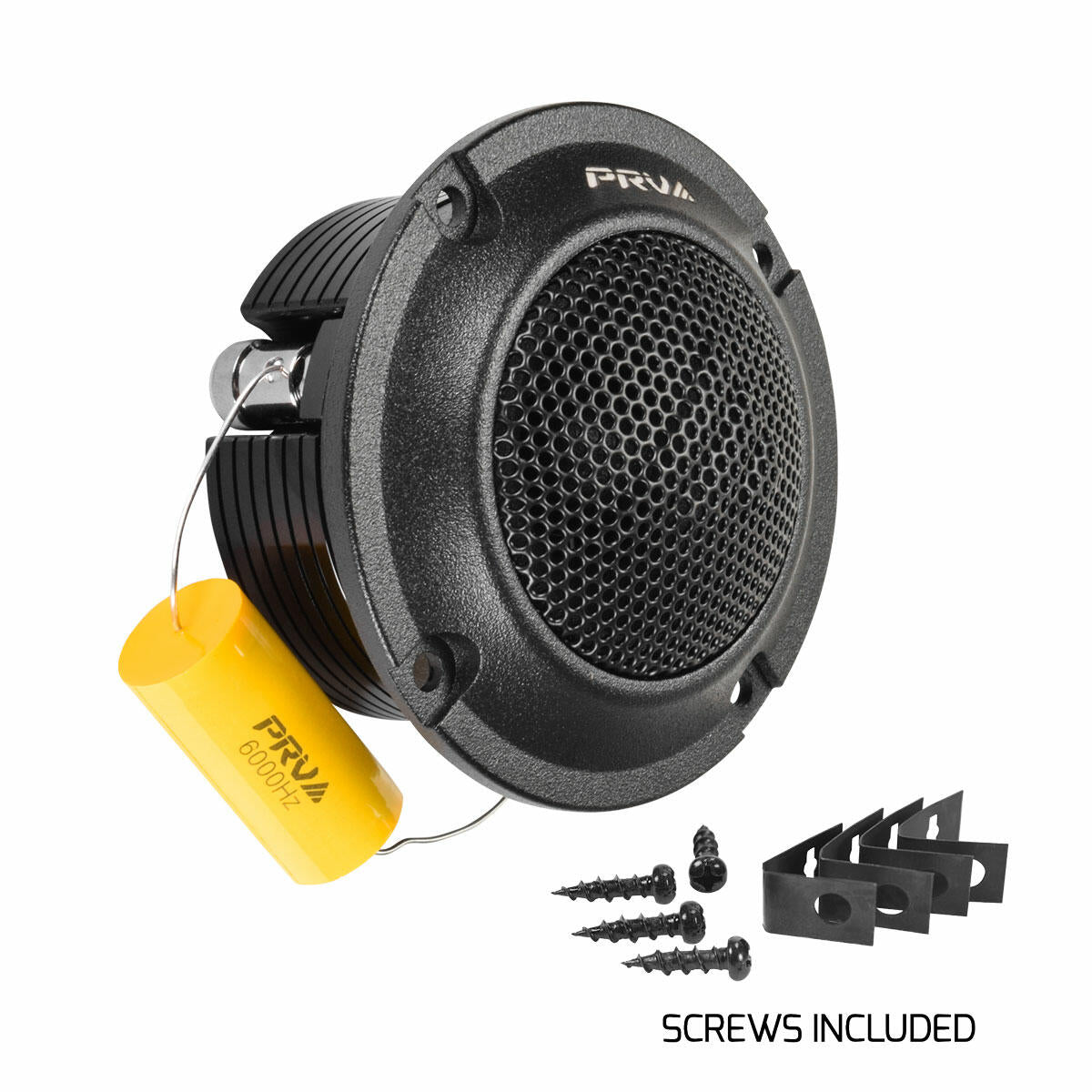

- Sold in Pairs Mounting Screws are included, Also available in White
Add detail to any speaker with PRV Audios TW400Ti-Nd-4 SLIM 1 exit titanium super compact bullet super tweeter!
The titanium diaphragm combines with the durable, yet lightweight, Kapton voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz.. The tweeter is perfect for Pro Audio On Wheels applications.
Due to the premium materials used in its construction, such as a titanium diaphragm, a high-temperature voice coil, and a strong neodymium magnet motor, this produces a remarkably high frequency.
After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.
PRV Shallow Car Audio Bullet Tweeter TW400Ti-Nd-4 SLIM BLACK Neodymium 4 Ohm 3 Rounded Ultra Slim Easy to Mount Tweeters (Pair)
Recommended Crossover Guide:
Recommended HPF using PRV Digital Signal Processor DSP when using up to 120 Watts RMS musical power ( without clipping ) with Capacitor
- 5000 Hz at 18 dB per octave filter Crossover / BT18
- 7000 Hz at 24 dB per octave filter Crossover / BT24 without capacitor
No LPF crossover for tweeters
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power (RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 105 dB |
| Recommended High Pass Crossover For Full Power Handling | 6000 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 4,500 - 20,000Hz |
| Voice Coil Diameter | 1.0" (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.45 T |
| Magnet Material | Neodymium |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO

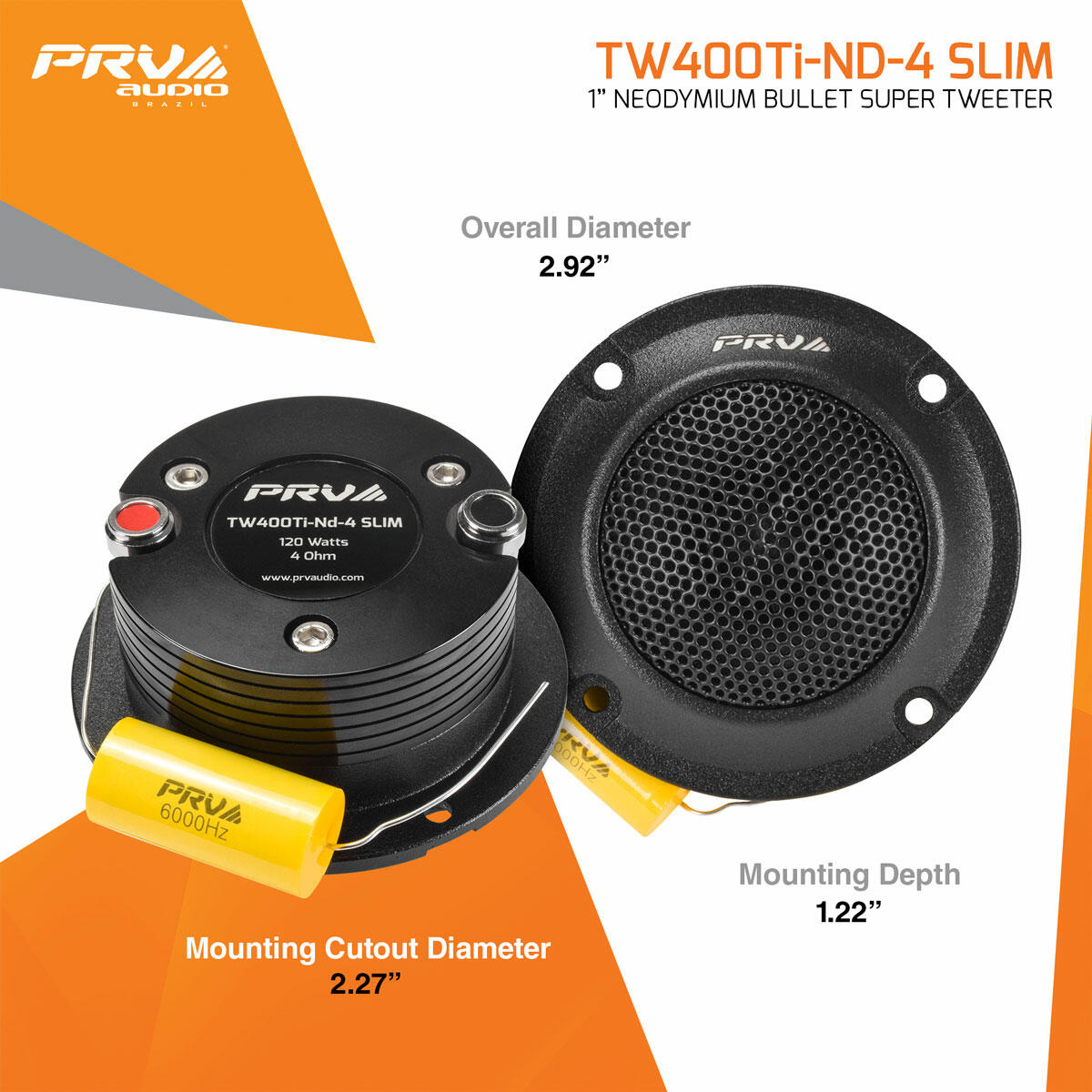

| Overall Depth | 1.93" (49 mm) |
| Mounting Depth | 1.22" (31 mm) |
| Overall Diameter | 2.92" (74 mm) |
| Cutout Diameter | 2.27" (57.7 mm) |
| Net Weight | 0.66 lbs (0.30 kg) |
| Shipping Weight (pair) | 1.54 lbs (0.70 kg) |
| Carton Dimensions W x L x H | 6.77" x 3.15" x 1.99" (172 x 80 x 50 mm) |
