PRV Audio TW400Ti-Nd-4 v2 1" Exit Neodymium Bullet Tweeter (Pair)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio TW400Ti-Nd-4 v2 1" Exit Neodymium Bullet Tweeter (Pair)
PLEASE NOTE: THIS ITEM IS SOLD AS A PAIR
Features
New Evolution of our 1 exit neodymium bullet tweeters!
Smaller Motor has been re-designed to be more compact on its total mounting depth.
Improved Designed Featuring a new concept, easy to replace diaphragm ( solderless )
PRV Audios TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz.
Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.
Add detail to any speaker with PRV Audios TW400Ti-Nd-4 v2 titanium bullet super tweeter!
- 1 Bullet Super Tweeter
- Nominal Impedance: 4
- Titanium diaphragm for an accurate and detailed response

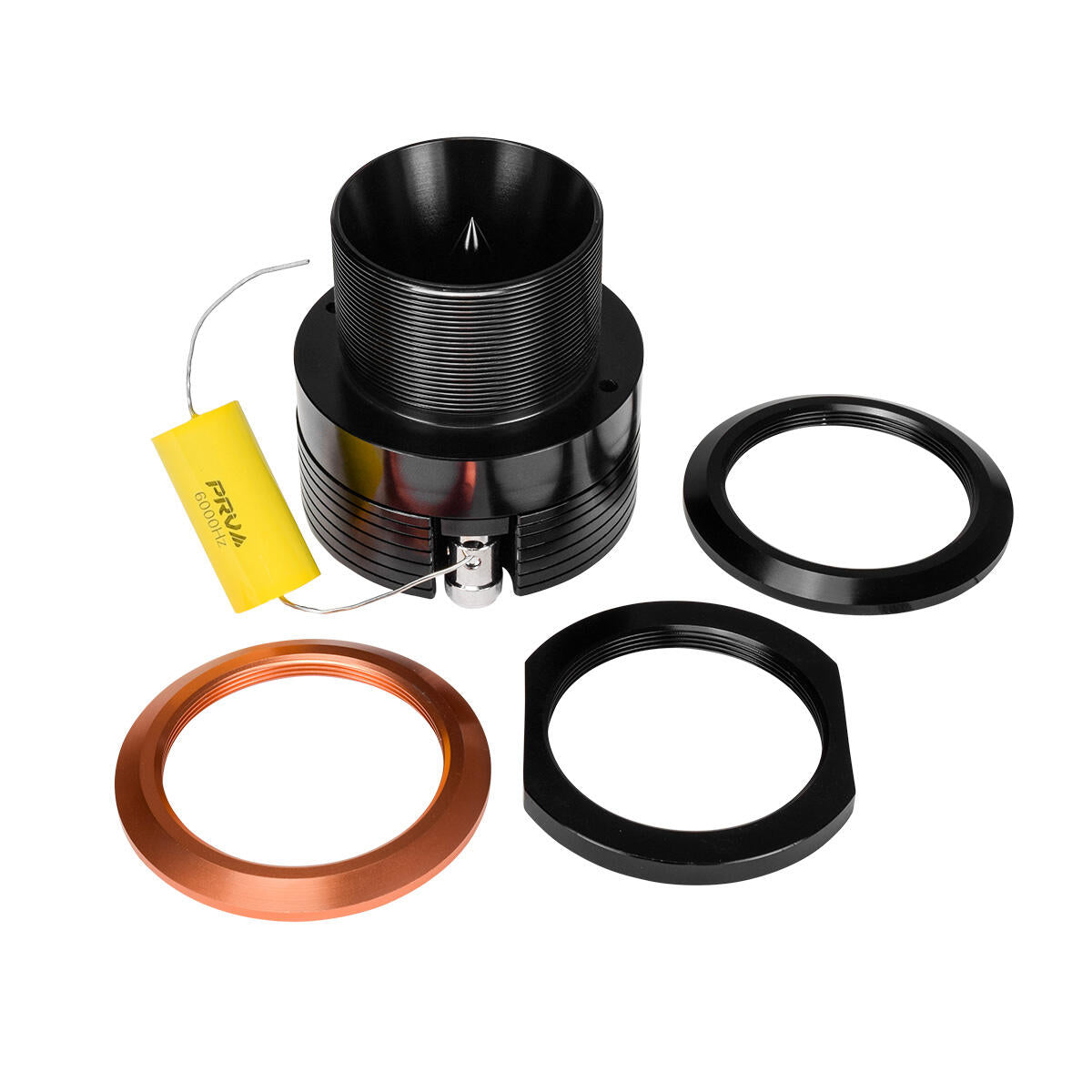

- Screw fittings make rear mounting easy and simple
- Voice Coil Diameter: 1
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power (RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 106 dB |
| Recommended High Pass Crossover For Full Power Handling | 6000 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 4,500 - 20,000Hz |
| Voice Coil Diameter | 1.0" (25.4 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.45 T |
| Magnet Material | Neodymium |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO

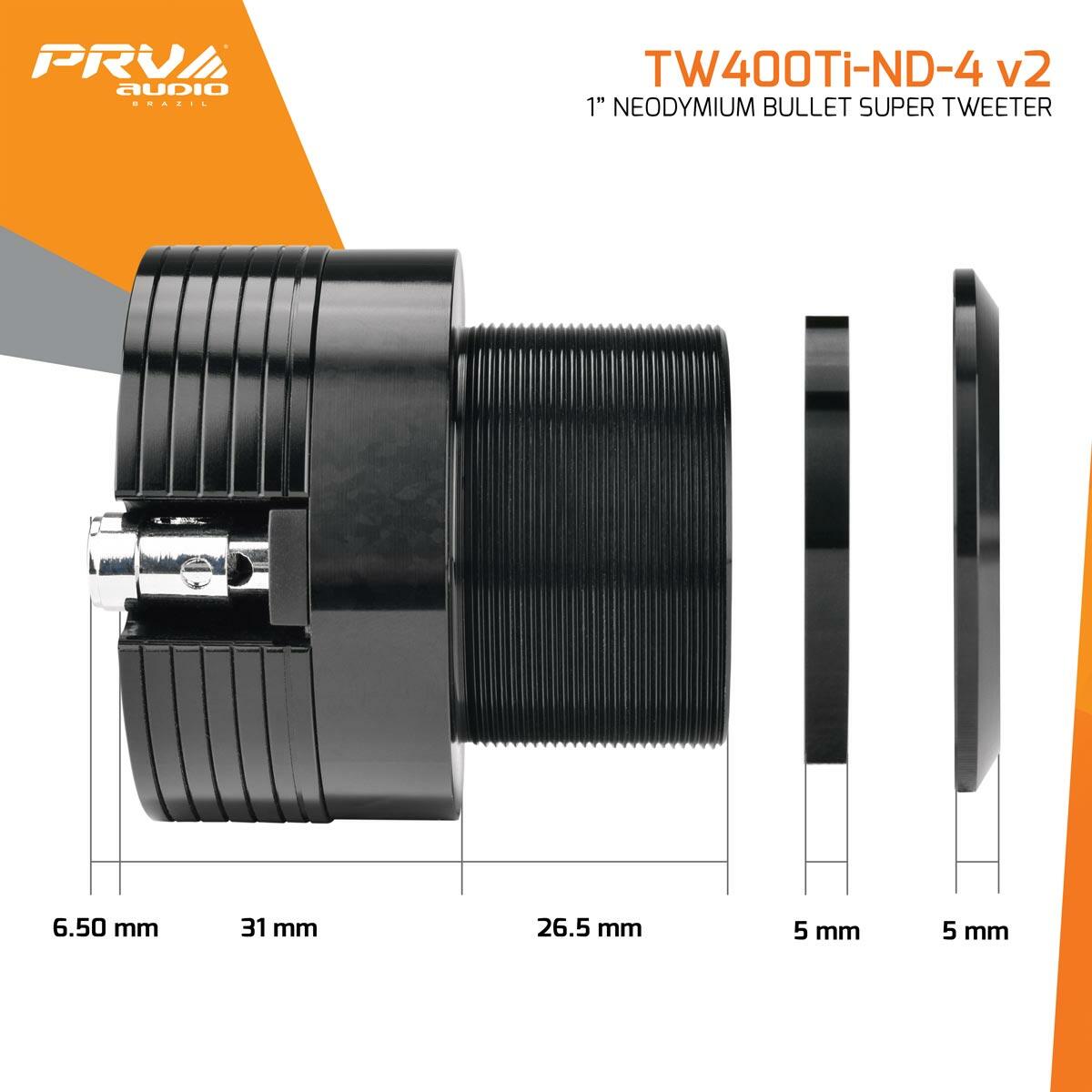

| Overall Depth | 2.58" (65.5 mm) |
| Mounting Depth | 1.51" (38.5 mm) |
| Overall Diameter | 2.19" (55.7 mm) |
| Cutout Diameter | 1.69" (43 mm) |
| Net Weight | 0.72 lbs (0.33 kg) |
| Shipping Weight (pair) | 2.14 lbs (0.97 kg) |
| Carton Dimensions W x L x H | 6.02" x 3.26" x 3.54" (153 x 83 x 90 mm) |
