Product Description
Shipping
Returns
Questions?

PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)



Features

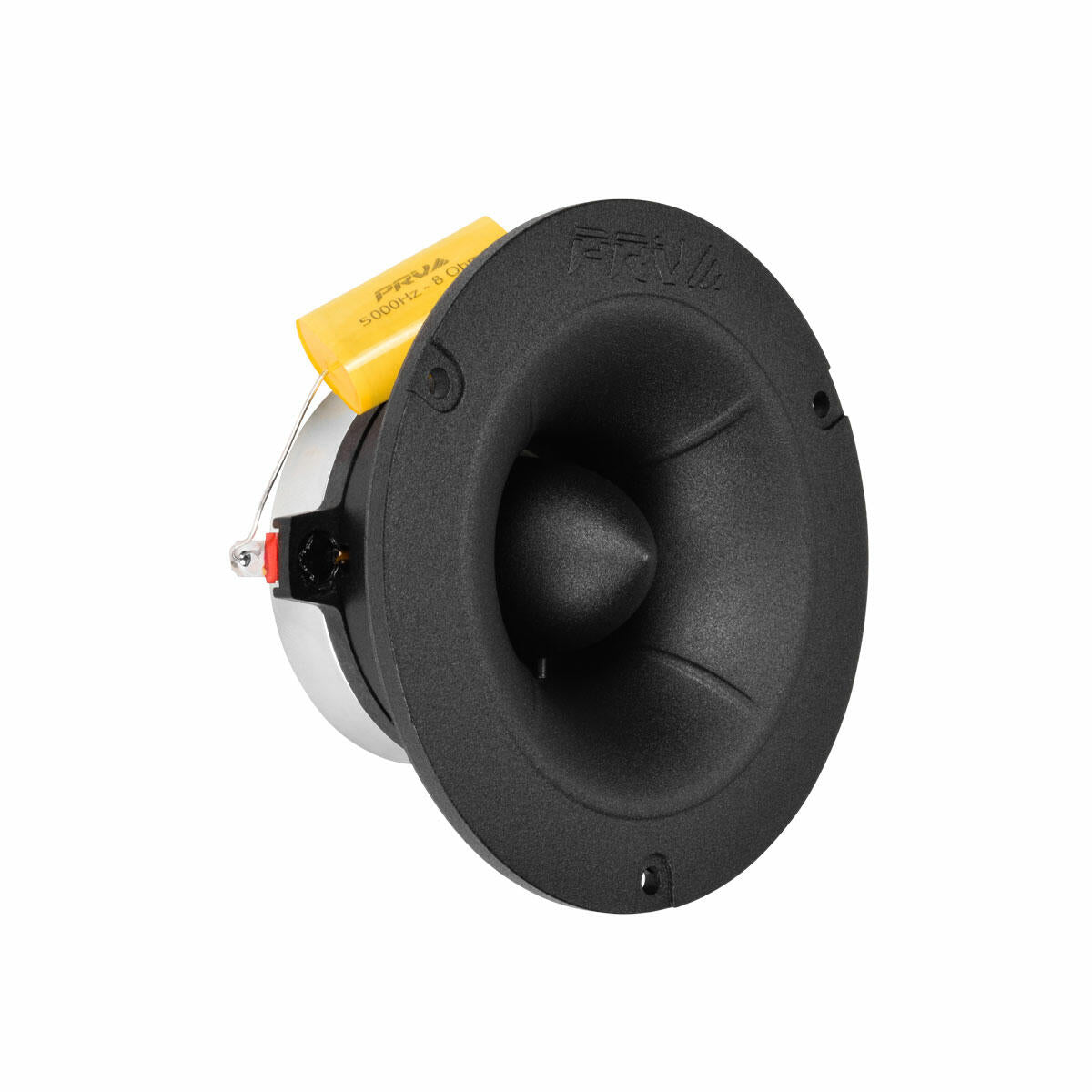

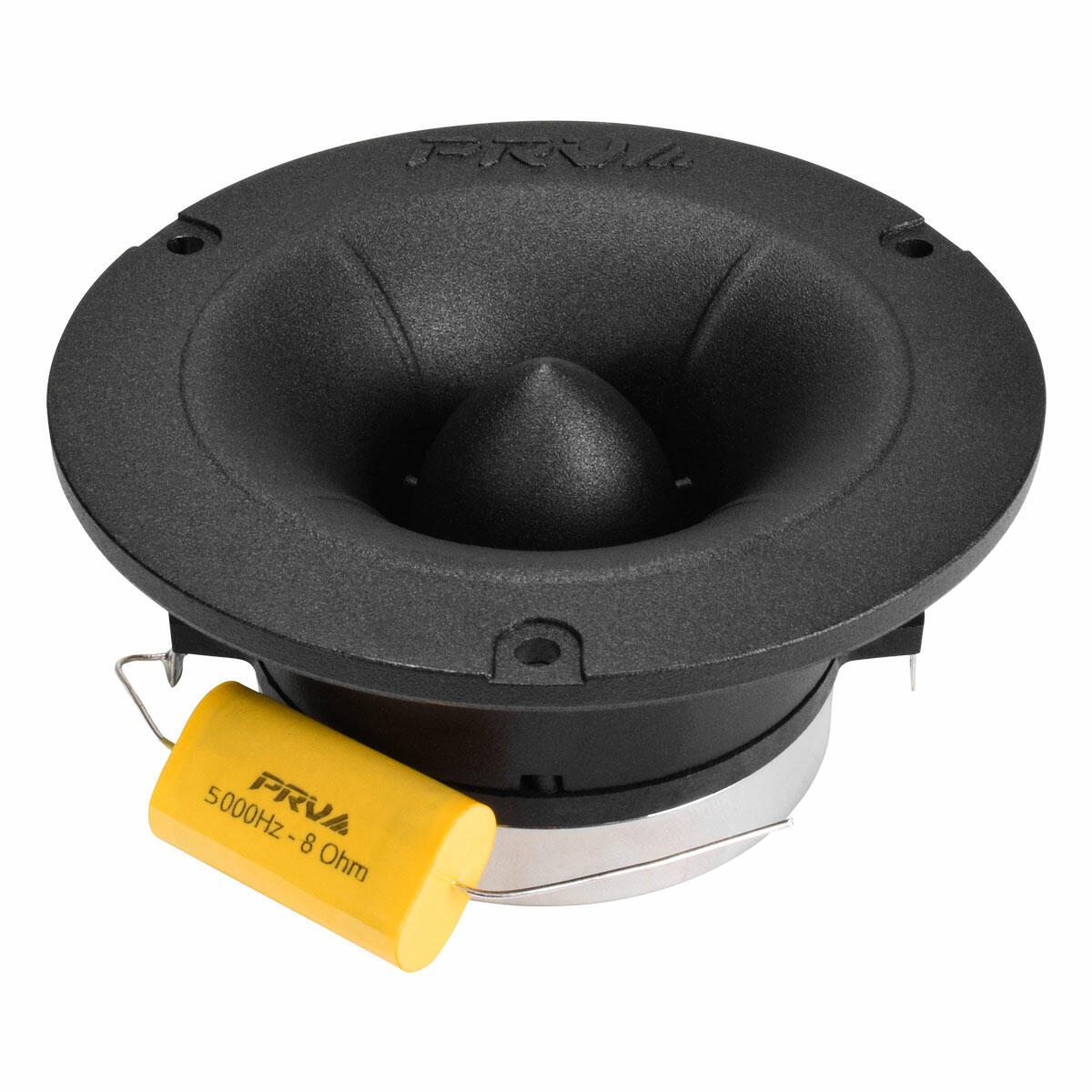

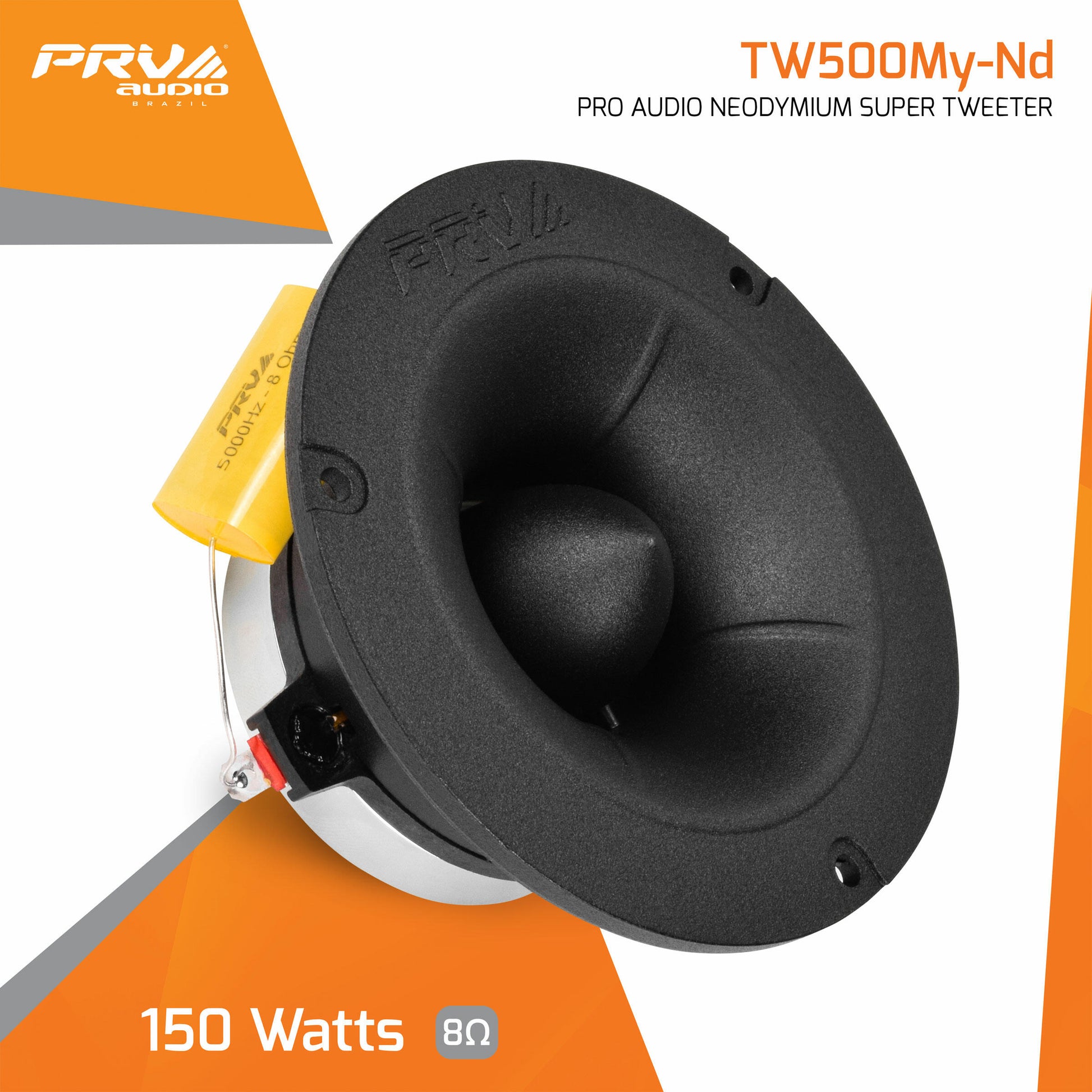

PRV Audios TW500My-Nd bullet tweeter features a lightweight diaphragm driven by a powerful neodymium motor to deliver natural and smooth response with low distortion.

  • Designed to fit in tight spaces without any major modifications
  • Mylar diaphragm for superior accurate and detailed response
  • Designed to add high output, high frequency response to any large system
  • Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
  • Able to take a ton of power! Up to 150 watts RMS of power handling

With an aluminum voice coil wound on a Kapton former and Mylar diaphragm, the moving parts have been kept as light as possible for improved efficiency.

In addition, this tweeter uses a powerful neodymium magnet to further increase efficiency and ensure accurate control for low distortion.

Producing a sensitivity of 109 dB 1W/1m this tweeter can keep up with even the most efficient sound systems. You will be amazed by the sheer output levels the TW500My-Nd can produce!

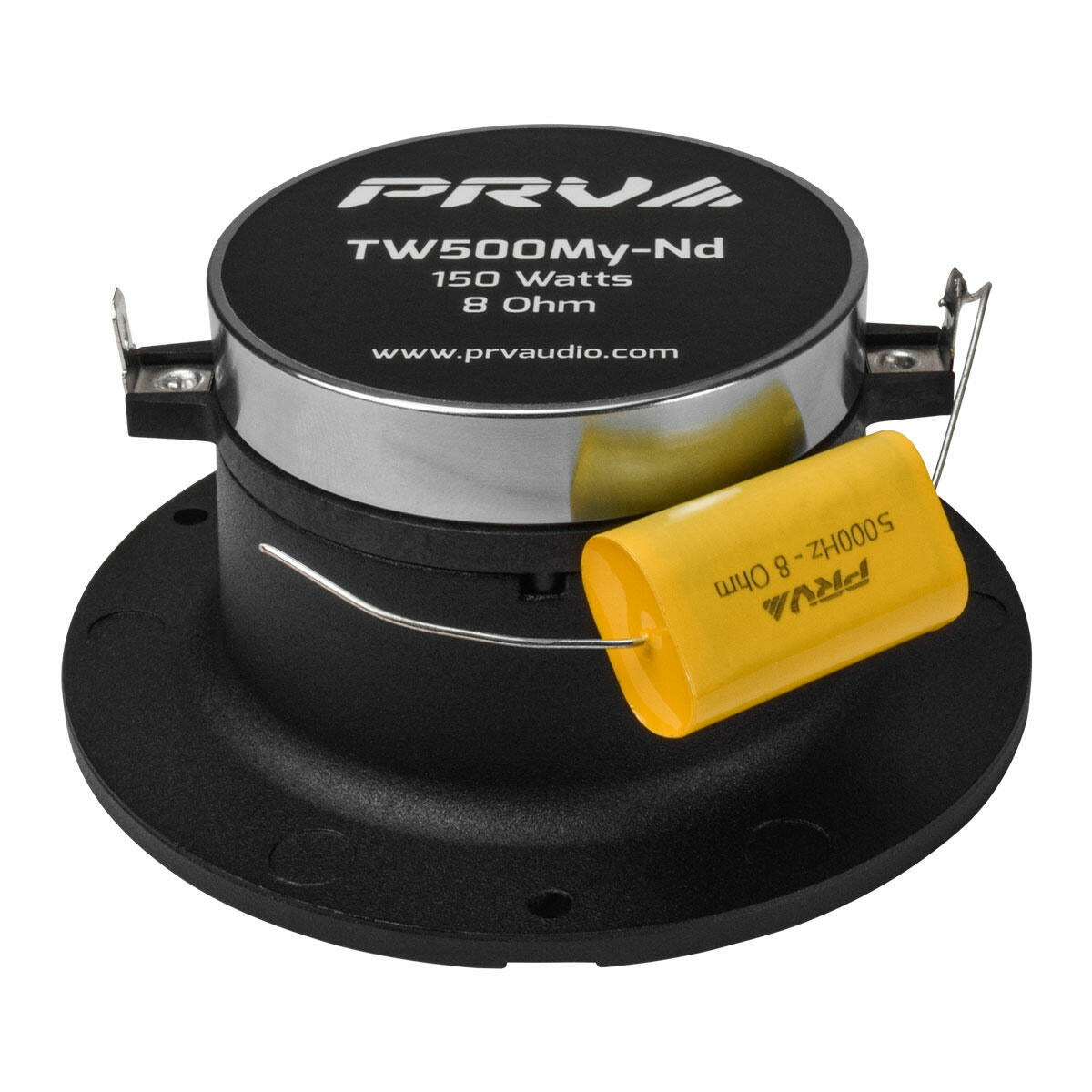

A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.

The Mylar diaphragm is attached to a 1.25 diameter aluminum wire with Kapton former for a high 150 Watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP

  • 4000 Hz at 12 dB per octave filter Crossover / BT12
  • 3500 Hz at 18 dB per octave filter Crossover / BT18

Its incredible output capabilities and wide frequency response make this tweeter one of our best super tweeters on the market!

PRV Neodymium Super Tweeter TW500My-Nd 150 Watts 8 Ohm Premium, High Efficient Tweeter Mylar Diaphragm

Recommended Settings with DSP / Crossover

We strongly recommended ALWAYS to use a high pass filter ( HPF ) on or to the amplifier channel that will be running the tweeters.

If you have just a high output crossover such as: EX3.5 STEREO or EX4.6 PRO Use the HIGH OUT channel to feed the amplifier input with a HPF set to:
At 5000Hz if you are running just a speaker and tweeter setup
At 8000Hz If you are running a 3-Way system ( speaker, phenolic driver and tweeter )

If you are taking your system to the next level and tuning it with a digital signal processor: DSP 2.4X or DSP 2.8X Set on the channel to feed the amplifier input with a HPF set to:
At 5000Hz at LR18 if you are running just a speaker and tweeter setup
At 7000Hz at LR24 If you are running a 3-Way system ( speaker, phenolic driver and tweeter )



GENERAL SPECIFICATIONS

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 75 Watts
Program Power 150 Watts
Sensitivity 2.83V at 1m 108 dB
Recommended Hi Pass Crossover**
**For Full Power Handling		 4000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 3,500 - 19,000 Hz
Voice Coil Diameter 1.25(32 mm)
Voice Coil Wire Aluminum
Voice Coil Former Material Kapton
Diaphragm Material Mylar
Flux Density 1.30 T
Magnet Material Neodymium
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

EXTRA INFO

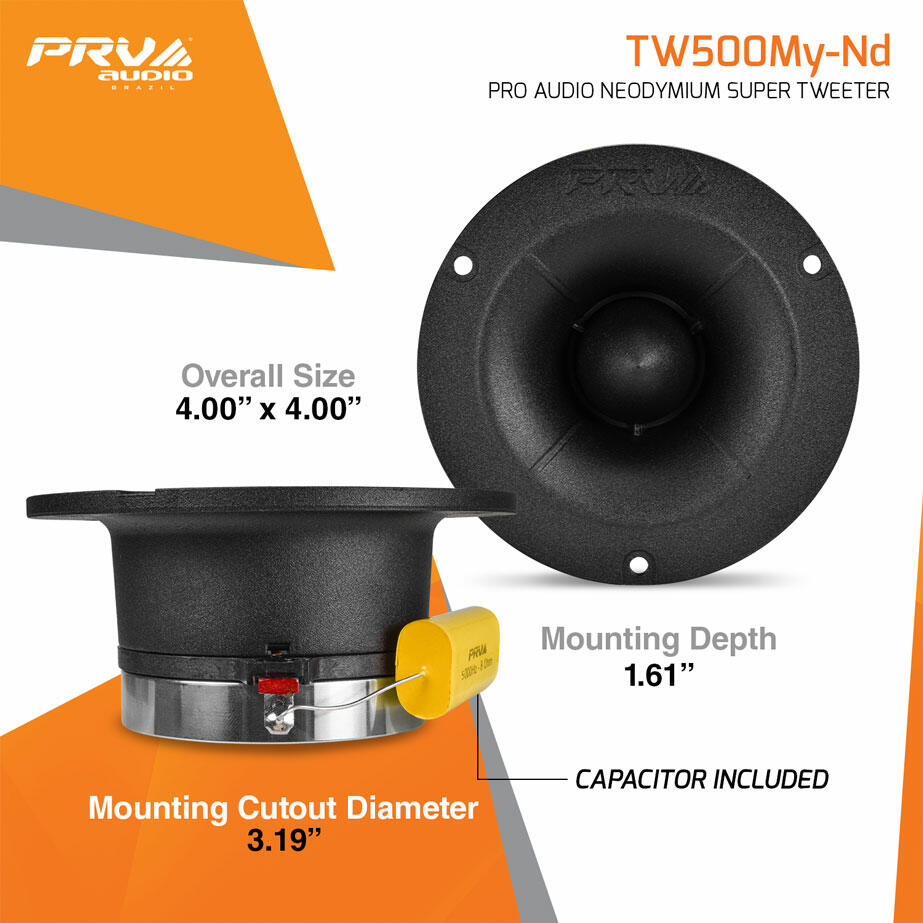

Overall Depth 1.77 (45 mm)
Mounting Depth 1.61 (41 mm)
Overall Diameter 4.0 (100 mm)
Cutout Diameter 3.19 (81 mm)
Net Weight 1.25 lbs (0.56 kg)
Shipping Weight 1.33 lbs (0.60 kg)
Carton Dimensions W x L x H 4.1 x 4.1 x 2.1
(105 x 105 x 55 mm)

FEATURES

  • This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response
  • Includes Polyester metalized film capacitor to lower distortion by limiting low frequencies
  • Rated Power Handling: 75 Watts
  • Program Power: 150 Watts
  • Sensitivity (1W/1m): 108 dB
