PRV Audio TW500Ti-4 Car Audio Super Tweeters (Pair)
PLEASE NOTE: THIS ITEM IS SOLD AS A PAIR
Features
Add crystal clear sparkle to any speaker with PRV Audios TW500Ti-4 titanium bullet super tweeters! The 3.75 rounded faceplate not only gives them a sleek look, but also make them good as they sound, featuring an unique shallow design to it.
They can also take a lot of power from its 1 diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.
- Designed to fit in shallow spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any high output system
- 3.80 faceplate make it easy to install giving it a wide dispersion rate.
- Built-in capacitor act as a crossover and attenuates the low frequencies for smooth frequency response.
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz
These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. Your music will shine thanks to the TW500Ti-4 tweeters, which deliver stunning, crystal clear sound.
Designed with a rounded 3.75 aluminum faceplate that makes it easier to install, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.
PRV Shallow Car Audio Bullet Tweeters TW500TI-4 240 Watts 4 Ohm 3.75- Easy to Mount Tweeters (Pair)
Recommended Crossover Guide:
Recommended HPF using PRV Digital Signal Processor DSP when using up to 120 Watts RMS musical power ( without clipping ) with Capacitor- 5000 Hz at 12 dB per octave filter Crossover / LR12 with capacitor
- 7000 Hz at 24 dB per octave filter Crossover / LR24 without capacitor
No LPF crossover for tweeters
Maximum power handling without any crossover points:
The tweeters capacitor helps attenuate low frequencies, but it cannot cut all low tones, if used parallel to a speaker or straight from a head unit, each will only be able to handle 50 Watts RMS without distortion.
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohm |
| Nominal Power Handling* | 60 Watts |
| Continuous Program Power (RMS)** | 120 Watts |
| Max Peak Power*** | 240 Watts |
| Sensitivity 2.00V at 1m | 104 dB |
| Recommended High Pass Crossover For Full Power Handling | 6000 Hz 12db/oct Crossover |
| Frequency Response at -10dB | 4,500 - 20,000Hz |
| Voice Coil Diameter | 1.0" (25 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.24 T |
| Magnet Material | Ferrite |
EXTRA INFO

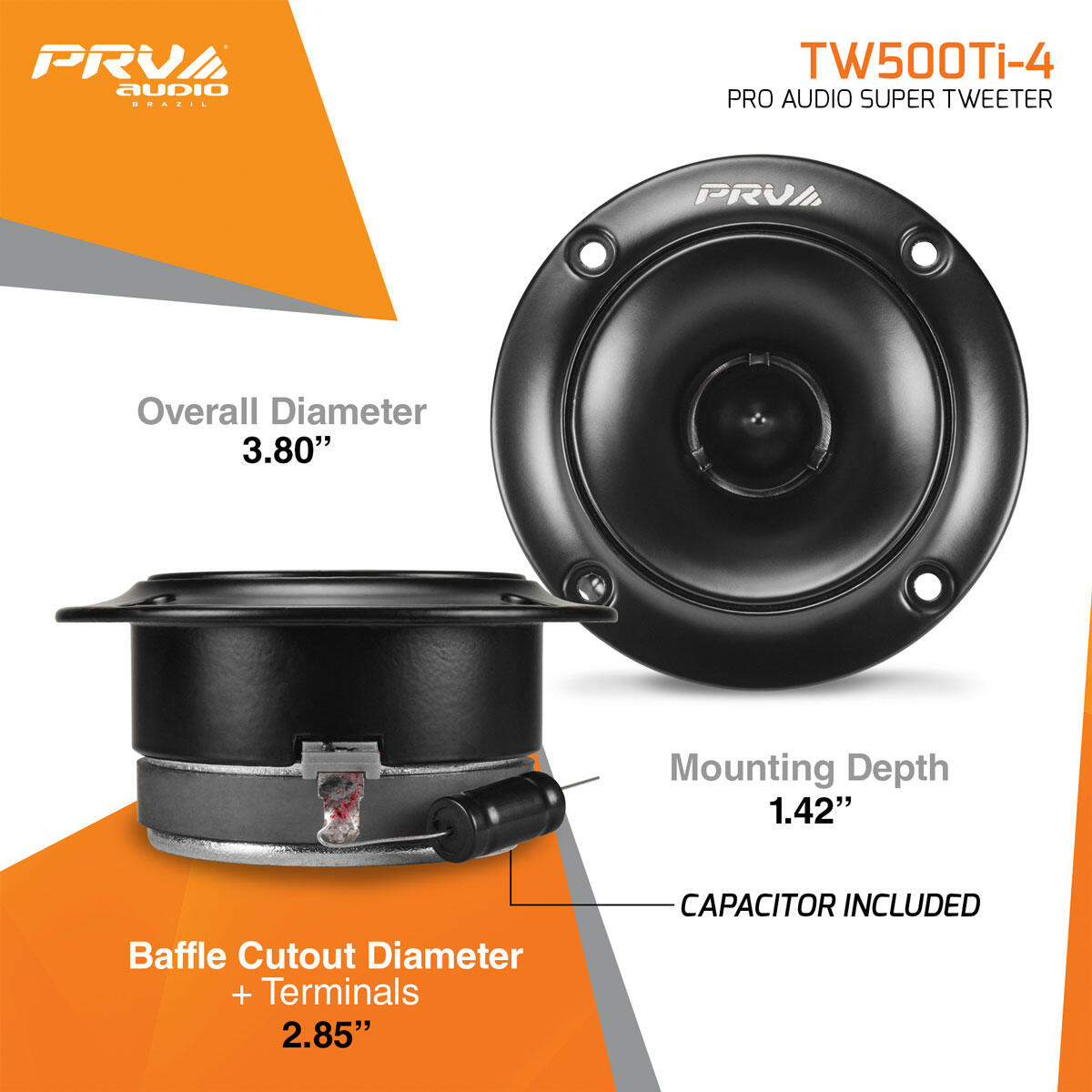

| Overall Depth | 1.73" (44 mm) |
| Mounting Depth | 1.42" (36 mm) |
| Overall Diameter | 3.80" (96.5 mm) |
| Cutout Diameter | 2.85" (72.5 mm) |
| Net Weight | 1.0 lb (0.45 kg) |
| Shipping Weight (pair) | 2.53 lb (1.15 kg) |
| Carton Dimensions W x L x H | 8.86" x 5.53" x 2.16 (225 x 115 x 55 mm) |
