PRV Audio WG175Ph 1" EXIT HIGH FREQUENCY DRIVER + HORN - COMBO (Each)
-
Estimated Delivery:Jun 27 - Jul 01
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio WG175Ph 1" EXIT HIGH FREQUENCY DRIVER + HORN - COMBO (Each)
PLEASE NOTE: THIS ITEM IS SOLD INDIVIDUALLY (EACH)
Features
The WG175Ph horn driver combo is known for great high frequency performance, reliability, and power handling as replacement and upgrade for many guitar cabinets and car audio systems that use 4.55 x 4.55 horn.
- The 108 dB sensitivity allows the speaker to generate high output even with only 150 watts, providing fantastic high-frequency performance, even better value.
- The lightweight design of this horn driver makes it easy to install in car systems such as doors, stuntwalls and trunks lids.

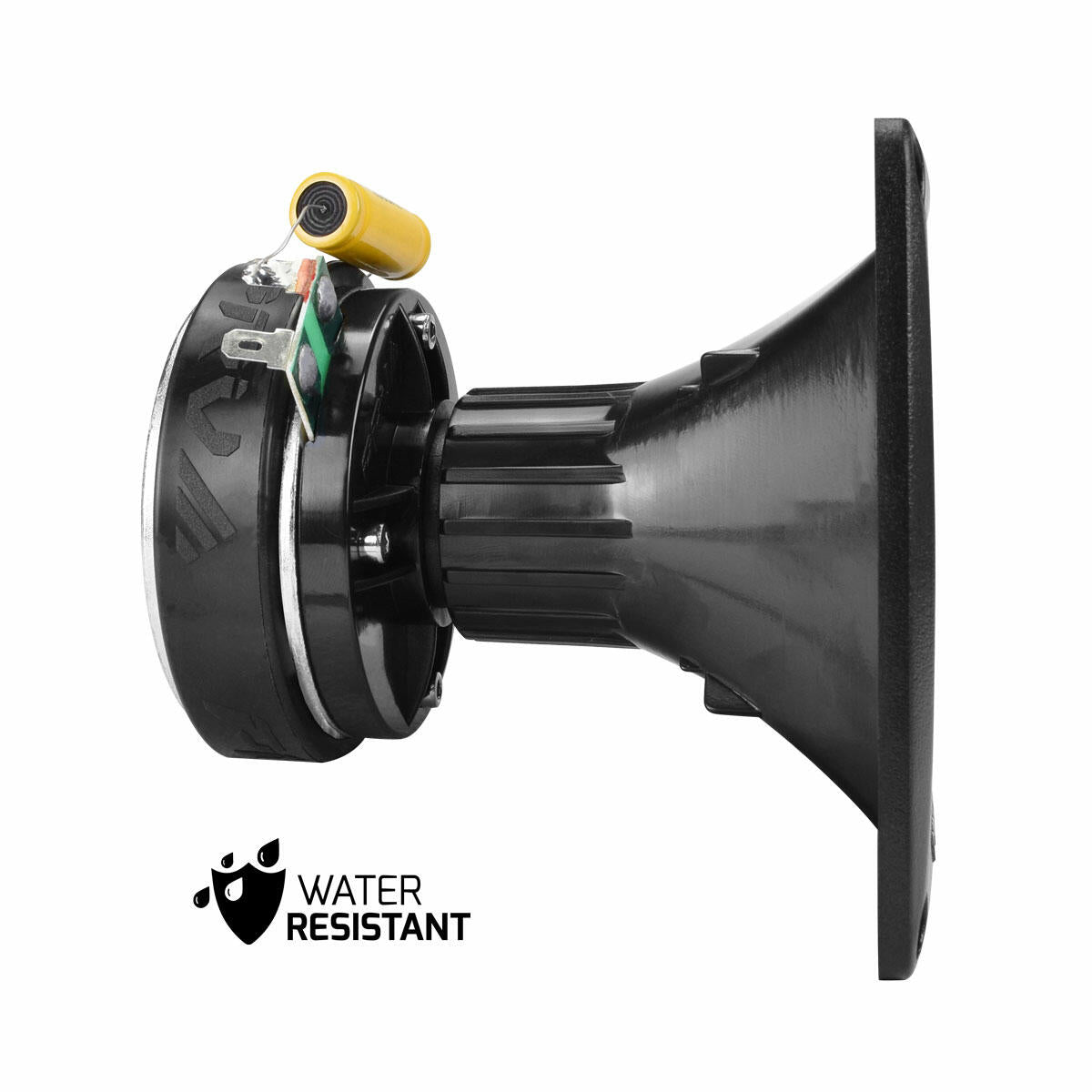

- Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
- The horn design ensures a wide 45 x 45 dispersion pattern which is ideal for filling any size space with sound. Capacitor included. 8 Ohm Voice Coil.
The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers outstanding response through 16kHz.
Its upper midrange and high response, translates into smooth, non-fatiguing output thanks to its built-in capacitor.
With only 4.32 of mounting depth, these horn tweeters are an excellent solution when you need wide dispersion of high frequency sounds.
PRV 1 Horn Driver WG175Ph PRO Audio High Frequency 150 Watts 8 Ohm
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1 (25.4mm) |
| Nominal impedance | 8 Ohms |
| Nominal Power Handling | 75 Watts |
| Continuous Program Power (RMS) | 150Watts |
| Peak Power | 300 Watts |

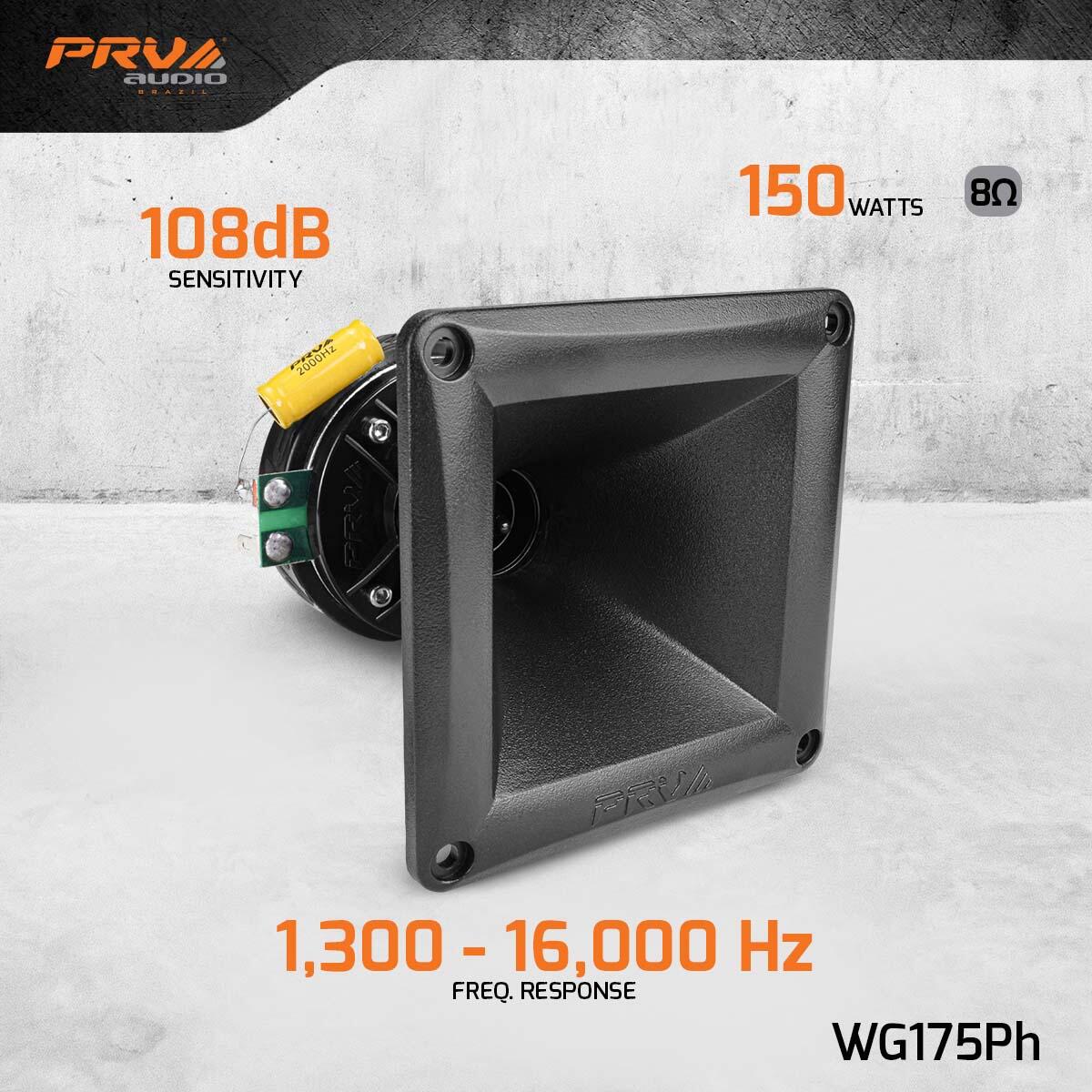

| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 3000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 - 16,000 Hz |
| Voice Coil Diameter | 1" (25.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.02 T |
| Magnet Material | Ferrite |
EXTRA INFO

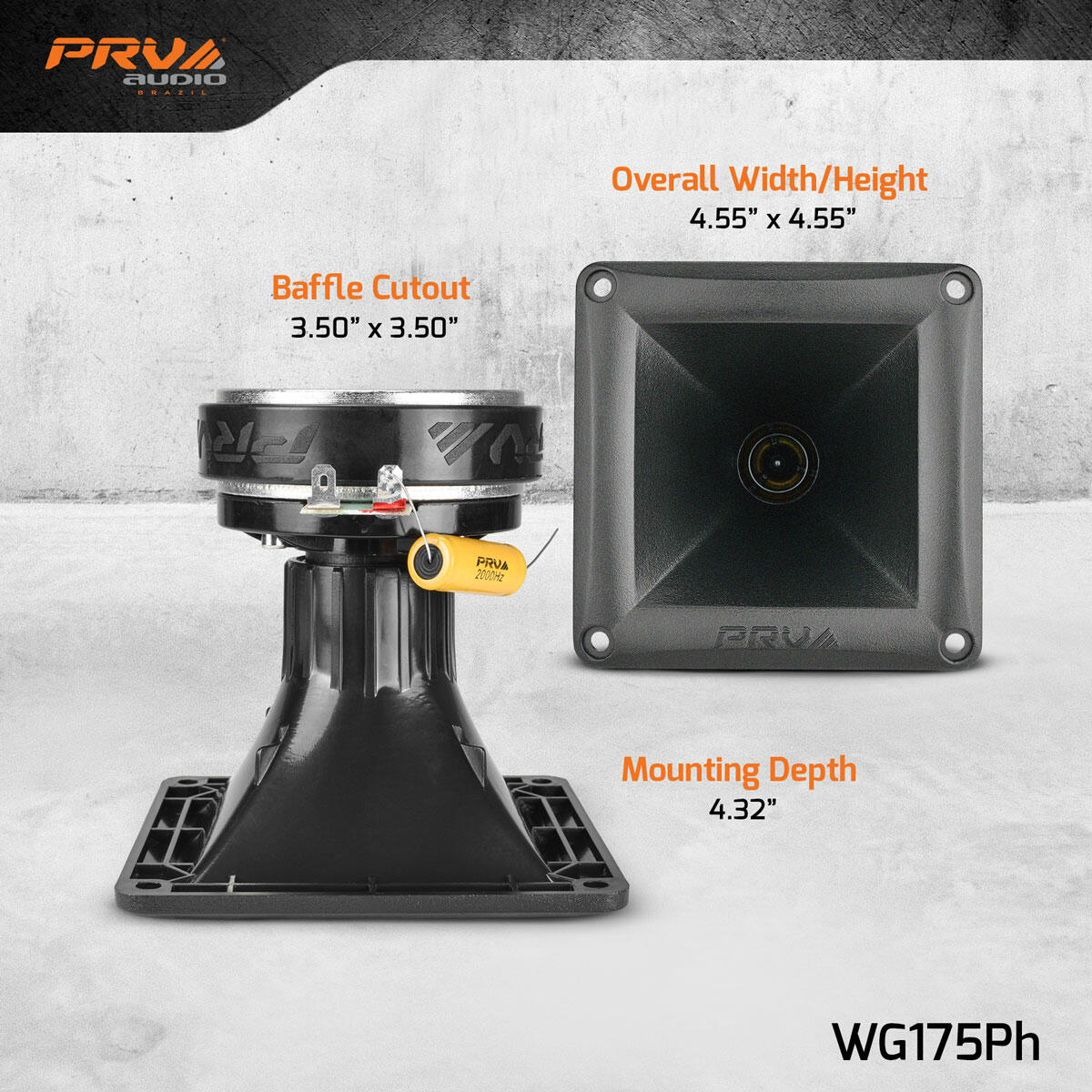

| Overall Depth | 4.61 (117.0 mm) |
| Mounting Depth | 4.32 (109.7 mm) |
| Overall Width | 4.55 (115.5 mm) |
| Overall Height | 4.55 (115.5 mm) |
| Baffle Cutout WxH | 3.50" x 3.50" (89.0 x 89.0 mm) |
| Net Weight | 1.9 lbs (0.86 kg) |
| Shipping Weight | 2.0 lbs (0.92 kg) |
| Carton Dimensions W x L x H | 4.80 x 4.80 x 4.96 (122 x 122 x 126 mm) |
