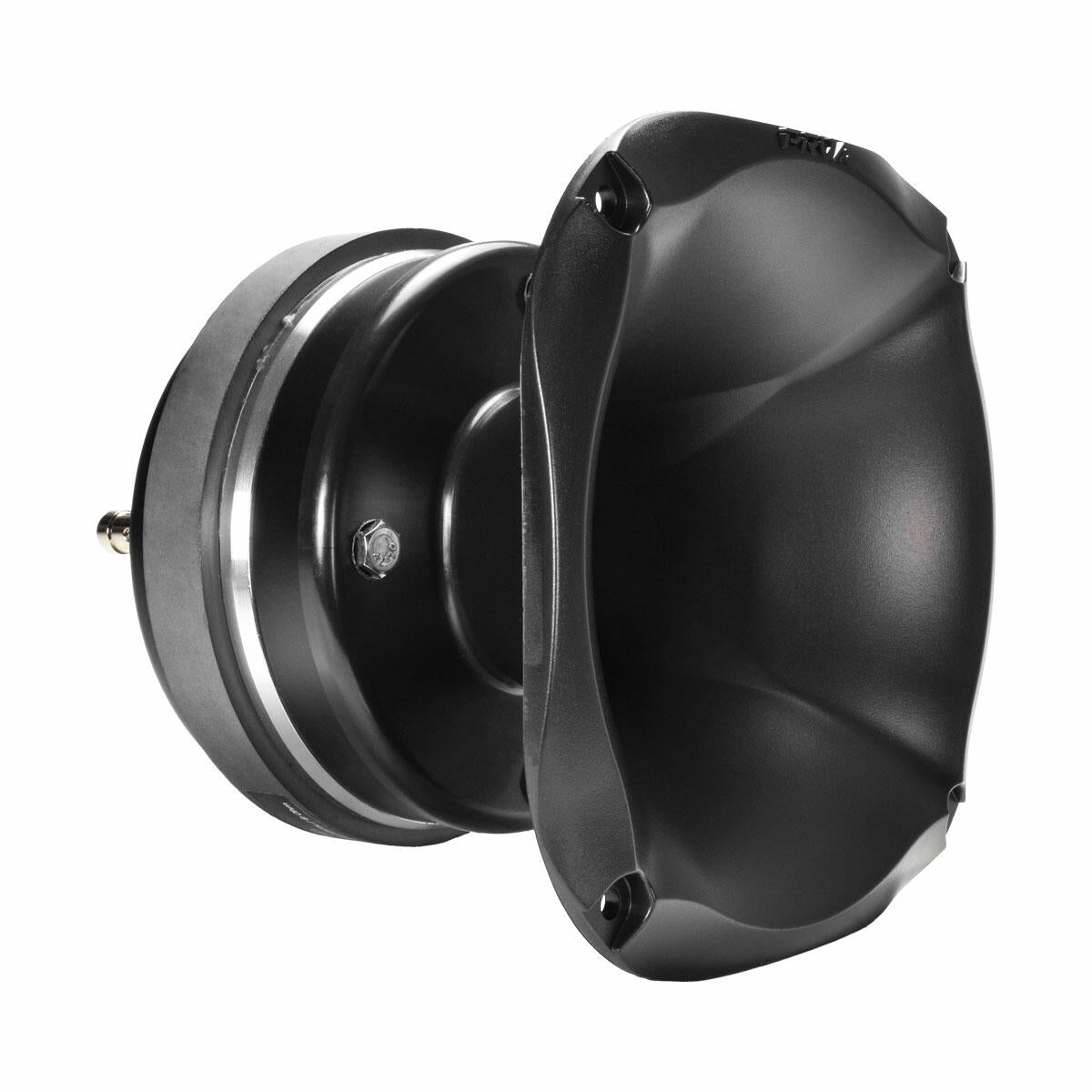

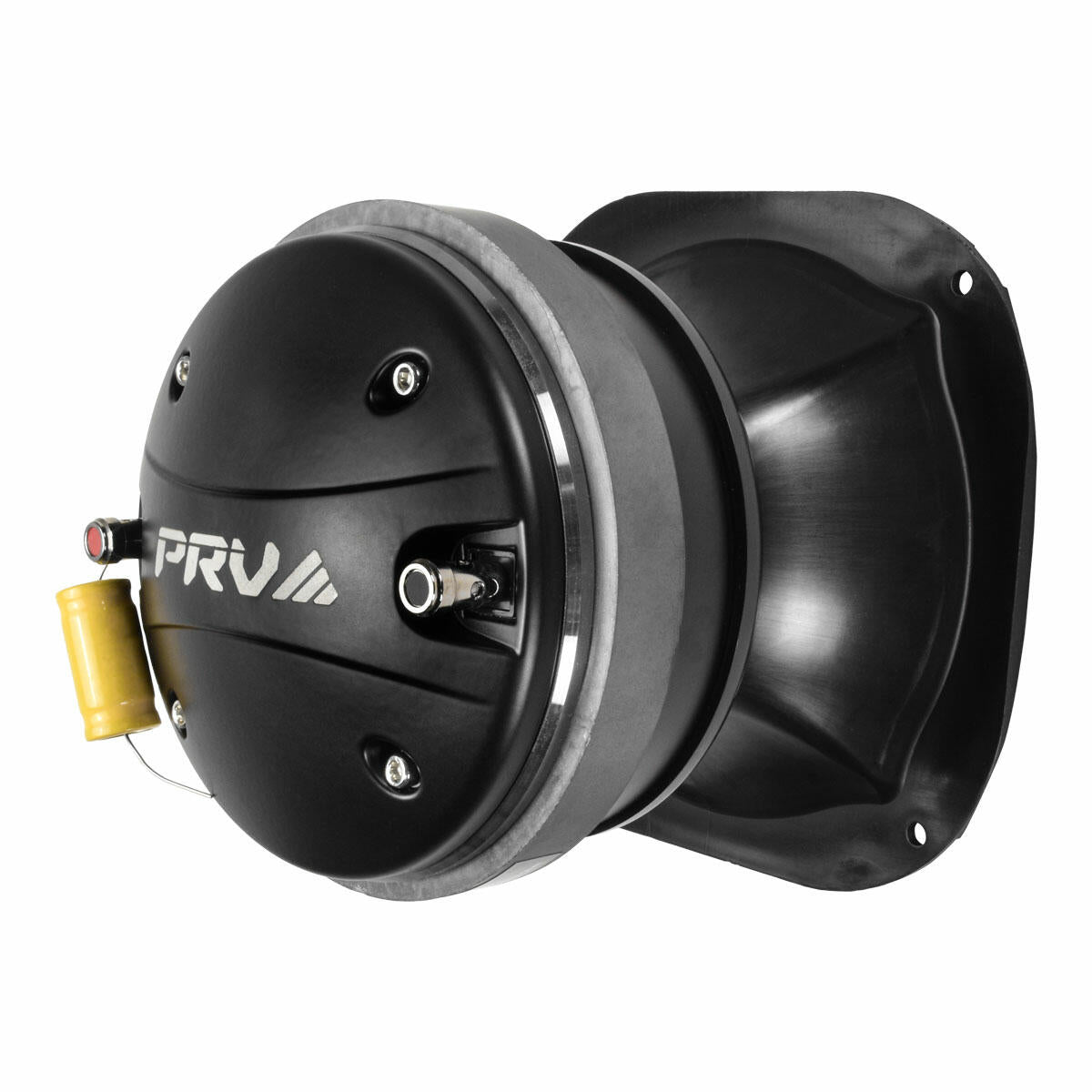

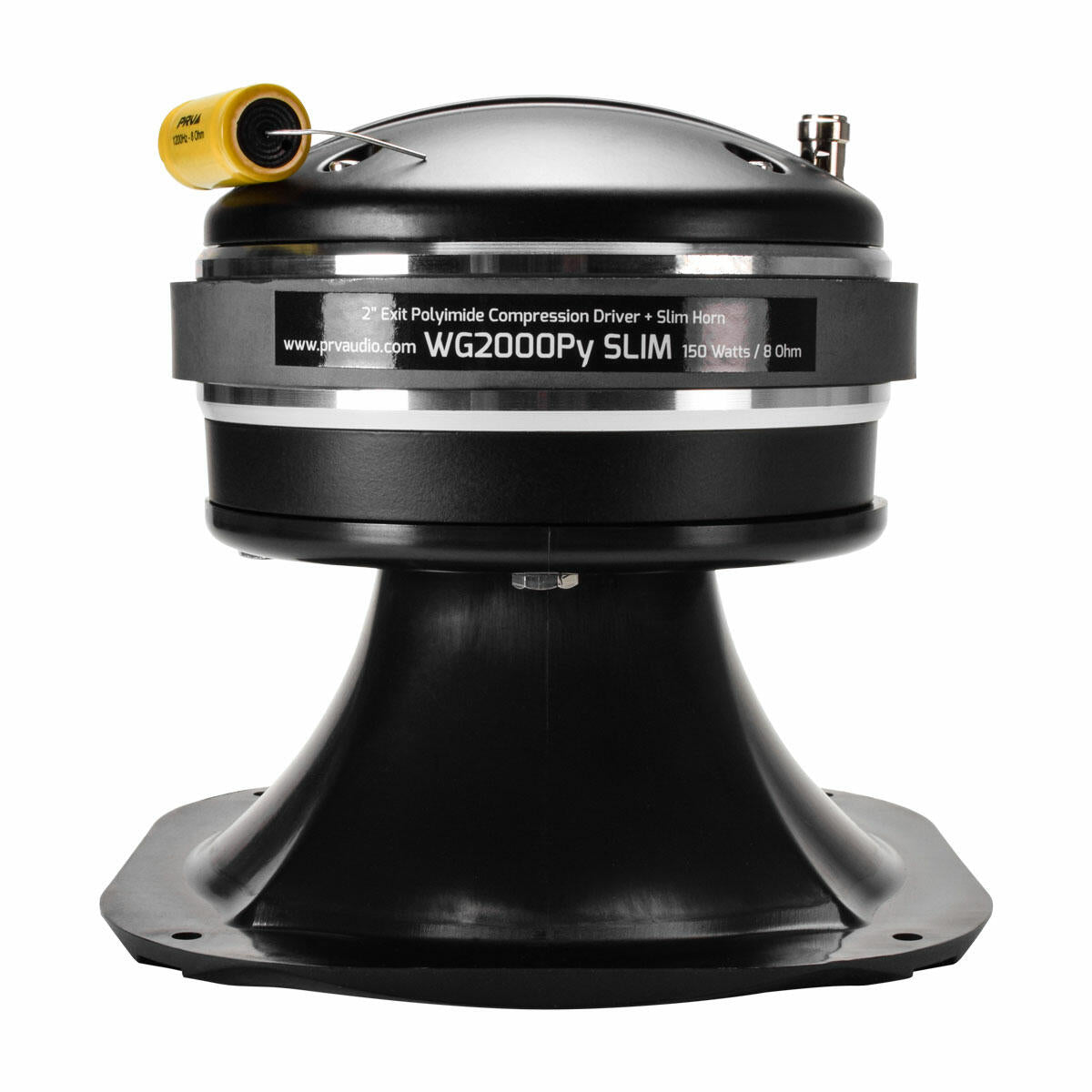

PRV Audio WG2000Py SLIM 2" Exit Mids & Highs Compression Driver with Horn
-
Estimated Delivery:Jun 17 - Jun 21
-
Free Shipping*: excludes oversized items
GUARANTEED SAFE & SECURE CHECKOUT
PRV Audio WG2000Py SLIM 2" Exit Mids & Highs Compression Driver with Horn
Features
The WG2000Py SLIM is a Shallow mount 2 horn driver featuring a Polyimide Pro Audio Compression Driver with a 2 exit WGP14-50X Slim Waveguide.
This is a top-of-the-line horn driver designed to offer unsurpassed natural upper midrange and high frequency response at high sensitivity, with crystal clear natural sound from the Polyimide diaphragm.
- Polyimide diaphragm with large 2.0 Voice Coil, providing dynamic output along with excellent efficiency 107 dB Sensitivity
- Mids & Highs 2 Exit Driver + Shallow Horn WGP14-50X Perfect as compression driver for car audio
- Crystal clear natural sound with wider response from 1000 to 17,000 Hz
- PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
- Compact driver mounted on slim horn, ideal for tight spaces, increase sound output on your system with this slim solution. Great choice for custom car audio door panels
The drivers small diameter allows front mounting, making it easy to install without detaching the driver from the WGP14-50X Horn.
Its design was developed to give custom doors a new solution for a shallow horn driver, its 2.0 voice coil allows it to push more power into it, increasing its output tremendously because of its low mass diaphragm.
The specially designed Polyimide diaphragm provides durability and additional damping for natural sound quality. This technology raises the bar for high frequency drivers by giving the driver wider usable bandwidth for smooth, dynamic output along with excellent efficiency.
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
PRV Audio WG2000Py SLIM Shallow Mount 2 Exit Mids & Highs Horn Driver 150 Watts 8 Ohm Compression Horn driver for Car Audio
Recommended Amplifier configurations and crossover points:
2 Drivers 1x MDX400.4 2 Ohm, 2 drivers in parallel on a bridged channel
4 Drivers 1x MDX1200.2 at 2 Ohm, 4 drivers in parallel on 1 channel
( Other channel on the amplifier may be used for Tweeters )
8 Drivers 1x MDX1200.2 at 2 Ohm, 4 drivers in parallel per channel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 150 Watts RMS musical power ( without clipping )
- 1000 Hz at 12 dB per octave filter Crossover / BT12
- 900 Hz at 18 dB per octave filter Crossover / BT18
Recommended LPF is 20,000 Fullrange but you may set it lower to blend in better depending on the other components in your system.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2 (50 mm) |
| Nominal impedance | 8 Ohm |
| Nominal Power Handling | 75 Watts |
| Continuous Program Power (RMS)** | 150 Watts |
| Peak Power | 300 Watts |

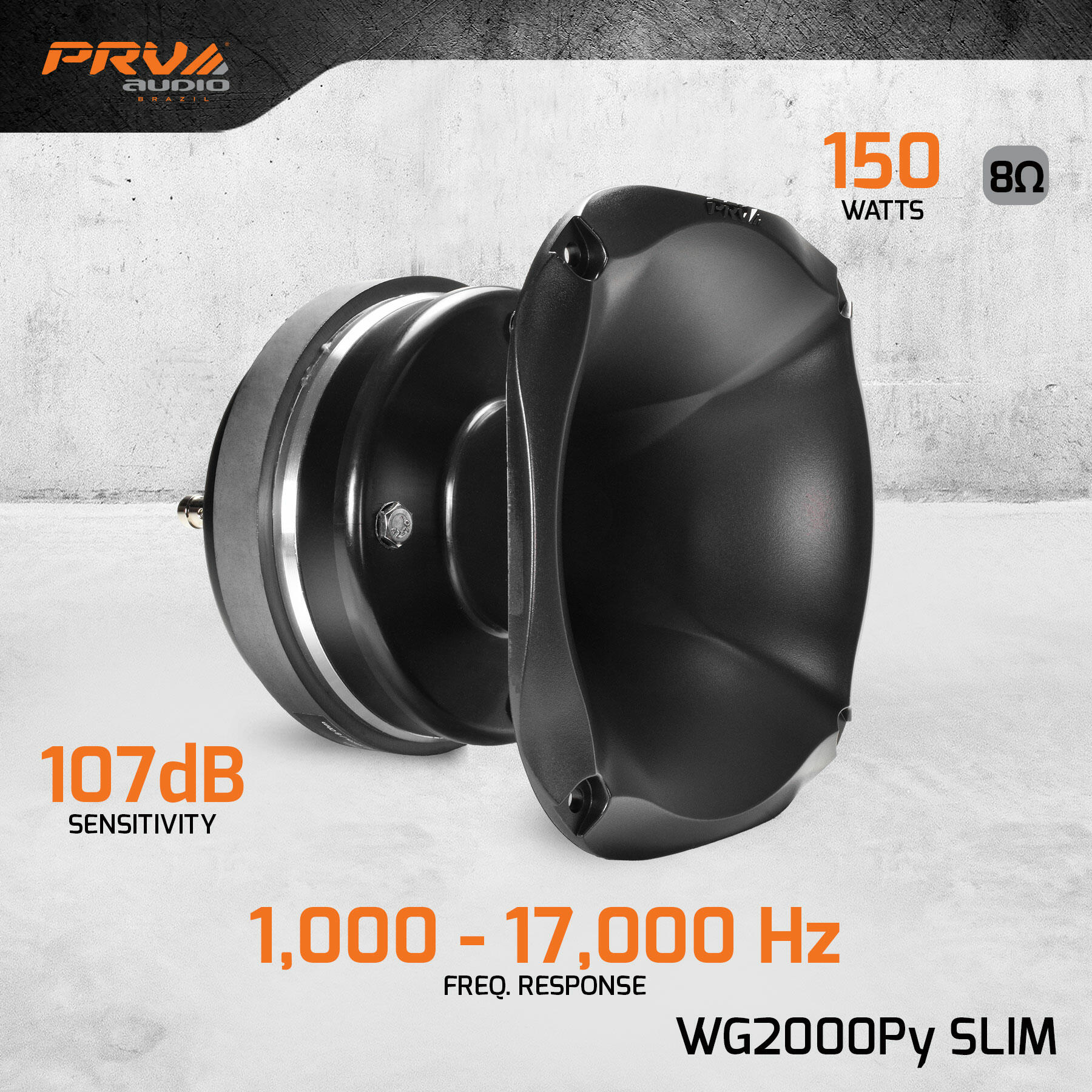

| Sensitivity 2.83V at 1m | 107 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 1000 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 1000 - 17,000 Hz |
| Voice Coil Diameter | 2(51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Polyimide |
| Flux Density | 2.10 T |
| Magnet Material | Ferrite |
EXTRA INFO

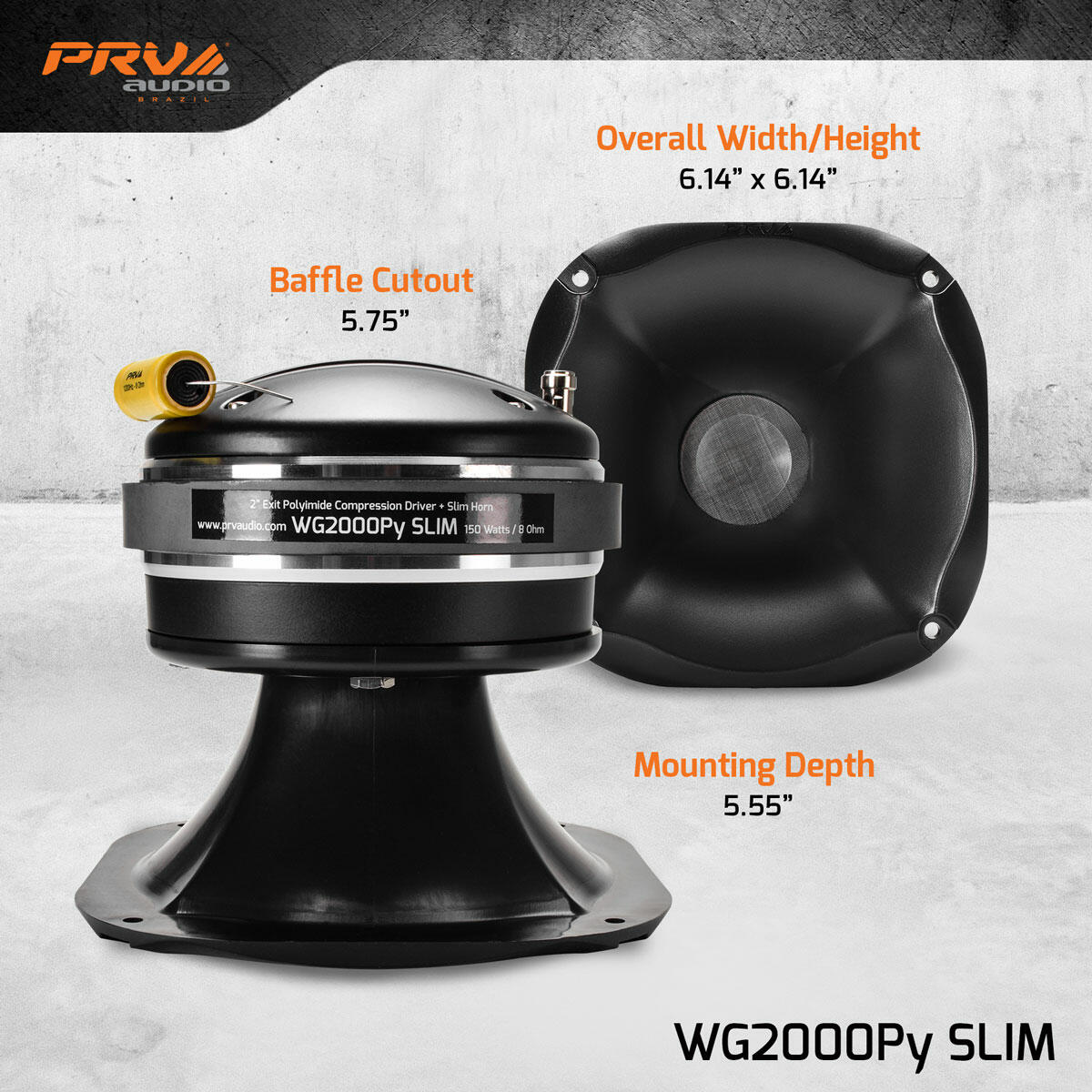

| Overall Depth | 5.87 (149 mm) |
| Mounting Depth | 5.55 (141 mm) |
| Overall Width | 6.14" (156 mm) |
| Overall Height | 6.14" (156 mm) |
| Baffle Cutout | 5.75"(146 mm) |
| Net Weight | 6.45 lbs (2.94 kg) |
| Shipping Weight | 7.05 lbs (3.20 kg) |
| Carton Dimensions W x L x H | 6.89 x 6.89 x 7.48 (175x 175 x 190mm) |
